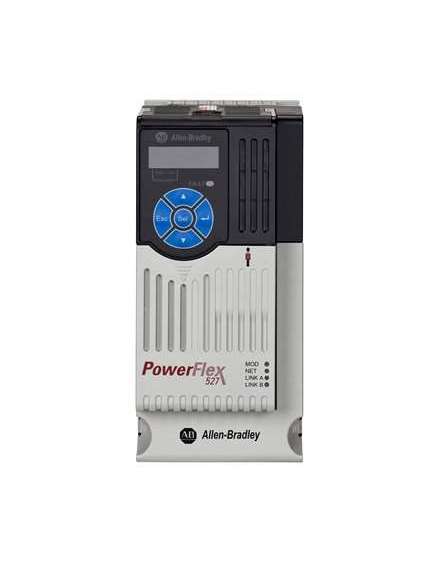

The Allen-Bradley 25C-B017N104 PowerFlex 527 Adjustable Frequency AC Drive is designed to precisely control motor speed, torque, and position, offering flexible modulation methods including Basic Volts/Hertz, Sensorless Vector Control, and Closed Loop control for high precision. Delivering an output current of 17.5 A and a power capacity of 4 kW (5 HP) with an impressive efficiency of 97.5%, this IP20-rated drive supports DIN rail or panel mounting and includes a versatile Human Interface Module supporting multiple languages. Featuring Premiere integration over Ethernet/IP, an extensive input and output configuration, and robust safety protections, this drive is ideal for demanding industrial applications requiring motor synchronization and advanced machine control.
All products are covered by Industrial Automation Co.'s 2-Year Warranty.
Condition | SKU | Price | Warranty | Availability | Quantity | Purchase |
---|---|---|---|---|---|---|
Manufacturer | Rockwell Automation |
---|---|
Brand | Allen-Bradley |
Part Number/Catalog No. | 25C-B017N104 |
Manufacturer: | Rockwell Automation / Allen-Bradley |
Series | PowerFlex 527 |
Product Family: | PowerFlex 527 |
Voltage Class | 240 AC Volts |
Part Number: | 25C-B017N104 |
Output Current | 17.5 Amperes |
Input Voltage range: | 170-264 VAC, 3-Phase |
Frame Size | B |
Nominal input voltage: | 200-240 VAC, 3-Phase |
Enclosure Type | IP20 NEMA (Open) |
Output voltage range: | 0-230 VAC, 3-Phase |
EMC Filtering Option | No |
Output Current: | 17.5 A |
Phase Count | Three |
Output Power: | 4 k W or 5.0 HP |
Horsepower | 5 |
Output frequency: | 0-590 Hz (programmable) |
Communication | EtherNet IP (Dual Port) |
Embedded I/O: | Discrete Inputs: Three (3) semi-programmable and Four (4) Fully programmable sink / source inputs Discrete Outputs: Two (2) Form C contacts and One (1) optocoupler output outputs Analog Input: One (1) Unipolar –10…10V or One (1) bipolar 0…10V or 4…20 mA. Analog Output: Two (2) 0-10VDC; 0-20mA |
Installation: | Panel Mount / DIN Rail |
Zero Stacking: | Supported |
Enclosure Rating: | IP20 / NEMA UL Type Open |
Built-in communication port: | Ethernet I/P |
Control Method: | Volts per Hertz (V/Hz), C/Hz for Fan and Pump, Sensorless Vector Control (SVC), Closed loop velocity vector control, Closed Loop Position vector |
Integrated safety: | Safe-Torque Off (STO) functionality |
EMC Filter: | Integrated |
Overcurrent: | 200% hardware limit, 300% instantaneous fault |
Electronic Motor Overload Protection: | Class 10 motor overload protection in compliance with NEC article 430; |
