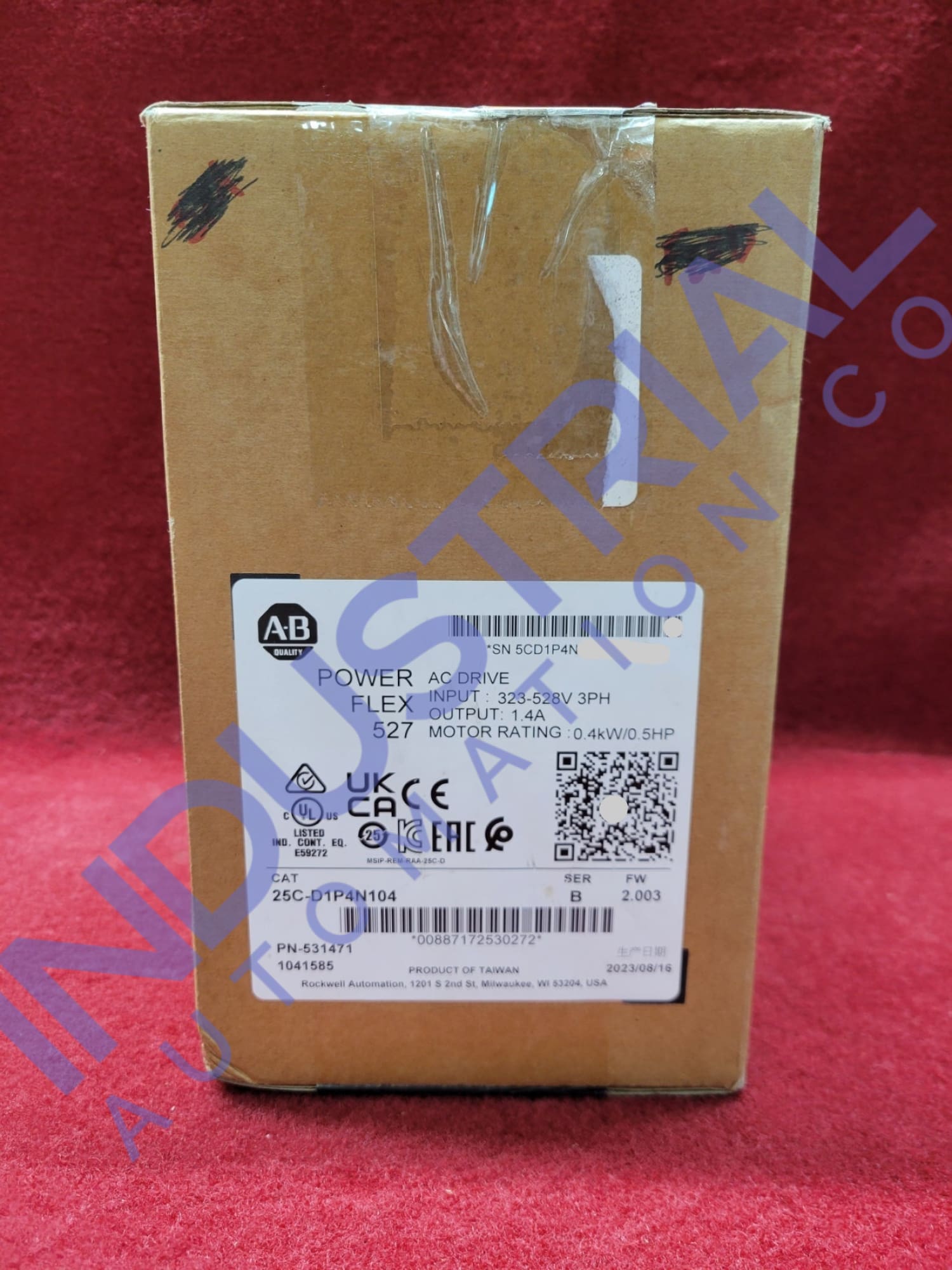

Allen-Bradley 25C-D1P4N104
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.
The 25C-D1P4N104 is a compact yet powerful member of the PowerFlex 527 Adjustable Frequency AC Drive series designed by Allen-Bradley, offering robust motor control for industrial applications. It operates with a 3-phase input voltage range of 323-528 VAC, delivering an output of 1.4 Amperes and 0.5 Horsepower, and is especially versatile with its support for DIN rail and panel mounting, suited for both horizontal and vertical installation. Noteworthy features include advanced Position and Velocity loop control, Sensorless Vector Control, and an intuitive Human Interface Module (HIM) with multi-language support, facilitating effortless configuration. Enhanced by dual Ethernet ports, Safe Torque-off, and compatibility with Studio Logix PACs, this drive also adheres to CE, C-TICK, CUL, KC, and UL standards, ensuring reliable performance across diverse industrial settings.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 25C-D1P4N104
| Brand | Allen-Bradley |
|---|---|
| Part Number/Catalog No. | 25C-D1P4N104 |
| Output Current | 1.4 A |
| Manufacturer | |
| Input Voltage: | 323-528 VAC |
| Input Phase: | 3-Phase |
| Output Voltage: | 0-460VAC |
| Output Power: | 0.5 HP (0.4 kW) |
| I/O: | Discrete Inputs: Four (4) Inputs Discrete Outputs: Two (2) Opto-Outputs and Two (2) Relay Outputs Analog Input: Two (2) Analog Input Analog output: One (1) analog output |
| Installation: | Panel Mount / DIN Rail |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Control Method: | Volts per Hertz (V/Hz), C/Hz for Fan and Pump, Sensorless Vector Control (SVC), Closed loop velocity vector control, Closed Loop Position vector |
| Built-in communication port: | Ethernet I/P |
| Ethernet topologies: | Linear; Device Level Ring (DLR) |
| Integrated Safety: | Safe-Torque Off (STO) functionality |
| Human Interface Module (HIM): | Yes; Standard HIM |
| Compatible Controllers: | CompactLogix; GuardLogix; ControlLogix |
| Manufacturer: | |
| Series | PowerFlex 527 |
| Product Family: | PowerFlex 527 |
| Voltage Class | 480 AC Volts |
| Part Number: | 25C-D1P4N104 |
| Input Voltage range: | 323-528 VAC, 3-Phase |
| Frame Size | A |
| Nominal input voltage: | 380-480 VAC, 3-Phase |
| Enclosure Type | IP20 NEMA (Open) |
| Output voltage range: | 0-460 VAC, 3-Phase |
| EMC Filtering Option | No |
| Output Current: | 1.4 A |
| Phase Count | Three |
| Output Power: | 0.4 k W / 0.5 HP |
| Horsepower | 0.5 |
| Output frequency: | 0-590 Hz (programmable) |
| Communication | EtherNet IP (Dual Port) |
| Embedded I/O: | Discrete Inputs: Three (3) semi-programmable and Four (4) Fully programmable sink / source inputs Discrete Outputs: Two (2) Form C contacts and One (1) optocoupler output outputs Analog Input: One (1) Unipolar –10…10V or One (1) bipolar 0…10V or 4…20 mA. Analog Output: Two (2) 0-10VDC; 0-20mA |
| Zero Stacking: | Supported |
| EMC Filter: | Integrated |
| Overcurrent: | 200% hardware limit, 300% instantaneous fault |
| Electronic Motor Overload Protection: | Class 10 motor overload protection in compliance with NEC article 430; |
