Allen-Bradley 2711P-T15C21D8S
Allen-Bradley 2711P-T15C21D8S

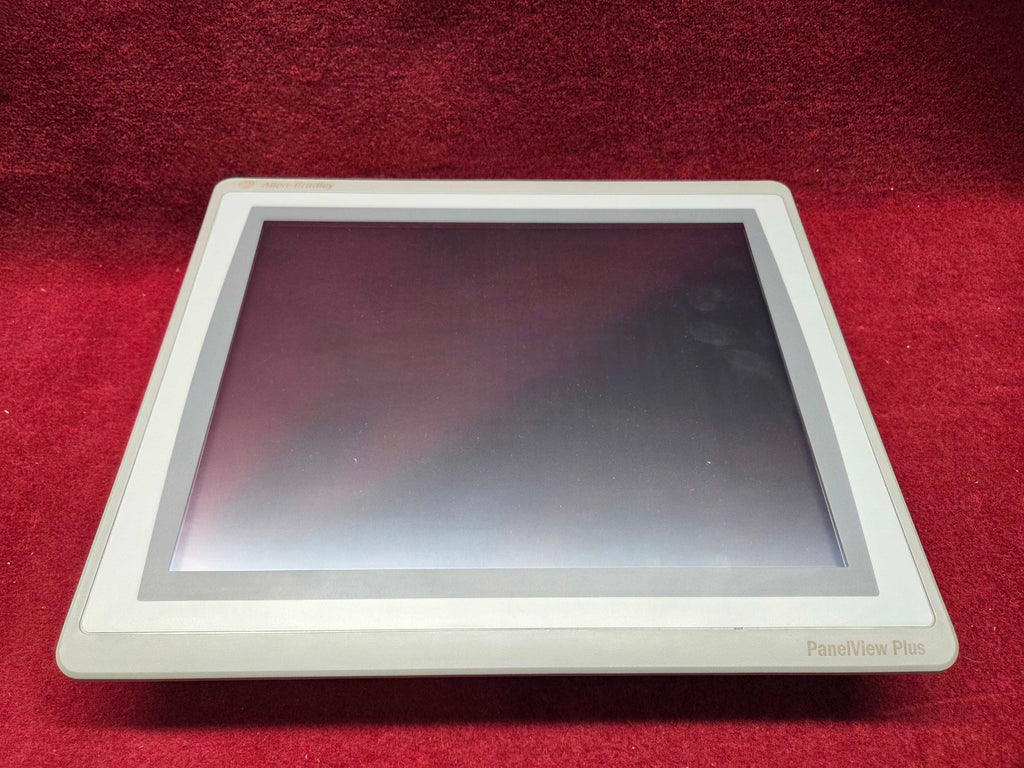

The Allen-Bradley PanelView model 2711P-T15C21D8S offers high-performance industrial display. Allen-Bradley, a renowned brand under Rockwell Automation, is a global leader in industrial automation and control systems. It operates on a 24V DC nominal input voltage. It has a maximum power consumption of 50 W. The recommended replacement power supply is the 2711P-RSACDIN.
Technical Specifications:
The PanelView model can operate within a temperature range of 0 to 55°C. It can tolerate temperatures ranging from -25 to +70°C while not in use. It functions efficiently in relative humidity from 5% to 95%, without condensation. The device dissipates 30 W of heat, translating to 102 BTU. The device is capable of functioning at elevations reaching up to 2000 meters.
For vibration, the PanelView endures 0.012 pk-pk from 10 to 57 Hz and 2g peak from 57 to 500 Hz. It withstands operational shock of 15g at 11 ms and non-operational shock of 30g at 11 ms. The enclosure ratings include NEMA and UL Types 12, 13, 4X for indoor use, and IP54 or IP66.
It holds various certifications, including IECEx, CCC, cULus, ATEX, INMETRO, CE, UKCA, RCM, Morocco, EAC, RoHS, and KCC. These certifications ensure compliance with global standards for safety and performance.
Operational and Installation Parameters:
The display features a 15-inch color TFT LCD. The viewing area measures 304 x 228 mm with a resolution of 1024 x 768 XGA. The aspect ratio is 4:3, and it has a brightness of 300 nits. The backlight has a lifespan of at least 50,000 hours when used at 40°C. With an operating force of 100 grams, the analog resistive touch screen can withstand one million presses.
System memory includes 512 MB of RAM and 512 MB of storage. User memory includes 80 MB of nonvolatile storage. It is compatible with 1784-SD1, 1784-SD2, 1784-SDHC8, and 1784-SDHC32 SD cards. A CR2032 lithium coin battery powers the real-time clock. The clock maintains an accuracy of ±2 minutes per month. It has a battery life of at least 4 years at a temperature of 25°C. The PanelView includes one USB 2.0 high-speed host port and one high-speed 1.0 device port for versatile connectivity options.
Safety Precautions:
For Ethernet connections, catalog numbers with 21 feature a single 10/100Base-T port with IEEE 1588 support. In contrast, catalog numbers with 22 include two 10/100Base-T ports, compatible with star, linear, or DLR topologies. With features like ActiveX controls, FTP, VNC client/server, and a PDF reader, the operating system is Windows CE. The firmware is designed to work only with version 13.x and higher. To ensure the Allen-Bradley PanelView 2711P-T15C21D8S functions optimally and remains safe, proper installation and regular maintenance are critical.
Frequently Asked Questions:
What are the acceptable operating temperature ranges for the Allen-Bradley PanelView 2711P-T15C21D8S?
The Allen-Bradley PanelView 2711P-T15C21D8S functions effectively within a temperature span of 0 to 55°C. When not in operation, it withstands temperatures ranging from -25 to +70°C for ensuring dependable performance across diverse environmental settings.
Which Ethernet port options are provided on the PanelView 2711P-T15C21D8S?
The PanelView 2711P-T15C21D8S comes with different Ethernet port configurations. There is one 10/100Base-T port with IEEE1588 compatibility for catalog numbers beginning with 21. Catalog numbers with 22 include two 10/100Base-T ports supporting star, linear, or DLR topology.
What is the power consumption and input voltage of the PanelView 2711P-T15C21D8S?
The PanelView 2711P-T15C21D8S has a maximum power consumption of 50 W. It operates on a 24V DC nominal input voltage, with a range of 18 to 30V DC.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Operating Temperature | 0-55°C (32-131°F) |
| Display Size (Diagonal) | 15 inches |
| Display Resolution | 1024 x 768 XGA, 18-bit color graphics |
| Touch Screen | Analog resistive with an actuation rating of 1 million presses |
| Memory | 512 MB RAM and 512 MB storage |
| USB Ports | One USB 2.0 high-speed host port (type A) and one high-speed 1.0 device port (type B) |
| Ethernet Ports | Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports supporting star, linear, or DLR network topology |
| Input Voltage (DC) | 24V DC nominal (18-30V DC) |
| Enclosure Ratings | NEMA and UL Type 12, 13, 4X (indoor use only), IP54 or IP66 |
| Certifications | IECEx, CCC, cULus, ATEX, INMETRO, CE, UKCA, RCM, Morocco, EAC, RoHS, KCC |
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description
Allen-Bradley 2711P-T15C21D8S
The Allen-Bradley PanelView model 2711P-T15C21D8S offers high-performance industrial display. Allen-Bradley, a renowned brand under Rockwell Automation, is a global leader in industrial automation and control systems. It operates on a 24V DC nominal input voltage. It has a maximum power consumption of 50 W. The recommended replacement power supply is the 2711P-RSACDIN.
Technical Specifications:
The PanelView model can operate within a temperature range of 0 to 55°C. It can tolerate temperatures ranging from -25 to +70°C while not in use. It functions efficiently in relative humidity from 5% to 95%, without condensation. The device dissipates 30 W of heat, translating to 102 BTU. The device is capable of functioning at elevations reaching up to 2000 meters.
For vibration, the PanelView endures 0.012 pk-pk from 10 to 57 Hz and 2g peak from 57 to 500 Hz. It withstands operational shock of 15g at 11 ms and non-operational shock of 30g at 11 ms. The enclosure ratings include NEMA and UL Types 12, 13, 4X for indoor use, and IP54 or IP66.
It holds various certifications, including IECEx, CCC, cULus, ATEX, INMETRO, CE, UKCA, RCM, Morocco, EAC, RoHS, and KCC. These certifications ensure compliance with global standards for safety and performance.
Operational and Installation Parameters:
The display features a 15-inch color TFT LCD. The viewing area measures 304 x 228 mm with a resolution of 1024 x 768 XGA. The aspect ratio is 4:3, and it has a brightness of 300 nits. The backlight has a lifespan of at least 50,000 hours when used at 40°C. With an operating force of 100 grams, the analog resistive touch screen can withstand one million presses.
System memory includes 512 MB of RAM and 512 MB of storage. User memory includes 80 MB of nonvolatile storage. It is compatible with 1784-SD1, 1784-SD2, 1784-SDHC8, and 1784-SDHC32 SD cards. A CR2032 lithium coin battery powers the real-time clock. The clock maintains an accuracy of ±2 minutes per month. It has a battery life of at least 4 years at a temperature of 25°C. The PanelView includes one USB 2.0 high-speed host port and one high-speed 1.0 device port for versatile connectivity options.
Safety Precautions:
For Ethernet connections, catalog numbers with 21 feature a single 10/100Base-T port with IEEE 1588 support. In contrast, catalog numbers with 22 include two 10/100Base-T ports, compatible with star, linear, or DLR topologies. With features like ActiveX controls, FTP, VNC client/server, and a PDF reader, the operating system is Windows CE. The firmware is designed to work only with version 13.x and higher. To ensure the Allen-Bradley PanelView 2711P-T15C21D8S functions optimally and remains safe, proper installation and regular maintenance are critical.
Frequently Asked Questions:
What are the acceptable operating temperature ranges for the Allen-Bradley PanelView 2711P-T15C21D8S?
The Allen-Bradley PanelView 2711P-T15C21D8S functions effectively within a temperature span of 0 to 55°C. When not in operation, it withstands temperatures ranging from -25 to +70°C for ensuring dependable performance across diverse environmental settings.
Which Ethernet port options are provided on the PanelView 2711P-T15C21D8S?
The PanelView 2711P-T15C21D8S comes with different Ethernet port configurations. There is one 10/100Base-T port with IEEE1588 compatibility for catalog numbers beginning with 21. Catalog numbers with 22 include two 10/100Base-T ports supporting star, linear, or DLR topology.
What is the power consumption and input voltage of the PanelView 2711P-T15C21D8S?
The PanelView 2711P-T15C21D8S has a maximum power consumption of 50 W. It operates on a 24V DC nominal input voltage, with a range of 18 to 30V DC.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Operating Temperature | 0-55°C (32-131°F) |
| Display Size (Diagonal) | 15 inches |
| Display Resolution | 1024 x 768 XGA, 18-bit color graphics |
| Touch Screen | Analog resistive with an actuation rating of 1 million presses |
| Memory | 512 MB RAM and 512 MB storage |
| USB Ports | One USB 2.0 high-speed host port (type A) and one high-speed 1.0 device port (type B) |
| Ethernet Ports | Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports supporting star, linear, or DLR network topology |
| Input Voltage (DC) | 24V DC nominal (18-30V DC) |
| Enclosure Ratings | NEMA and UL Type 12, 13, 4X (indoor use only), IP54 or IP66 |
| Certifications | IECEx, CCC, cULus, ATEX, INMETRO, CE, UKCA, RCM, Morocco, EAC, RoHS, KCC |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
| Manufacturer | Industrial Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2711P-T15C21D8S |
| Product Line | Panelview Plus 7 |
| Input Type | Touchscreen |
| Display Size | 15 in. |
| Display Color | TFT Color Display |
| Memory | 512 Mb |
| Software | FactoryTalk View Studio or Factory Talk ViewPoint |
| Input Voltage | 24 VDC |
| Backlight | LED |
| Weight | 8.14 LBS |
| UPC | 887172715440 |
