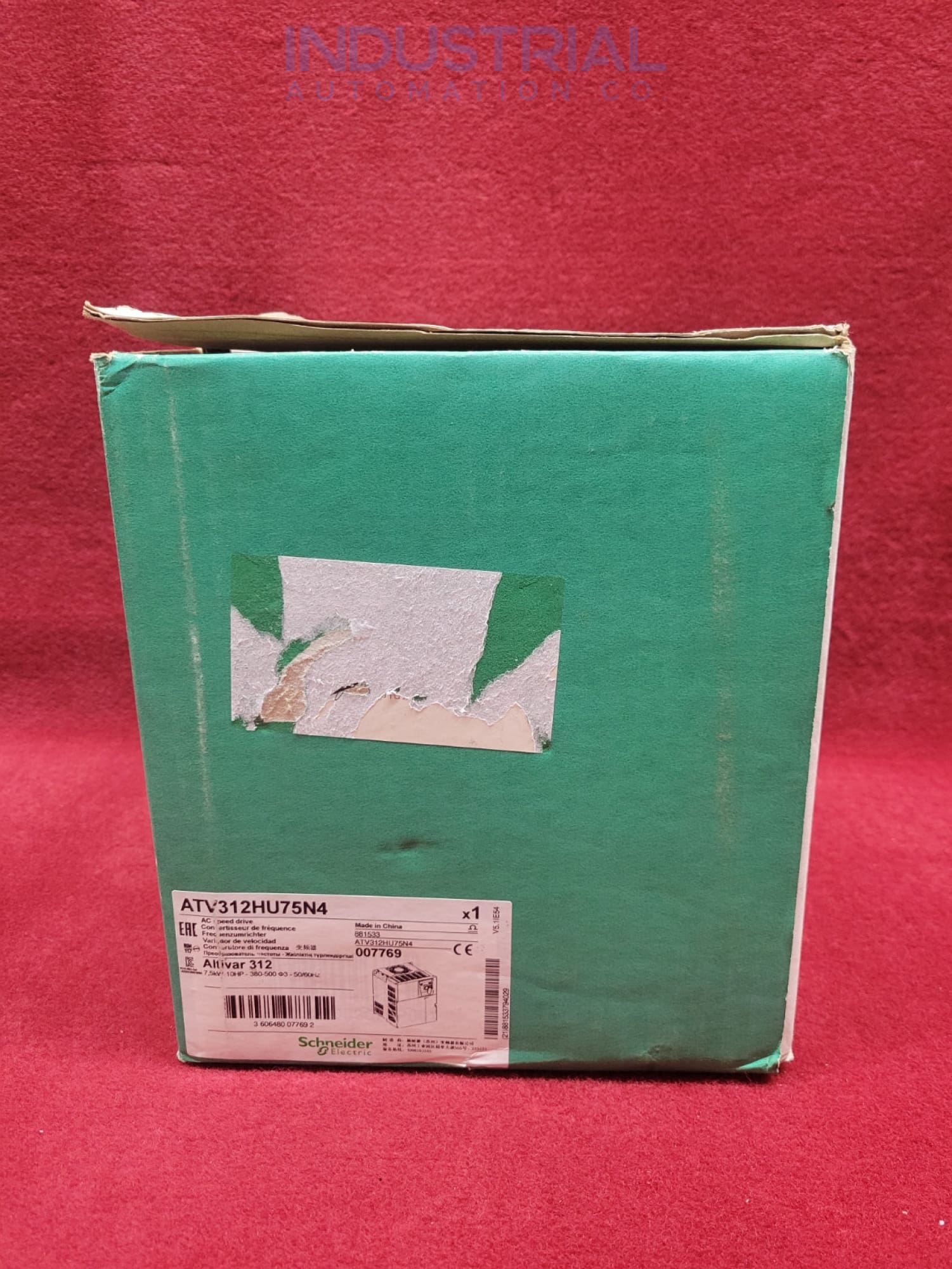

Schneider Electric ATV312HU75N4

Schneider Electric Atv312Hu75N4

Schneider Electric ATV312HU75N4

The Schneider Electric ATV312HU75N4 is a robust variable speed drive from the ATV312 product series, designed to enhance industrial efficiency by providing precise control over motor speed. The drive is suitable for various industrial applications, especially those involving asynchronous motors in simple machine setups.

Technical Specifications:

Schneider Electric ATV312HU75N4 has 12 kVA apparent power and 7.5 kW (10 HP) motor power. A three-phase power source with 323–550 V input is needed. Due to its wide voltage range, it can be employed in many industrial power systems and applications.

The ATV312HU75N4's output voltage is 0 to 500 V, giving you plenty of motor speed and torque adjustment options. Strong industrial applications can't match the drive's 17 A output current. It may be easily integrated into regions and applications requiring conventional frequencies, with a frequency range of 50/60 Hz ±5%.

The ATV312HU75N4 is a top industrial drive with 98% full-load efficiency. High efficiency minimizes energy loss by using all available power for operations. Flux vector control and voltage/frequency ratio control allow precise and responsive motor control under diverse load conditions.

Due to its wide working temperature range of 14°F to 122°F without derating, the ATV312HU75N4 works well in many settings. The 232 x 150 x 172 mm drive is compact and easy to install in tight spaces. At 4.8 kg, it's light and easy to set up.

Communication and Integration:

Modern industrial automation uses the ATV312HU75N4's CANopen and Modbus. These protocols are suitable for many automation networks due to their superior communication and control. For industrial needs, the drive supports DeviceNet, Fipio, Modbus TCP, and Profibus DP connection cards.

An inbuilt EMC filter minimizes electromagnetic interference in the ATV312HU75N4 for dependable operation. Signal preservation and electrical noise prevention depend on this function. Durable housing makes this drive last. IP20 (top section without cover plate), IP21 (connecting terminals), IP31, and IP41 protect it from dust, moisture, and other external variables.

Applications and Benefits:

Many industrial applications require variable speed control of asynchronous motors, and the Schneider Electric ATV312HU75N4 is ideal. Its motor control capabilities enhance material handling, processing, and production. You may accurately control the motor speed from 1 to 50 Hz for varied procedures.

The drive's durability and efficiency save energy and money. Interoperability with numerous communication protocols and supplementary cards makes it suitable for integration into complex automation systems. The tiny size and lightweight design make installation and maintenance easy, reducing downtime and increasing output.

Frequently Asked Questions:

For the ATV312HU75N4, what are the output voltage and rated output current specifications?

The ATV312HU75N4 can produce voltages between 0 and 500 volts and a maximum current of 17 amps. Several industrial applications benefit from the adaptability and dependability offered by these requirements.

What are the control categories of the ATV312HU75N4, and how efficient is it?

Equipped with flux vector control and a voltage/frequency ratio, the ATV312HU75N4 boasts an efficiency of 98% under full load. These characteristics guarantee efficient use of energy and exact control of the motor.

What are the dimensions and operating temperature range of the ATV312HU75N4?

The ATV312HU75N4 has dimensions of 232 x 150 x 172 mm with an operating temperature range of 14°F to 122°F without derating. Because of this, it can be easily installed and is suited for a wide range of environmental situations.

Product Specifications Table:

Attribute Specification
Power Rating 7.5 kW
Apparent Power 12 kVA
Input Voltage Range 323 to 550 V
Output Voltage 0 to 500 V
Rated Output Current 17 A
Frequency 50/60 Hz ±5%
Efficiency 98% at full load
Control Type Voltage/frequency ratio, flux vector control
Operating Temperature 14°F to 122°F without derating
Dimensions (H x W x D) 232 x 150 x 172 mm
Weight 4.8 kg

Schneider Electric ATV312HU75N4

Regular price
Sale price
$891.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
