Benshaw VFD-RSI-007-SS-2C
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered under the Manufacturer's Warranty.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

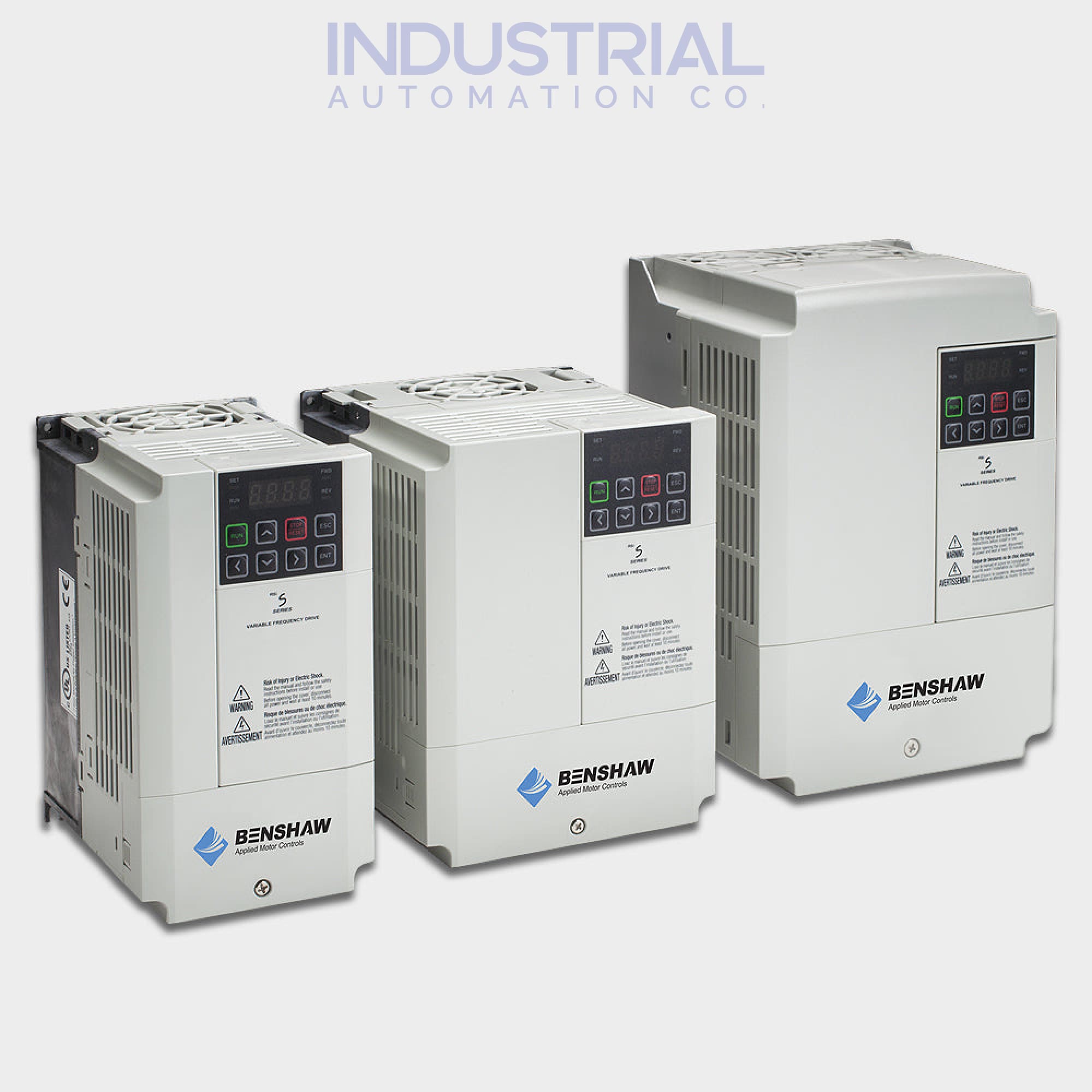

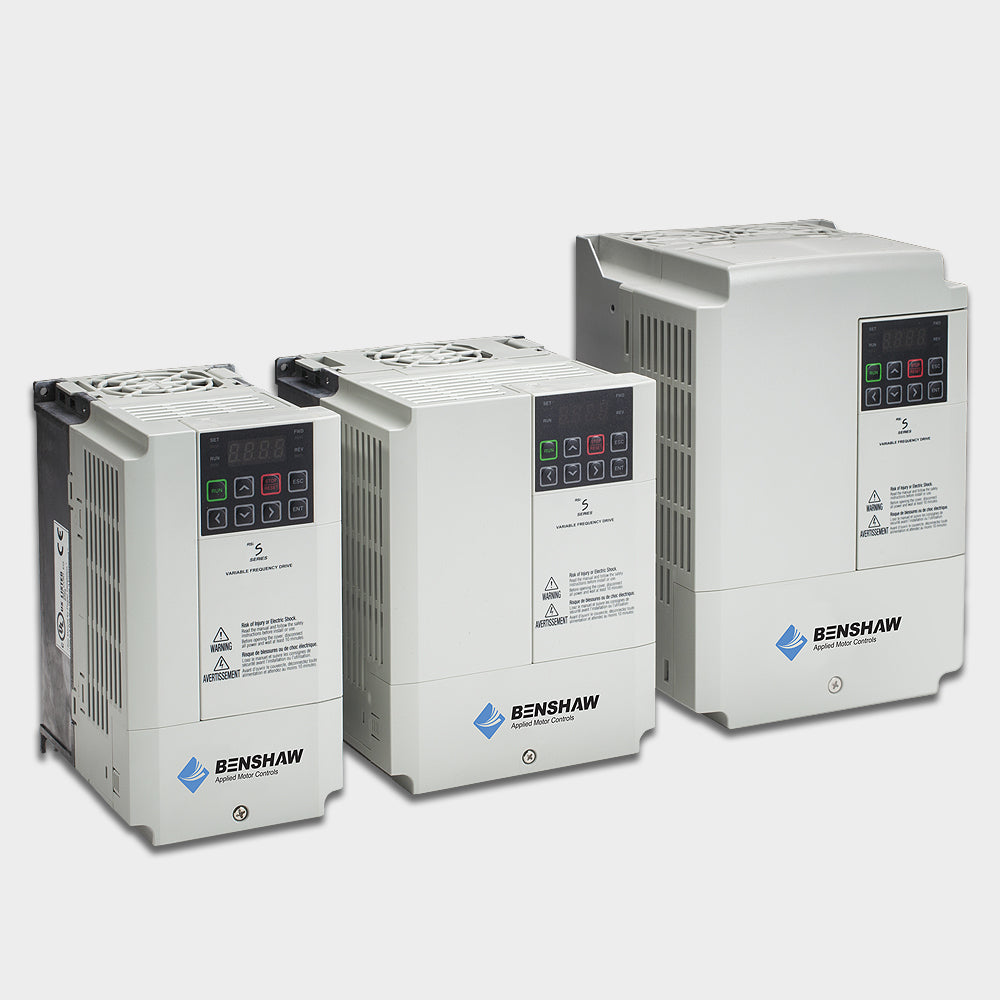

Benshaw S Series Multi-Purpose Micro Drive (7.5HP, 230V)
Sensorless vector variable frequency micro drive featuring a rugged, compact, economical chassis with permanent magnet capabilities. Standard programmable inputs / outputs are included for more demanding or complex applications.Normal Duty: 7.5HP 240VHeavy Duty: 5.4HP 240V
All products (new, refurbished, and repairs) are covered by the Manufacturer's Warranty.
TECHNICAL SPECIFICATIONS
Benshaw’s S Series Variable Frequency Drive is a rugged, yet compact chassis drive solution for low horsepower AC motor applications. Quick setup and preconfigured settings for common variable frequency drive applications is standard. Or, for those demanding applications that require a more complex control scheme, the S Series VFD offers the flexibility of programmable I/O.
Dual rated for both variable torque (120%) and constant torque (150%), S Series VFD’s include: V/Hz control or sensorless vector control, built-in EMC filter, Modbus RTU, peer-to-peer communications, PLC functionality, integral brake IGBT and keypad/LED display that can be set up to slave multiple drives off one keypad. A remote keypad, extended I/O card and conduit box (to achieve NEMA1 rating) are available as options.
Key Features
Internal brake
Keypad displays plain English language for easy set-up, operation and fault diagnosis
Dual rated variable torque (rated 120% current and constant torque 150% current for 1 minute)
