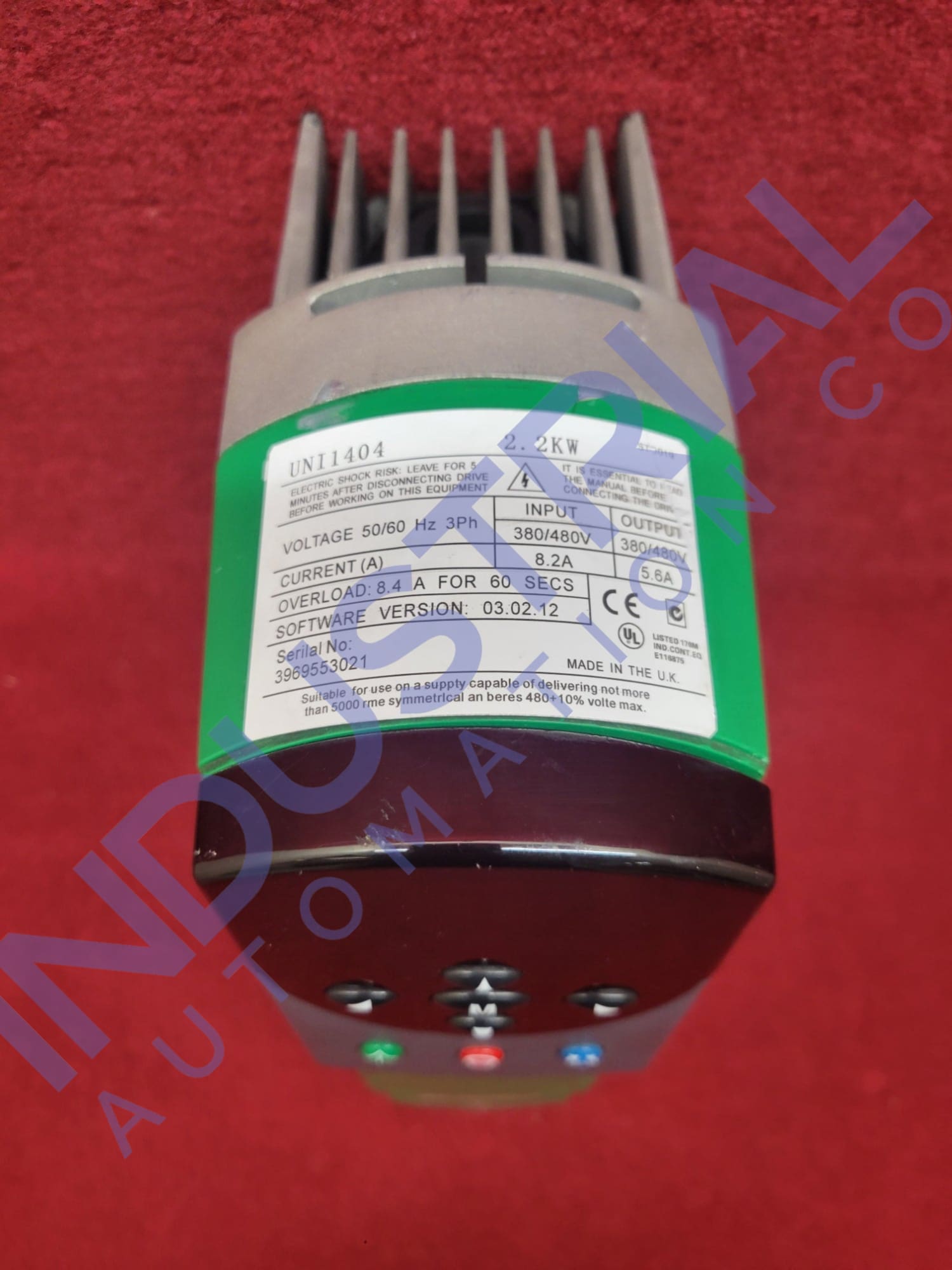

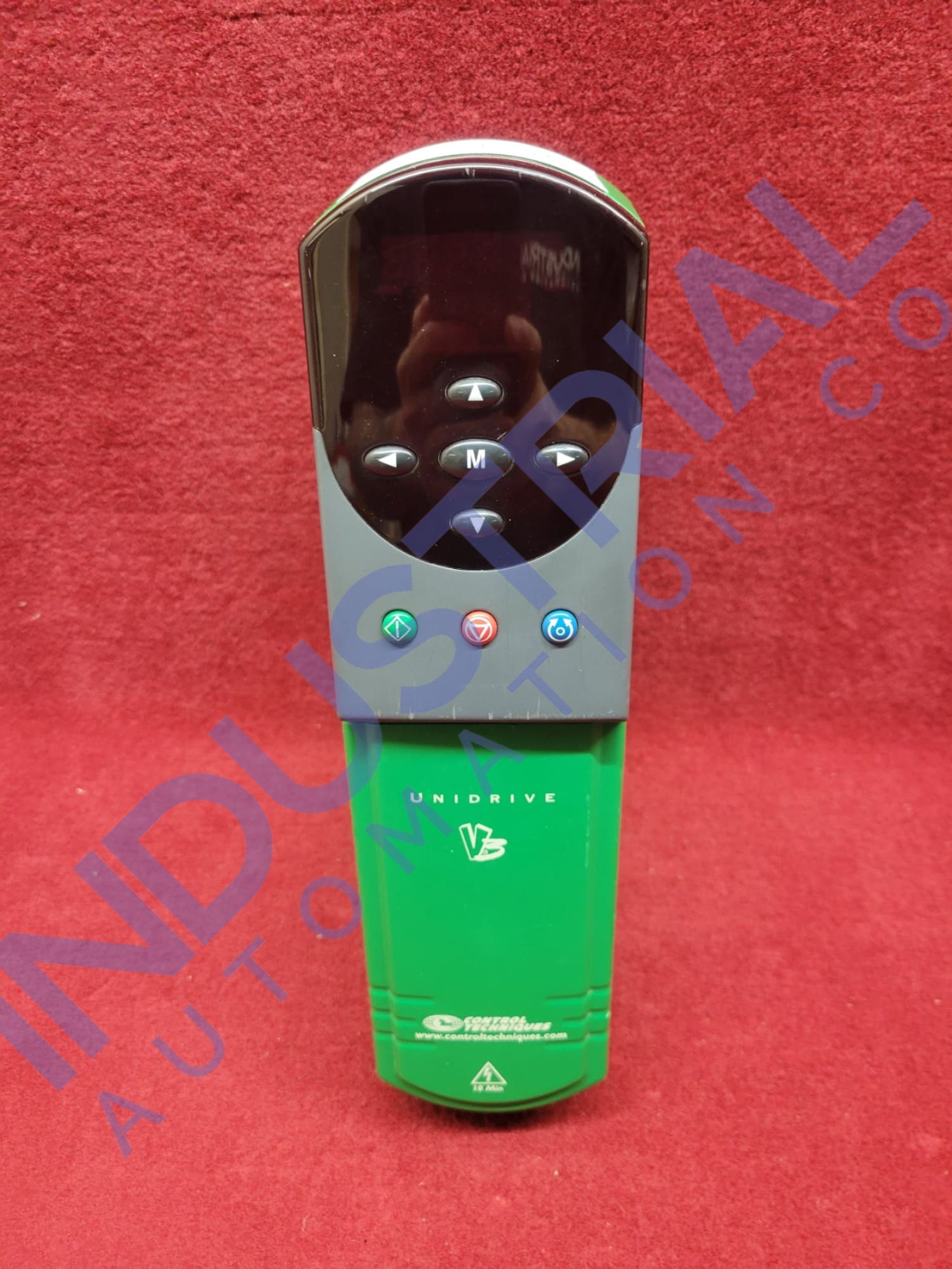

Control Techniques UNI1404

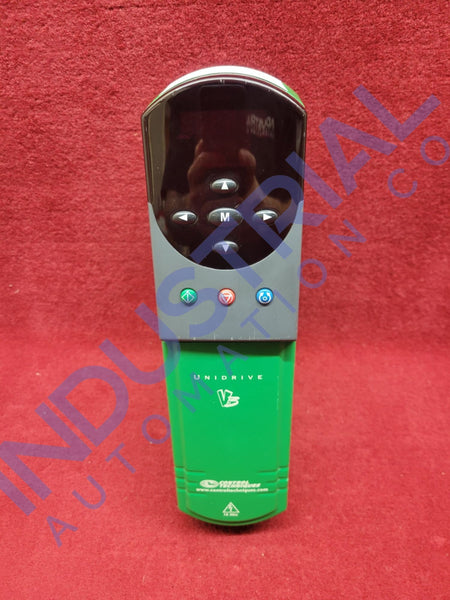

Control Techniques Uni1404
Control Techniques Uni1404

Control Techniques UNI1404

Regular price
$990.00
Sale price
$990.00
We currently have 1 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Control Techniques UNI1404

The Control Techniques UNI1404 is a robust and efficient AC servo drive. The UNI1404 is a member of the Unidrive series, which is widely recognized for its advanced features and adaptability to a range of servo motor systems. This servo drive is ideal for applications requiring precise control, high speed, and torque accuracy.

Technical Description:

The UNI1404 AC servo drive operates at a nominal rating of 2.2 kW or 3.0 hp, making it suitable for medium to heavy-duty industrial tasks. It supports an output current (continuous) of 5.6 A at switching frequencies of 3 kHz to 12 kHz at an ambient temperature of 40 °C. This current rating slightly decreases to 5.1 A at the same frequencies when the ambient temperature rises to 50 °C. The typical input current for the servo drive is 7.8 A, with an input current (continuous) of 8.3 A (maximum).

The UNI1404 AC servo drive is designed to handle high power dissipation, with a maximum total power dissipation of 130 W at 3 kHz and 150 W at 12 kHz. This power dissipation capacity ensures efficient operation even under demanding conditions.

Voltage and Frequency Specifications:

The AC servo drive is compatible with a nominal AC supply voltage of both 400 V and 480 V. It can support maximum permissible motor cable lengths of 200 meters (660 feet) at 400 V and 150 meters (490 feet) at 480 V. This drive is engineered to provide optimal performance and efficiency. It features advanced control algorithms that ensure smooth and precise motor control. The UNI1404 can operate efficiently across a wide range of frequencies, from 3 kHz to 12 kHz.

Standard Mounting Precautions:

Proper mounting and installation of the UNI1404 are essential to ensure its optimal performance and longevity. It is recommended to use line reactors to reduce the risk of damage due to disturbances in the supply network.

When used with certain AC supply conditions or in environments with high power factor correction equipment, a line reactor with 2 % reactance should be included between the AC supply and the drive.

For three-phase drives, three individual reactors or a single three-phase reactor should be used. This helps in mitigating the effects of disturbances and maintaining the stability of the drive.

Frequently Asked Questions:

What are the input and output current specifications of the UNI1404 model?

The typical input current for the UNI1404 model is 7.8 A with an input current (maximum continuous) of 8.3 A. The output current (continuous) is 5.6 A at 40°C and 5.1 A at 50 °C.

What are the power dissipation capabilities of the UNI1404 servo drive?

The UNI1404 AC servo drive can dissipate a maximum of 130 W at 3 kHz and 150 W at 12 kHz. This ensures efficient operation under demanding conditions.

What are the maximum permissible motor cable lengths for the UNI1404?

The UNI1404 uni servo drive supports motor cable lengths of up to 200 meters at 400 V and 150 meters at 480 V. This allows flexible installation in various setups.

Product Specifications Table

Attribute Specifications
Series Unidrive
Product Type AC Servo Drive
Nominal Rating 2.2 kW or 3.0 hp
Continuous Output Current 5.6A at 40°C, 5.1A at 50°C
Typical Input Current 7.8A
Maximum Continuous Input Current 8.3A
Power Dissipation 130W at 3 kHz, 150W at 12 kHz
AC Supply Voltage 400V and 480V
Motor Cable Length 200 meters at 400V, 150 meters at 480V
Frequency Range 3 kHz to 12 kHz

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
IAC Certified Refurbished UNI1404-R $990.00 USD 2 Year Extended Warranty 1 In Stock in the U.S.A!
