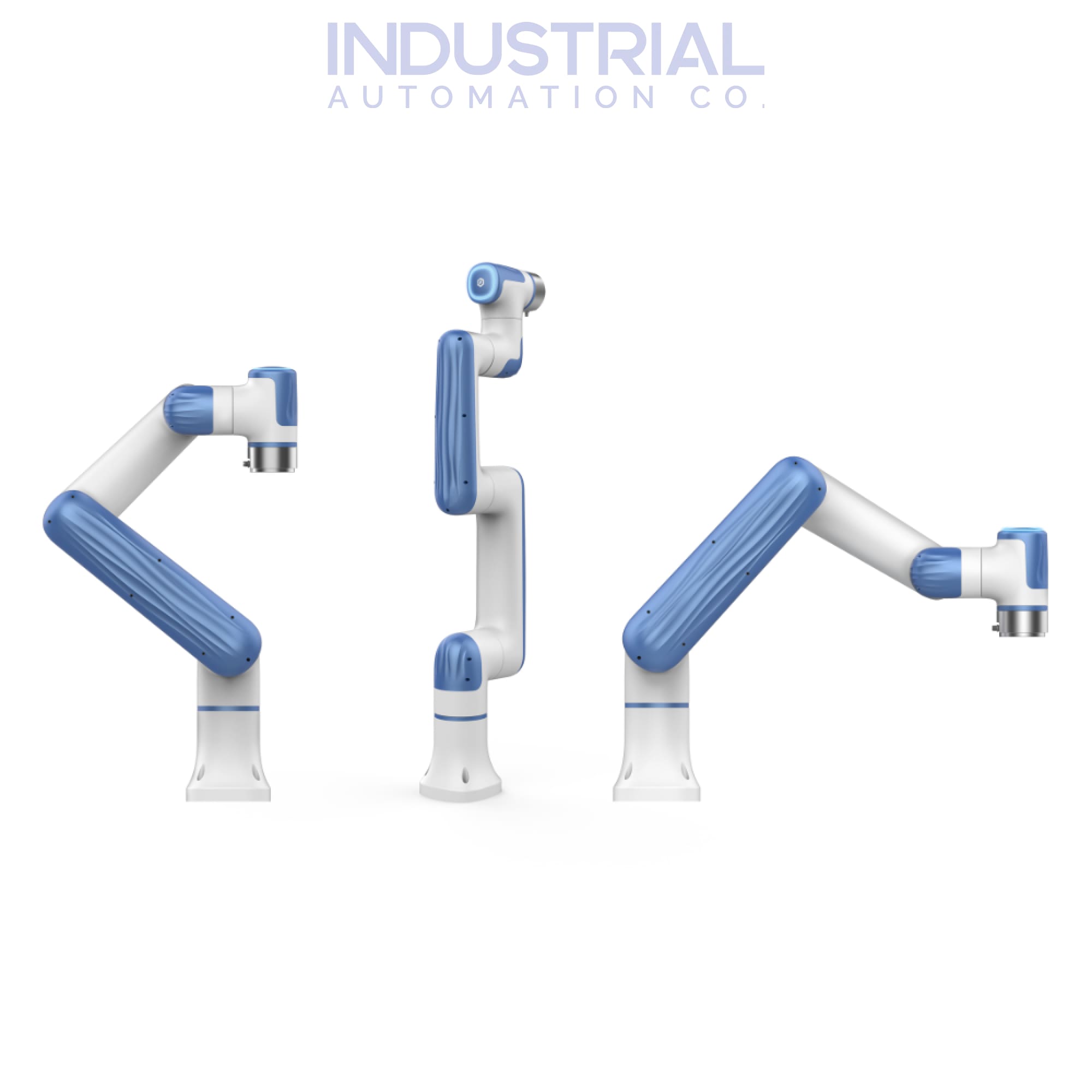

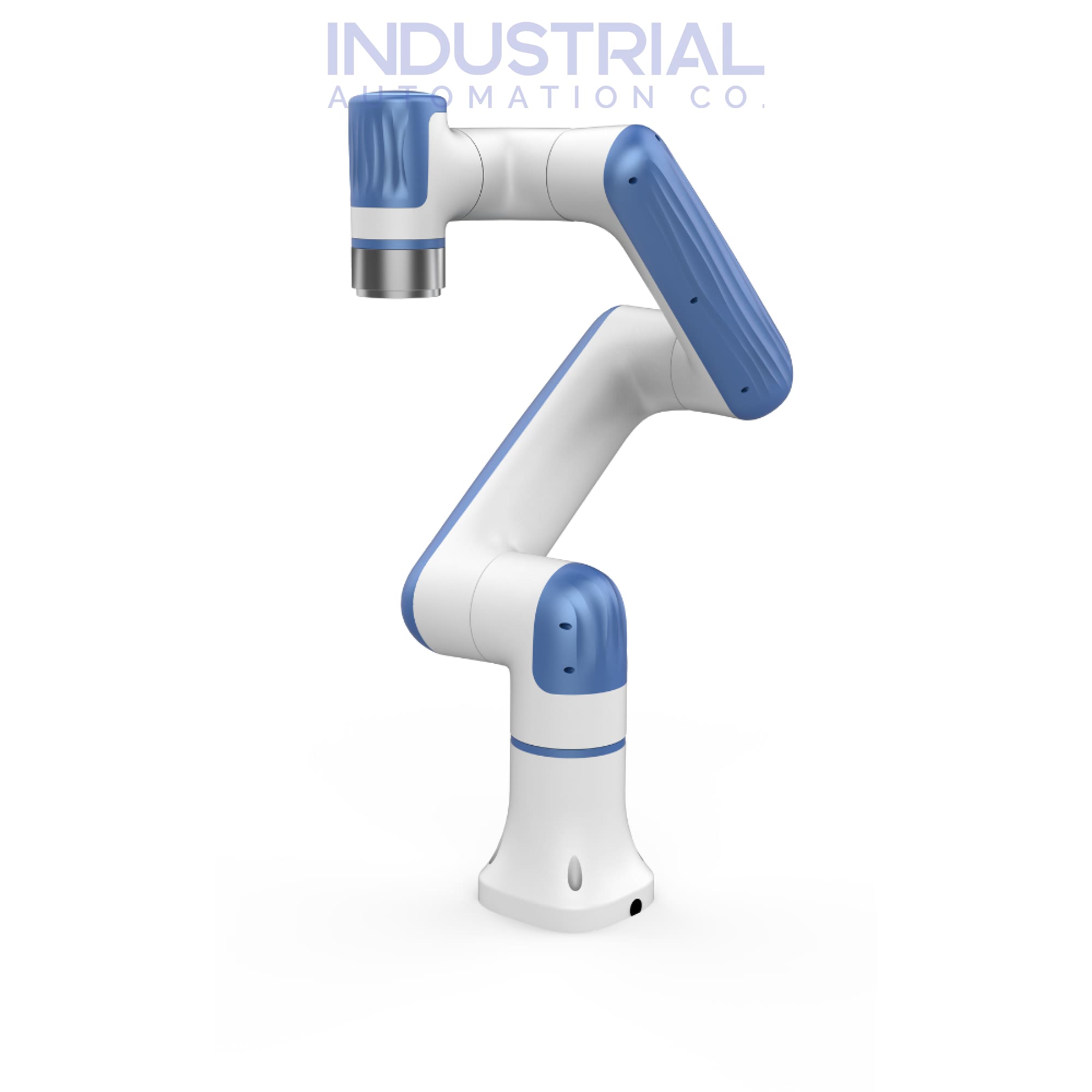

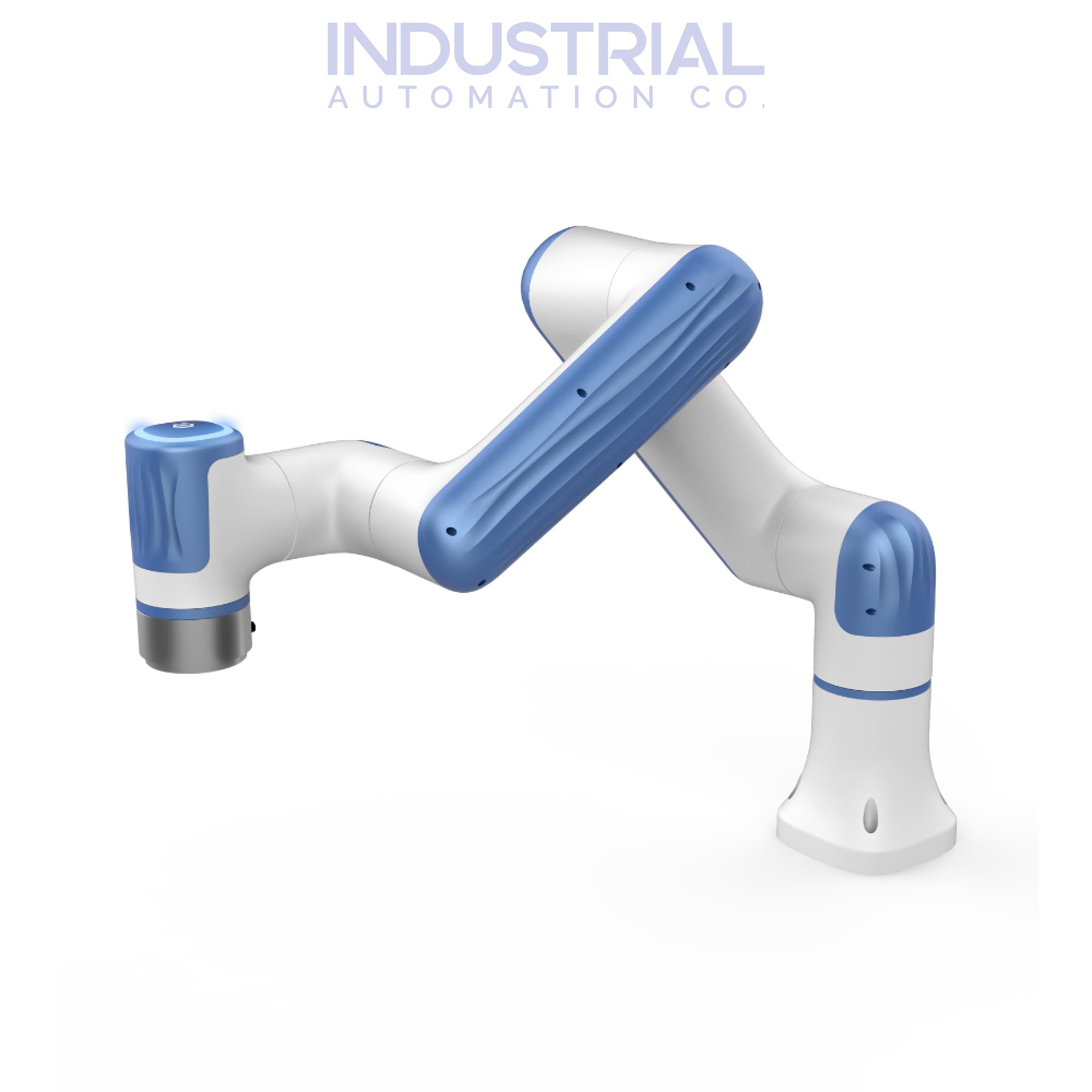

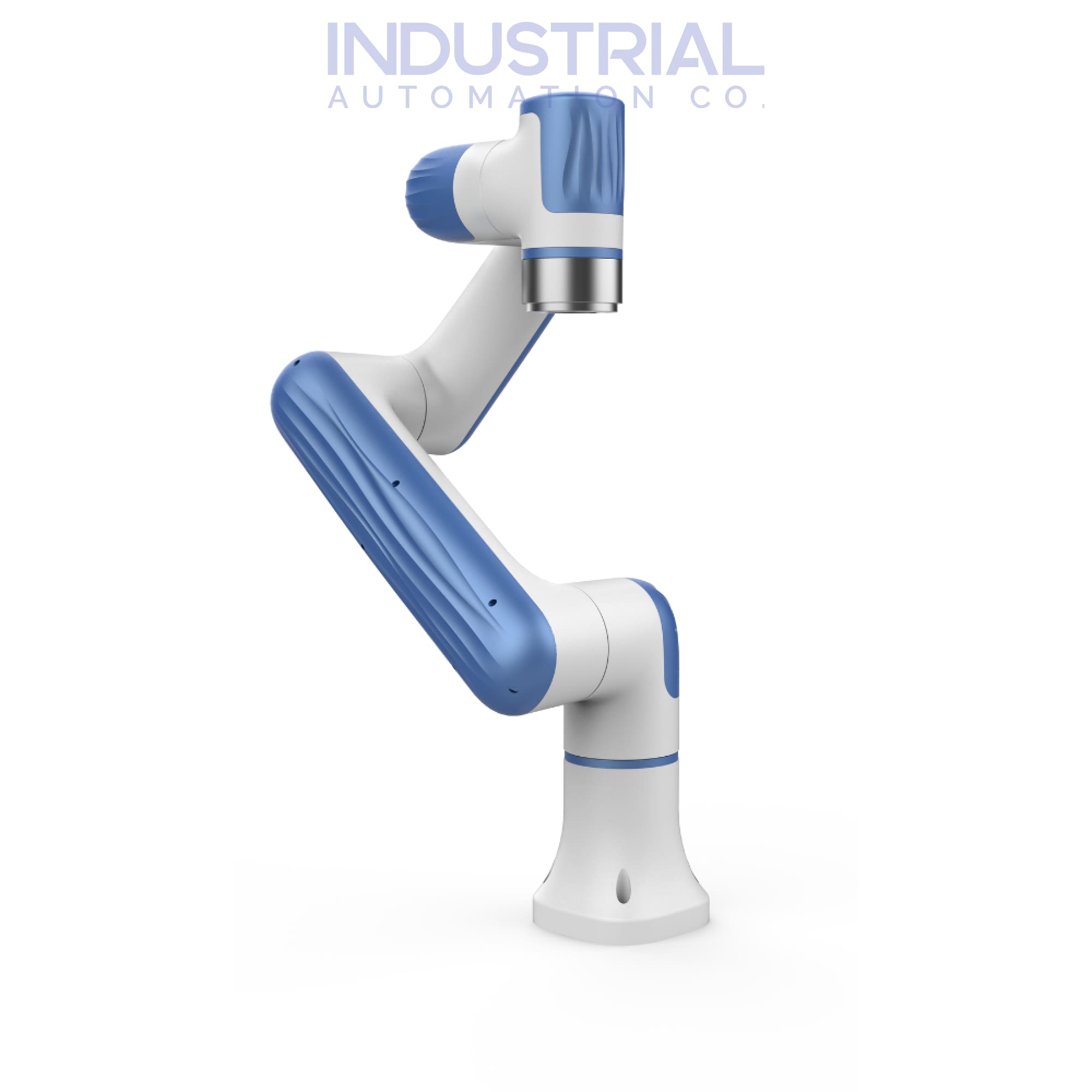

Dobot Nova 2 Collaborative Robot
SKU:
We have 5 in stock
Estimated delivery: April 2nd - April 4th
Order for next-day shipment.
- Regular price
-
$15,349.00
- Sale price
- $15,349.00
Default Title
$15,349
5 in stock
Ships today
Description
The Dobot Nova 2 - Designed for Retail Efficiency
Meet the Dobot Nova 2, the ultimate collaborative robot tailored specifically for retail environments. Compact, versatile, and easy to deploy, the Nova 2 is designed to enhance retail operations by supporting a range of tasks that simplify workflows and improve efficiency. Weighing in at just 11 kg, this lightweight cobot requires only 1 m² of space, making it adaptable to even the most limited store layouts. With a maximum payload of 2 kg and a reach of 625 mm, it's perfect for light-duty tasks like order picking, customer service, and product handling.

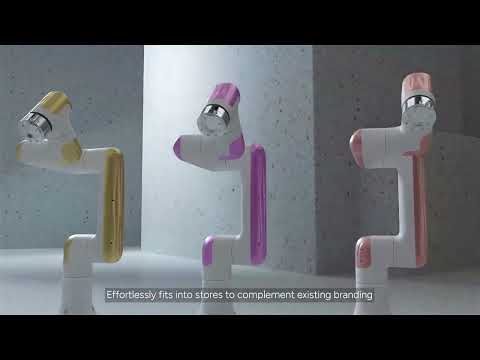

The Dobot Nova 2 is built for intuitive use, featuring an industry-leading graphical interface and trajectory replay functionality. This no-code programming system allows employees to operate it with minimal training, making it ideal for dynamic retail environments. Safety is a top priority, with advanced features like collision detection that stops operation within 0.01 seconds, human motion sensors, and five adjustable protection levels to ensure safe human-robot interactions. The Dobot Nova 2 also offers customization options for its outer shell, allowing it to seamlessly integrate with your brand aesthetics.
Dobot Nova 2 Specifications:
| Feature | Nova 2 |
|---|---|
| Model | Nova 2 |
| Weight | 11 kg (24.3 lbs) |
| Maximum Payload | 2 kg |
| Working Radius | 625 mm (24.6 in) |
| Maximum Speed of TCP | 1.6 m/s |
| Range of Motion | J1 ± 360° |
| J2 ± 180° | |
| J3 ± 156° | |
| J4 ± 360° | |
| J5 ± 360° | |
| J6 ± 360° | |
| Maximum Joint Speed | J1 135 °/s |
| J2 135 °/s | |
| J3 135 °/s | |
| J4 135 °/s | |
| J5 135 °/s | |
| J6 135 °/s | |
| End IO | DI 2 inputs |
| DO 2 outputs | |
| RS485 Supported | |
| Repeatability | ±0.05 mm |
| IP Rating | IP54 |
| Noise | 65 dB(A) |
| Operating Environment | Temperature: 0° to 50° C |
| Power Consumption | Typical: 100W |
| Maximum: 250W | |
| Installation Orientation | Any angle |
| Cable Length (Robot to Controller) | 3 m |
| Materials | ABS plastic |
Controller Specifications:
| Feature | Specification |
|---|---|
| Dimensions | 200 mm x 120 mm x 55 mm (7.9 in x 4.7 in x 2.2 in) |
| Weight | 1.3 kg |
| Input Power | 30~60V DC |
| IO Power | 24V, Max 2A, Max 0.5A per channel |
| IO Interface | DI 8 inputs (NPN or PNP) |
| DO 8 inputs (NPN or PNP) | |
| AI 2 inputs, voltage mode, 0~10V | |
| AO 2 outputs, voltage mode, 0~10V | |
| Remote Power On/Off | Supported |
| Communication Interface | Network 2, for TCP/IP and Modbus TCP |
| USB 2, for connecting USB wireless module | |
| 485 Interface 1, for RS485 and Modbus RTU | |
| Operating Environment | Temperature: 0° to 50° C |
| Humidity | ¤95%, non-condensation |
| IP Rating | IP20 |
| Cooling Mode | Passive heat loss |
| Teaching Mode | PC, APP (Android, iOS) |
Summary: The Dobot Nova 2 is a reliable, easy-to-use cobot for retail, offering adaptable safety features, ease of operation, and a customizable look. It's the ideal solution for enhancing customer experience and streamlining store operations.
Request a Price Quote
-
Buying Options
-
Description
The Dobot Nova 2 - Designed for Retail Efficiency
Meet the Dobot Nova 2, the ultimate collaborative robot tailored specifically for retail environments. Compact, versatile, and easy to deploy, the Nova 2 is designed to enhance retail operations by supporting a range of tasks that simplify workflows and improve efficiency. Weighing in at just 11 kg, this lightweight cobot requires only 1 m² of space, making it adaptable to even the most limited store layouts. With a maximum payload of 2 kg and a reach of 625 mm, it's perfect for light-duty tasks like order picking, customer service, and product handling.
The Dobot Nova 2 is built for intuitive use, featuring an industry-leading graphical interface and trajectory replay functionality. This no-code programming system allows employees to operate it with minimal training, making it ideal for dynamic retail environments. Safety is a top priority, with advanced features like collision detection that stops operation within 0.01 seconds, human motion sensors, and five adjustable protection levels to ensure safe human-robot interactions. The Dobot Nova 2 also offers customization options for its outer shell, allowing it to seamlessly integrate with your brand aesthetics.
Dobot Nova 2 Specifications:
Feature Nova 2 Model Nova 2 Weight 11 kg (24.3 lbs) Maximum Payload 2 kg Working Radius 625 mm (24.6 in) Maximum Speed of TCP 1.6 m/s Range of Motion J1 ± 360° J2 ± 180° J3 ± 156° J4 ± 360° J5 ± 360° J6 ± 360° Maximum Joint Speed J1 135 °/s J2 135 °/s J3 135 °/s J4 135 °/s J5 135 °/s J6 135 °/s End IO DI 2 inputs DO 2 outputs RS485 Supported Repeatability ±0.05 mm IP Rating IP54 Noise 65 dB(A) Operating Environment Temperature: 0° to 50° C Power Consumption Typical: 100W Maximum: 250W Installation Orientation Any angle Cable Length (Robot to Controller) 3 m Materials ABS plastic Controller Specifications:
Feature Specification Dimensions 200 mm x 120 mm x 55 mm (7.9 in x 4.7 in x 2.2 in) Weight 1.3 kg Input Power 30~60V DC IO Power 24V, Max 2A, Max 0.5A per channel IO Interface DI 8 inputs (NPN or PNP) DO 8 inputs (NPN or PNP) AI 2 inputs, voltage mode, 0~10V AO 2 outputs, voltage mode, 0~10V Remote Power On/Off Supported Communication Interface Network 2, for TCP/IP and Modbus TCP USB 2, for connecting USB wireless module 485 Interface 1, for RS485 and Modbus RTU Operating Environment Temperature: 0° to 50° C Humidity ¤95%, non-condensation IP Rating IP20 Cooling Mode Passive heat loss Teaching Mode PC, APP (Android, iOS)
Summary: The Dobot Nova 2 is a reliable, easy-to-use cobot for retail, offering adaptable safety features, ease of operation, and a customizable look. It's the ideal solution for enhancing customer experience and streamlining store operations.
-
