Mitsubishi HC-UFS43Bk

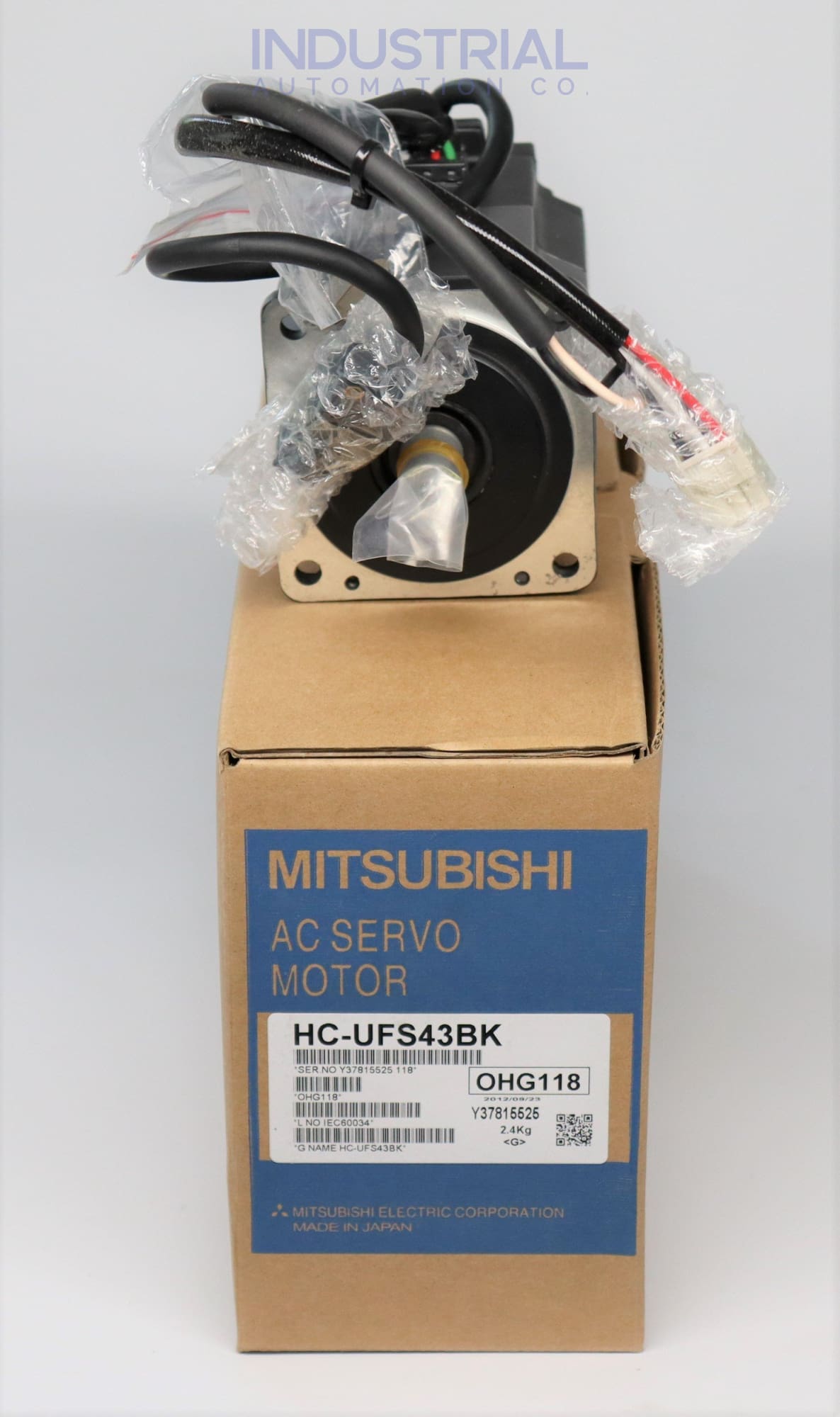

One high-performance servo motor from Mitsubishi's HC-UF series is the HC-UFS43Bk. The model offers dependable and efficient operation and is specifically suited for motion control applications requiring precision. With its high-tech specs, this servo motor can withstand harsh industrial settings without sacrificing performance or longevity.

Technical Specs:

This enclosed, non-ventilated Mitsubishi HC-UFS43Bk motor is IP65-rated for dust and water resistance. The motor operates best between 0 and +40 °C, or 32 and 104 °F, and can be stored between -15 °C and +70 °C, or 5 and 158 °F.

Operating is limited to 80% RH, whereas storage may endure 90% RH (non-condensing). The motor should be indoors, away from sunshine, flammable gasses, oil mist, dust, and grime. It is vibration-resistant up to 49 m/s ² along the Y axis and 24.5 m/s ² along the X and Y axes, enabling operation at 1000 m above sea level.

With an electronic brake, the Mitsubishi HC-UFS43Bk weighs 7 kilograms (15.4 lb) instead of 5 kg (11 lb). The motor features a straight shaft with a 5 x 5 x 20 mm keyway. The shaft can support 196 N at the end and 245 N at the middle. Thrust loads are 98 N in the shaft end direction and 49 N in the opposite direction.

Operating Conditions:

The Mitsubishi HC-UFS43Bk can handle harsh conditions. It should be used indoors, away from the sun, flammable and corrosive gasses, oil mist, dust, and filth. The motor can operate at 1000 meters above sea level.

The motor winding is approved for usage with a 1500 VAC dielectric strength for 1 minute and an insulation resistance of 10 M? or greater at 500 VDC megger. Stator and motor thermal time constants are 35 and 45 minutes, respectively.

Operating temperatures are 0 to +40 °C, and storage temperatures are -15 to +70 °C. Maximum non-condensing relative humidity is 90%; however, 80% is ideal for operation and storage. .

Performance Characteristics:

The Mitsubishi HC-UFS43Bk offers an inertia moment of 0.154 x 10^-4 kgm ². The motor can operate at 0 Hz regeneration brake frequency and 280 Hz intermittent duty frequency. The rated torque is 1.3 Nm, the maximum is 3.8 Nm, and the output is 0.4 kW.

The maximum instantaneous rotation speed is 5175 r/min, with a rated speed of 3000 and a motor speed of 4500. The Mitsubishi HC-UFS43Bk can handle 47.7 kW/s continuous rated torque with 2.8 A rated current and 9.24 A maximum current.

The Mitsubishi HC-UFS43Bk 's absolute encoder's 13,1072 pulses/rev resolution ensures precise motion control. Natural air cooling improves engine efficiency and reliability.

Frequently Asked Questions:

How much weight and radial load can the Mitsubishi HC-UFS43Bk endure?

With a weight of 5 kg, the Mitsubishi HC-UFS43Bk can withstand a radial force of 196 N at the shaft end. When equipped with an electronic brake, the weight rises to 7 kg.

How much torque does the Mitsubishi HC-UFS43Bk have? What is its top speed?

The Mitsubishi HC-UFS43Bk has a maximum speed of 4500 r/min and a rated torque of 1.3 Nm, which ensures its use in many workplace settings.

What is the encoder resolution and maximum instantaneous rotation speed for the HC-UFS43BK?

The Mitsubishi HC-UFS43Bk has an encoder resolution of 131072 pulses/rev and a maximum instantaneous rotational speed of 5175 r/min.
