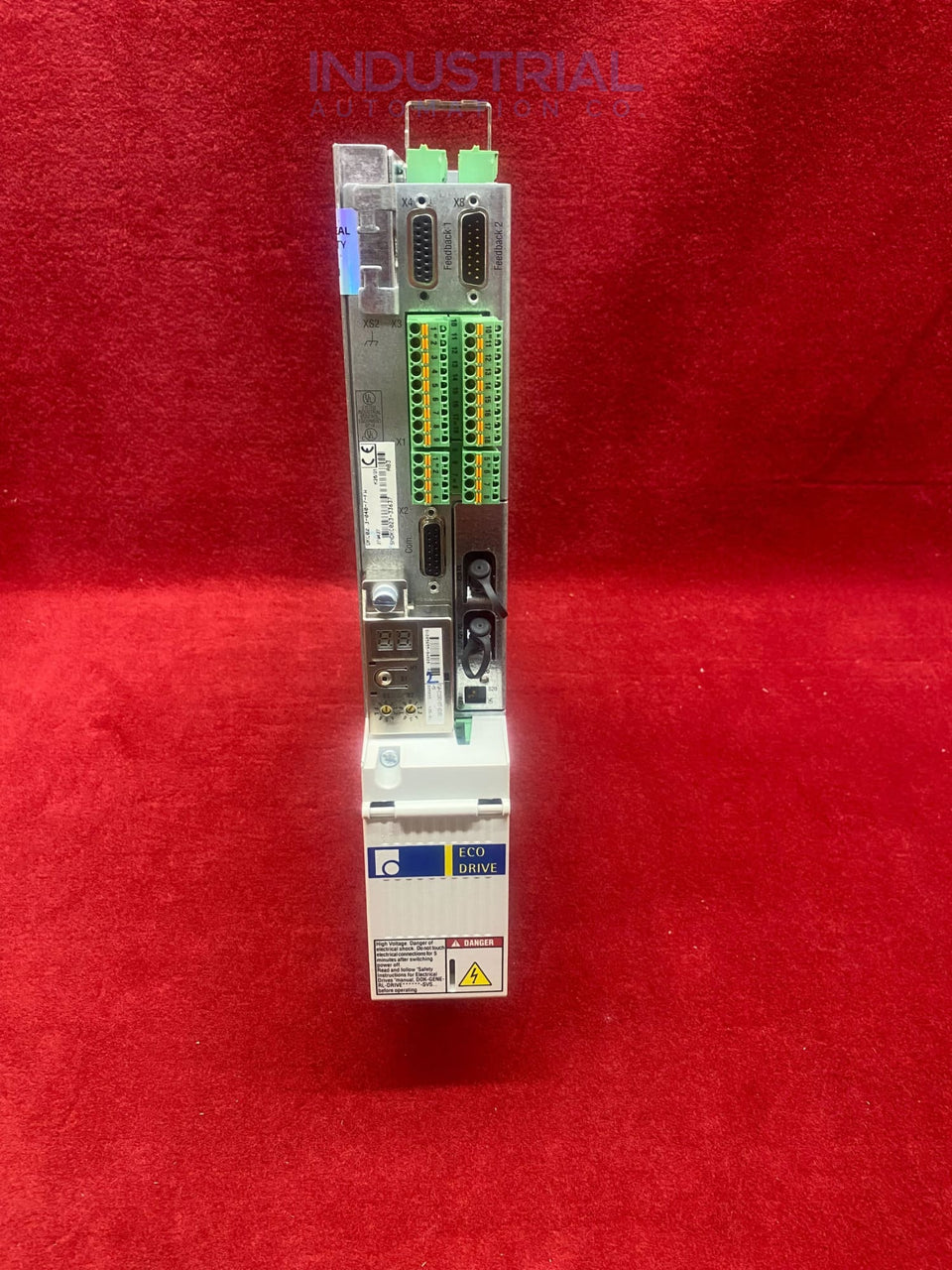

Indramat DKC02.3-040-7-FW
Indramat DKC02.3-040-7-FW
The Indramat DKC02.3-040-7-FW is an AC servo amplifier drive controller by Indramat Bosch. This drive is from the DKC series (series=2, version=3), known for its reliability and unique features. The drive can control a variety of servo motors efficiently. It is used in manufacturing facilities primarily due to its precision and accuracy.
Technical Specifications :
The Indramat DKC02.3-040-7-FW is an efficient and high-performance drive controller in the industry. It operates at a rated current 40A to manage heavy loads in industrial applications. The drive's rated DC Bus nominal voltage is 700V DC.
The drive controller input frequency is 50 - 60 Hz while the output frequency is 333.3Hz. The short circuit current (symmetrical Ampere) rating is 5000W. The storing temperature for the model is -20 to +80 degrees centigrade. Copper wire of 60/750 C class 1 is recommended for wiring.
The drive controller can work efficiently with full potential at an ambient temperature of 40 degrees centigrade. Maximum working temperature is 55 degrees centigrade with reduced efficiency. The drive control voltage is rated at 24V, and the input voltage is between 200 and 230 AC. Both input and output use 3 phases.
The Indramat DKC02.3-040-7-FW offers a unique design to meet the harsh environments in the industry. It can fit in the space of 3.0" x 16.0" x 11.0", easily saving volume in the industry. The drive weighs only 5.3 kg.
Advanced Features:
The drive controller has advanced control algorithms for accurate and smooth operation. The drive has standard ports for input/output signals and a power supply for seamless integration. The drive can perform heavy operations for an extended period due to its thermally efficient case and built-in cooling system.
The drive controller can be used with various motors (analog, stepper motor, and positing interface). The drive controller has multiple communication interfaces that integrate with the system. It supports Analog, RS232, RS485, and SERCOS Interface.
The drive has its firmware; a specific version is required for different operations. The drive controller's robust design ensures reliability in a hot environment. The drive has a protection rating of IP20 and can withstand dusty and humid environments.
Applications :
The Indramat DKC02.3-040-7-FW is economical and efficient for applications requiring precision. The drive controller is used in CNC (accurate positioning), machining, and automated assembly lines. Due to its high performance, it is used in the textile (weaving and knitting machines) and packaging industry to control heavy servo motors precisely.
In robotic systems, the drive controller ensures smooth and coordinated movements, enhancing productivity and reducing downtime. Industries like Printing press, Medical equipment, Food and beverage processing, and Plastic Injection molding use the drive controller.Frequently Asked Questions :
What is the current rating for the DKC02.3-040-7-FW model?
The DKC02.3-040-7-FW model has a current rating of 40 A. This allows it to handle substantial loads efficiently.What is the maximum allowable ambient temperature for the DKC02.3-040-7-FW for operation?
The maximum allowable ambient temperature with nominal data is +40 degrees centigrade. With reduced data, it is +55 degrees centigrade.
What is the DC bus nominal voltage for the DKC02.3-040-7-FW drive controller?
The DC bus nominal voltage for the DKC02.3-040-7-FW is 700 VDC. This ensures stable performance under varying conditions.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Control Voltage | 24 V |
| Current | 40A |
| Input Voltage | 200-230 V |
| Output Frequency | 333.33 Hz |
| Short Circuit Current Rating | 5000 W |
| Protection | IP-20 |
| Input Frequency Range | 50-60Hz |
| Weight | 5.3kg |
| Communication Interface | Sercos, analogue |
| Series | DKC |
