Indramat HVE04.2-W075N

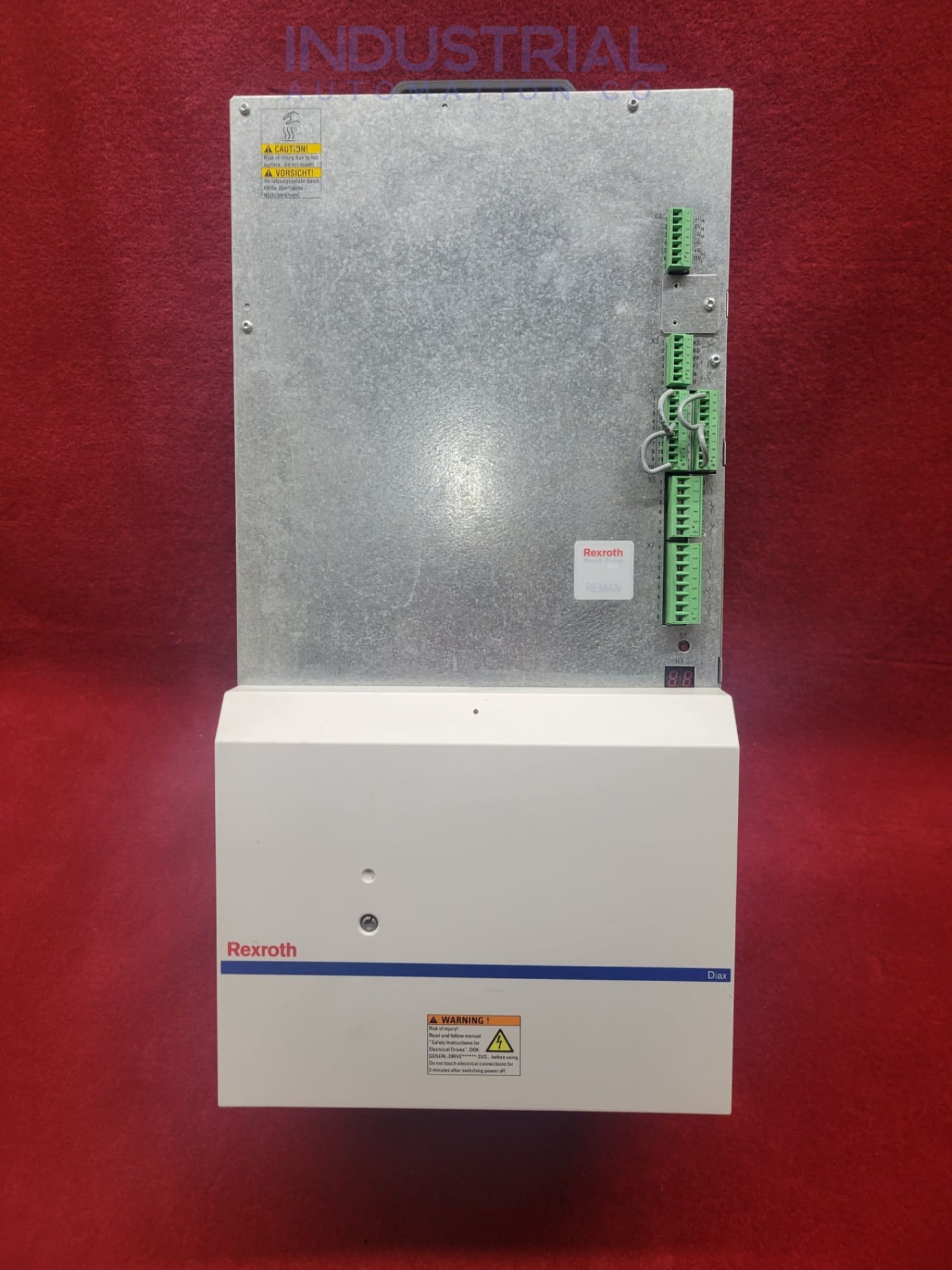

The HVE04.2-W075N is a power supply module from Bosch Rexroth, this company is renowned in the field of industrial automation known for its high-quality drive controllers, servo motors, and automation solutions. This drive module provides a reliable and efficient power source for various drive controllers and motors, ensuring stable operation and optimal performance in demanding environments.

Technical Specifications :

The HVE04.2-W075N power supply module operates with an input voltage range of 3 x 380 to 480 volts, with a ±10% variation. It is designed to work efficiently within a frequency range of 50 to 60 Hz, with a ±2 tolerance. This ensures compatibility with standard industrial power supplies.

The module supports a DC bus voltage between 530 and 670 volts, allowing for a ±10% fluctuation. It features a regenerated power capacity of 2.5 kW, making it effective in energy recovery applications. Additionally, it can handle a peak bleeder power of 270 kW, providing robust performance under peak load conditions.

This power supply drive has a power loss of 6 W per kW of continuous DC bus power. It has a Weight of 28 kg and is solidly built and manageable for installation in various industrial settings. It also includes a DC bus choke, model GLD12, enhancing its performance and stability.

With a nominal power rating of 75 kW, the module is capable of handling considerable power loads. Its average charging current is 14A, ensuring safe operation. These features make the HVE04.2-W075N a suitable option for many industrial systems.

Operational and Installation Parameters:

The HVE04.2-W075N power supply units function with a DC bus voltage that isn't regulated. The available power of the unit is determined by the power voltage. The maximum allowable relative humidity that the module can easily bear is about 95%, and the temperature range should be between 5 and 45 degrees Celsius.

When installing the drive module at elevations up to 1000 m above sea level, there is no decrement in power. However, if installed at heights up to 4000 m, power reduction is necessary. For installations exceeding 2000 meters, it is essential to install an overvoltage limiter for transient over-voltages of 1.2/50 µs within the setup or building to control the voltage.

Safety Precautions:

Be careful of environmental conservation and proper disposal practices. The batteries in this module are classified as dangerous materials for land, air, and sea transport due to the risk of explosion. Discard the batteries, following the legal regulations specific to the country where the product is installed.

Avoid causing harm to any electrical parts within the equipment. Utilize proper mounting and transport tools. Once the equipment is turned off, wait at least ten minutes to ensure it has cooled down before handling it.

Frequently Asked Questions :

What is the frequency range of the module HVE04.2-W075N?

The Indramat drive module HVE04.2-W075N has a frequency range from 50 to 60 Hz with an allowable variation of almost ±2 Hz. This range ensures compatibility with most standard power supplies.

What is the DC input voltage rating of the drive HVE04.2-W075N?

The HVE04.2-W075N drive supports a DC bus voltage between 530 and 670 V, allowing for a ±10% fluctuation. This voltage range is critical for the stable and efficient operation of the drive.

What is the peak bleeder power of the HVE04.2-W075N drive?

The drive HVE04.2-W075N operates upon a peak bleeder power of 270 kilowatts for proper operation. This high peak bleeder power ensures effective energy dissipation during braking and other high-power scenarios.

Product Specifications Table

Attribute	Specifications
Manufacturer	Indramat Rexroth
Series	HVE

Input voltage range 3 x 380 to 480 V DC bus voltage 530 to 670 V Regenerated Power 2.5 kW Nominal power rating 75 kW Humidity up to 95% Ambient Temperature Range 5 - 45 C Frequency 50 to 60 Hz Average Current discharge 14 A
