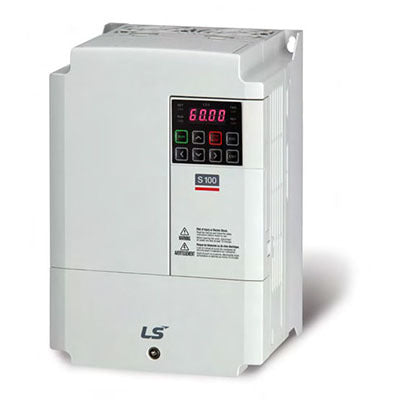

LS Electric LSLV0008S100-4EOFNS
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description
VFD, 1hp, 380-480VAC, 3 Phase, 2.5A, IP20, EMC Filter, No DC Reactor, 2.68x7.09x5.12"
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
| Attribute | Details |
|---|---|
| Primary Brand | LSIS |
| Main Function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product Series / Family Name | LSLV-S100 series |
| Network Frequency | (input) 50/60 Hz (output) 0-400 Hz (output; IM sensorless) 0-120 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Inverter V/f control Sensorless vector control Manual/Automatic torque boost PID control Up-Down operation 3-wire operation DC braking Frequency limit Frequency jump 2nd function Slip compensation Anti reverse rotation Automatic restart Commercial power change Auto-tuning Flying start Energy buffering operation Power braking Flux braking Leakage reduction operation |
| Design | Built-in EMC filter 3-phase 400V class Frame size 3 Heatsink out the back |
| Supply Voltage (AC) | 380Vac-480Vac (3-phase) (-15%...+10%) (400Vac / 415Vac / 440Vac) |
| Display | Built-in LED 4-digit keypad display |
| Rated Current | 3.1A (normal duty) 2.5A (heavy duty) |
| Rated Active Power (kW) | 1.5kW (normal duty) 0.75kW (heavy duty) |
| Rated Power (HP) | 2HP (normal duty) 1HP (heavy duty) |
| Protection Functions | Overcurrent Overvoltage Undervoltage External trip Ground fault current detection Drive / Motor overheat Input-Output phase open Overload protection Light load protection Communication error Frequency command loss Hardware fault Cooling fan fault Pre-PID motion failure No motor trip External brake trip Option fault Safety contact fault Drive temperature sensor fault Parameter write error IO board fault |
| Communication Protocol | RS-485 |
| Digital Inputs | 4 x digital inputs (24Vdc; NPN/Sink or PNP/Source) (FX Forward; RX Reverse; BX Emergency stop; RST Reset) 1 x digital input (12Vdc; Pulse train 0-32kHz or Speed preset) |
| Digital Outputs | 2 x digital inputs (Safe-Torque OFF STO A and B) 1 x digital output (SPDT Form-C NO/NC rly. contact; C1; A1; B1; 1A at 250Vac/30Vdc) 1 x digital output (open-collector; pulse train output 32kHz / PTO frequency or RUN status) |
| Analog Inputs | 1 x analog input (-10...+10Vdc / 0-10Vdc / 4-20mA) |
| Analog Outputs | 1 x analog outputs (0-12Vdc / 0-20mA) |
| Degree of Protection | IP20 NEMA 1 |
| Dimensions | W2.7" x H7.1" x D5.1" |
| Ambient Air Temperature for Operation | -10...+50 °C |
| Rated Apparent Power (S) | 2.4kVA (normal duty) 1.9kVA (heavy duty) |
| Application Type | Applied to industries such as metal; elevator/escalator; textile machinery; shipping; food and beverage; pulp/paper; coal mine; oil/gas and water treatment |
| Order Code / Manufacturer SKU | 6031007200 |
| Manufacturer Product Status | Commercialized |
| Compliant with Standard(s) | CE cULus |
| Benefits | Accurate velocity and torque operation Reduced installation area; and when multiple drives are installed, the control panel size is significantly reduced Possible to connect to all widely-used field networks; comfortable maintenance of option cards and easy mounting High-level control programming with only the drive and without the external PLC Improved power factor and THD reduction Satisfied the safety standards of systems with a built-in safety design Reduced electromagnetic noise; additional space and expense for parts not required Inverters can be used even when exposed to the poor environment |
