Mitsubishi MDS-B-V2-4535
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

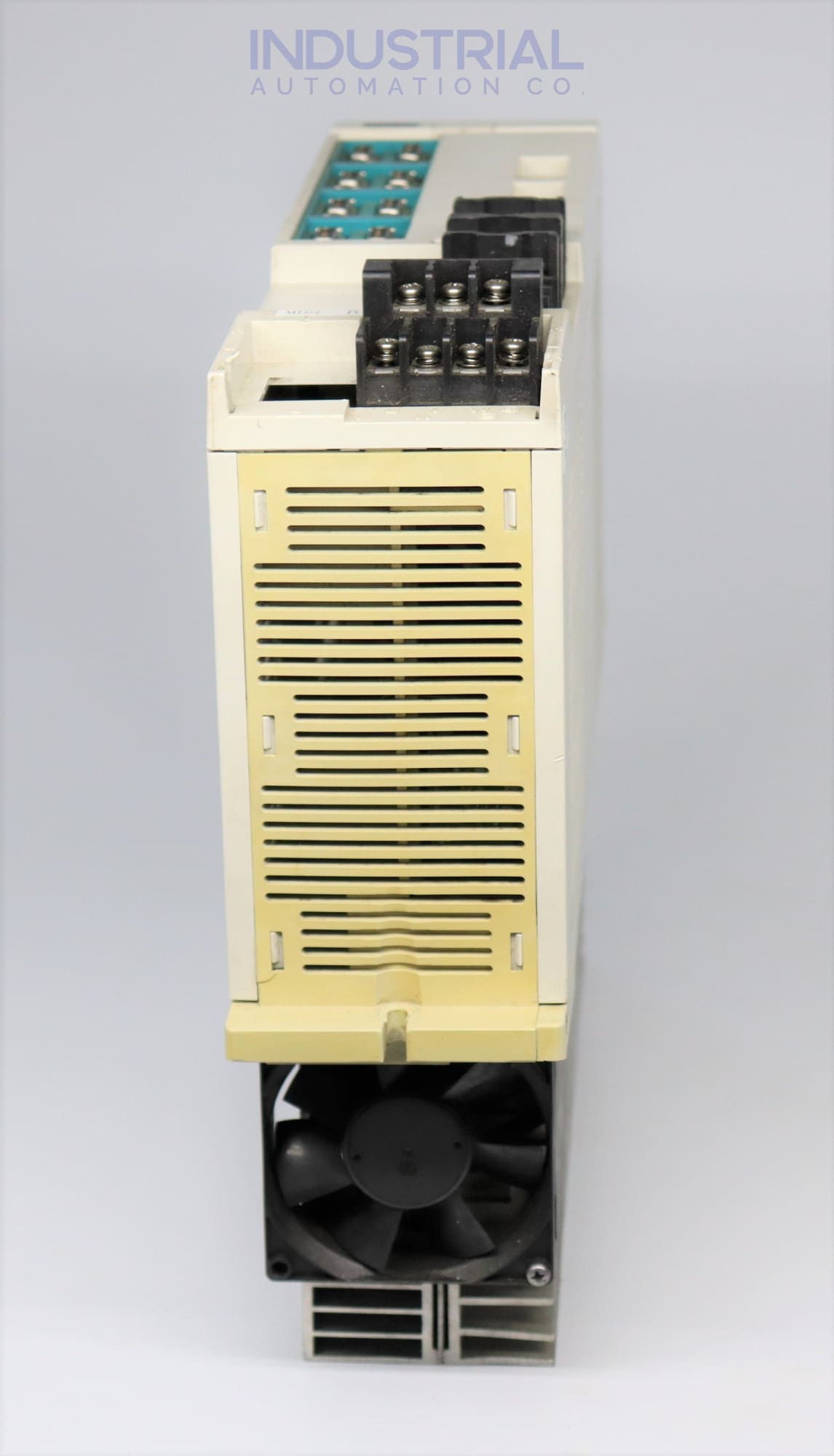

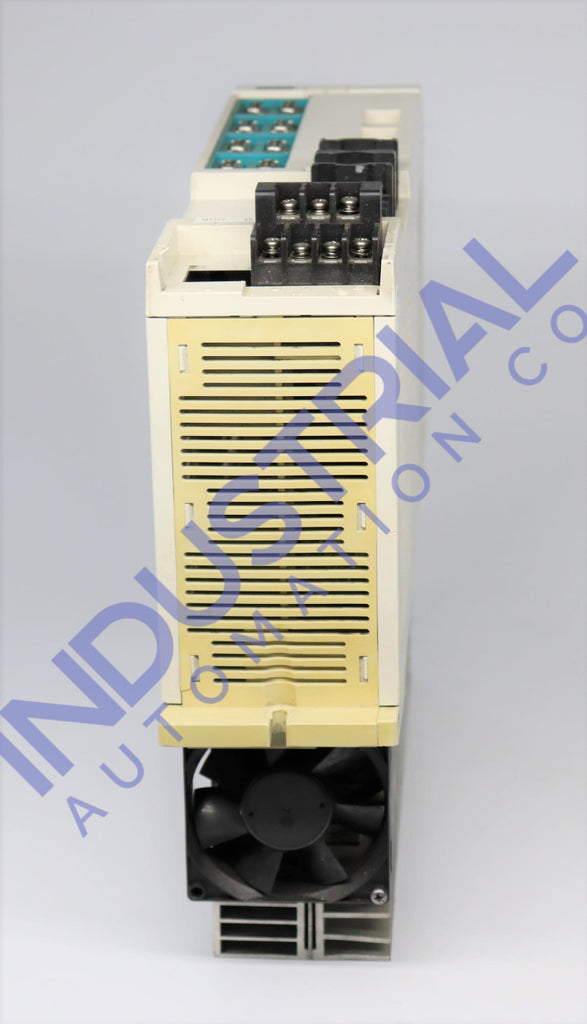

MDS-B-V2-4535
The MDS-B-V2-4535 is a dual-axis AC servo drive unit manufactured by Mitsubishi. It is designed to control specific types of motors efficiently. The applicable motors for this unit include 'L' series HA300N, HA203N, HA500N, and HA303N. Additionally, it supports the 'M' series HA200NL, HA103NL, HA300NL, and HA203NL motors. The MDS-B-V2-4535 output voltage is 155V. This unit ensures seamless integration with these motors to provide precise control and optimal performance in various applications.
Output Current and Torque:
For the 'L' series (low inertia) motors, the rated output current is 26A. For the 'M' series (medium inertia) motors, the rated output current is 16A. The continuous output current for 'L' series motors is 44A, and for 'M' series motors, it is 25A.
The maximum output current reaches 85A for 'L' series motors and 57A for 'M' series motors. This high current capacity allows the MDS-B-V2-4535 to handle demanding tasks with ease, ensuring reliable performance in various industrial settings.
For 'L' series motors, the maximum output torque is 87.573 N·m and 59.821 N·m for 'M' series motors. This dual-axis AC servo drive unit utilizes a sine wave Pulse Width Modulation system for its control mechanism.
This unit is compact, with a weight of just 6 kg. The total capacity for the MDS-B-V2-4535 is rated at 4.5 + 3.5 kW. For efficient performance, the torque limit range is designed to be less than 2.5 times the motor inertia.
A transistor inverter is a part of the main circuit system that utilizes an intelligent power module with IGBT technology. Both regeneration brake and dynamic brake systems are present in the AC servo drive to enhance safety and efficiency. This also provides controlled deceleration and energy recovery.
Environmental Tolerances:
The MDS-B-V2-4535 operates efficiently within a temperature range of 0° to 55°C. For storage, it can tolerate temperatures from -15° to 70°C. The tolerable ambient relative humidity for this unit is 90% or less, provided there is no dew condensation. The unit must be operated in an atmosphere free of harmful gas and dust. These environmental tolerances ensure the MDS-B-V2-4535 performs reliably in diverse conditions.
This servo drive unit can withstand vibrations up to 4.9m/s² (0.55G). It can tolerate shocks with acceleration up to 49m/s² (5G). The noise level generated by the MDS-B-V2-4535 is kept below 55 dB(A), which ensures quieter operation. The low noise level contributes to a more comfortable working environment, reducing auditory fatigue for operators and enhancing overall workplace safety.
Frequently Asked Questions:
What types of motors are compatible with the MDS-B-V2-4535 dual-axis AC servo drive unit?
The MDS-B-V2-4535 is compatible with 'L' series motors such as HA300N, HA203N, HA500N, and HA303N, as well as 'M' series motors including HA200NL, HA103NL, HA300NL, and HA203NL. These motors are designed to work seamlessly with the MDS-B-V2-4535.
What are the environmental tolerances of the MDS-B-V2-4535?
The MDS-B-V2-4535 operates efficiently within a temperature range of 0° to 55°C and can tolerate storage temperatures from -15° to 70°C. It can withstand vibrations up to 4.9m/s² (0.55G) and shocks with acceleration up to 49m/s² (5G).
What is the maximum output current and torque of the MDS-B-V2-4535?
The MDS-B-V2-4535 has a maximum output current of 85A for 'L' series (low inertia) motors and 57A for 'M' series motors. The maximum output torque is 87.573 N·m for 'L' series motors and 59.821 N·m for 'M' series motors.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Output Voltage | 155V |
| Rated Output Current (L) | 44A |
| Rated Output Current (M) | 25A |
| Maximum Output Torque (L) | 87.573 N·m |
| Maximum Output Torque (M) | 59.821 N·m |
| Control System | Sine wave PWM system |
| Main Circuit System | Transistor inverter (Intelligent power module using IGBT) |
| Tolerable Ambient Temperature (Operation) | 0° to 55°C |
| Tolerable Ambient Temperature (Storage) | -15° to 70°C |
| Weight | 6 kg |
