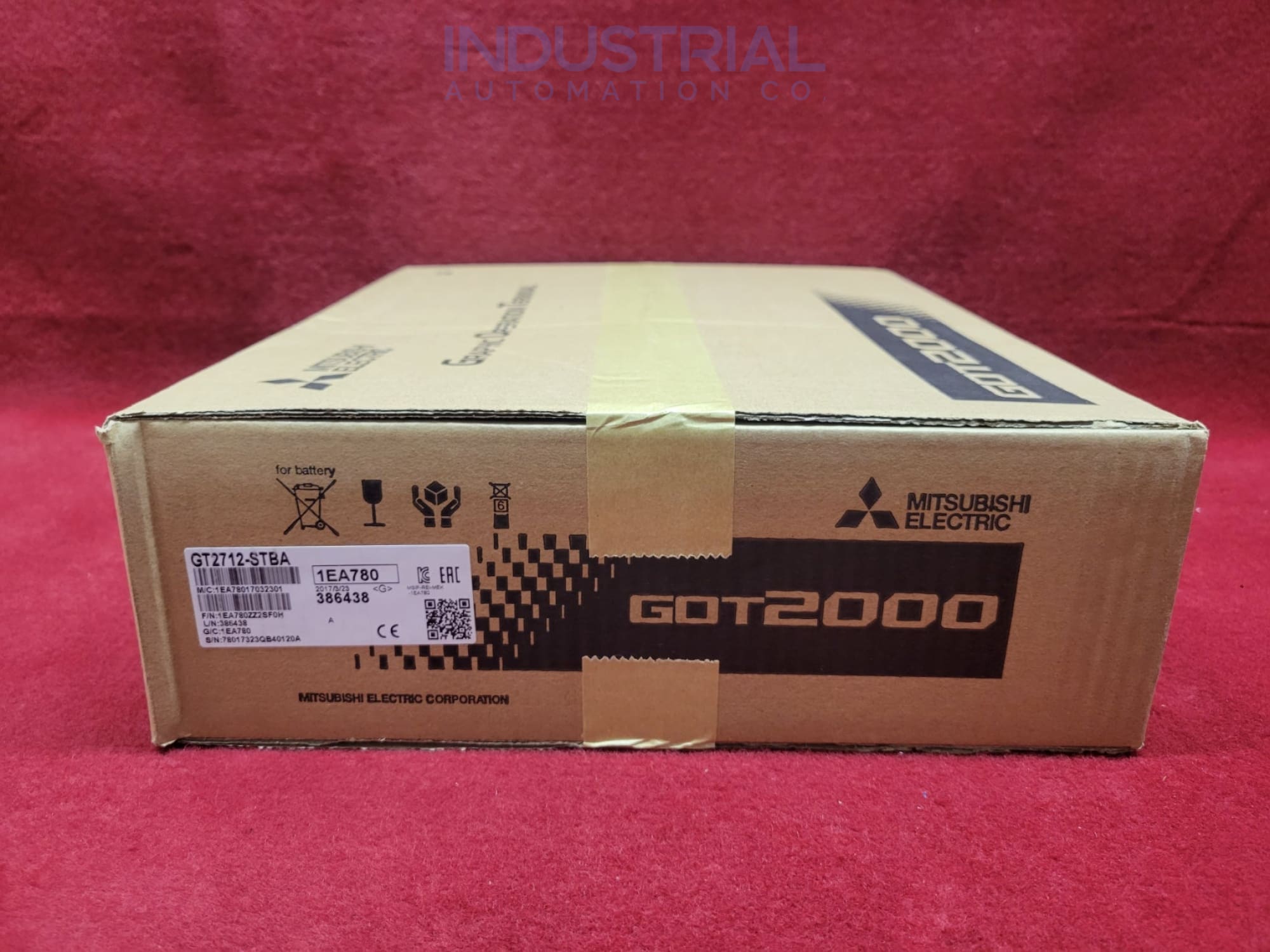

Mitsubishi GT2712-STBA

The Mitsubishi GT2712-STBA is a high-performance touch panel HMI compatible with industrial applications.This model is designed to satisfy the requirements of various automation environments by providing complicated functionalities and robust specifications. Its intuitive interface and streamlined design guarantee an optimal user experience and efficiency.

Technical Specifications:

The Mitsubishi GT2712-STBA's 12.1-inch TFT color LCD screen has an 800 x 600 SVGA resolution for vivid, detailed images. The 246.0 x 184.5 mm display can display 65536 colours at 32 intensity levels. About 60,000 hours are expected with LED lighting.

Due to its analog resistive film touch panel specs, it can identify key sizes of at least 2 x 2 dots and support up to two simultaneous contact points. Ethernet connectivity via a 10BASE-T/100BASE-TX RJ-45 connector and RS-232 and RS-422/485 channels with up to 115200bps transmission speeds are included. It has front and rear USB host ports for 480Mbps data transmission.

The HMI requires a 302 x 228 mm panel opening and measures 316 x 246 x 52 mm. Without mounting brackets, it weighs 2.4 kg. The control panel is IP2X, and the front panel is IP67F. The product's self-cooling allows it to work well without additional cooling.

Environmental Specifications:

The GT2712-STBA is built to withstand several environments. It functions properly from 0 to 55°C when set up horizontally and from 0 to 50°C when set up vertically. It can be stored at -20°C to 60°C. Operating humidity is 10 €“ 90%RH to prevent condensation, and storage humidity is similar. At 1.75 mm and 3.5 mm, respectively, it can withstand continuous vibrations from 5 to 8.4 Hz.

The operating environment prohibits excessive conductive dust, corrosive gases, combustible gases, greasy vapors, and direct sunshine. It operates up to 2000m, overvoltage category II, and pollution degree 2.

Power Specifications:

The GT2712-STBA operates at 50/60Hz ±5% and 100-240VAC input voltage, with a +107.07% and -15% tolerance. Its maximum power usage is 44W, although it uses 19W independently and 10W with the backlight off. At 25°C, the device can sustain a 60A inrush current for 2 milliseconds at maximum load.

It can even endure 20-millisecond power failures at 100 VAC or greater. The noise resistance is rated at 1500Vp-p, with a 1?s noise width and 25-60Hz frequency range.

Insulation resistance between the power supply terminal and the ground is measured with a 500VDC resistance tester rated at 10M? or higher. The clamp terminals with M3 screw RAV1.25-3, V2-S3.3, V2-N3A, and FV2-N3A, with 0.5-0.8 N·m tightening torque for terminal block screws. We accept wire dimensions between 0.75 and 2 mm².

Frequently Asked Questions:

What is the Mitsubishi GT2712-STBA's screen size and resolution?

The GT2712-STBA's 12.1-inch TFT color LCD display has an SVGA-quality 800 x 600-pixel resolution, a dimension of 246.0 x 184.5 mm, and a bright display with 65536 colors.

What is the critical size and maximum number of touch points that the GT2712-STBA can process at once?

The touch panel requires a minimum key size of 2 x 2 dots to process up to two touch points simultaneously. Its long-lasting design ensures that it will withstand more than a million touches.

How much power does the GT2712-STBA use, and what is its inrush current?

The GT2712-STBA can handle 60A inrush current for 2ms and 44W power consumption at 25°C. Turning off the backlight cuts power usage to 10W from 19W in standalone mode.
