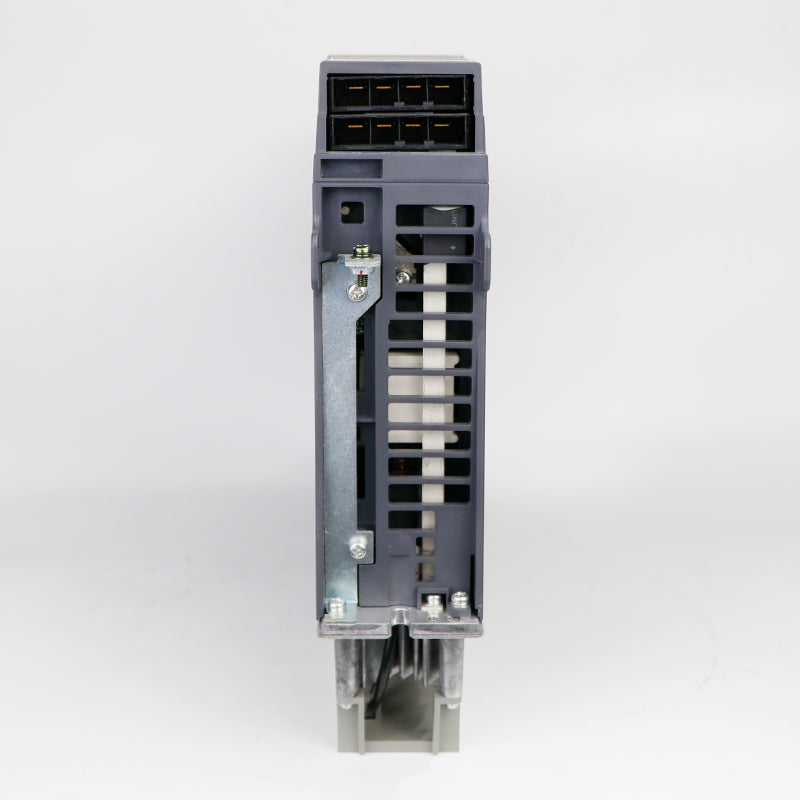

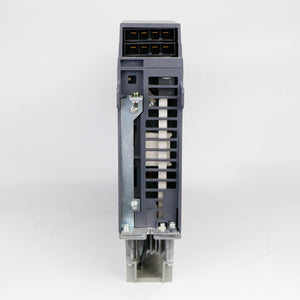

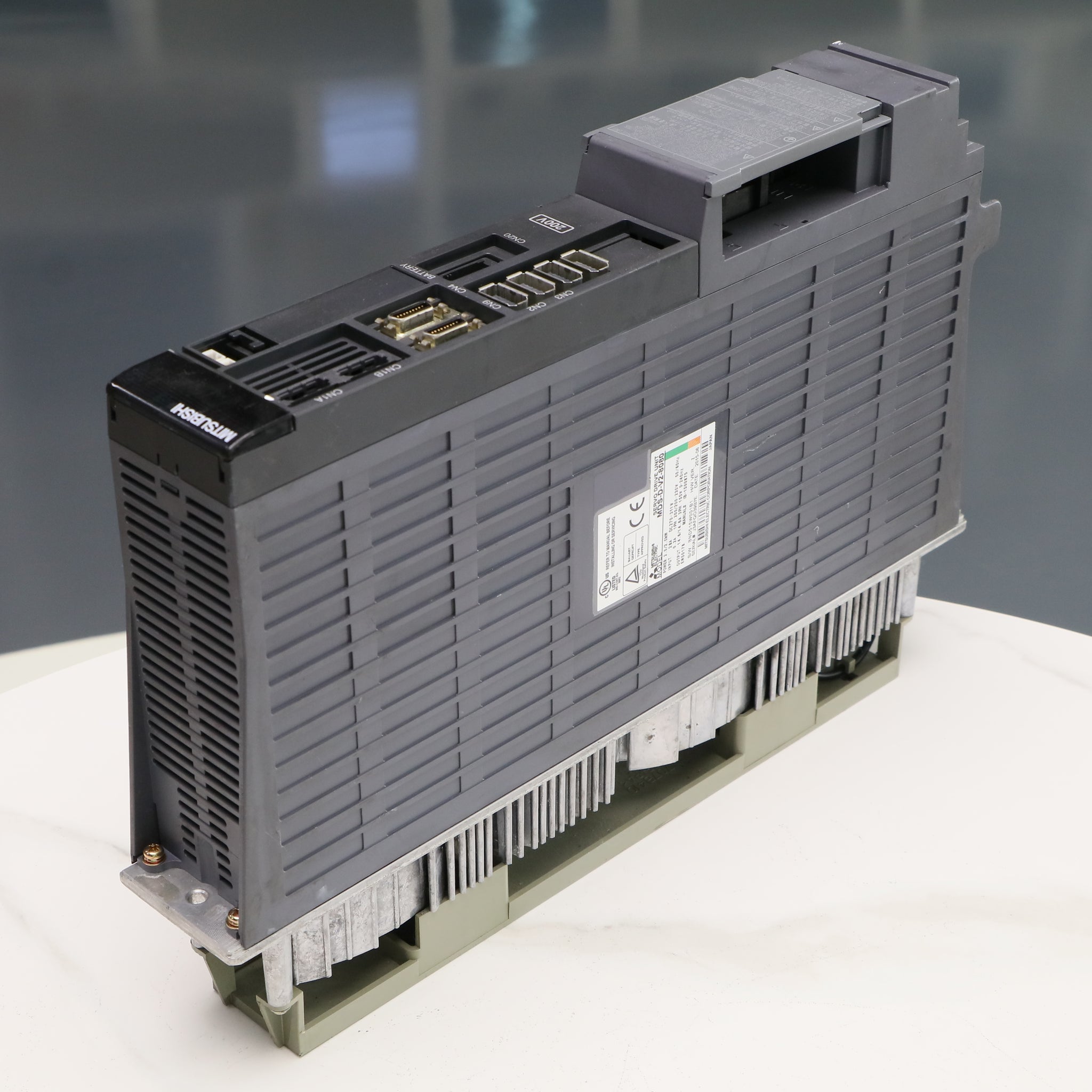

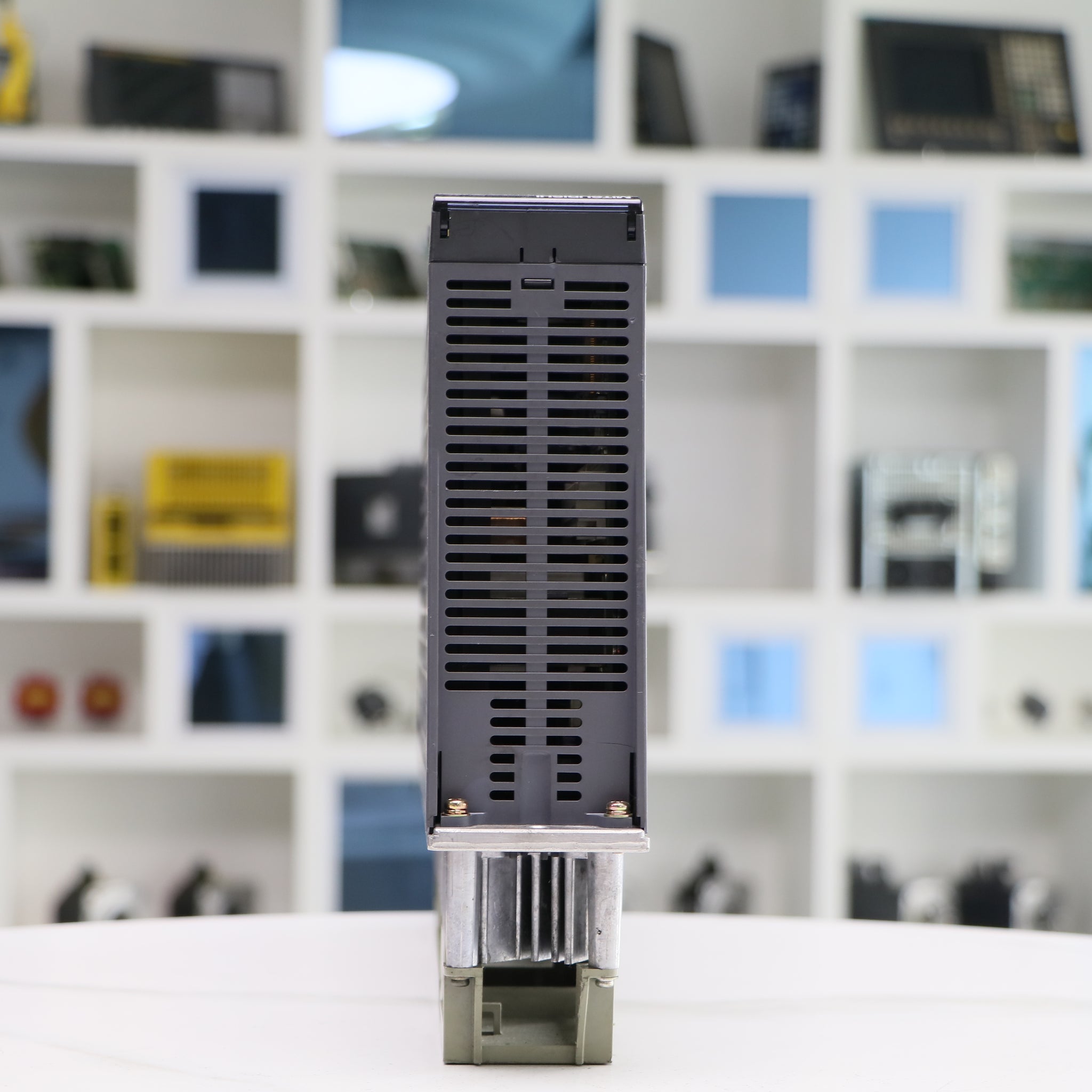

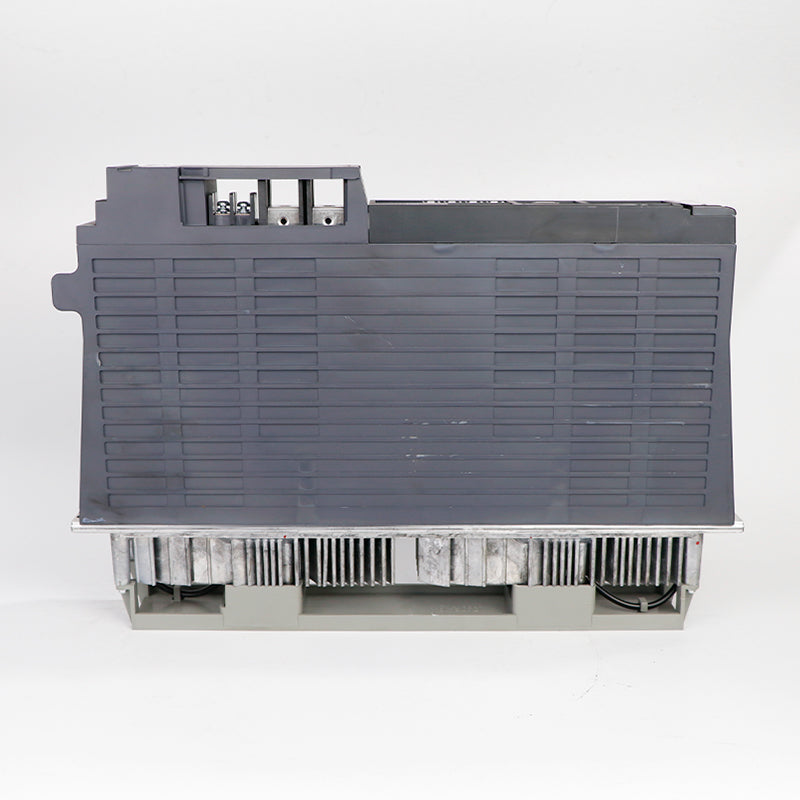

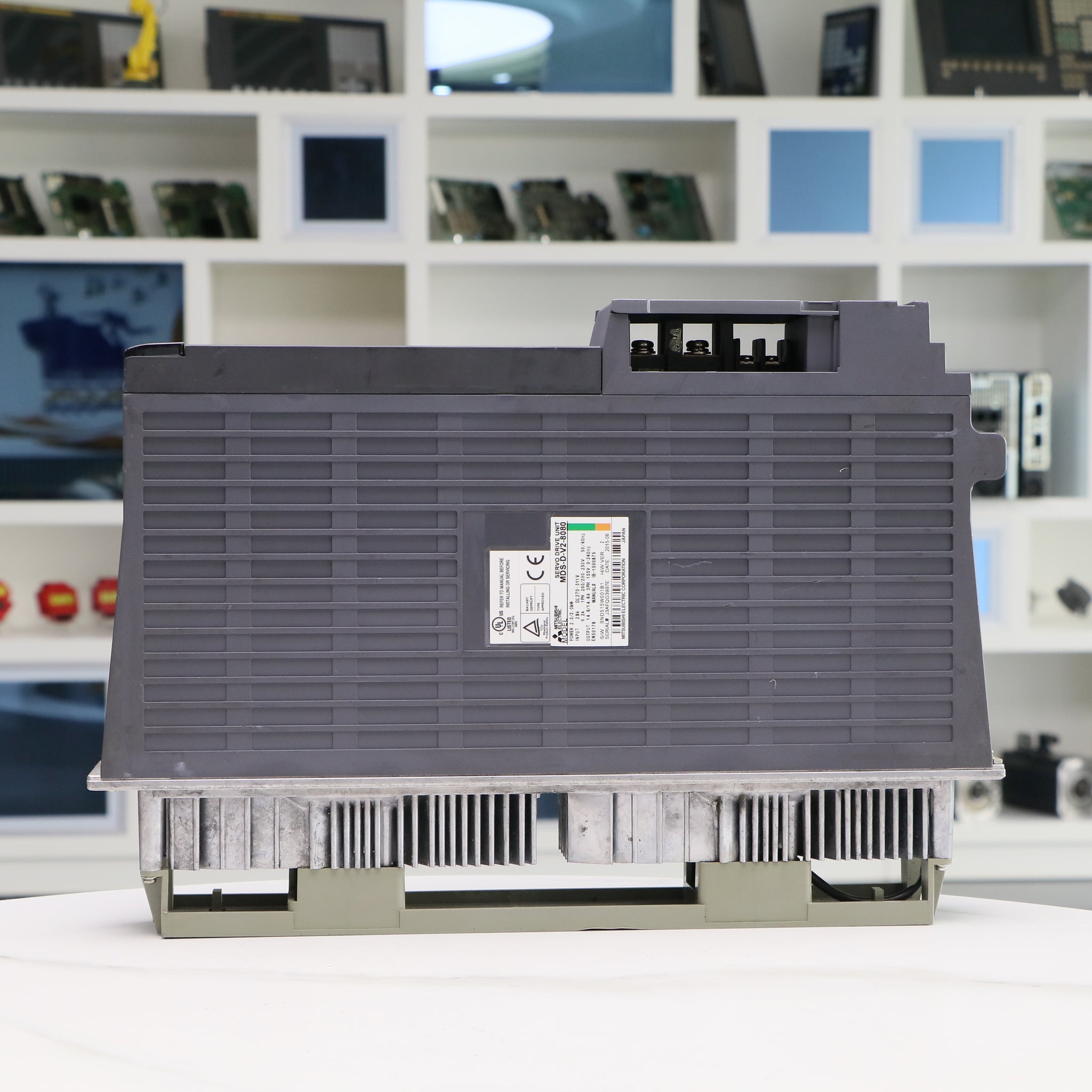

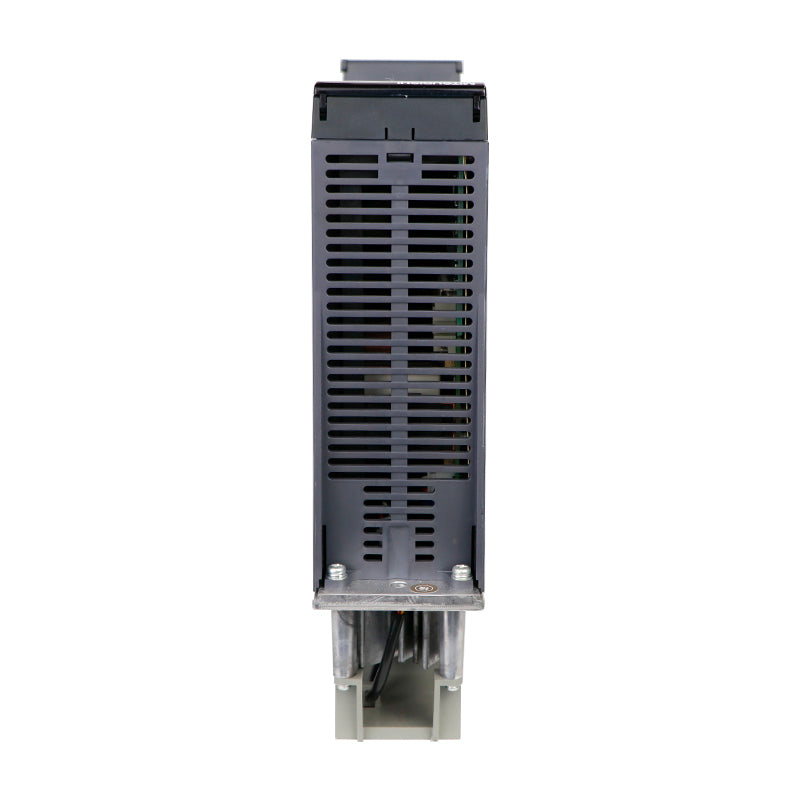

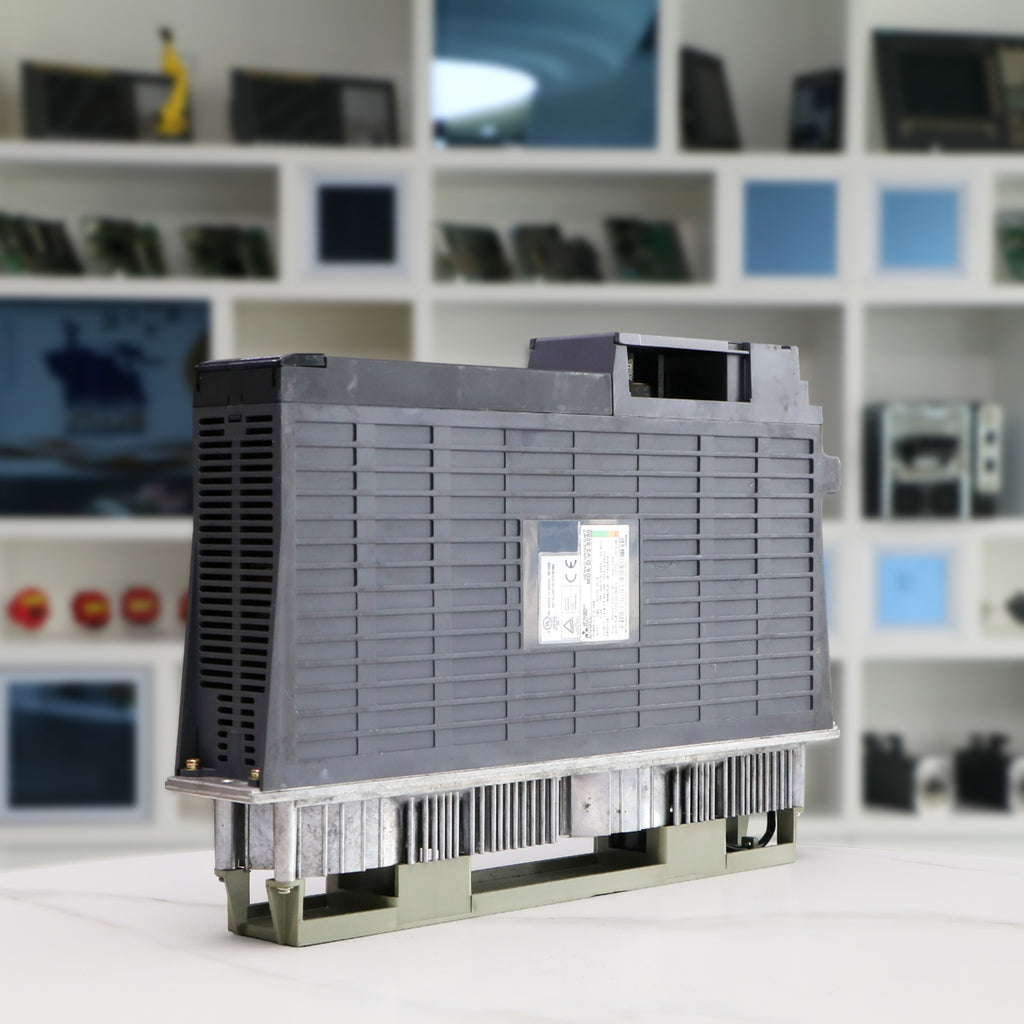

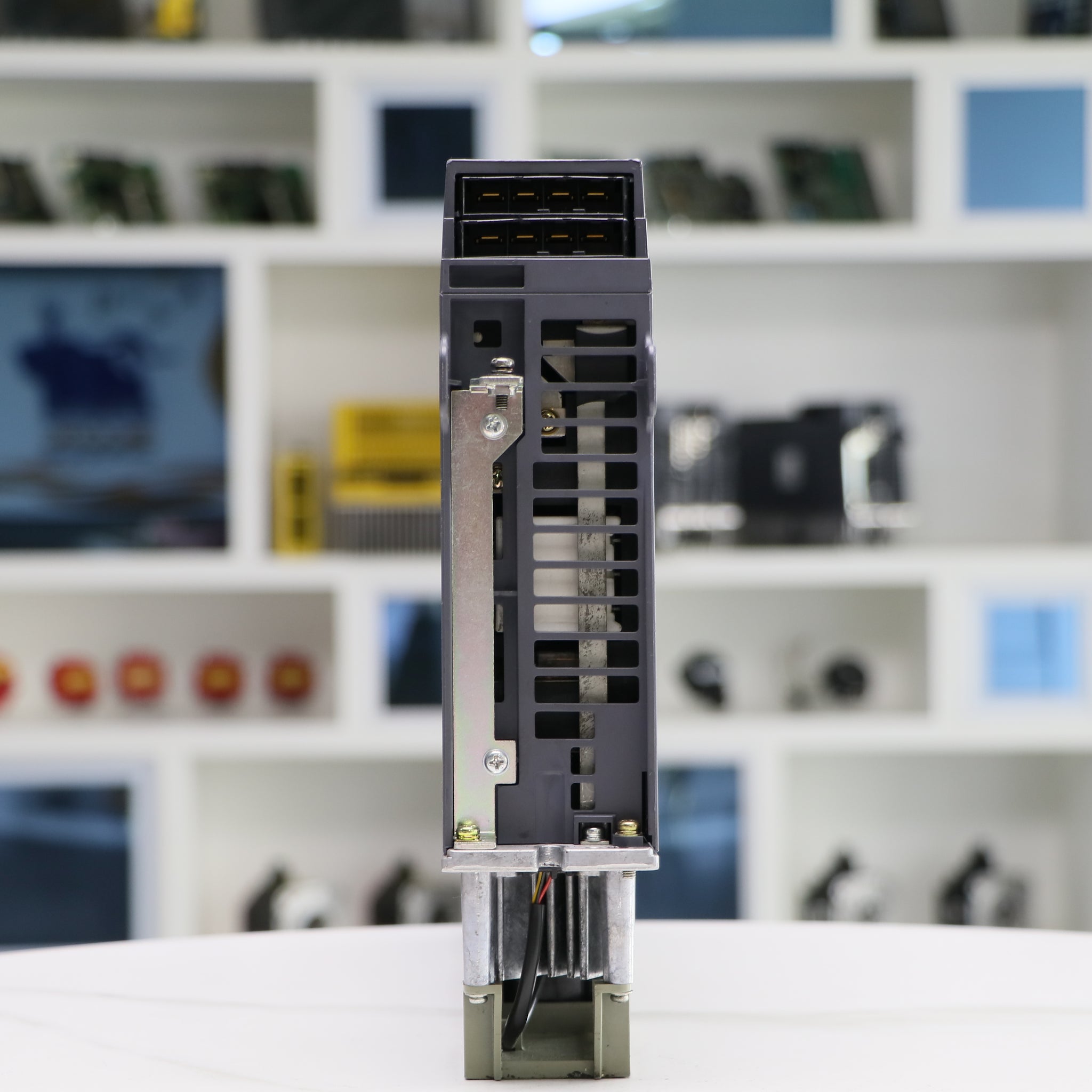

Mitsubishi MDS-D-V2-8080
Mitsubishi MDS-D-V2-8080

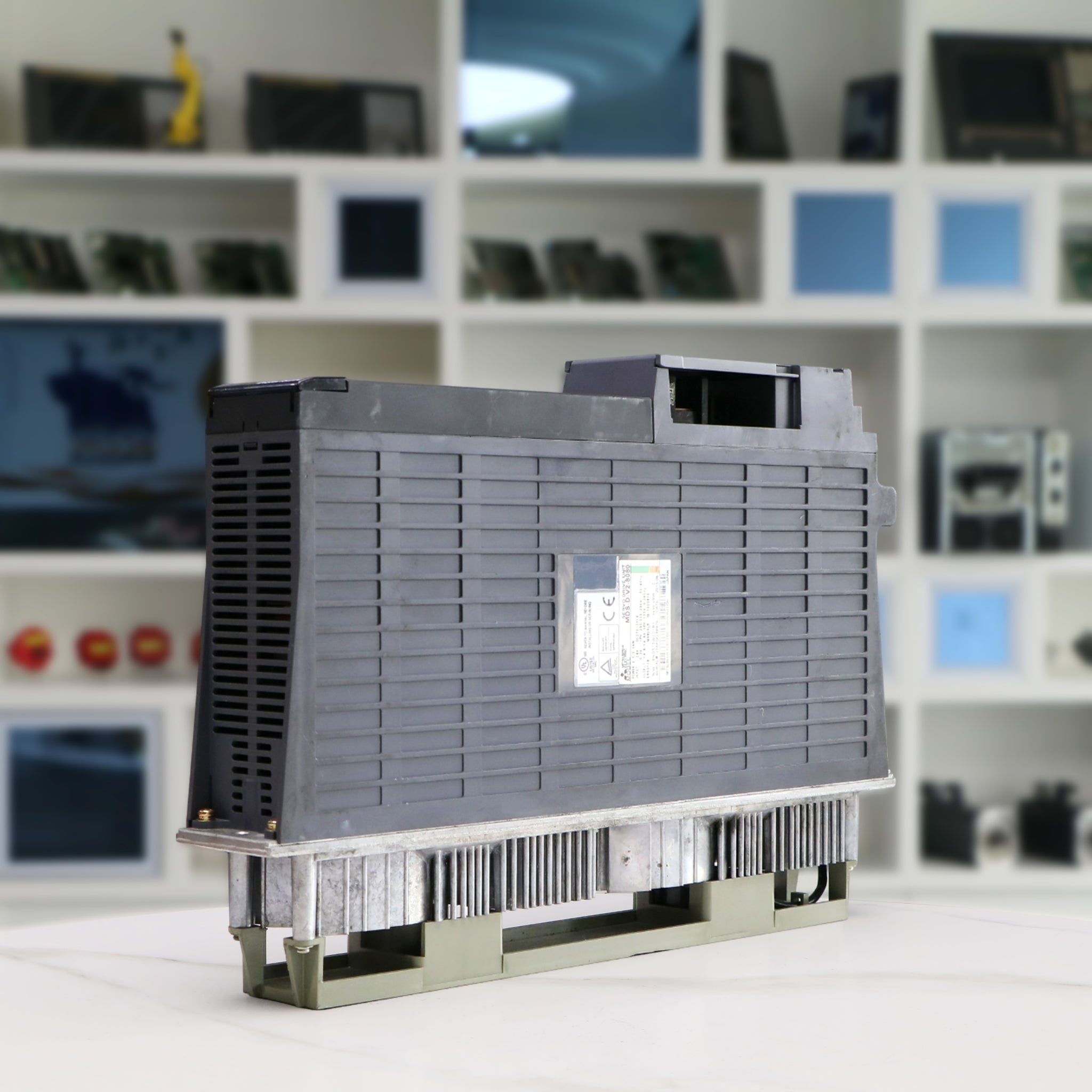

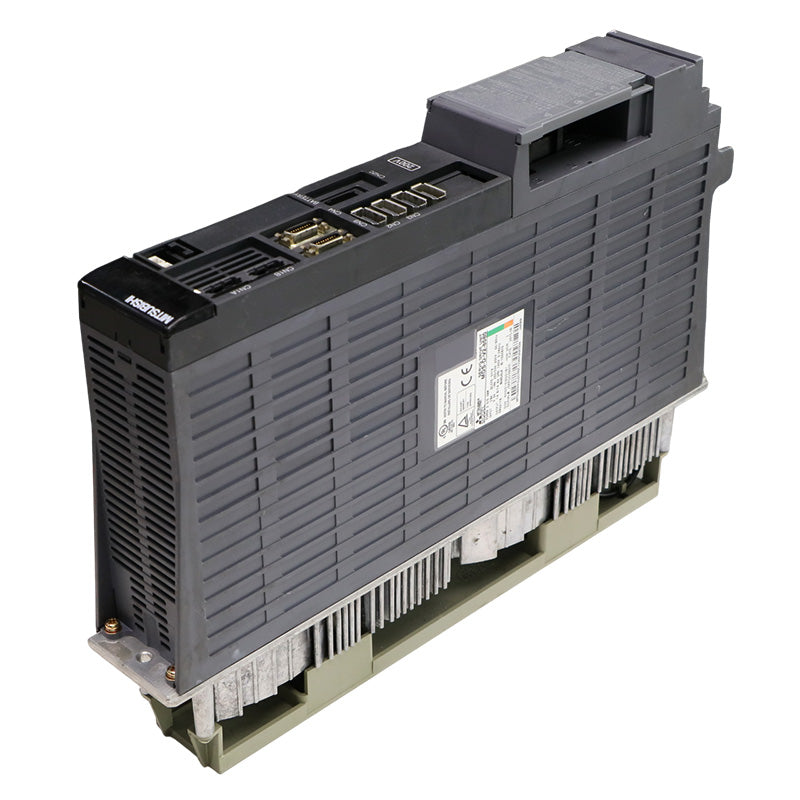

The Mitsubishi MDS-D-V2-8080 is a servo drive designed for use with various machine tools. This unit is part of the MDS-D series, which is a line of AC servo and spindle control units developed by Mitsubishi Electric Corporation. The MDS-D-V2-8080 is a specific model within this series, offering advanced features and capabilities for precise control and operation.
Technical Specifications:
The MDS-D-V2-8080 is equipped with a range of technical specifications that enable it to perform various functions effectively. It operates at 200-240V AC. The software version of the MDS-D-V2-8080 is B0, which indicates that it is compatible with the base control functions and other features outlined in the manual
The servo specification for the MDS-D-V2-8080 includes full closed-loop control, which allows for precise positioning and movement of the servomotor. This feature is particularly useful for applications that require high accuracy and precision. The power supply specification for the MDS-D-V2-8080 includes a heating value of 26 watts, which is applicable for the continuous rated output of the spindle drive unit. The drive unit is designed with energy-saving features, including regenerative braking capabilities that feed excess energy back into the power system, reducing overall energy consumption and operational costs. It can withstand harsh industrial environments. The MDS-D-V2-8080 features a robust construction with enhanced cooling mechanisms, ensuring reliable performance even under continuous operation and in high-temperature conditions.Compact and Modular Design:
The compact design of the MDS-D-V2-8080 allows for easy integration into various machinery, saving valuable space in control panels. Its modular structure facilitates straightforward maintenance and upgrades. The unit supports various communication protocols, making it compatible with a wide range of CNC systems and other industrial automation equipment. This flexibility simplifies integration and improves interoperability within complex production systems. With high-speed processing capabilities, the MDS-D-V2-8080 can handle complex motion control tasks with ease, enabling smoother and more efficient machine operations.User Friendly Interface:
The drive unit has an intuitive interface allowing easy setup, monitoring, and troubleshooting. Users can quickly configure parameters and diagnose issues, reducing downtime and improving productivity.
Applications:
The Mitsubishi MDS-D-V2-8080 is suitable for a variety of industrial applications, including CNC machining, robotics, packaging, and the textile industry. In CNC machining, its precision and speed make it ideal for milling, turning, and grinding operations, where high accuracy and repeatability are critical. For robotics, the drive unit provides the necessary control for smooth and precise movements, essential for assembly, welding, and material handling tasks. In packaging, its fast response and precise control ensure consistent and accurate processes. Its reliable performance and efficiency are beneficial for continuous operation and precision manufacturing in the textile industry.
Frequently Asked Questions:
What are the ambient operating conditions for Mitsubishi MDS-D-V2-8080?
The ambient operating conditions for the Mitsubishi MDS-D-V2-8080 specify that it should be used within a temperature range of 0°C to 55°C. Operating outside this temperature range can lead to performance issues or potential damage to the equipment.
How does the Mitsubishi MDS-D-V2-8080 handle regenerative braking?
The MDS-D-V2-8080 is equipped with regenerative braking capabilities, which allow it to convert excess kinetic energy generated during braking into electrical energy. This energy is then fed back into the power system, improving energy efficiency and reducing overall power consumption.
What protection features are included in the MDS-D-V2-8080 to ensure safe operation?
The MDS-D-V2-8080 includes multiple protection features to ensure safe operation. These features include overcurrent protection, overvoltage protection, overheat protection, and regenerative braking protection. These safety measures help prevent damage to the drive unit and connected equipment, enhancing overall operational safety.
Product Specifications Table:
Specification Table:
| Attribute | Specifications |
|---|---|
| Manufacturer | Mitsubishi |
| Input Voltage | 200-240V AC |
| Control Method | PWM control with vector control |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Protection Features | Overcurrent, overvoltage, overheat, regenerative braking |
| Communication Protocols | Supports various industrial communication protocols |
| Power Dissipation | 28 W |
| Product Type | Servo Drive |
| Axis | 2 |
