TECHNICAL SPECIFICATIONS

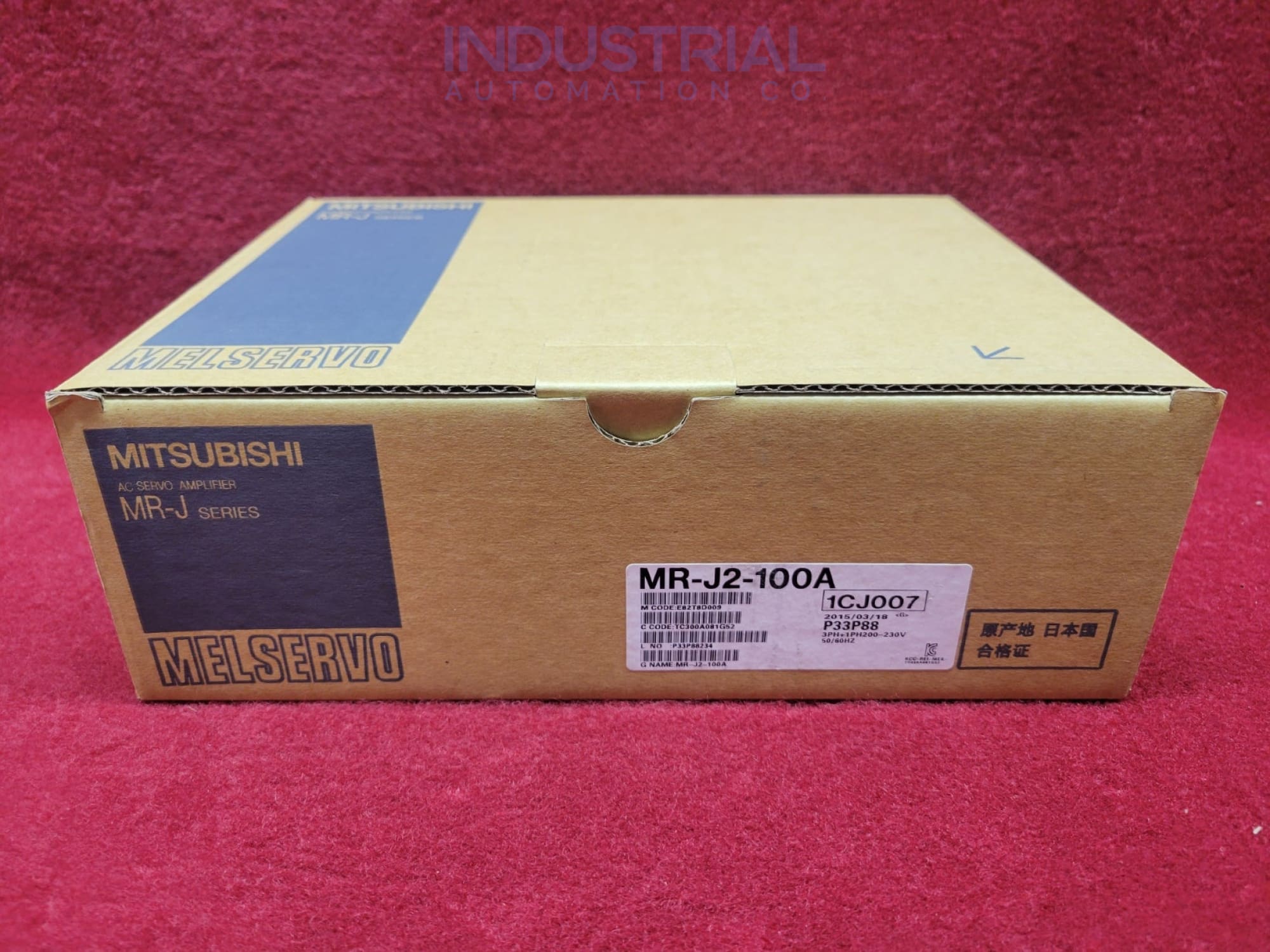

MR-J2-100A

The model MR-J2-100A offers precision control and is a high-quality servo amplifier or AC servo drive. It can be adapted to provide motion for one to 32 axes, making it a great choice for multiple applications. The MR-J2-100A servo amplifier is integrated with a dynamic brake, providing an instantaneous response in the case of emergencies or power failure to bring the motion control system safely and quickly to a stop.

Technical Specifications of MR-J2-100A:

The three-phase power supply for the model MR-J2-100A is designed specifically for voltage and frequency stability, with fluctuation levels ranging between 170 to 253 VAC and +/- 5%, respectively. The system’s input requirements include a consistent 200 - 230 VAC within the 50 - 60 hertz range, allowing this lightweight 1.7 kg device to provide dependable performance in any environment.

This model MR-J2-100A could be an inventive solution for current and new positioning systems. It has a sine-wave PWM signal providing precise control, plus a fast 250 Hz response speed that is readily adjustable thanks to the 0 to +/-10 VDC torque limit input range.

The Position control on the model MR-J2-100A features a differential receiver and open collector with increased performance capabilities. Each input pulse frequency is designed to reach up to 400 kpps (for the former) & 200kpps (latter), delivering superior signal accuracy for smoother operation.

The model’s Position Control can be set between 0 and 10,000 pulses, while its Torque Command Input offers a range of 0 to +/8 volts. As such, users have the flexibility to find their exact desired settings for optimal control!

The MR-J2-100A model’s speed control range is quite varied, with analog input commands ranging from 0 to +/- 10 V and a capability of 1: 1000 for external instructions or up to 1: 5000 internally.

Operating and Installation Ambiance Conditions:

This MR-J2-100A module’s ideal environment keeps temperatures between 0 and 55°C, with relative humidity not exceeding 90%. Any outdoor conditions should stay within a range of -20 to 65°C.

To ensure optimal operation and performance, the environment for installation must be pristine. A qualified technician should manage everything from start to finish to reduce vibration levels significantly. Furthermore, even at 1km above sea level elevations, this servo amplifier MR-J2-100A will deliver consistent results without any degradation over time.

The IP54-rated servo amplifier MR-J2-100A must be placed vertically in a control cabinet to maximize product protection. The installation environment must remain clean and dust free for optimal performance of this equipment.

Operational Warnings and Cautions

Be careful when turning the servo amplifier and motor on/off, as they can reach very high temperatures. To ensure your safety, always remember to connect its protective earth connection to that of the control boxes for electrical protection.

Before any activity can be initiated on this servo amplifier MR-J2-100A, connecting SG to the external emergency stop signal is essential. To ensure proper operation, double-check that the diode is connected correctly. Failing to connect the servo amplifier properly will impair its ability to send signals and negate any safety measures taken.

All currents running via external relays should never exceed 80mA. Any usage above the limit must be powered externally to ensure proper performance.
