TECHNICAL SPECIFICATIONS

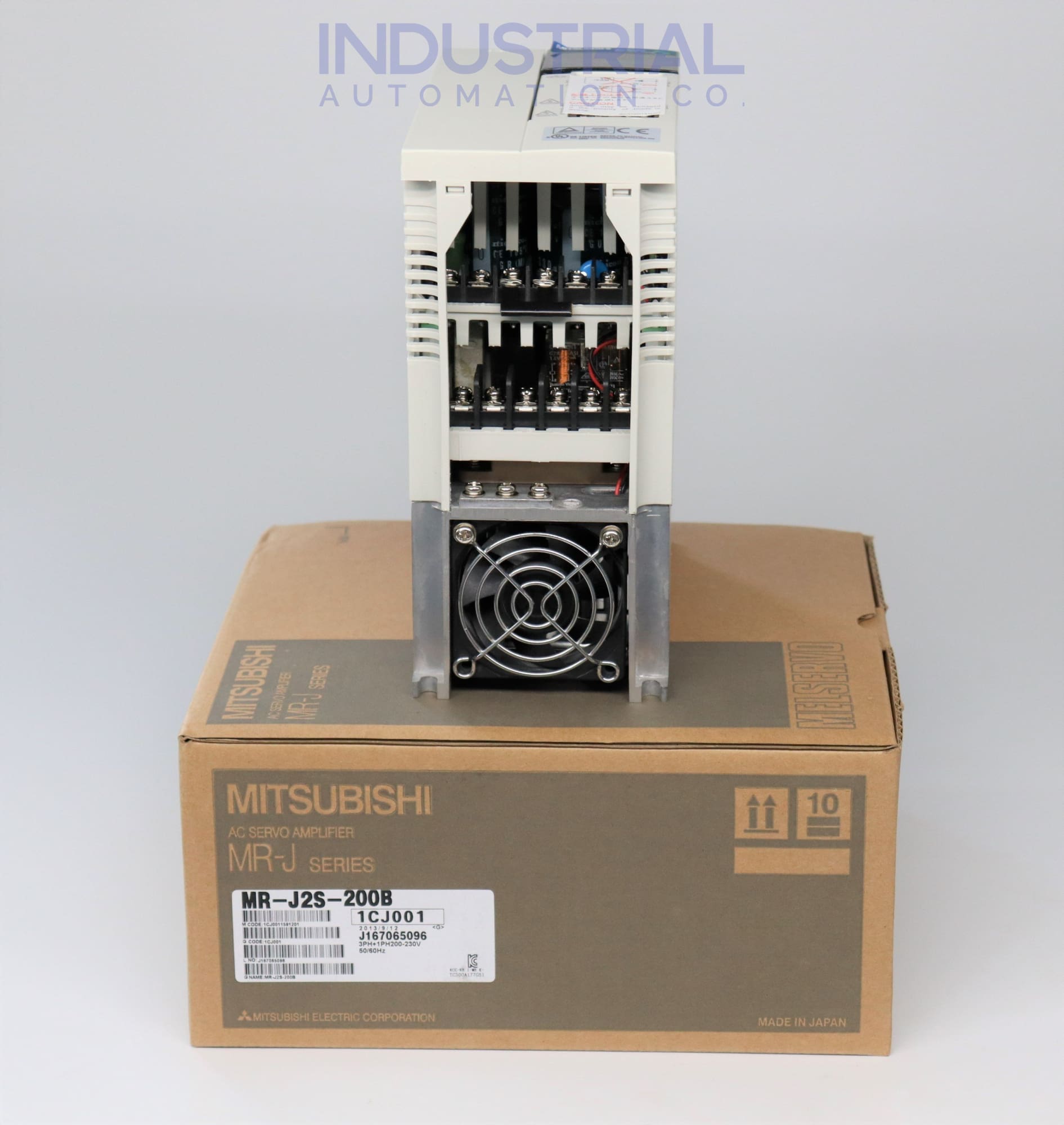

MR-J2S-200B

This model MR-J2S-200B can produce high-frequency resonance for boosted responsiveness, which can be dampened by the built-in low-pass filter integrated into its accompanying servo amplifier. Mitsubishi has designed and manufactured the advanced servo drive MR-J2S-200B with powerful features to maximize performance.

This advanced model MR-J2S-200B is equipped with a powerful encoder that can measure up to 131072 pulses per rotation, perfect for use in servo motors. It provides an unsurpassed level of accuracy and precision.

Technical Specifications of MR-J2S-200B:

By connecting to the MR configurator, this model MR-J2S-200B can effectively assess mechanical systems' frequencies via its Automated Analyzer function. On activation of the Auto-Tuning feature, it continues to maximize gains in reaction to modification of load on motor shafts.

The model MR-J2S-200B features a state-of-the-art brake and current control system combined with an optimized gain search algorithm, providing precise adaptive gain adjustments without compromising stability. The MR Configurator software is essential for the maximum performance of this advanced feature.

This formidable 2-kilogram model MR-J2S-200B is ideal for handling various emergencies. Built with utmost precision, it can quickly detect and prevent malfunctions caused by Overcurrents during the regeneration process, overloads, encoder errors, or Undervoltages that could result in abrupt power loss Overspeed occurrences.

The model MR-J2S-200B features a sophisticated switch that recognizes when the generated regenerative power is insufficient and quickly reverts to return converter operation. It has been optimized for a three-phase power supply between 200 to 230 VAC.

The servo amplifier MR-J2S-200B is equipped with an integrated regenerative resistor to control excess power, however, a supplementary option can be accessed if needed. Additionally, the model's intelligent adaptive vibration suppression adjusts filter parameters when mechanical vibrations are detected to reduce noise levels and provide a smooth operation.

Ambiance Conditions (operating and Installation):

Operating at sea level up to one thousand meters high, the model MR-J2S-200B performs optimally without any loss of functionality. However, a professional must be on hand for installation and subsequent monitoring to ensure safe and effective operations.

This model MR-J2S-200B boasts impressive temperature tolerance ranging from -20 to +65 degrees Celsius for storage and 0 to +55 degrees Celsius during use. For optimal performance, align it vertically, reducing the risk of vibrations impacting your results.

To ensure optimal functioning, the model must be installed in a control cabinet offering an IP54 level of protection. Additionally, for adequate cooling to occur, a 10.16-inch fan is strongly recommended to be placed directly above the servo amplifier.

To ensure the best possible performance of the servo amplifier MR-J2S-200B, it must be paired with a designated servo motor in an interior space far from direct rays of sunshine. To protect against any potential damage or disruption to operations, these locations should also uphold cleanliness standards that prohibit dirt and dust accumulation and restrict combustible gas exposure.

Statutory Safety Guidelines:

To ensure a successful installation, install the servo amplifier and motor before connecting any cables. To protect against electric shock, use insulating tubes to crimp all terminals on each cable attached to the servo amplifier terminal block.

Effective implementation of the servo amplifier depends on proper configuration. Neglecting to verify that parameters are correct could lead to unfavorable operations and halt production procedures.

To ensure optimal utilization, thoroughly read through the user manual's comprehensive safety guidelines before activating its functions.
