TECHNICAL SPECIFICATIONS

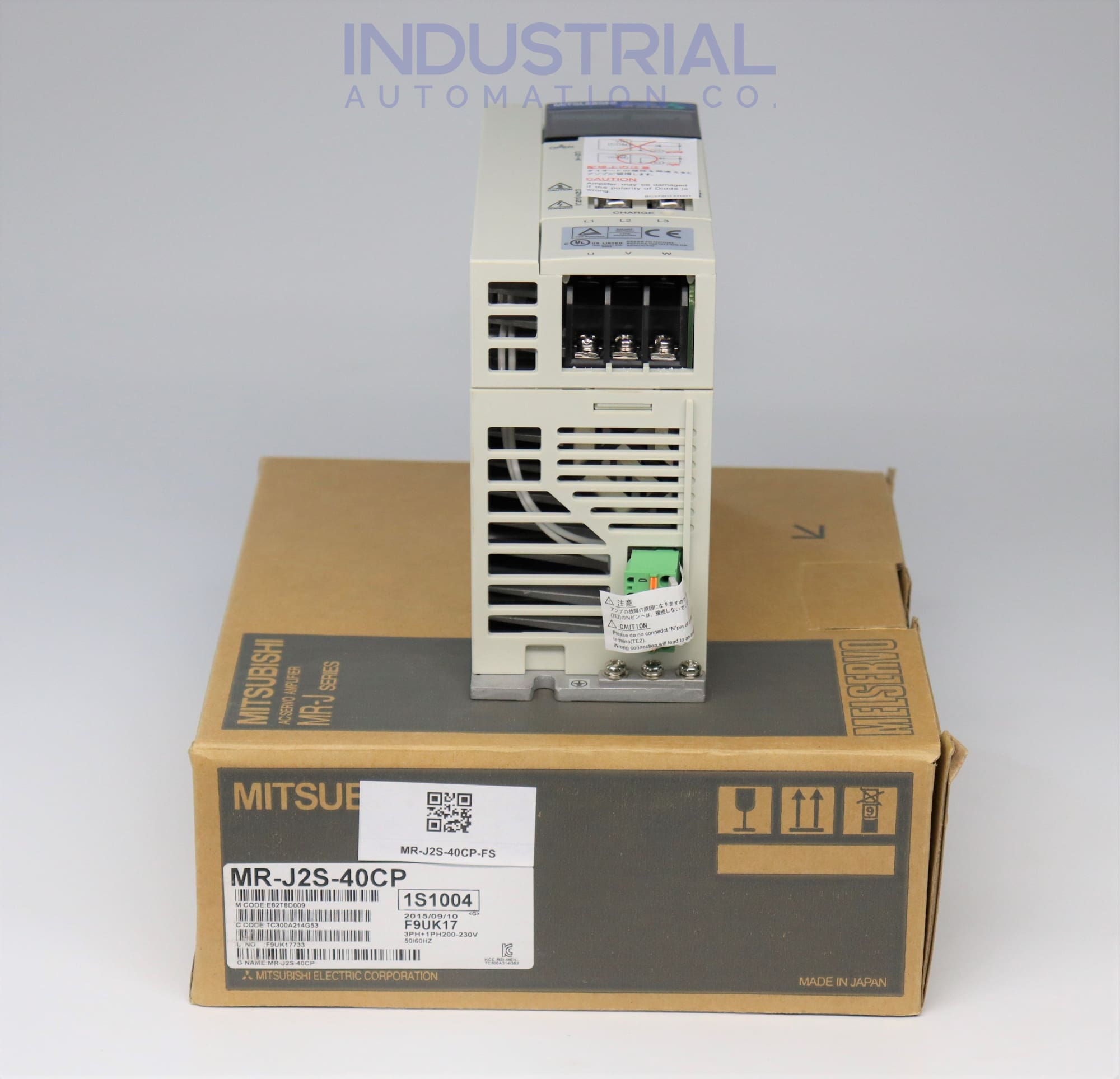

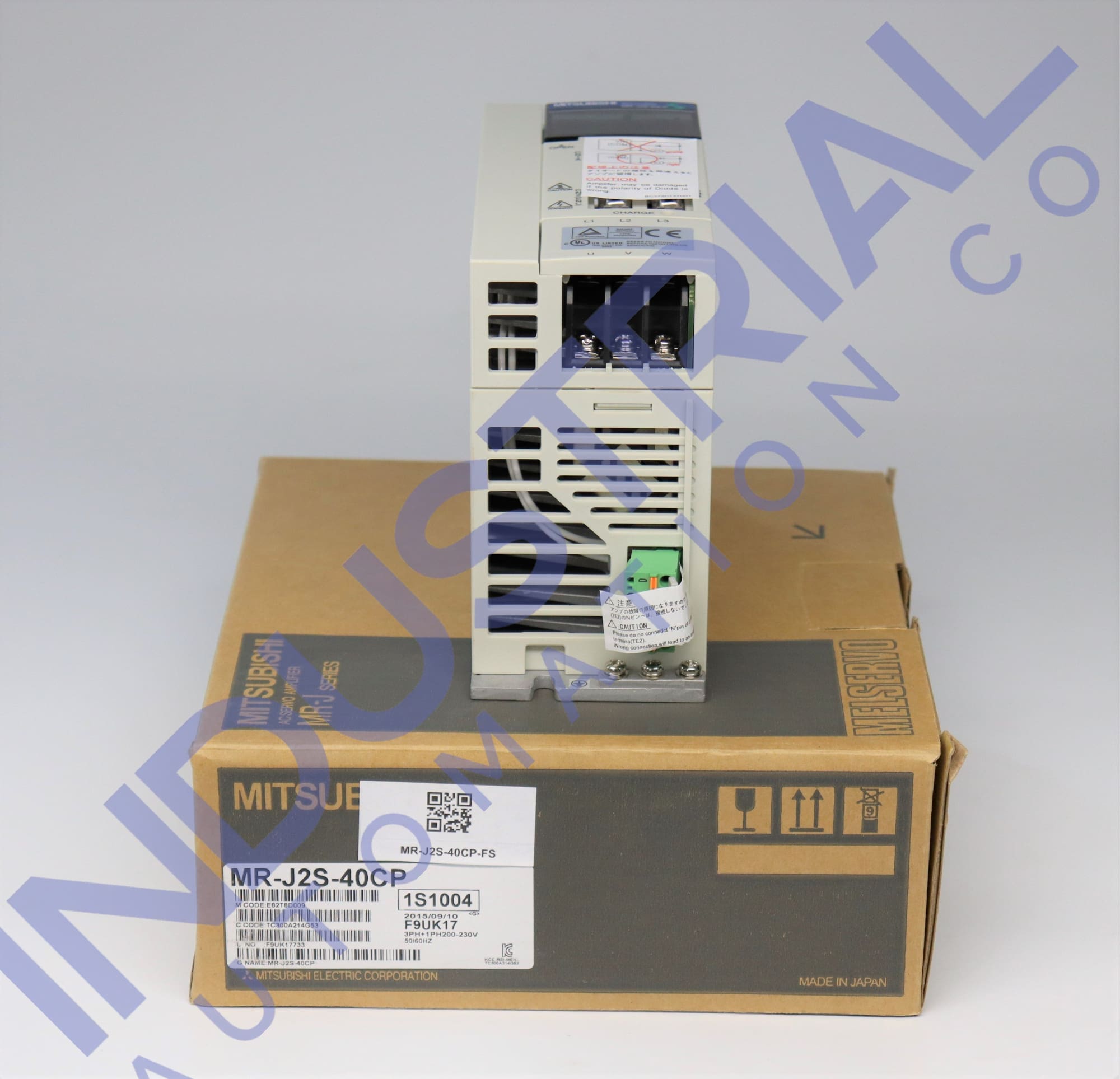

MR-J2S-40CP

The MR-J2S-40CP model belongs to the JS2 family of efficient servo amplifiers manufactured by Mitsubishi. There is an absolute position encoder within every servo motor. Simply powering the servo amplifier with a battery changes its function to that of an absolute position sensor device. The model is a high-performance AC servo amplifier that can be further customized with the help of the MR Configurator software. The model MR-J2S-40CP must be installed and operated by a trained professional only in specific settings and orientations.

Technical Specifications of MR-J2S-40CP:

High-end characteristics of the model MR-J2S-40CP include absolute position detection, a backlash function, a software stroke limit, and an external analog signal override. Overcurrent cutoff, servo motor overheat protection, regenerative fault avoidance, Undervoltage protection, Overspeed protection, and excessive error protection are the model's protective features. The three-phase supply voltage varies from 200 to 230 VAC, whereas the single-phase supply voltage is 230 VAC. The frequency of the input voltage should be between 50 and 60 hertz.

The model MR-J2S-40CP allows voltage fluctuations of 170 to 253 VAC for three-phase and 207 to 253 VAC for single-phase. The model weighs 1.1 kg and has an integrated dynamic brake. The dynamic brake has a moment of load-to-inertia ratio of 30 times. The integrated dynamic brake may overheat if the moment of inertia exceeds this threshold. The MR-J2S-40CP servo amplifier has three distinct modes of operation: automatic operation, manual operation, and manual home position return.

Operating and Installation Environment Conditions:

The model MR-J2S-40CP must be used inside and not exposed to direct sunlight. Installation and operating areas should be free of dust, oil mist, and other reactive chemicals. The device is robust enough to withstand vibrations up to 5.9 m/s2 without suffering performance degradation. It is recommended that this model be used in temperatures between 0 and +55 degrees Celsius, with a maximum relative humidity of 90%. The module is advised to be stored in a dry environment with a maximum relative humidity of 90% and temperatures between -20 and +65 degrees Celsius.

At altitudes up to 1,000 meters above sea level, the servo amplifier keeps performing at the same level. The poor protection category of the servo amplifier MR-J2S-40CP necessitates vertical placement in an IP54-rated control cabinet. Seal any apertures in the control box or ceiling-mounted cooling fan to keep oil, water, metallic particles, etc., out of the servo amplifier. It is important to scrutinize the clamping method to prevent the cable connection from being stressed by bending and the cable's weight.

Software and Display Requirements:

The MR Configurator software (version MR2JW3-SETUP151E or above) uses the MR-J2S-40CP servo amplifier's built-in communication function to enable a wide range of operations performed on a computer, such as the adjustment of settings, the display of graphs, the execution of tests, etc. The software can perform various file processing, diagnostic, and testing activities. This software has several features, including machine simulation, machine analyzer, and gain search.

The software requires at least 60 MB of free space on the hard drive and works with Windows XP and later. To perform a positioning operation, the MR Configurator is necessary. The servo amplifier's control panel lacks the functionality necessary to carry out this procedure. A single positioning action may occur when no external order is present. The MR-J2S-40CP servo amplifier has a front-panel LED display with five digits and seven segments for monitoring and adjusting various functions.
