TECHNICAL SPECIFICATIONS

MR-J2S-40CP-S084

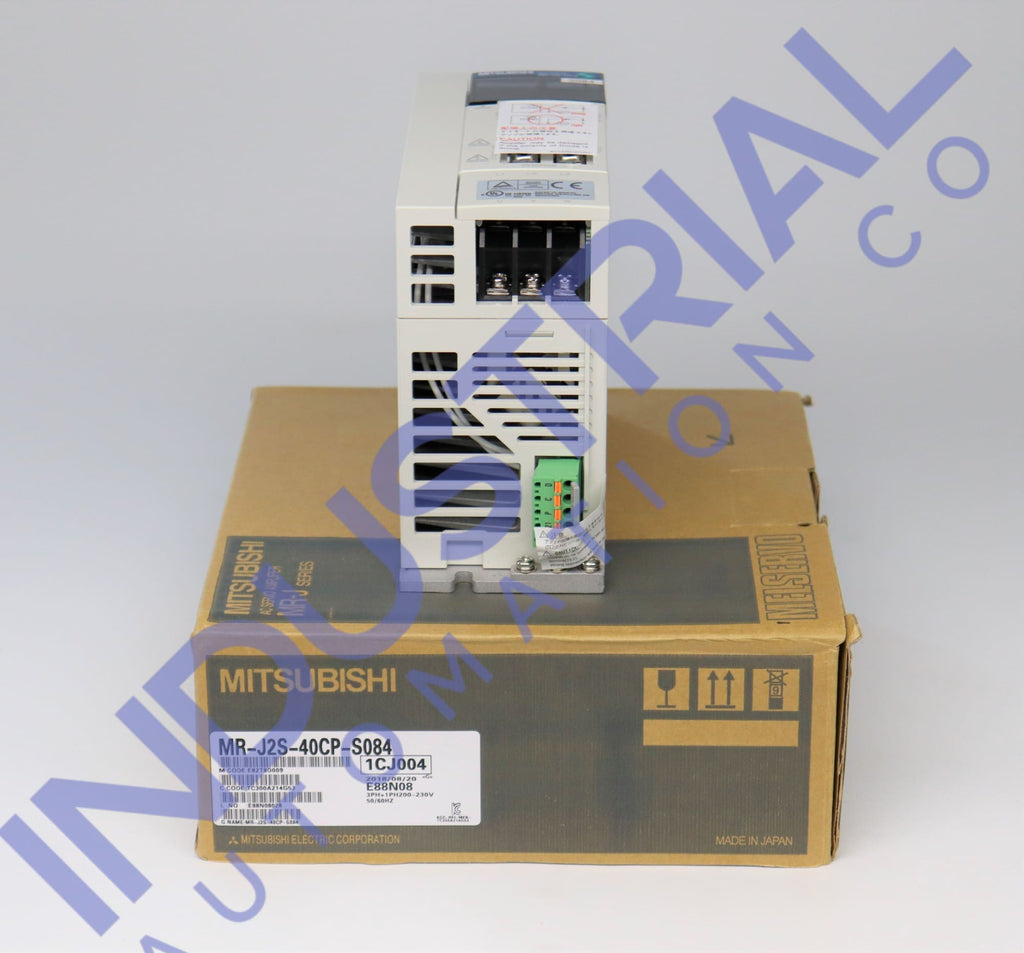

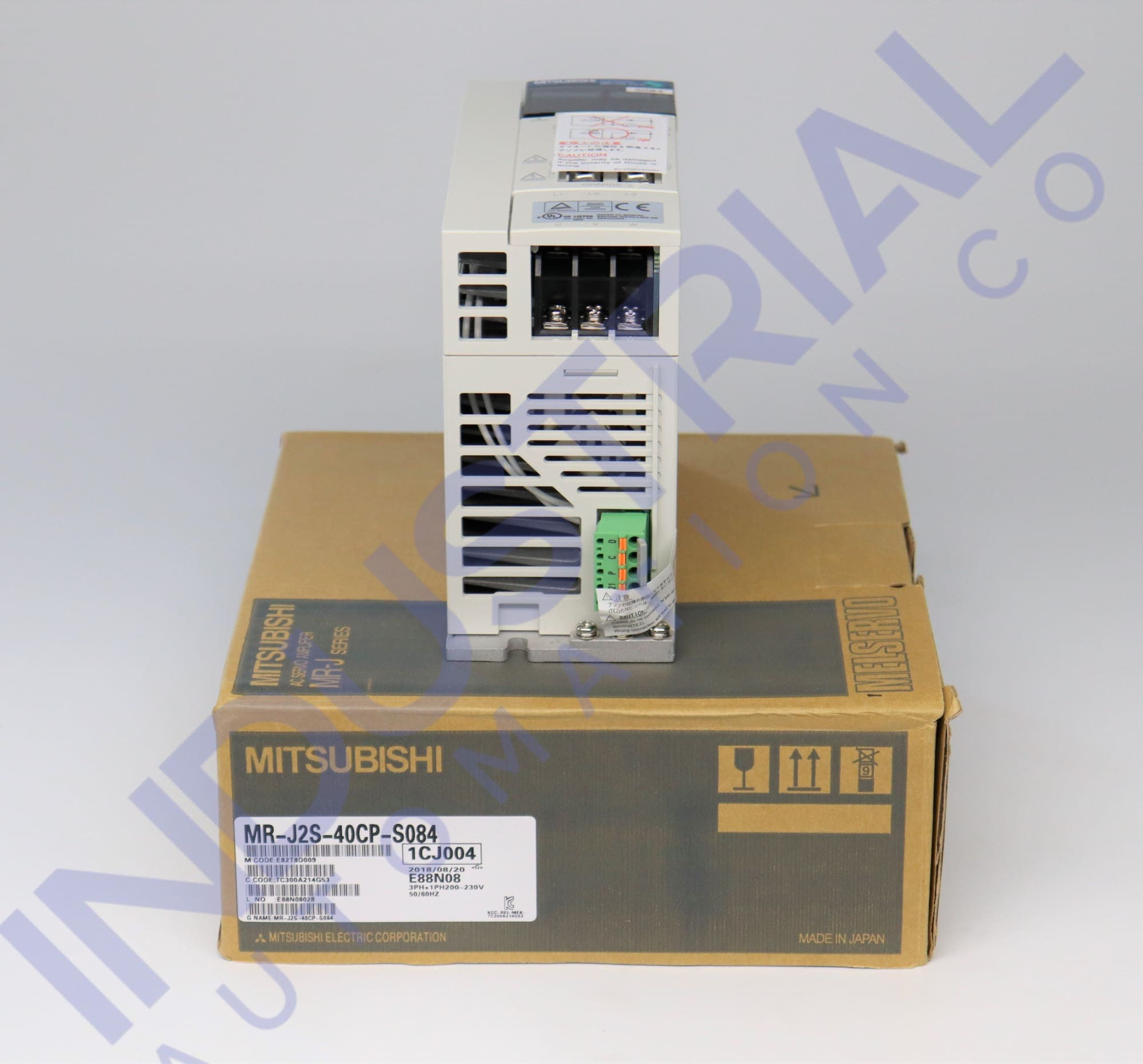

The model MR-J2S-40CP-S084 is an integrated positional servo amplifier from the JS2 family of efficient servo amplifiers manufactured by Mitsubishi. Standardly, the model has three points of point tables; however, this may be enlarged to thirty-one points using the servo configuration software. The model is a high-performance AC servo amplifier that can be modified using the MR Configurator software. The MR-J2S-40CP-S084 model needs expert installation and operation under certain environmental conditions and orientations.

Technical Specifications of MR-J2S-40CP-S084:

The single-phase supply voltage for the MR-J2S-40CP-S084 model is 230 VAC, whereas the three-phase supply voltage for the model fluctuates between 200 and 230 VAC. If the inertia moment value exceeds 30, the integrated dynamic brake might overheat and fail. Automatic operation, manual operation, and manual home position return are the three distinct operation modes made accessible by the servo amplifier MR-J2S-40CP-S084.

Absolute position detection, a backlash function, a software stroke limit, and an external analog signal override are some of the high-end features of this model. The model MR-J2S-40CP-S084 power supply capacity for the HC-KFS43 and HC-UFS43 servo motor models is 0.9 kVA.

Ambient Conditions for Operation and Installation:

The servo amplifier MR-J2S-40CP-S084 is resilient enough to tolerate vibrations of up to 5.9 m/s2 without degrading function. This model's recommended working temperature range is between 0 and +55 degrees Celsius, with a relative humidity of no more than 90%. The servo amplifier's low protection rating needs installation in a control cabinet with a high protection rating. The model must be used inside and not in direct sunlight.

When installing several servo amplifiers, it's recommended that at least 100 mm of space be given between the top of each servo amplifier and the inside of the control cabinet to prevent the box's internal temperature from rising over the ambient temperature. Dust, oil mist, and other reactive compounds should not be present in installation and operation regions. At heights up to 1,000 meters above sea level, the performance of the servo amplifier MR-J2S-40CP-S084 remains constant.

Software Features and Requirements:

The MR-J2S-40CP-S084 servo amplifier's built-in communication feature is used by the MR Configurator software (version MR2JW3-SETUP151E or higher) to allow for a variety of computer functions. Machine simulation, an analyzer, and a gain search are just a few tools with this software. List-display, change list display, detailed display, and device setting are the only parameters that can alter and track using this software.

The software is compatible with Windows XP and later versions and needs at least 60 MB of disk space to run properly. To get the most out of this software, a Pentium® 133MHz, Pentium® 150MHz, or Pentium® 300MHz processor is suggested.

Protection Specifications and Safety Precautions:

The MR-J2S-40CP-S084 model has protection specifications against overcurrent, regeneration overvoltage, servo motor overheating, encoder error, Undervoltage, instantaneous power failure, Overspeed, and excessive error. The servo amplifier MR-J2S-40CP-S084 has an electronic thermal relay to protect against overload.

Refrain from using the servo amplifier MR-J2S-40CP-S084 if the front panel has been removed. Warning: possible electric shock from exposed high-voltage connections and charging places. Even with the power turned off, the servo amplifier's front cover must not be removed for any reason other than wiring or routine inspection. Be careful; the servo amplifier can be charged and might give a jolt of electricity.
