TECHNICAL SPECIFICATIONS

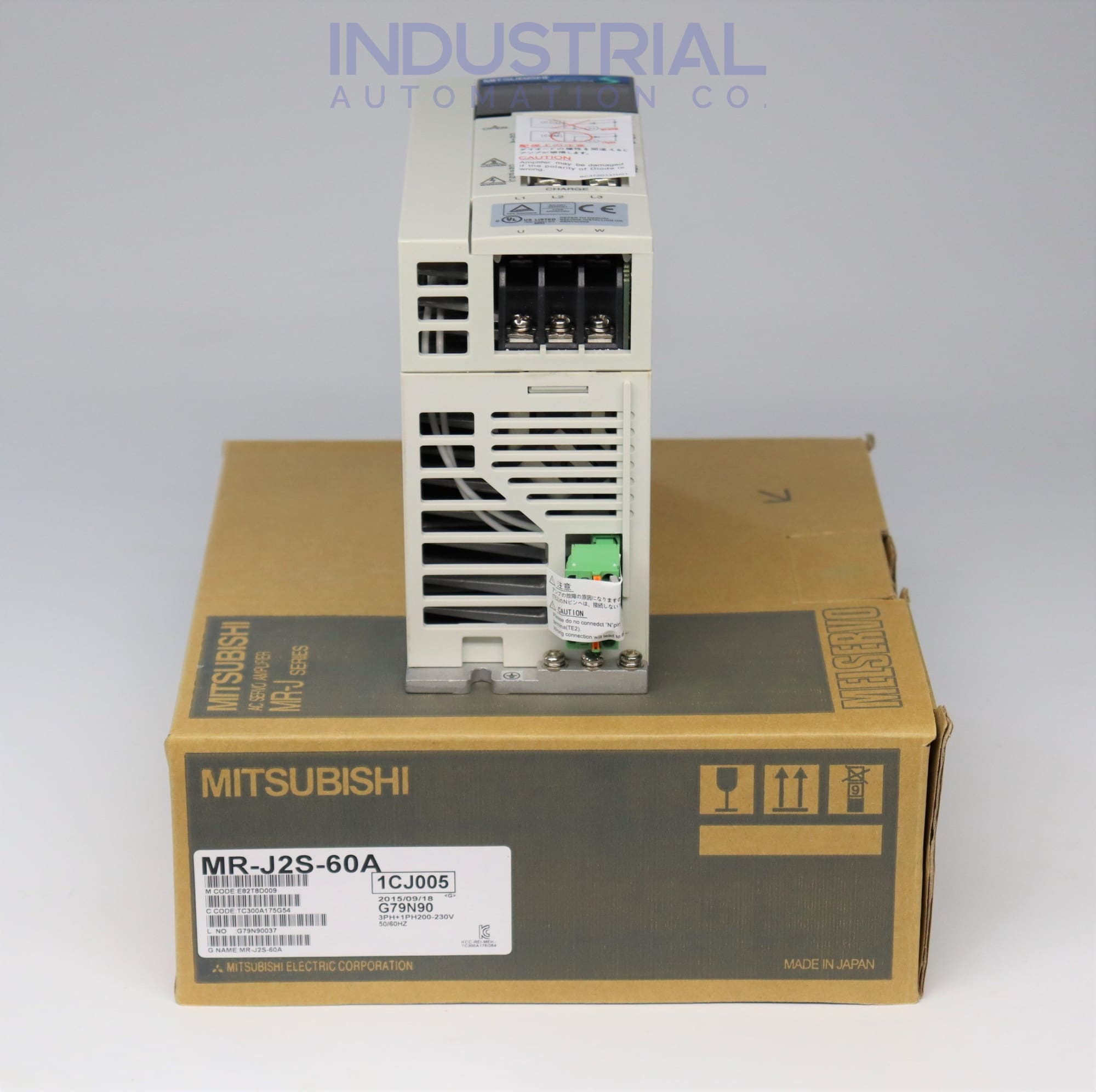

MR-J2S-60A

The Mitsubishi MR-J2S-60A servo drive is powerful and versatile. By switching between position, speed, and torque control modes as necessary, it can handle almost any task with efficiency numerously employed across various applications.

This model covers you from built-in overcurrent and regenerative overvoltage cutoffs to safeguard against encoder errors, sudden power outages, and excessive speed.

Technical Specifications of MR-J2S-60A:

The MR-J2S-60A model is a 1.1-kilogram device with impressive features, including dynamic braking and current control capabilities. It operates in three distinct modes - position, speed, and torque control - each ensuring precision through high-frequency pulse trains for reliable motor rotation regulation at varying speeds and directions.

This model MR-J2S-60A employs three-phase power, which embraces a vast range of voltages (170 - 253 VAC) and can adjust to frequency changes with an impressive tolerance rate of up to 5%. Furthermore, it has the capacity for single-phase voltage input from 207 -253 VAC. Natural convection handles any increases in temperature within its housing due to increased motor loads or environmental conditions.

Additionally, when operating in torque-control mode, this speed can be determined by external analog input or parameter setup.

Position control mode is capable of processing up to a remarkable 200 kbps input pulse frequency. The differential receiver, even more impressively, can handle a 500 kbps rate with speed controls ranging from an incredibly fast 1:2000 ratio to an astonishingly speedy 1:5000.

Operating and Installation Conditions:

The MR-J2S-60A model operates between 0 to +55°C and can be stored at temperatures ranging from -20 to +65°C, while humidity levels should not exceed 90%. This system requires the expertise of a trained technician for setup and results in optimal performance when placed upright in an area with low vibration.

Installing a single servo amplifier, such as the MR-J2S-60A model, is critical for successful equipment operation. To ensure proper function and prolonged life of your system components, you must allot 40 mm of clearance above and 10 mm on each side when installing this amplifier within its corresponding control cabinet - one meeting all necessary protective class requirements.

To prevent overheating, ensure sufficient space between the top of the accelerator and interior walls, allowing air circulation.

Cautionary Information

The MR-J2S-60A is a versatile component to use across multiple industries and avoid risks that could endanger human life. Yet despite its robust build, it must still be maintained regularly; after 10 years of use, the electrolytic capacitor in the servo amplifier will deteriorate if not replaced periodically. If your servo amplifier has been modified or is missing parts, do not use it.

The MR-J2S-60A servo amplifier is built with the highest level of precision and is put through comprehensive testing to ensure it is of the highest possible quality. However, additional fallback and failsafe capabilities should be for locations where a minor malfunction could have significant repercussions.
