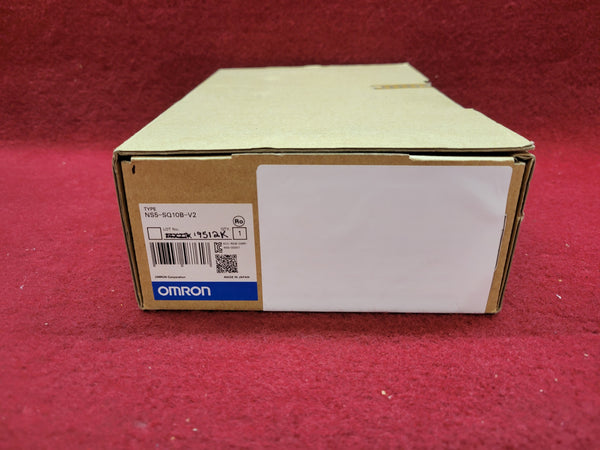

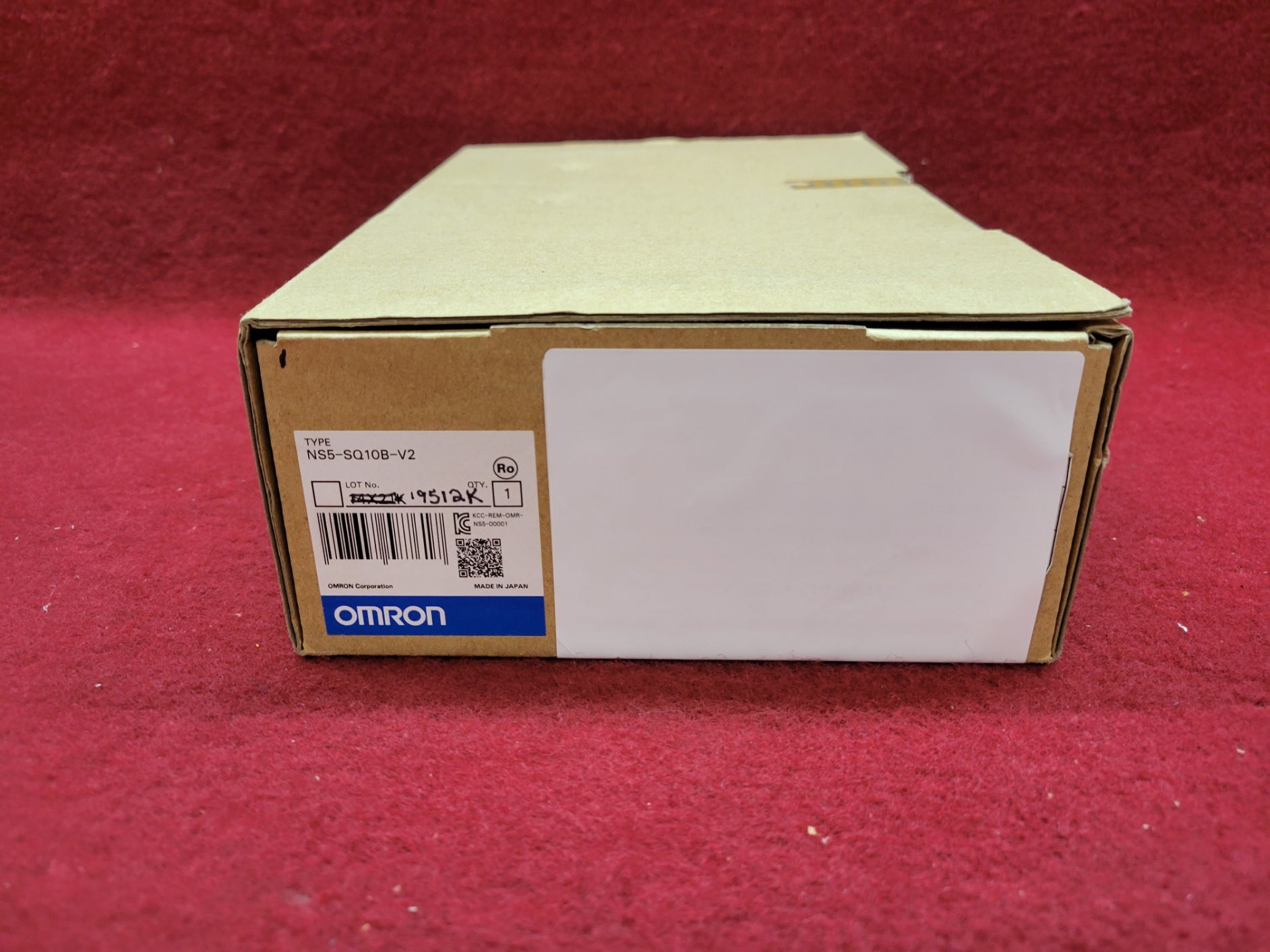

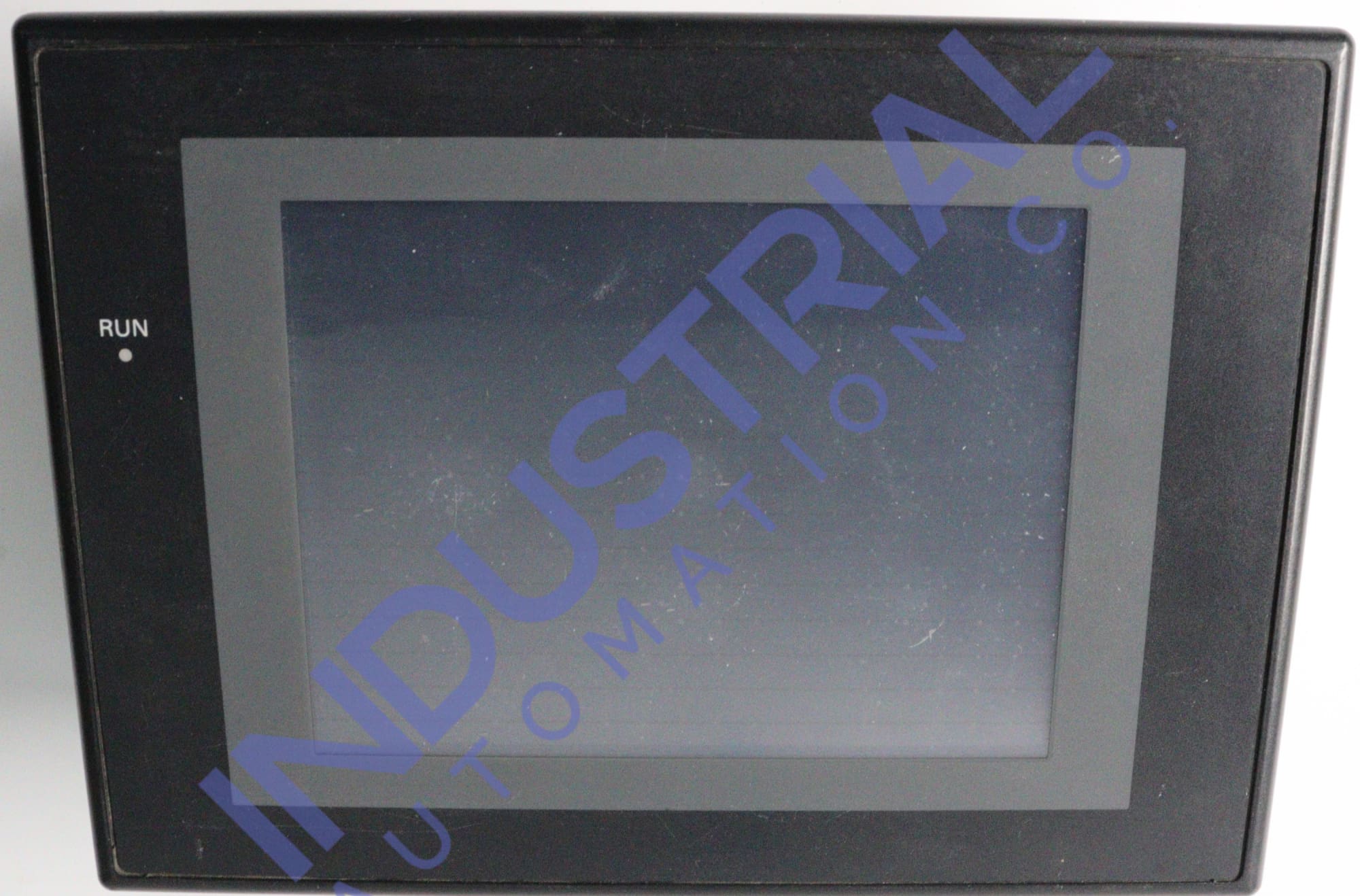

Omron NS5-SQ10B-V2

The Omron NS5-SQ10B-V2 is an NS series Human-Machine Interface (HMI) that is strong and flexible. This device is small and powerful at the same time, making it perfect for a wide range of automation and control tasks. It was made to make it easier for people to work with industrial machines. This HMI is made for professionals and has advanced features that make it reliable and efficient in harsh industrial settings.

Technical Specifications:

Omron NS5-SQ10B-V2 is a vivid and clear 5.7-inch TFT LCD touchscreen with 320 x 240 pixels. This screen can display 256 colors or 32,768 for BMP and JPG files. Visuals are vibrant and detailed with this function. The display's brightness of 250 cd/m ² ensures visibility in various lighting conditions.

The gadget has two RS-232C terminals and one USB port for connectivity. Supporting many Omron PLC communication protocols ensures compatibility with a wide range of industrial equipment. The NS5-SQ10B-V2's 60 MB of internal memory can handle several apps and data.

From 20.4 VDC to 27.6 VDC, the NS5-SQ10B-V2 may operate at 24 VDC. Energy-efficient and high-performing, it consumes 15 W max. The HMI can operate from 0 °C to 50 °C and store from -20 °C to 60 °C. Its non-condensing and 10% to 90% RH relative humidity tolerance ensures its durability in various climatic situations.

The NS5-SQ10B-V2 can withstand vibrations of 10 to 57 Hz, 0.075 mm amplitude, and 57 to 150 Hz, 9.8 m/s ², for 30 minutes in X, Y, and Z directions. It also has noise immunity, with common mode protection of up to 1,000 Vp-p and normal mode protection of up to 300 Vp-p. These specifications demonstrate its industrial durability.

User Interface and Display:

The Omron NS5-SQ10B-V2 display's LED lighting should last 50,000 hours at ambient temperature. However, lower temperatures may reduce gadget longevity. The interface allows customizable information viewing with 1x1 and 8x8 magnification choices.

The display's text attributes allow users to select from 256 colors and select from bold or italic font styles. Horizontal alignment options include left-justified, centered, or right-justified, while vertical alignment options include top, center, or bottom. The visual emphasis on critical information is further enhanced by the display's fluctuation settings for functional and fixed objects.

Environmental and Compliance:

The NS5-SQ10B-V2 is engineered to satisfy rigorous environmental and compliance regulations. It has been certified by CE and UL/cUL, as well as other industrial standards, thereby guaranteeing its suitability for global use. The device is accessible to a diverse user base, as it supports 42 languages, including English, Japanese, Chinese, Korean, and numerous European languages.

A durable casing is incorporated into the HMI's construction to safeguard against industrial environmental challenges. The device operates reliably in severe conditions due to its noise immunity and vibration resistance. This renders the NS5-SQ10B-V2 an optimal option for environments that prioritize durability and stability.

Frequently Asked Questions:

What are the memory capacity and voltage requirements of the NS5-SQ10B-V2?

The NS5-SQ10B-V2 has a memory capacity of 60 MB and operates at a supply voltage of 24 VDC. This guarantees that data and applications are stored adequately, while power consumption is minimized.

What are the communication channels of the NS5-SQ10B-V2?

The Omron NS5-SQ10B-V2 offers a variety of connectivity options, including two RS-232C ports and one USB connector. This enables the seamless integration of other industrial equipment.

What language support and certifications are available for the Omron NS5-SQ10B-V2?

The NS5-SQ10B-V2 is certified by CE and UL/cUL and is capable of supporting 42 languages, including English, Japanese, and Chinese. These attributes render it an HMI solution that is both user-friendly and globally compliant.
