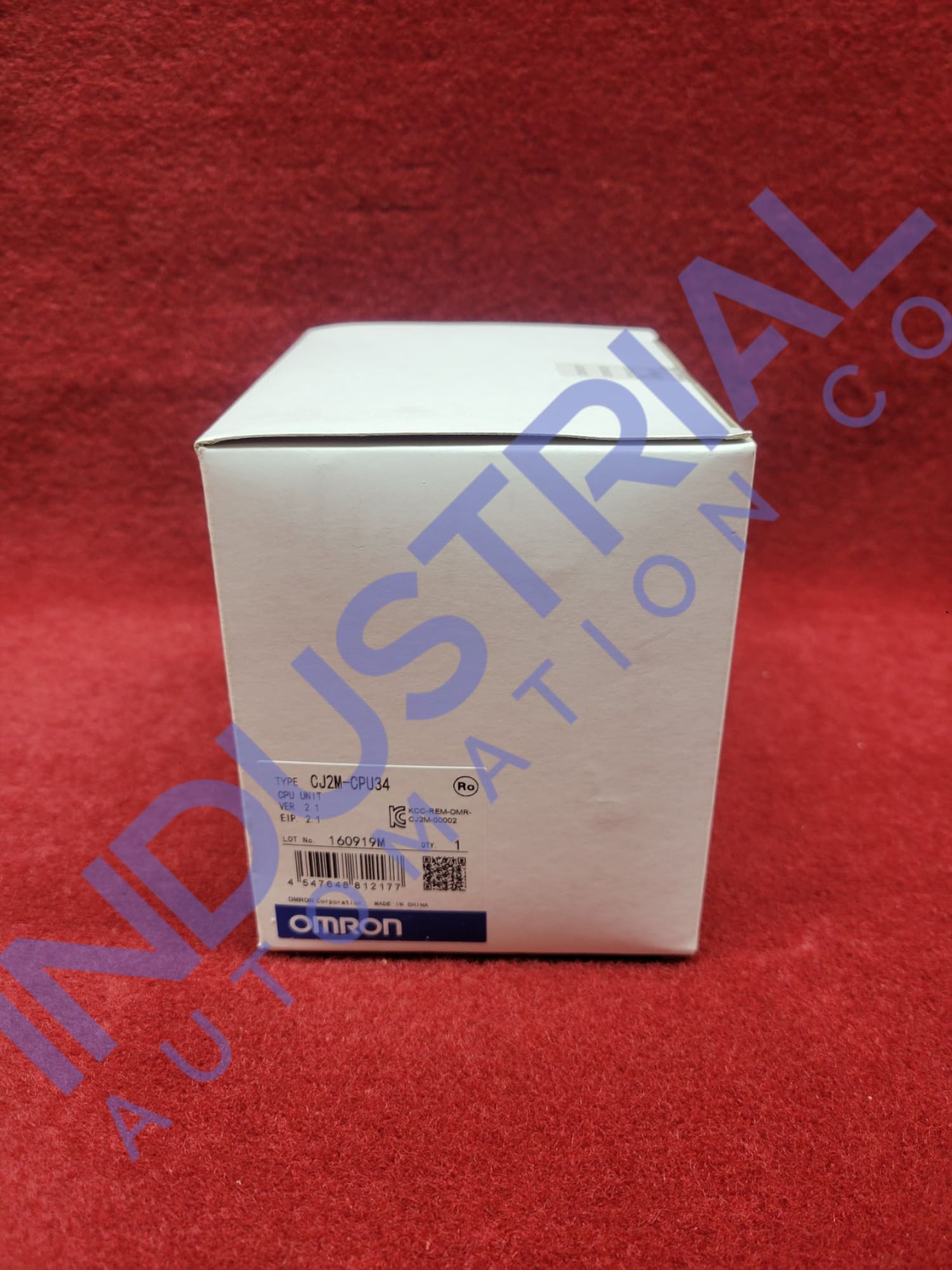

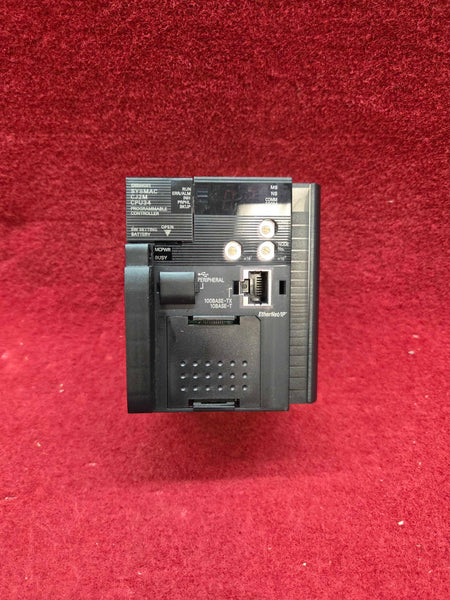

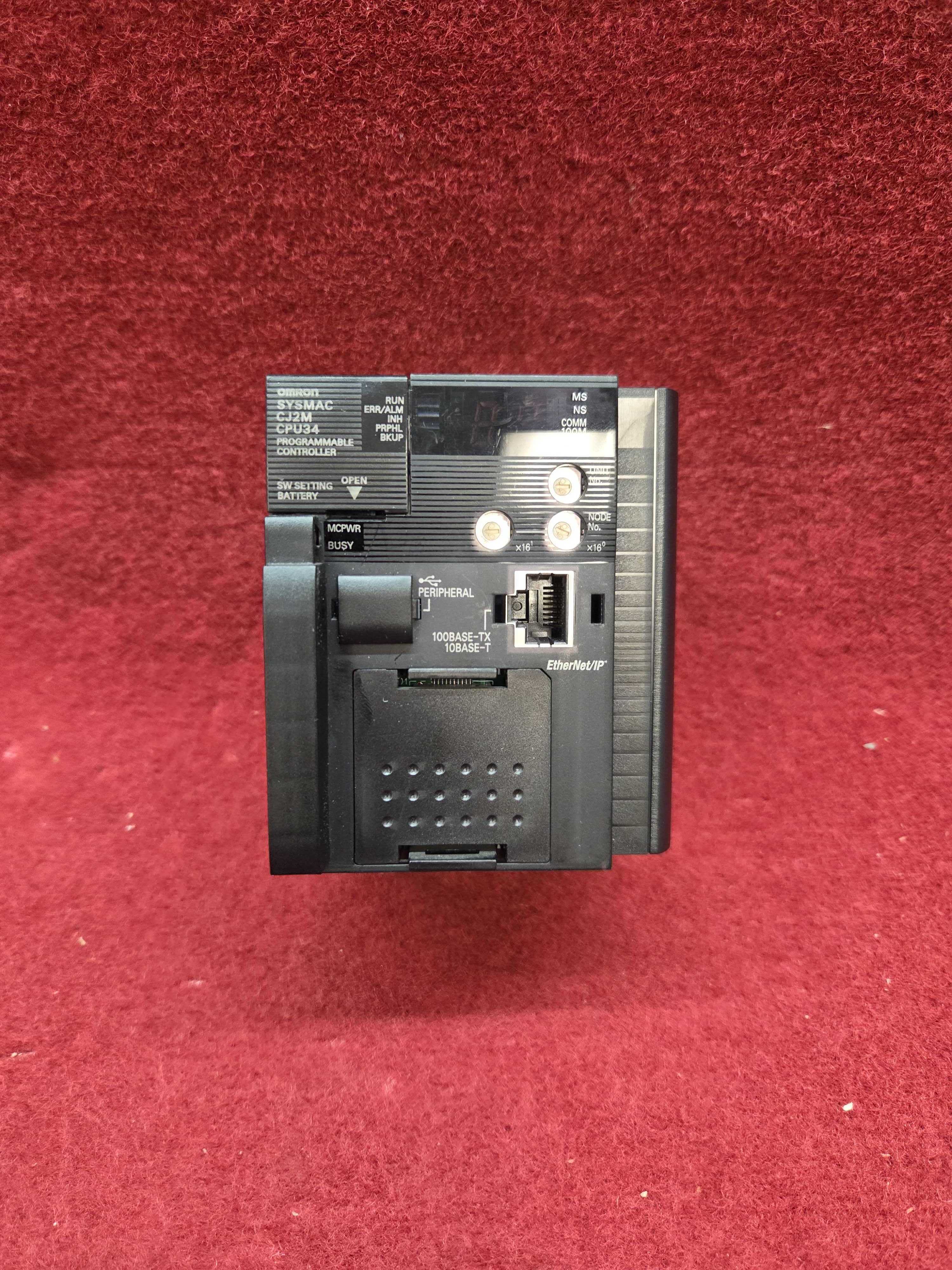

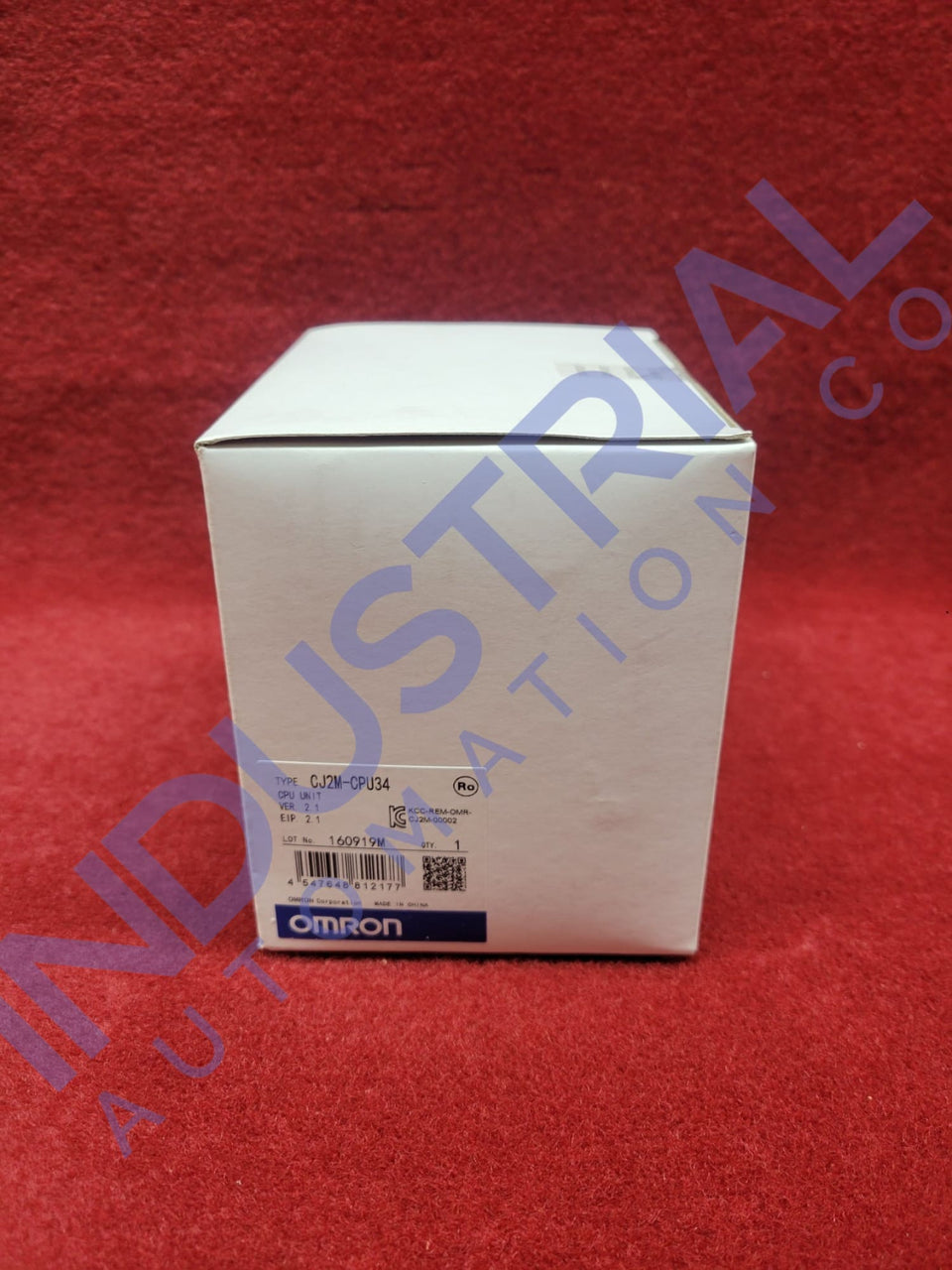

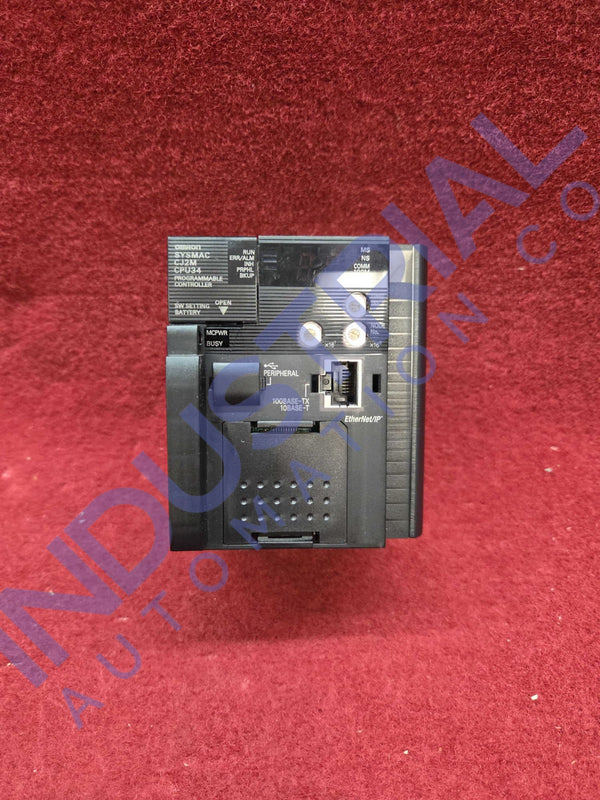

Omron CJ2M-CPU34
Omron CJ2M-CPU34
This is the Omron CJ2M-CPU34, a flexible programmable logic controller (PLC) from the CJ2M line made for high-performance industrial automation tasks. This sturdy controller can handle a wide range of tasks, from simple sequence control to complicated data processing and positioning control. Because it is flexible, scalable, and has a wide range of communication options, the model is a great choice for a wide range of commercial settings.
Technical Specifications:
Control program development is possible using the CJ2M-CPU34's 30K step capacity. Additionally, it has 20K steps of function block memory for modular and reuse programming. With 160K words in 32K DM and four EM banks, the controller's data capacity is impressive. Complex data processing is supported by this large memory capacity.
The CJ2M-CPU34 can handle 2,560 I/O points over 40 units. Its huge I/O capacity lets the controller manage big automation systems. Additionally, the machine has an Ethernet/IP interface for fast network integration and a USB port for programming and data transfer.
The CJ2M-CPU34 rapidly executes basic instructions in 0.04 µs for efficient processing and control. Strong task management is provided via 32 cyclic and 256 interrupt tasks. High-speed counters at 100 kHz for single-phase inputs and 50 kHz for differential-phase inputs enable precise motion control.
Two channels of 100 kHz pulses from the CJ2M-CPU34 allow accurate positioning. It uses 5V DC at 0.76A to save electricity. Operational temperature is 0°C to 55°C and storage temperature is -20°C to 75°C, ensuring reliable performance in varied industrial conditions.
Communication and Connectivity:
The CJ2M-CPU34's Ethernet/IP interface facilitates seamless integration into contemporary industrial networks, facilitating the exchange of high-speed data and the implementation of remote monitoring capabilities. This port ensures rapid and efficient communication with other devices and systems by operating at 100 Mbps. The USB interface further improves connectivity by offering a simple method for data transfer and programming between the PLC and external devices.
Additionally, the flexibility of the controller in interacting with a variety of serial communication devices is enhanced by the option interface, which enables the integration of RS-232C or RS-485 communication modules. The CJ2M-CPU34 is adaptable to a diverse array of industrial configurations, from cutting-edge automation environments to legacy systems, due to its flexibility in communication options.
Environmental and Operational Robustness:
The CJ2M-CPU34 is engineered to endure the rigors of industrial environments. It boasts robust environmental specifications. It is capable of functioning efficiently in temperatures spanning from 0°C to 55°C and can be stored in temperatures between -20°C and 75°C.
The unit's humidity tolerance is non-condensing, assuring consistent performance in a variety of climates, ranging from 10% to 90%. Furthermore, the PLC demonstrates exceptional shock and vibration resistance, withstanding shocks of 147 m/s² and vibrations of 10 to 57 Hz at 0.075 mm amplitude.
Frequently Asked Questions:
What is the CJ2M-CPU34's program capacity and function block memory?
The CJ2M-CPU34 has a function block memory of 20K steps and a program capacity of 30K steps. This enables it to be suitable for complex automation duties, as it provides extensive and modular programming capabilities.
What is the utmost frequency for pulse outputs and high-speed counters in the CJ2M-CPU34?
The pulse outputs can reach 100 kHz across two channels, and the high-speed counters operate at a maximum speed of 100 kHz. Precision motion control applications necessitate these specifications.
What is the power consumption and operating temperature range of the CJ2M-CPU34?
The CJ2M-CPU34 operates within a temperature range of 0°C to 55°C and consumes 5V DC at 0.76A. These characteristics guarantee consistent performance in a variety of industrial settings while simultaneously preserving energy efficiency.
Product Specifications Table:
| Attribute | Specification |
|---|---|
| Program Capacity | 30K steps |
| Function Block Memory | 20K steps |
| Data Memory | 160K words |
| Max I/O Capacity | 2,560 points |
| Expansion Units | 40 units |
| Instruction Execution Time | 0.04 µs |
| Number of Tasks | 32 cyclic, 256 interrupt |
| High-speed Counters | 100 kHz (single-phase) |
| Pulse Outputs | 100 kHz (2 channels) |
| Power Consumption | 5V DC, 0.76A |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
