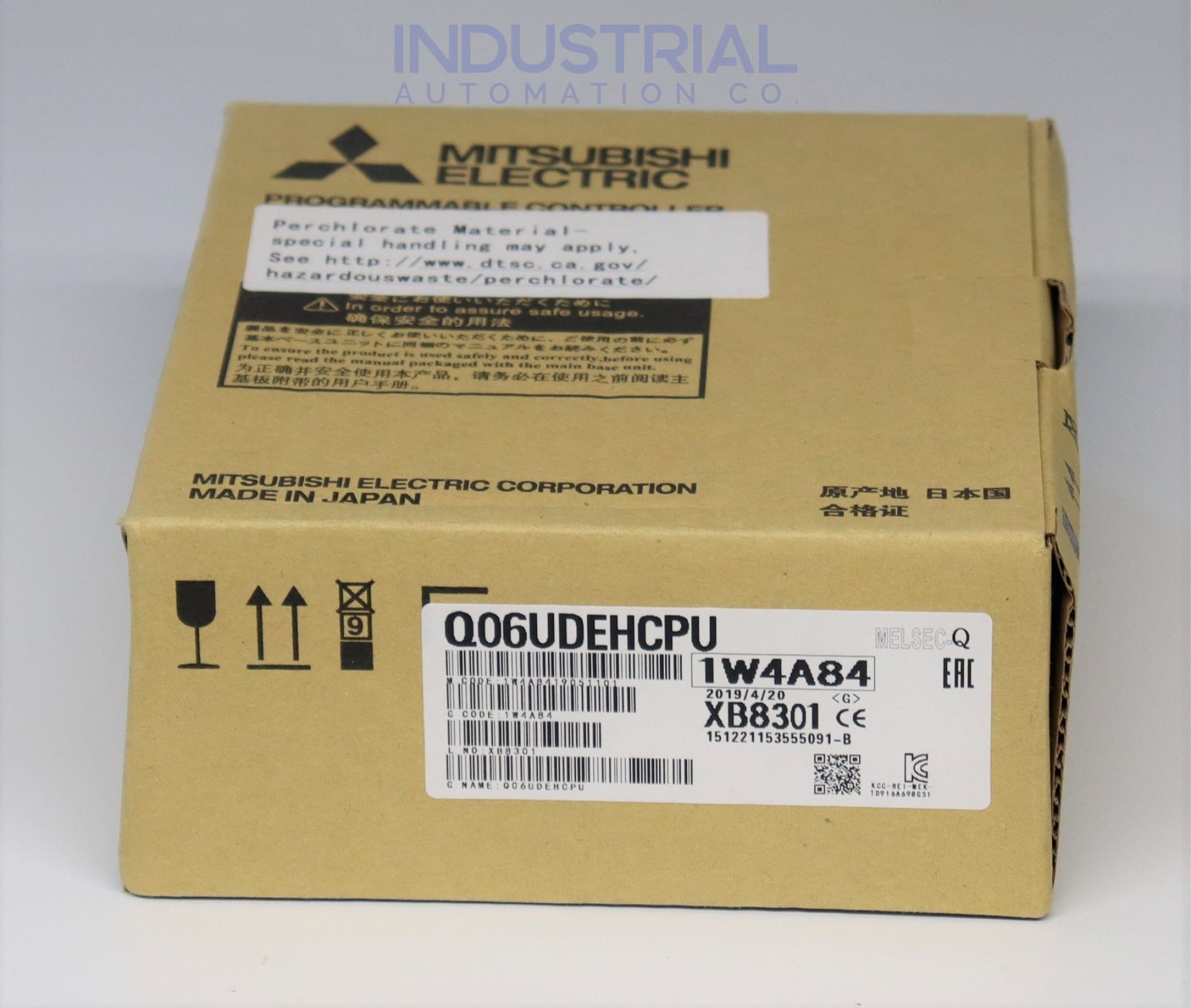

Mitsubishi Q06UDEHCPU

Mitsubishi Q06Udehcpu

Mitsubishi Q06UDEHCPU

The Mitsubishi Q06UDEHCPU belongs to the MELSEC-Q Series of PLCs and is a powerful CPU unit. This CPU is designed to meet the strict needs of modern industrial automation. It has a very fast working speed and many advanced features that make it the best choice for complex control systems. It promises reliable and efficient performance in various applications thanks to its large memory capacities and strong connectivity options.

Technical Specifications:

The Q06UDEHCPU's 9.5 nanoseconds per instruction command processing speed improves control program responsiveness. Speed is needed for real-time data processing and control. The unit can store 60K program steps for complex control algorithms and user programming.

USB and Ethernet ports let the Q06UDEHCPU connect to peripherals and network systems. The Ethernet connector lets the PLC and other networked devices communicate at 10/100Mbit. Modern businesses need this connectivity for remote monitoring and data exchange.

Another highlight is its 413K word memory€€29K standard and 384K expanded. Memory lets the Q06UDEHCPU handle sophisticated control tasks and enormous data collection. ROMs typically hold 1024K bytes for firmware and control programs.

The 4096 input/output points of Q06UDEHCPU make it ideal for large-scale automation. Due to its wide I/O, the unit can control and monitor systems using sensors, actuators, and other control devices. Q-series power supplies provide 5V DC for stability.

The Q06UDEHCPU is 27.4 mm wide, 98 mm tall, and 89.3 mm deep. Its 0.22 kg makes it lightweight for small control panels. In time-sensitive applications, its 19 nanosecond MOV instruction cycle time is efficient.

Connectivity and Integration:

Programming devices attach readily to the Q06UDEHCPU's USB interface, making setup and maintenance simple. Ethernet allows remote diagnostics, monitoring, and integration with industrial network protocols, boosting the device's versatility. These qualities ensure industrial productivity.

This device supports SD memory cards for data logging, backup, and restore. Historical data analysis and data integrity applications benefit from this functionality. Logging data to an SD card simplifies data management and keeps important data accessible.

The Q06UDEHCPU's buffer battery protects systems and data during power outages. This feature is essential since power outages can interrupt control and data. Energy-efficient design reduces environmental effects and operational costs with the device's 0.39 A internal current.

Enhanced Security and Performance:

The Q06UDEHCPU can create a 32-character file password, which is crucial in industrial automation. Protecting sensitive control programs and data from unwanted access secures the system.

The periodic interrupt program, which supports 100-microsecond intervals, boosts speed. This allows the Q06UDEHCPU to perform time-critical tasks precisely, ensuring control operations are completed quickly and accurately. The unit can be designed to expand the normal RAM to 8M bytes for future scalability and performance.

Frequently Asked Questions:

What is the fundamental command processing speed and program memory capacity of the Mitsubishi Q06UDEHCPU?

The fundamental command processing speed of the Q06UDEHCPU is 9.5 ns per instruction, and it supports up to 60K steps of program memory. Complex control programs are executed efficiently as a result of these features.

What are the connectivity options of the Q06UDEHCPU, and how many input/output nodes can it manage?

The Q06UDEHCPU is equipped with USB and Ethernet interfaces and can manage up to 4096 input/output points. This renders it appropriate for automation systems that operate on a large scale and guarantees reliable connectivity.

What is the internal current consumption and cycle time of MOV instructions in the Q06UDEHCPU?

The internal current consumption of the Q06UDEHCPU is 0.39 A, and the cycle time for MOV instructions is 19 ns. The energy efficiency and high-speed efficacy of the unit are underscored by these specifications.

Product Specifications Table:

Attribute Specification
Width (mm) 27.4
Height (mm) 98
Depth (mm) 89.3
Weight (kg) 0.22
Program Memory 60K steps
Device Memory 413K words
Standard ROM Capacity 1024K bytes
Basic Command Processing Speed 9.5 ns
Cycle Time MOV (ns) 19
Internal Current Consumption (A) 0.39

Mitsubishi Q06UDEHCPU

Regular price
Sale price
$1,502.60

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Request a Price Quote
Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
