TECHNICAL SPECIFICATIONS

Schneider Electric 140AVI03000

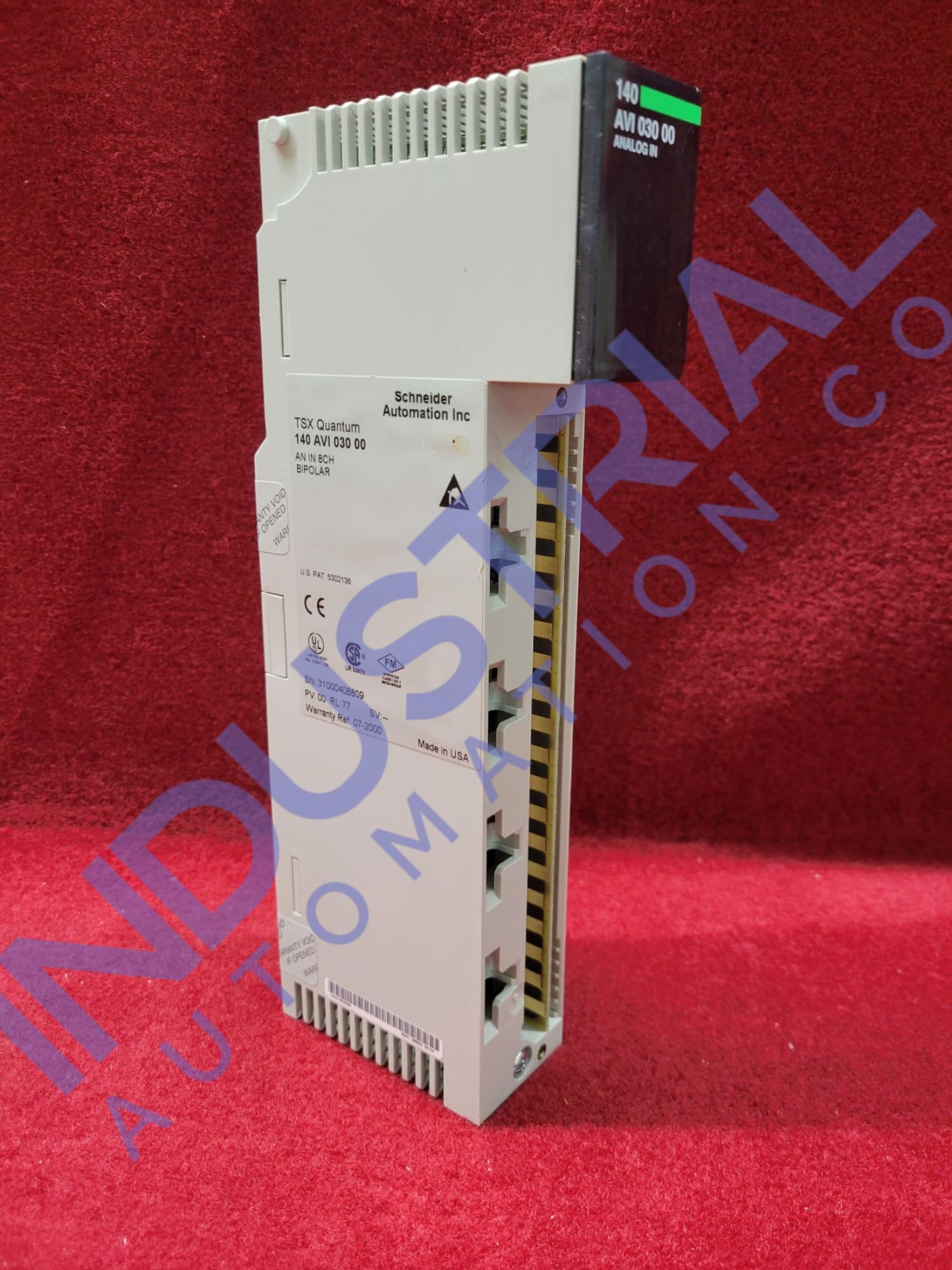

This Schneider Electric's an analog input module 140AVI03000 is a powerful tool featuring a single pole low filter for applications requiring an 847 Hz frequency with 15 percent tolerance.

This model 140AVI03000 boasts a low accuracy drift of just 0.0015 percent at its full-scale capacity, ensuring reliable performance even in the most demanding environments. Additionally, it can provide 500Vrms AC insulation between channels and buses for up to sixty seconds.

Technical Description of 140AVI03000:

This module 140AVI03000 requires nine 16-bit words, eight for input data, and one to monitor channel status. Ensure the wiring you employ is between 1 & 14 American Wire Gauge (AWG) or 2 & 16 AWG - smaller than 20 gauge.

This analog input module (140AVI03000) is equipped with 9 LEDs. Green LEDs indicate bus communication and channel activation, while red LEDs signify an external fault or channel malfunction €“ allowing for quick diagnosis of potential issues.

This model 140AVI03000 boasts an impressive power consumption of 2.2 W, making it effective and efficient for any scenario. Its module format is standard with a 20 mA bipolar current and +/- 10 V bipolar voltage analog input type to accommodate various operations.

This highly-accurate 8 Channel Bipolar module 140AVI03000 delivers a powerful combination of current and voltage inputs. Precise jumper connections between the input and sense terminals are necessary for optimal performance with current measurements, but note that this model lacks HART compatibility.

The 140AVI03000 model boasts an impressive accuracy of +/- 0.03 percent and a linearity error of a mere +/- 0.008%. Despite its small size, weighing only 0.3 kg, it has significant power requirements - needing 280 mA on the system bus.

It also offers high-performing voltage isolation of 135 Vrms AC between channels with an incredibly speedy 10 ms update time. Furthermore, its system necessitates nine input words and provides ultra-precise 16-bit analog resolution inputs for maximum accuracy.

When the model operates to read voltage inputs, broken field wires could give unreliable and unpredictable results. Not removing field wiring terminals while in use is essential - failure to do so can cause misreading.

Ambient Conditions:

This model 140AVI03000 must be used at an ambient air temperature of 0-60°C and stored in conditions ranging from -40 to 85°C, while the relative humidity should remain below 95 percent.

The analog input module (140AVI03000) is optimally designed for high-altitude installation, with a maximum operating height of 5000 meters. Additionally, the product meets all EU RoHS Directive requirements and doesn't contain any hazardous mercury materials - making it an ecologically safe choice when disposing of the device.

Standard Safety Instructions:

As the machine setup, operation, and maintenance expert, you are solely responsible for determining which automation equipment and safeties must be employed to ensure a safe work environment. It's important not to overlook preventative measures like interlocks.

Qualified personnel should be the only ones who install, operate, service, and maintain this model (140AVI03000). Please note that if consequences arise from its use, the company will not accept any responsibility for them.

This model 140AVI03000 of automation equipment allows for controlling and managing various industrial processes. Factors such as production methods, government regulations, required protection level, and desired output functions are all considered when selecting this instrument to suit an application's needs.
