TECHNICAL SPECIFICATIONS

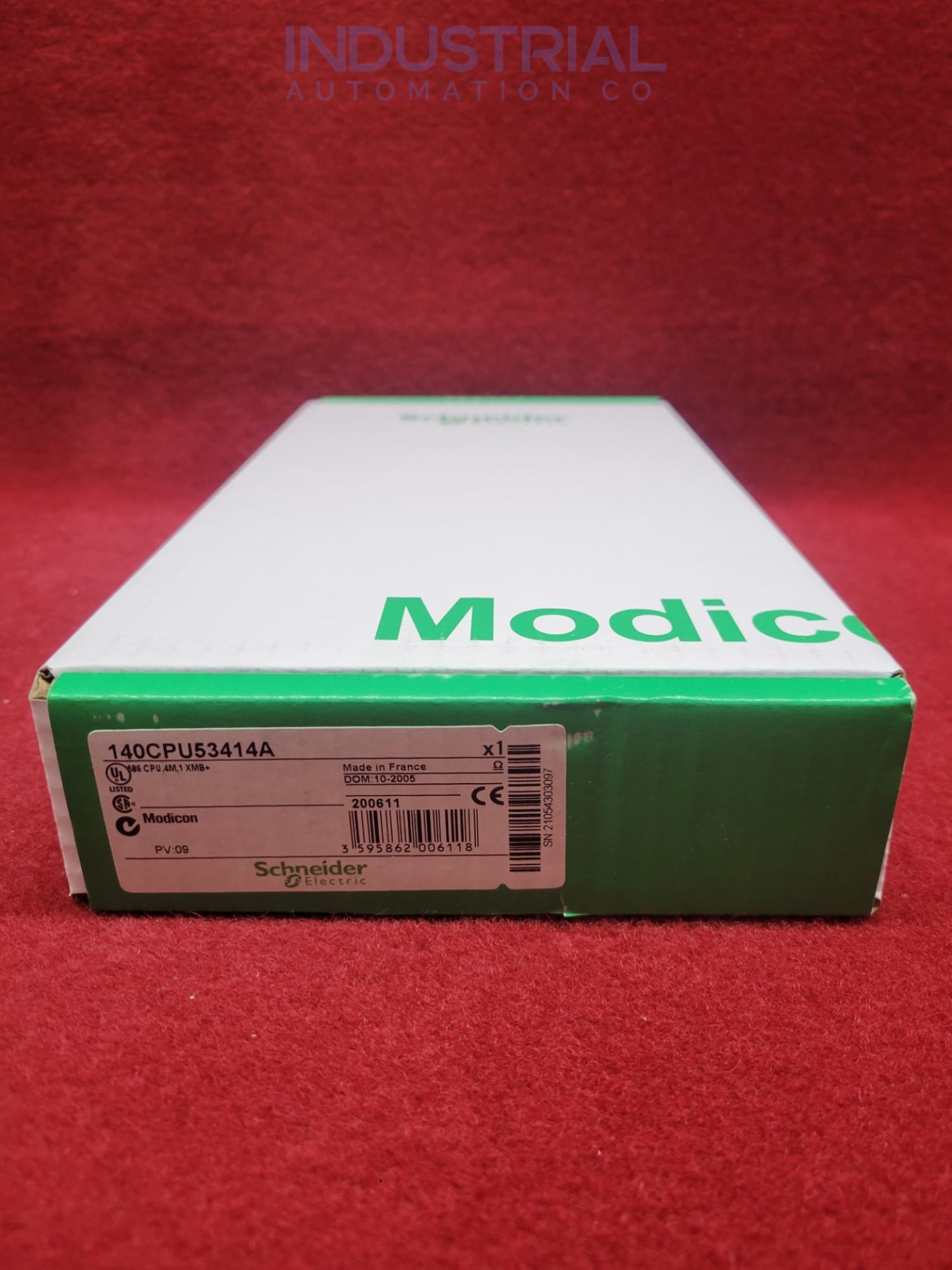

Schneider Electric 140CPU53414A

Schneider Electric has designed and manufactured this powerful CPU module 140CPU53414A with the capability to meet varying application requirements. This lightweight model weighs just 0.85 kilograms while providing up to 1250 mA of bus current for maximum performance delivery.

Technical Description of 140CPU53414A:

With remarkable power and high-speed capabilities, the CPU module 140CPU53414A of our Quantum system resides on a local I/O backplane. It boasts precise digital operation with programmable memory for user instructions, ensuring efficient control over its diverse range of remote and distributed inputs & outputs.

This advanced CPU module 140CPU53414A packs a punch with 6.25 W power dissipation, boasting 64 K of ladder logic and an impressive 128 k for input and output memory strategies. Furthermore, it can handle 57 internal registers or up to 96k external ones - offering endless possibilities.

This 140CPU53414A model has 2972 kb of internal RAM, a watchdog timer at 250 ms, and an operating clock frequency of 100 MHz. Unfortunately, it does not include a mathematical coprocessor €“ making heavy calculations potentially more complex.

This CPU module model boasts three ports of Modbus RS232 and one port of convenient, advanced Modbus Plus connections. The Lithium battery has an average load current rating of 10 µA and can reach up to 420 µA at peak performance. Its service life can reach 1.2 Ah, lasting up to ten years on the shelf.

Ambient Conditions:

The 140CPU53414A model is designed to perform just as effectively even at lofty heights up to 5000 meters above sea level. To achieve the best results, maintain the temperature between 0 and 60 degrees centigrade.

This model (140CPU53414A) must be kept in temperatures ranging from minus 40 degrees to 85, and the relative humidity of its storage area should remain below 95 percent.

General Information:

With 1435 KB of Flash EPROM, this model lets you store programs and initial values for variables. Upon powering up, users can give commands to initiate operation using the PLC MEM switch on its front panel.

The user can select from three options regarding common parameter settings for their Modbus (RS232) ports by adjusting the slide switch in this model. Selecting the top position will assign ASCII functionality as a primary choice, offering an array of communication capabilities.

With the switch set to the middle position, operations can assign RTU functionality to various ports. Users are empowered with software-defined common parameters for increased flexibility and connection control by setting it downward.

Setting the front panel switch of a CPU to RTU or ASCII mode automatically enables bridge mode. It allows devices connected directly to the Modbus port on the CPU to easily communicate and log into nodes on its integrated Modbus Plus network.

Standard Safety Instructions:

The model 140CPU53414A is designed to manage a broad range of industrial operations; Only use it with appropriate point-of-operation protection systems. These safeguards are necessary for operating the machinery to avoid significant injury risks for users.

Qualified personnel should install, operate, service, and maintain the 140CPU53414A CPU module. The company cannot take responsibility for any issues using this analog module.
