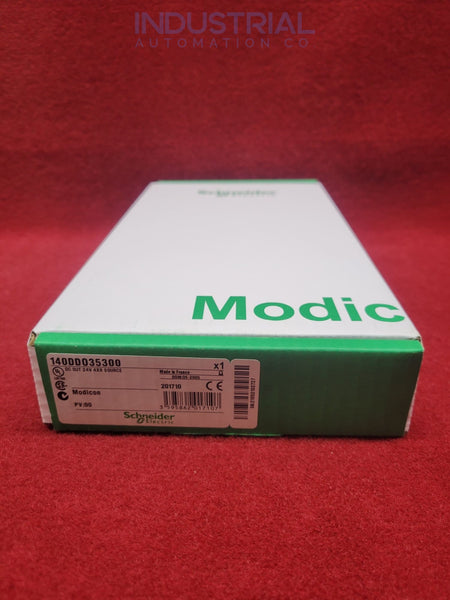

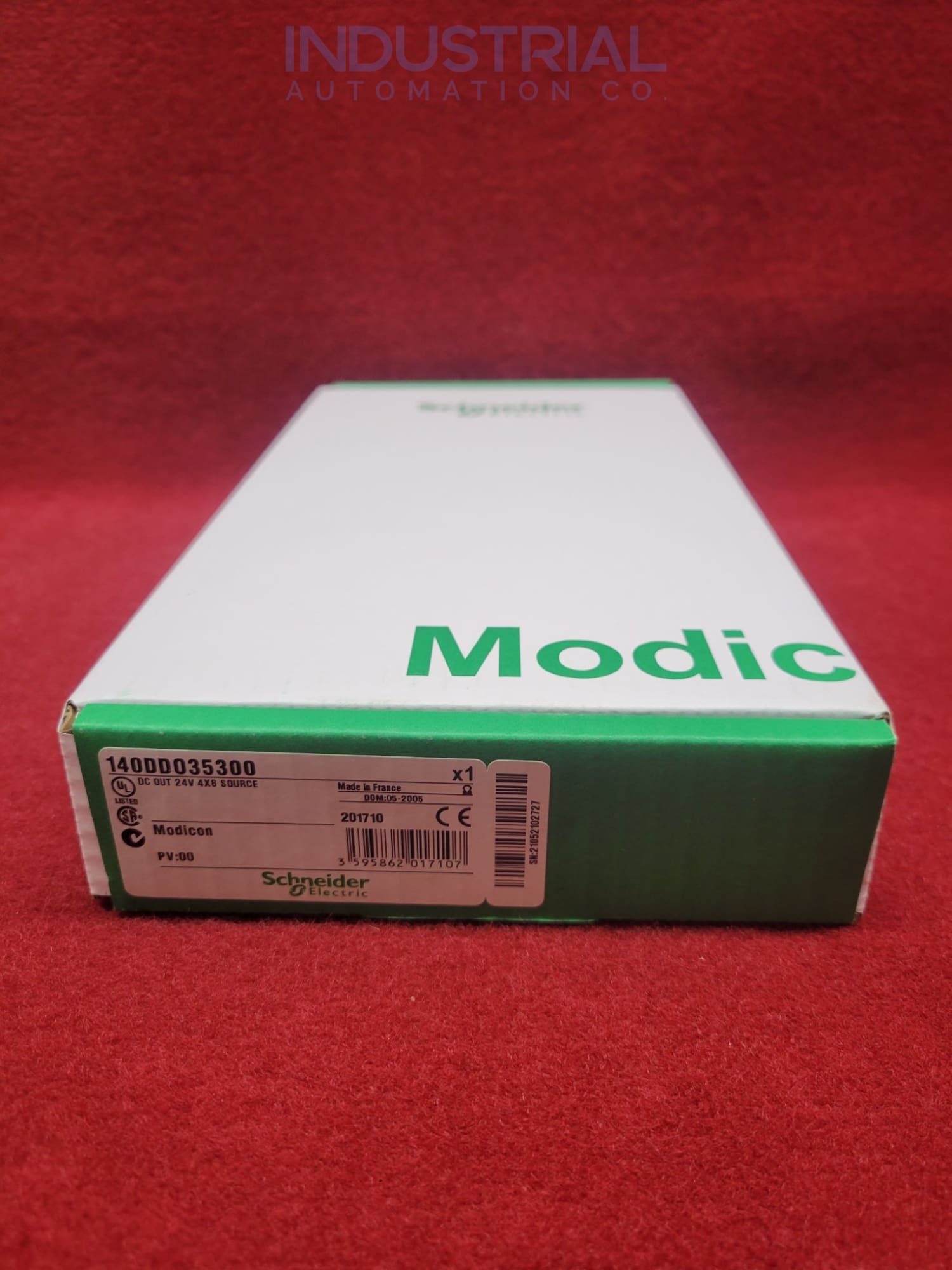

Schneider Electric 140DDO35300

Schneider Electric 140Ddo35300

Schneider Electric 140DDO35300

Regular price
$178.00
Sale price
$178.00
We currently have 1 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

  • 140DDO35300
  • DISCONTINUED BY MANUFACTURER
  • OUTPUT MODULE
  • LOGIC CONTROLLER
  • QUANTUM
  • 24 VDC
  • 4X8 SOURCE
  • 32 OUTPUTS
  • DISCREET

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
New 140DDO35300-FS $178.00 USD 2 Year Extended Warranty 1 In Stock in the U.S.A!
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

Schneider Electric 140DDO35300



The Modicon Quantum automation platform product range offers this VDC discrete output module 140DDO35300, perfect for modernizing operations with reliable and efficient performance.

The model 140DDO35300 requires a 330 A bus current to activate its 34 LEDs - one for communication (green), one for fault detection (red), and 32 additional green LEDs indicating the status of inputs.

Technical Specification of 140DDO35300:

This model 140DDO35300 is designed to handle up to 16 A of current per module and 4 A per group without compromising safety. This device's exceptional isolation - 500 Vrms between groups and 1780 Vrms inter-channels/bus line - further enhances the product's reliability in critical applications.

The 140DDO35300 VDC discrete input module has a wide voltage range of 19.2 €“ 30 V AC and an accommodating supply frequency between 47 to 63 Hz, providing two output words with a maximum pulse decay time of 1.3 s at 56 V max.

Please wire the module 140DDO35300 carefully and ensure you only use wires between sizes 1-14 and 2 16 AWG. We recommend using a wire with a minimum diameter of 20 AWG for safe operation.

The VDC input module provides a powerhouse of functionality with 32 different outputs and eight channels split into four separate groups. When faced with an electrical surge, the maximum current it can withstand is 5 A for 0.0005 seconds, ensuring consistent performance.

Additionally, 1.75 W + (0.4 V x total module load) makes up its power dissipation while weighing in at only 0.45 kilograms making this one lightweight but powerful device.

The response time for the model 140DDO35300 is impressively swift, with a mere one millisecond from off to on and vice versa. This advanced technology offers protection against hazardous high voltages or short circuits through its 5 A fuse per group feature.

General Operating and Storage Conditions:

To ensure optimal performance, users must adhere to specific environmental conditions - operating within temperatures ranging from 0 - 60°C and storing at temperatures between ˆ’40 €“ 85°C with a maximum relative humidity of 95 percent.

This model 140DDO35300 can soar to 5000 meters and still perform in a clean atmosphere with no dust or debris.

Directions for Standard Start-Up and Testing:

Make sure to finish all installation and setup procedures before powering up. Disassemble any tools or objects used to secure components during shipment and remove debris from the device 140DDO35300 before conducting operational tests. Double-check that you have not left anything behind to ensure the model functions properly.

After installation, a thorough check of the system should be conducted by qualified personnel to ensure it is operating as intended. Scheduling enough time for this verification process guarantees its completion and full functionality.

Important Safety Guidelines:

Utilizing this product demands knowledge and experience in developing and configuring control systems. Operators should be qualified professionals with expertise in programming, installation, adjustment, and application to ensure optimal use.

Operators should only be allowed access to adjustments demanded by their operation, while further controls must remain secure to prevent unintended alterations of operational performance.

After installation, professional personnel must ensure the proper functioning of electrical control and automation equipment by conducting a start-up test before regular operation.
