TECHNICAL SPECIFICATIONS

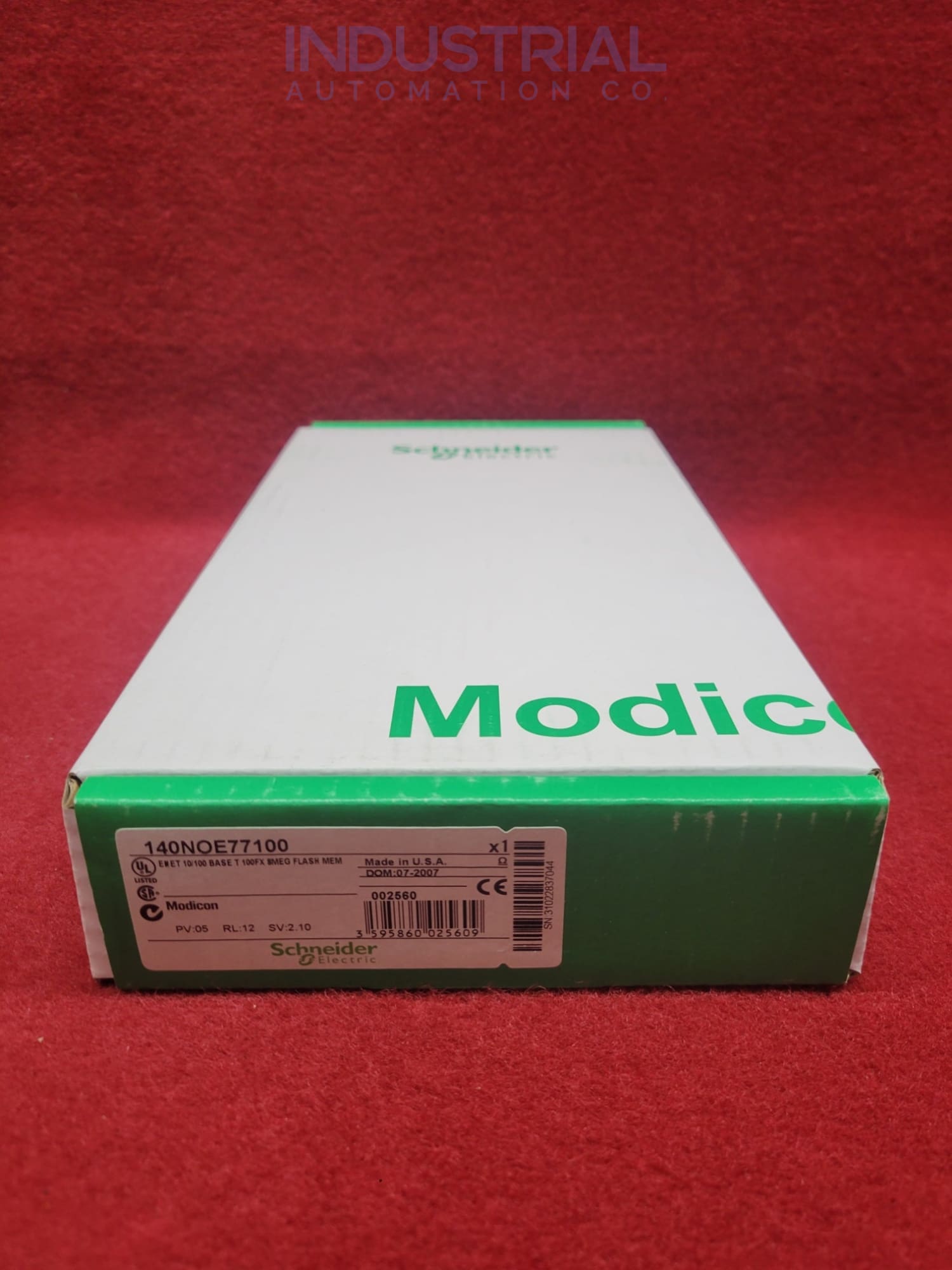

Schneider Electric 140NOE77100

Schneider Electric has crafted this highly sophisticated Ethernet network TCP/IP module 140NOE77100, tailored to enhance the operation of various applications.

The Modicon Quantum Ethernet module 140NOE77100 is the cutting-edge solution for seamlessly connecting a Modicon Quantum PLC to other devices through an Ethernet network. This model offers efficient and reliable communication capabilities, making it one of the premier products in its class.

Technical Specification of 140NOE77100:

This 0.345 kg model 140NOE77100 is equipped with both MT/RJ-100BASE-FX fiber optic and RJ45 - 10BASE-T/100BASE_TX twisted pair physical interfaces, allowing diverse connection options. This device performs efficiently without compromising its safety standards with an IP20 protection class and a current consumption rate of 750 mA @ 5V DC.

Offering high-speed connectivity and secure architecture, the TCP/IP module (140NOE77100) provides Ethernet Modbus TCP/IP communications with up to 10 or 100 Mbit/s. This model's hot standby redundant design keeps it functional even when system components fail. At the same time, its Class B20 web server secures all data processed within the rack-mounted power supply unit.

This module 140NOE77100 offers powerful features, from real-time peer-to-peer communication to I/O scanning and a Modbus/TCP server. Additionally, HTTP services allow for easy maintenance and configuration so users are up and running quickly.

The Ethernet module's front panel has ID markings and color codes to aid its functionality and LED displays for improved visibility. Behind the removable door is a writable area for setting an IP address, with labels and two cable connectors ready to connect.

Ambient Conditions:

For optimal performance, the model 140NOE77100 must function in a temperature range of 0 to +60 degrees Celsius and an environment with relative humidity below 95%.

The optimal temperature to store the model 140NOE77100 is between -40 and +85 degrees Celsius with a maximum humidity of 95%. Additionally, for best performance in difficult conditions, installation should not exceed an altitude of 4500 meters.

General Precautions:

The operator is uniquely positioned to comprehend all the conditions and variables involved with model setup, operation, and maintenance. Their mastery allows them to accurately recognize suitable safeties and interlocks that ensure the reliable performance of the system.

Utilizing machinery without proper point-of-operation guarding can be hazardous and may lead to serious injuries sustained by the operator. For safety reasons, it is crucial to avoid using this model on machines that do not have proper protective mechanisms in place.

Basic Start-Up and Testing Instructions:

Before commencing operations on model 140NOE77100, complete all installation and setup procedures. Additionally, before operational testing, remember to remove any blocks or other temporary holding means used for shipment found in component devices.

Qualified personnel should run a start-up test to confirm that the 140NOE77100 model is ready for regular operation post-installation. To guarantee satisfactory testing and avoid delays, preparing adequately beforehand is paramount.

Operation and Maintenance Instructions:

Misadjustments of a model 140NOE77100 can disrupt operations and potentially put personnel in danger. To prevent this, all individuals with access to functional adjustments must understand the instructions provided by the manufacturer and any machinery used with electrical equipment.

Even if the 140NOE77100 model has been carefully crafted and contains only the best components, operating may still be dangerous. Therefore, utmost caution is required when handling any machinery or device.
