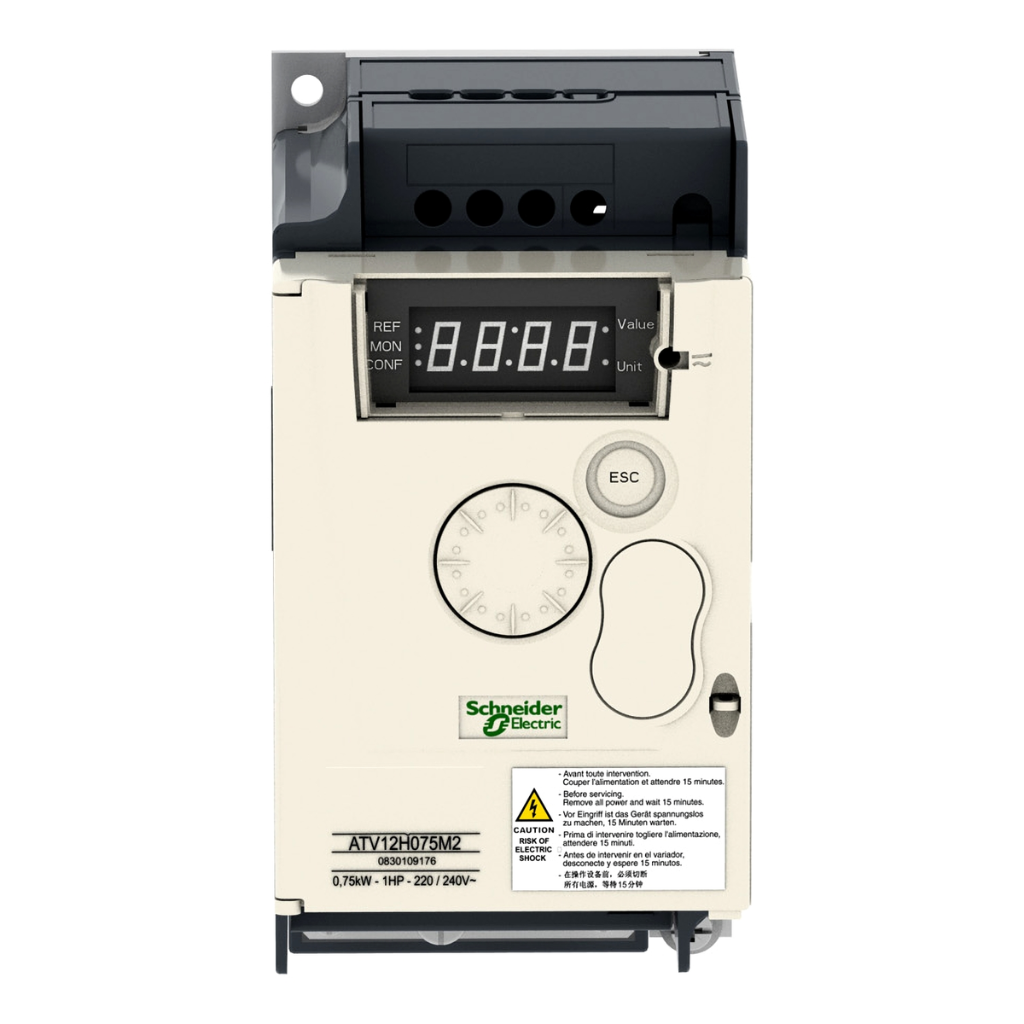

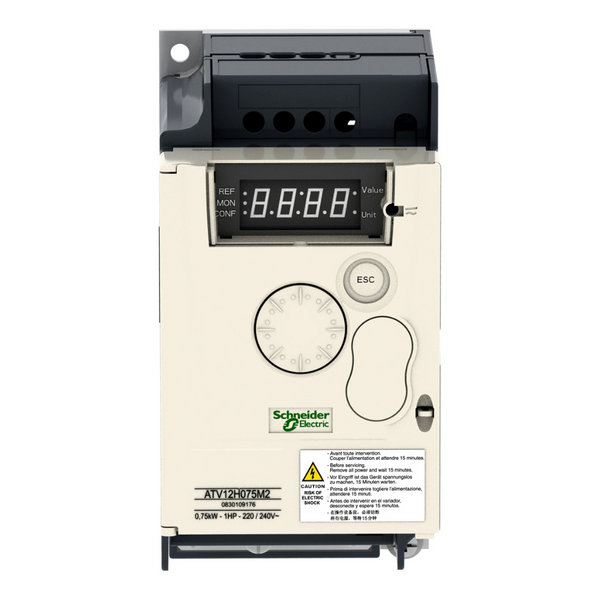

Schneider Electric Altivar 12 Variable Speed Drive ATV12H075M2

The ATV12H075M2 is a 0.75 kW (1 HP) variable speed drive designed for precise control of single-phase asynchronous motors. Operating with supply voltages between 200V and 240V AC, it enhances system performance and energy efficiency in small machinery applications. This model features an integrated EMC filter and an IP20 protection rating, ensuring dependable operation in various settings.

• Rated Output Power: 0.75 kW (1 HP)
• Supply Voltage: 200V to 240V AC
• Network Phases: Single-phase
• Integrated EMC Filter: Yes
• Protection Rating: IP20
• Applications: Suitable for small machines, including conveyors, packaging equipment, and other commercial devices
• Dimensions (W x H x D): 72 mm x 143 mm x 121.2 mm
• Weight: 0.7 kg

Engineered to provide reliable motor control in compact applications, the ATV12H075M2 is ideal for environments where space is limited but performance is crucial.
