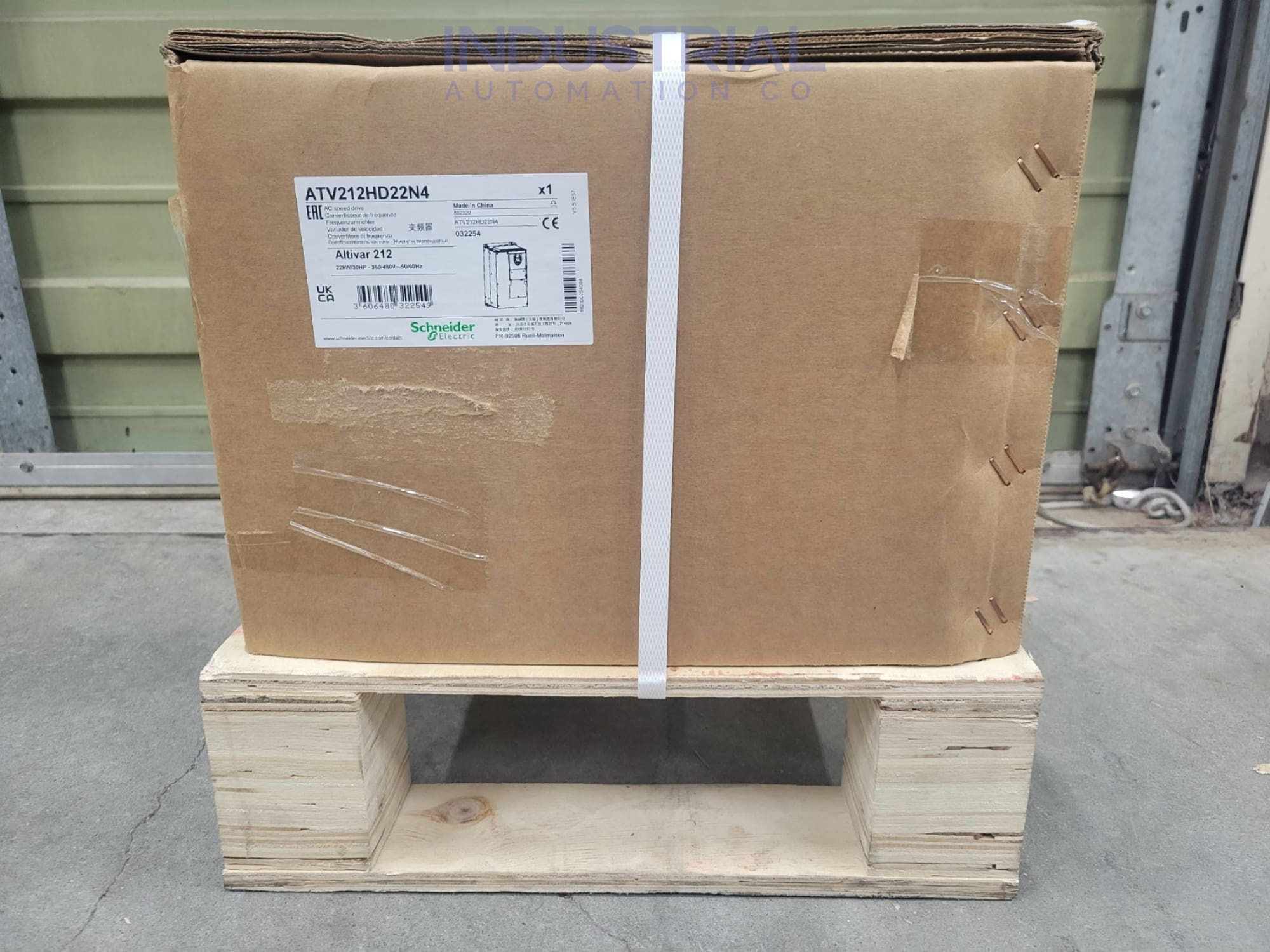

Schneider Electric ATV212HD22N4
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description
Schneider Electric ATV212HD22N4
The Schneider Electric ATV212HD22N4 is a high-performance variable speed drive from the series 212, designed to optimize energy consumption and control motor speed with precision. This drive is particularly suited for HVAC applications, providing efficient operation, reliability, and ease of use. Its advanced features and robust design make it an ideal solution for maintaining consistent motor performance in various industrial environments.
Specifications:
With its 22 kW of power, the ATV212HD22N4 is well-suited for rigorous industrial uses. It operates on an input voltage range of 380 to 480 VAC, accommodating three-phase power supply systems.
To make it work with regular power sources, the input frequency can be 50 or 60 Hz. With a 43.5 A current output and a maximum of 200Hz output frequency, for a variety of motor types, the drive offers accurate speed control.
The dimensions of the unit are 310 mm in height, 250 mm in width, and 195 mm in depth, making it compact for its power rating. Additionally, the unit weighs approximately 11 kg, facilitating easy installation and handling.
Cooling is achieved through forced air, which ensures effective thermal management during operation. The drive's control type is a variable speed drive, offering flexibility and efficiency in motor control.
An integrated EMC filter enhances its electromagnetic compatibility, reducing interference with other devices. The ATV212HD22N4 has an IP21 rating, providing protection against limited dust ingress and vertically falling water droplets.
It is classified as a variable-speed drive, designed to improve motor efficiency and performance. The drive operates in ambient air temperatures ranging from 14 to 104 °F without derating and up to 122 ° with a derating factor applied.
Circuit Switching and Features:
The maximum switching current for the ATV212HD22N4 at 250 V AC for resistive loads with cos phi 1 is 5 A. It provides 5 A resistive loads at 30 V DC for DC applications. The maximum switching current for inductive loads is 2 A at 250 V AC and L/R of 7 ms and 2 A at 30 V DC. Configurable via relay logic, the minimum switching current is 3 mA at 24 V DC, allowing variety in applications.
The ATV212HD22N4's innovative energy management technology lets users rapidly view energy consumption, improving energy optimization. The easy-to-use interface makes maintenance and operation accessible to many users. The Green Premium-labeled drive meets RoHS and WEEE requirements and is environmentally friendly.
Safety Features:
The ATV212HD22N4 is equipped with comprehensive safety features to ensure reliable and secure operation. It includes protections against overheating, short circuits between motor phases, overcurrent between output phases and earth, and overvoltages on the DC bus.
The drive also protects against control circuit breaks, limit speed exceedance and line supply undervoltage. Additionally, it provides thermal protection for the motor and safeguards against motor phase breaks and overheating, including the use of PTC probes for enhanced motor safety.
Frequently Asked Questions:
What range does the ATV212HD22N4's frequency and current output cover?
The ATV212HD22N4 has an output current of 43.5 A and an output frequency range from 0.5-200 Hz. These features provide precise control over motor speed for various applications.
How big is the Schneider Electric ATV212HD22N4 and how heavy is it?
The dimensions of the ATV212HD22N4 are 310 mm x 250 mm x 195 mm, and it weighs approximately 11 kg. Its compact size and manageable weight facilitate easy installation and maintenance.
What cooling method and control type does the ATV212HD22N4 use?
The ATV212HD22N4 uses forced air cooling and operates as a variable-speed drive. This ensures efficient thermal management and flexible motor control for optimal performance.
Product Specifications Table:
| Attributes | Specification |
|---|---|
| Power Rating | 22 kW (30 HP) |
| Input Voltage | 380 to 480 VAC, three-phase |
| Input Frequency | 50/60 Hz |
| Output Current | 43.5 A |
| Output Frequency | 0.5 to 200 Hz |
| Dimensions | 310 mm x 250 mm x 195 mm |
| Weight | Approximately 11 kg |
| Cooling | Forced air cooling |
| Control Type | Variable speed drive |
| IP Rating | IP21 |
