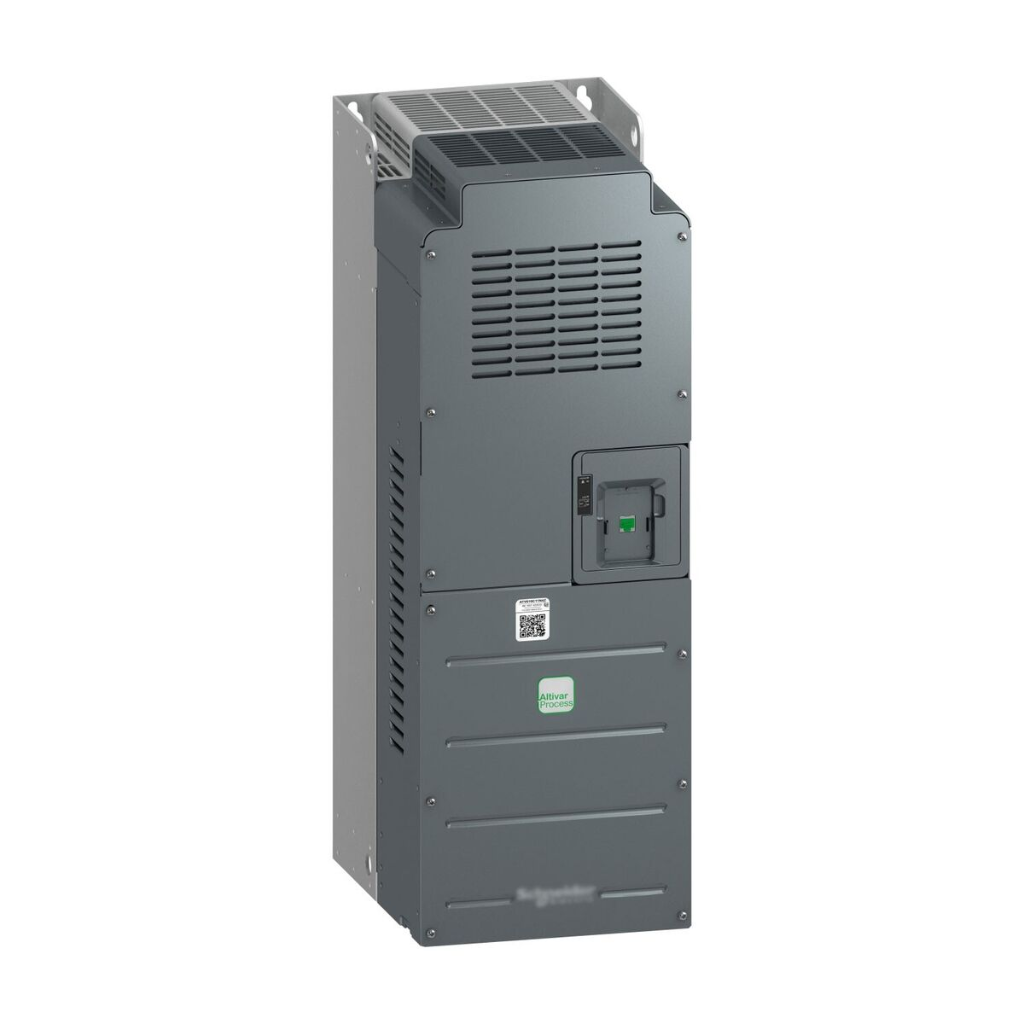

Schneider Electric Altivar Process 610 Variable Speed Drive ATV610C11N4

The ATV610C11N4 is an 110 kW (150 HP) variable speed drive designed for controlling three-phase asynchronous and synchronous motors. Operating with supply voltages between 380V and 460V AC, it is optimized for fluid management applications, enhancing energy efficiency and system reliability. This model features an IP20 protection rating, suitable for various industrial environments.

• Rated Output Power: 110 kW (150 HP)
• Supply Voltage: 380V to 460V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes, conforming to IEC 61800-3 category C3 with 50 m
• Protection Rating: IP20
• Applications: Ideal for fluid management systems, including pumps, fans, compressors, and conveyors
• Dimensions (W x H x D): 310 mm x 1000 mm x 350 mm
• Weight: 75 kg

With its advanced features and robust construction, the ATV610C11N4 ensures high performance and reliability in demanding industrial applications.
