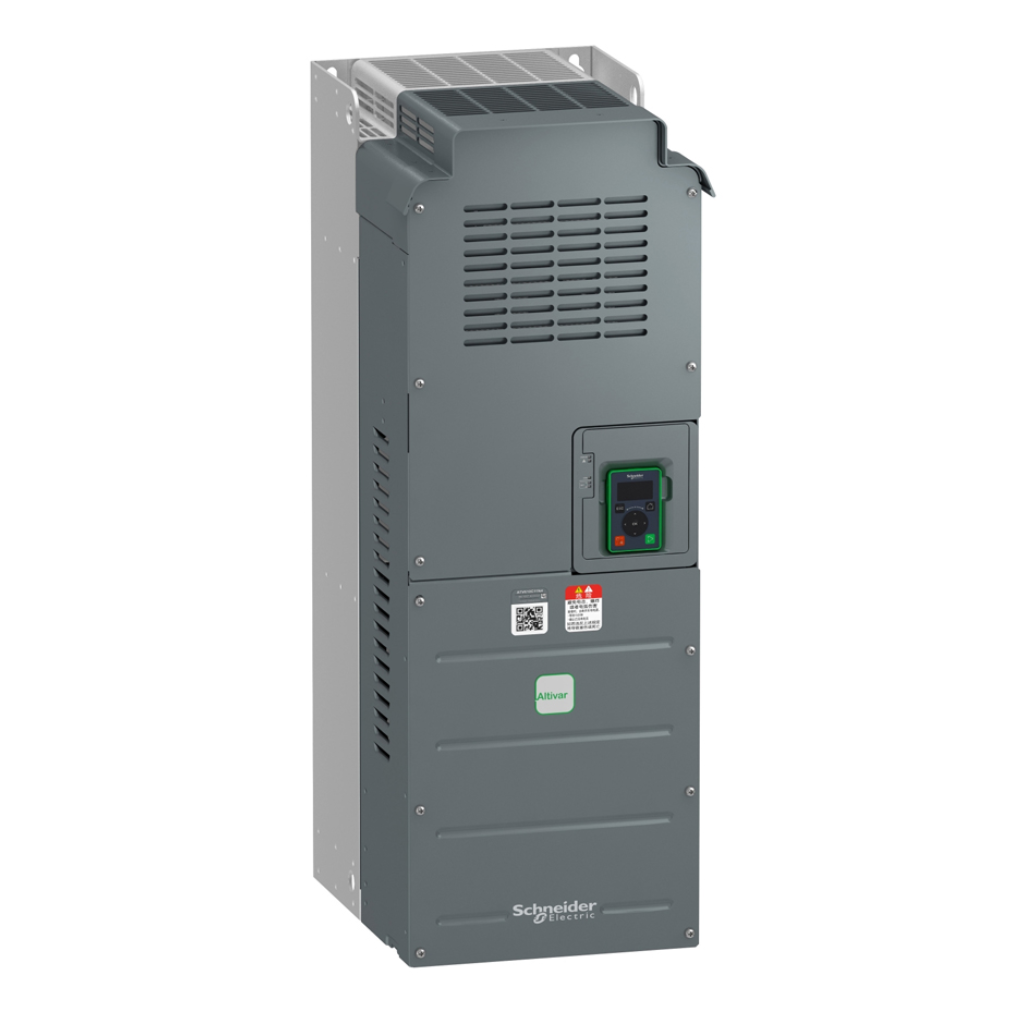

Schneider Electric Altivar Process 610 Variable Speed Drive ATV610C16N4

The ATV610C16N4 is a 160 kW (250 HP) variable speed drive designed for controlling three-phase asynchronous and synchronous motors. It operates within a supply voltage range of 380V to 460V AC and is optimized for fluid management applications, enhancing energy savings and system reliability. This drive includes an IP20 protection rating.

• Rated Output Power: 160 kW (250 HP)
• Supply Voltage: 380V to 460V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes, conforming to IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2
• Protection Rating: IP20
• Applications: Suitable for fluid management systems, including pumps, fans, compressors, and conveyors
• Dimensions (W x H x D): 320 mm x 852 mm x 390 mm
• Weight: 82 kg

Designed to deliver reliable motor control and energy efficiency, the ATV610C16N4 is well-suited for demanding industrial applications.
