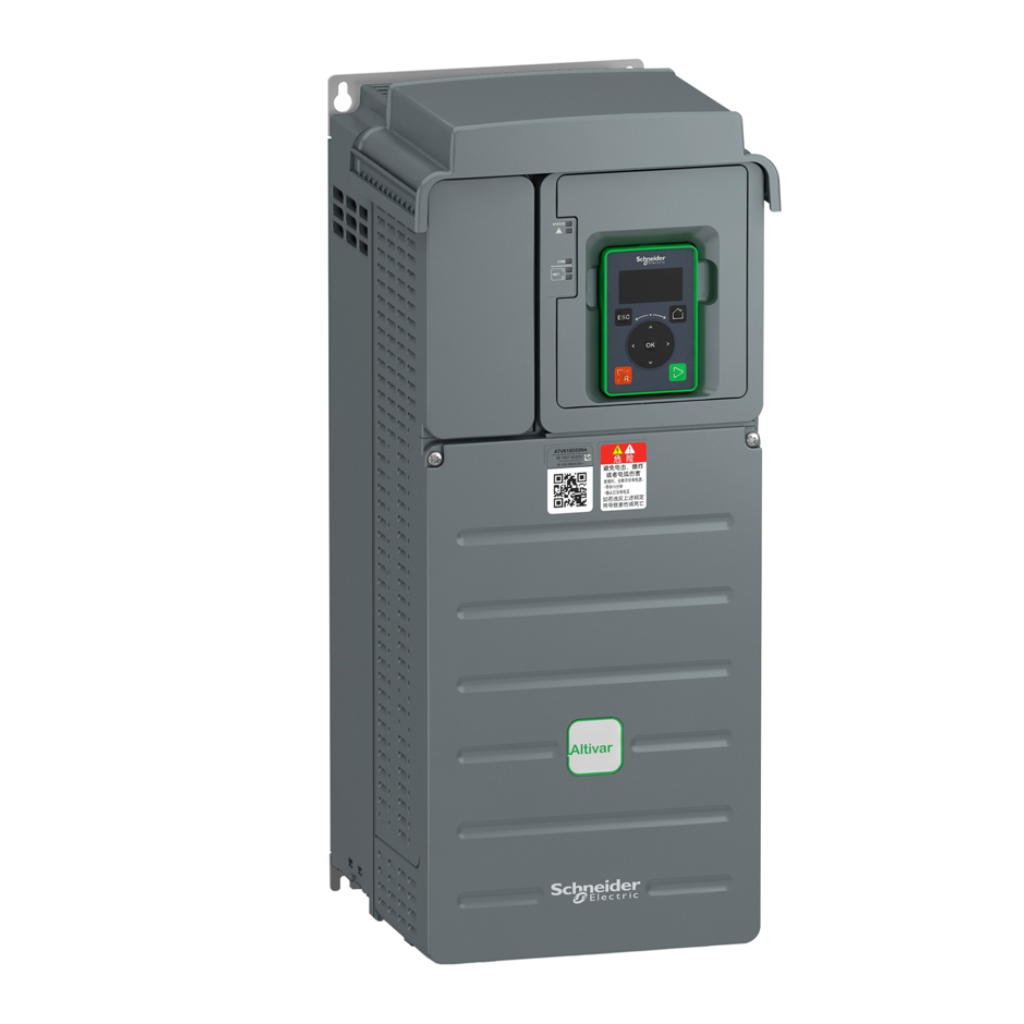

Schneider Electric Altivar Process 610 Variable Speed Drive ATV610D18N4

The ATV610D18N4 is an 18.5 kW (25 HP) variable speed drive designed for controlling three-phase asynchronous and synchronous motors. Operating with supply voltages between 380V and 460V AC, it is optimized for fluid management applications, enhancing energy efficiency and system reliability. This model features an IP20 protection rating, suitable for various industrial environments.

• Rated Output Power: 18.5 kW (25 HP)
• Supply Voltage: 380V to 460V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes, conforming to IEC 61800-3 category C3 with 50 m
• Protection Rating: IP20
• Applications: Ideal for fluid management systems, including pumps, fans, compressors, and conveyors
• Dimensions (W x H x D): 211 mm x 495 mm x 232 mm
• Weight: 13.3 kg

With its robust design and user-friendly interface, the ATV610D18N4 ensures optimal performance and ease of integration into various industrial applications.
