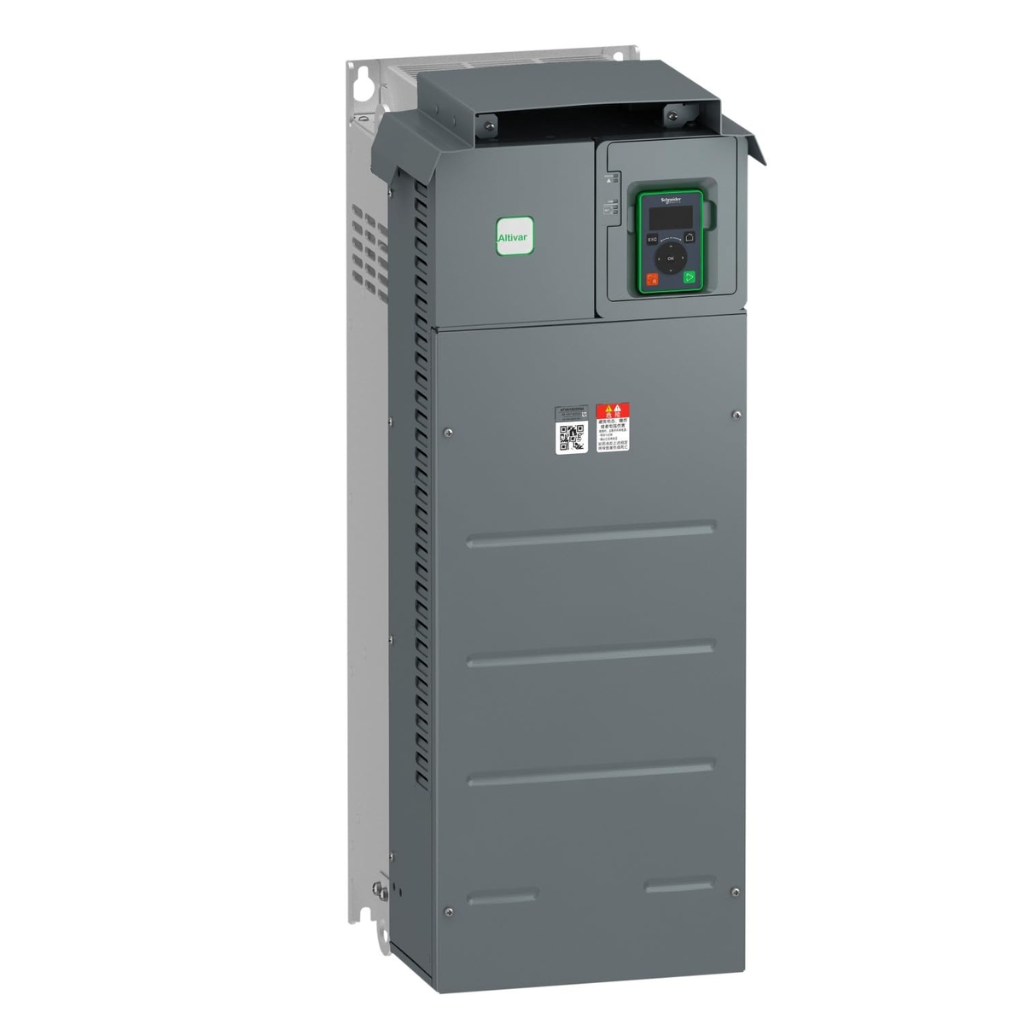

Schneider Electric Altivar Process 610 Variable Speed Drive ATV610D55N4

The ATV610D55N4 is a 55 kW (75 HP) variable speed drive designed for controlling three-phase asynchronous and synchronous motors. Operating with supply voltages between 380V and 460V AC, it is optimized for fluid management applications, enhancing energy efficiency and system reliability. This model features an IP20 protection rating, suitable for various industrial environments.

• Rated Output Power: 55 kW (75 HP)
• Supply Voltage: 380V to 460V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes, conforming to IEC 61800-3 category C3 with 50 m
• Protection Rating: IP20
• Applications: Ideal for fluid management systems, including pumps, fans, compressors, and conveyors
• Dimensions (W x H x D): 226 mm x 613 mm x 271 mm
• Weight: 25.5 kg

With its advanced control capabilities and energy-efficient design, the ATV610D55N4 is an excellent choice for fluid management applications in industrial environments.
