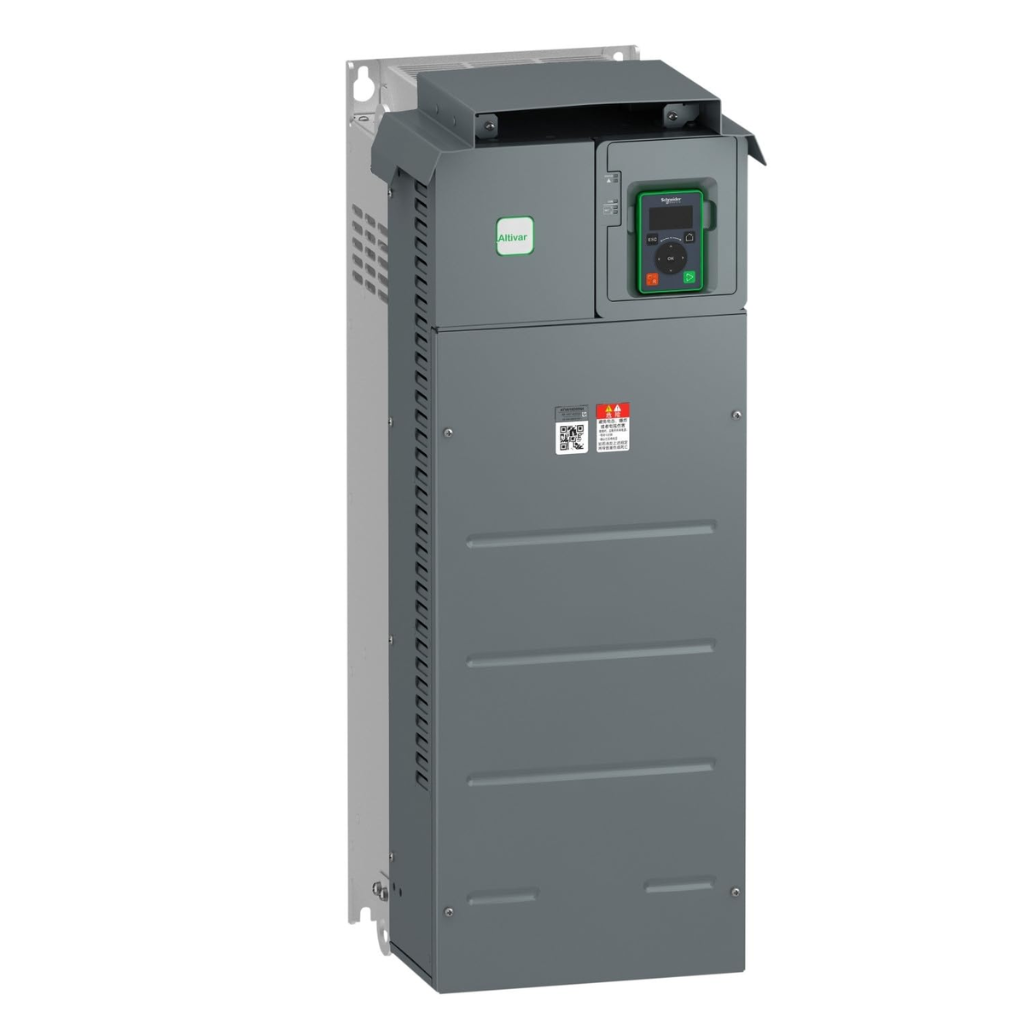

Schneider Electric Altivar Process 610 Variable Speed Drive ATV610D90N4

The ATV610D90N4 is a 90 kW (125 HP) variable speed drive designed for controlling three-phase asynchronous and synchronous motors. It operates within a supply voltage range of 380V to 460V AC and is optimized for fluid management applications, enhancing energy savings and system reliability. This drive includes an IP20 protection rating.

• Rated Output Power: 90 kW (125 HP)
• Supply Voltage: 380V to 460V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes, conforming to IEC 61800-3 category C3 with 50 m
• Protection Rating: IP20
• Applications: Suitable for fluid management systems, including pumps, fans, compressors, and conveyors
• Dimensions (W x H x D): 290 mm x 762 mm x 323 mm
• Weight: 53 kg

Designed to deliver reliable motor control and energy efficiency, the ATV610D90N4 is well-suited for demanding industrial applications.
