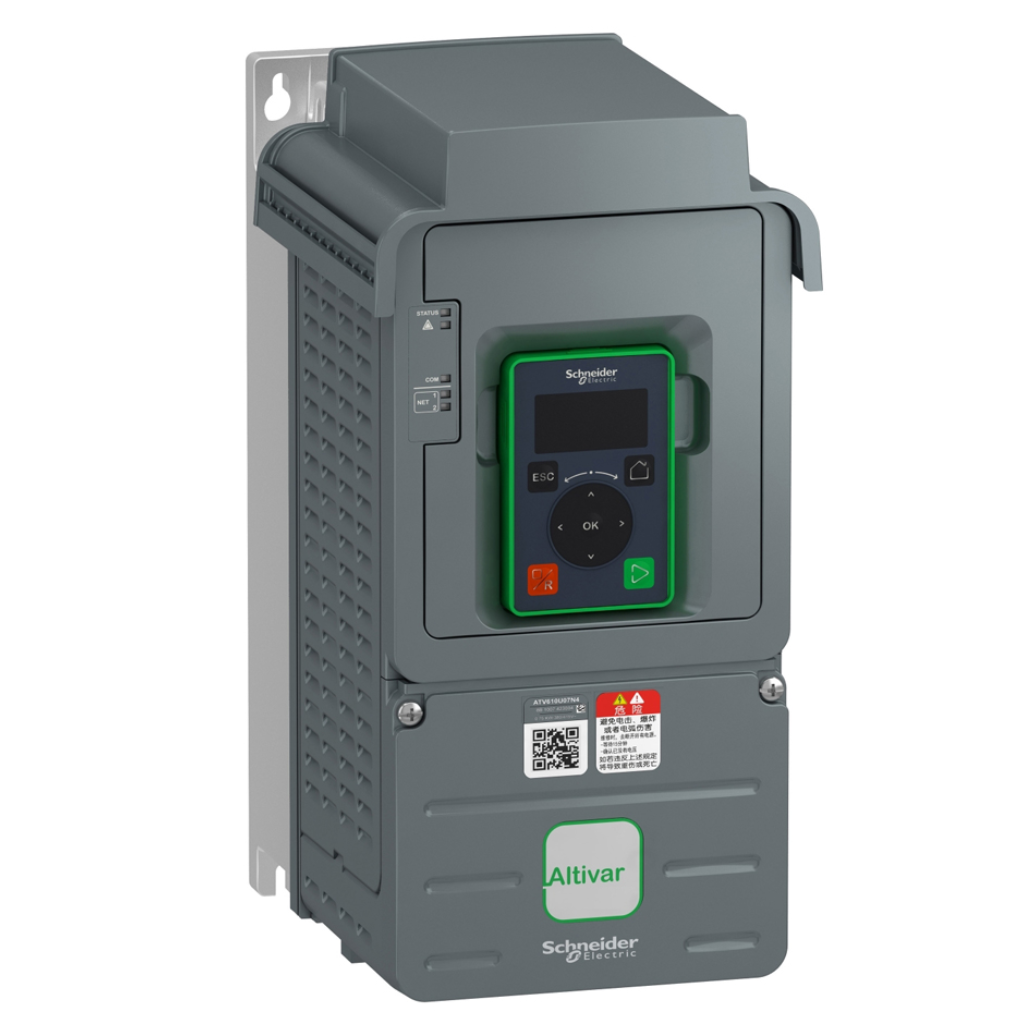

Schneider Electric Altivar Process 610 Variable Speed Drive ATV610U15N4

The ATV610U15N4 is a 1.5 kW (2 HP) variable speed drive designed for controlling three-phase synchronous and asynchronous motors. It operates with supply voltages between 380V and 480V AC and is optimized for fluid management applications, enhancing energy efficiency and system reliability. This model features an IP21 protection rating, suitable for various industrial environments.

• Rated Output Power: 1.5 kW (2 HP)
• Supply Voltage: 380V to 480V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes
• Protection Rating: IP21
• Applications: Ideal for fluid management systems, including pumps and fans
• Dimensions (W x H x D): 130 mm x 272 mm x 174 mm
• Weight: 3.5 kg

Designed to deliver reliable motor control and energy savings, the ATV610U15N4 is well-suited for fluid management applications in industrial settings.
