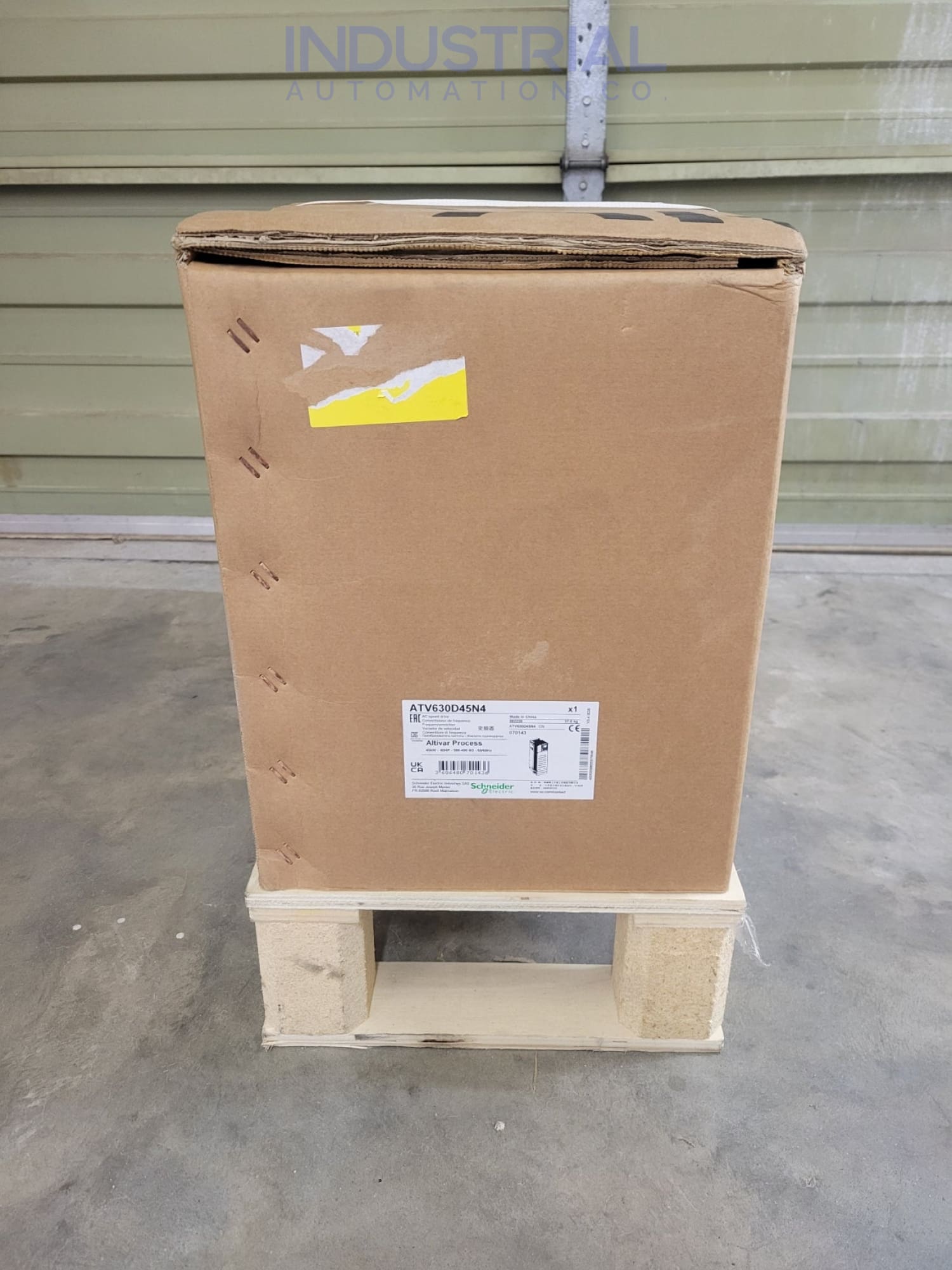

Schneider Electric ATV630D45N4

Schneider Electric Atv630D45N4

Schneider Electric ATV630D45N4

This Schneider Electric ATV630D45N4 variable speed drive (VSD) is compatible with synchronous and asynchronous motors and was developed to improve efficiency in utility and process applications. Several industrial settings are perfect for the ATV630D45N4, thanks to its excellent motor control profiles and strong safety measures.

Technical Specifications:

The ATV630D45N4 works at 50–60 Hz. At 45 kW and 37 kW, it can easily power motors with average and heavy loads. Additionally, it can handle 50 hp heavy-duty and 60 hp medium-duty loads.

The 28.7-kg ATV630D45N4 is 226 mm wide, 673 mm tall, and 271 mm deep. For best ventilation, mount it on a wall with suitable spacing. Its 63.5 dB noise level meets 86/188/EEC standards, making the drive quiet.

Storage temperatures for the drive are -40 to 70 °C. It works well up to 1000 m without decreasing. The drive is ATEX zone 2/22, EN/IEC 61800-3, and UL 508C compliant. CE certifies compliance with European consumer safety, environmental, and health standards. It integrates easily into control systems with Modbus TCP and serial. Connectivity and adaptability are enhanced via PROFINET and other communication devices.

The ATV630D45N4 works well with forced convection cooling. Regular duty outputs 88 A at 4 kHz, severe load 74.5 A. VSD motors prevent overcurrent and overheating.

The drive's 0.1–500 Hz output frequency meets various motor speed needs. The switching frequencies can be set from 2 to 12 kHz, with 4 kHz being the default. EMC filters reduce electromagnetic interference, improving device performance.

Connectivity and Control:

The discrete input logic and 16 pre-set speeds of the ATV630D45N4 allow motor performance adjustments. Its three analog inputs and two analog outputs offer many control and configuration options.

Analog inputs of the drive accept 0–20 mA and 0–10 V DC with 12-bit resolution. ATV630D45N4 ports include RJ45 Ethernet/Modbus TCP and Modbus serial. The device's half-duplex and full-duplex modes exchange data efficiently at 100 Mbits.

Motor and drive exterior heat protection are drive protection elements. This prevents motor phase breaks, DC bus overvoltage, and line supply phase loss. Powerful protection features ensure device safety and reliability in numerous industrial situations.

Sustainability and Compliance:

The Green Premium label on the ATV630D45N4 reflects Schneider Electric's dedication to sustainability. The promotion of circular and low-CO2 products and transparency regarding ecological impacts are guaranteed by this certification, which also guarantees compliance with environmental regulations.

Detailed end-of-life information is provided with the ATV630D45N4 to help with recycling and proper disposal. It also complies with the warning requirements of California's Proposition 65, which alerts consumers to the possibility of exposure to chemicals linked to cancer and reproductive harm.

Frequently Asked Questions:

What are the mounting options and temperature range for the ATV630D45N4?

The ATV630D45N4 can be mounted on a wall with individual IP21 or IP20 configurations. It operates efficiently between -15 to 50 °C without derating and up to 60 °C with derating.

What are the relay output types and their switching capabilities in the ATV630D45N4?A4?

The ATV630D45N4 includes three relay outputs: R1A, R1B, R1C, R2A, R2C, and R3A, R3C. These outputs support up to 250 V AC and 30 V DC, with a maximum switching current of 3 A and 5 A, respectively.

What are the communication port options and the supported transmission rates for the ATV630D45N4?

The ATV630D45N4 features RJ45 connectors for Ethernet/Modbus TCP and Modbus serial interfaces. It supports transmission rates of 10, 100 Mbits and 4800 bps, 9600 bps, 19200 bps, and 38.4 Kbps.

Product Specifications Table:

Attributes Specification
Manufacturer Schneider Electric
Rated Supply Voltage 380-480 V
Power Rating 45 kW (Normal Duty), 37 kW (Heavy Duty)
Continuous Output Current 88 A (Normal Duty), 74.5 A (Heavy Duty)
Output Frequency 0.1-500 Hz
Protection Degree IP21
Communication Protocols Modbus serial, Ethernet, Modbus TCP
Operating Temperature -15 to 50 °C (without derating)
Dimensions (W x H x D) 226 mm x 673 mm x 271 mm
Weight 28.7 kg

Schneider Electric ATV630D45N4

Regular price
$3,080.12
Sale price
$3,080.12
We currently have 1 in stock.
