Description
Schneider Electric ATV630D90N4
The Schneider Electric Altivar Process ATV630D90N4 variable speed drive is perfect for industrial automation. This high-performance, feature-rich motor control drive is a part of the Altivar Process line, designed to satisfy the rigorous operational demands of various processes.
Technical Specs:
With a working voltage range of 380480V, the ATV630D90N4 can produce 90 kW (125 horsepower). With ratings of 90 kW for normal duty and 75 kW for heavy duty, it can accommodate both types of motor activities.
Under normal duty conditions, the drive can handle line currents of up to 156.2 A at 380V and up to 135.8 A at 480V. Line currents 134.3 A at 380 V and 118.1 A at 480 V are suitable for demanding applications. On normal duty, the drive's apparent power is 112.9 kVA at 480V; on heavy duty, it drops to 98.2 kVA at the same voltage. The ATV630D90N4 has a switching frequency of 2.5 kHz and an output frequency range of 0.1-500 Hz. To make operations safer, it has state-of-the-art safety features.
The VSD can handle normal duty output currents of 173 A at 2.5 kHz and heavy-duty output currents of 145 A. The drive's inclusion of many communication protocols guarantees smooth integration with a wide range of automation systems. These protocols include Ethernet, Modbus serial, Modbus TCP, DeviceNet, CANopen, BACnet MS/TP, and Ethernet Powerlink.
Design and Installation:
Built to last, the ATV630D90N4 weighs 128.97 pounds (58.5 kg) and measures 11.42 inches wide, 36.30 inches tall, and 12.72 inches deep. Its IP21 rating protects against dust and solids. Drive working temperature is -15°C to 50°C.
It works at 3280.84 ft without derating and 5-95% humidity without condensation. It can operate at 4800 m due to its 1% per 100 m derating. With IP20 protection, the ATV630D90N4 can mount two drives side by side or have many wiring and mounting options. The drives can be IP21 protected. The standard dimensions make it easy to integrate into existing installations and allow installation flexibility. The drive's control block wiring schematic simplifies connection and setup, improving usability and reliability in complex industrial situations.
Compliance and Environmental Considerations:
The ATV630D90N4 meets UL 508C, EN/IEC 61800-3, and IEC 61000-3-12 standards. CE certification means it meets EU safety and environmental standards. The drive's ATEX and CSA certifications confirm its global acceptability and reliability. It follows California's Proposition 65, which bans certain chemicals to reduce environmental impact.

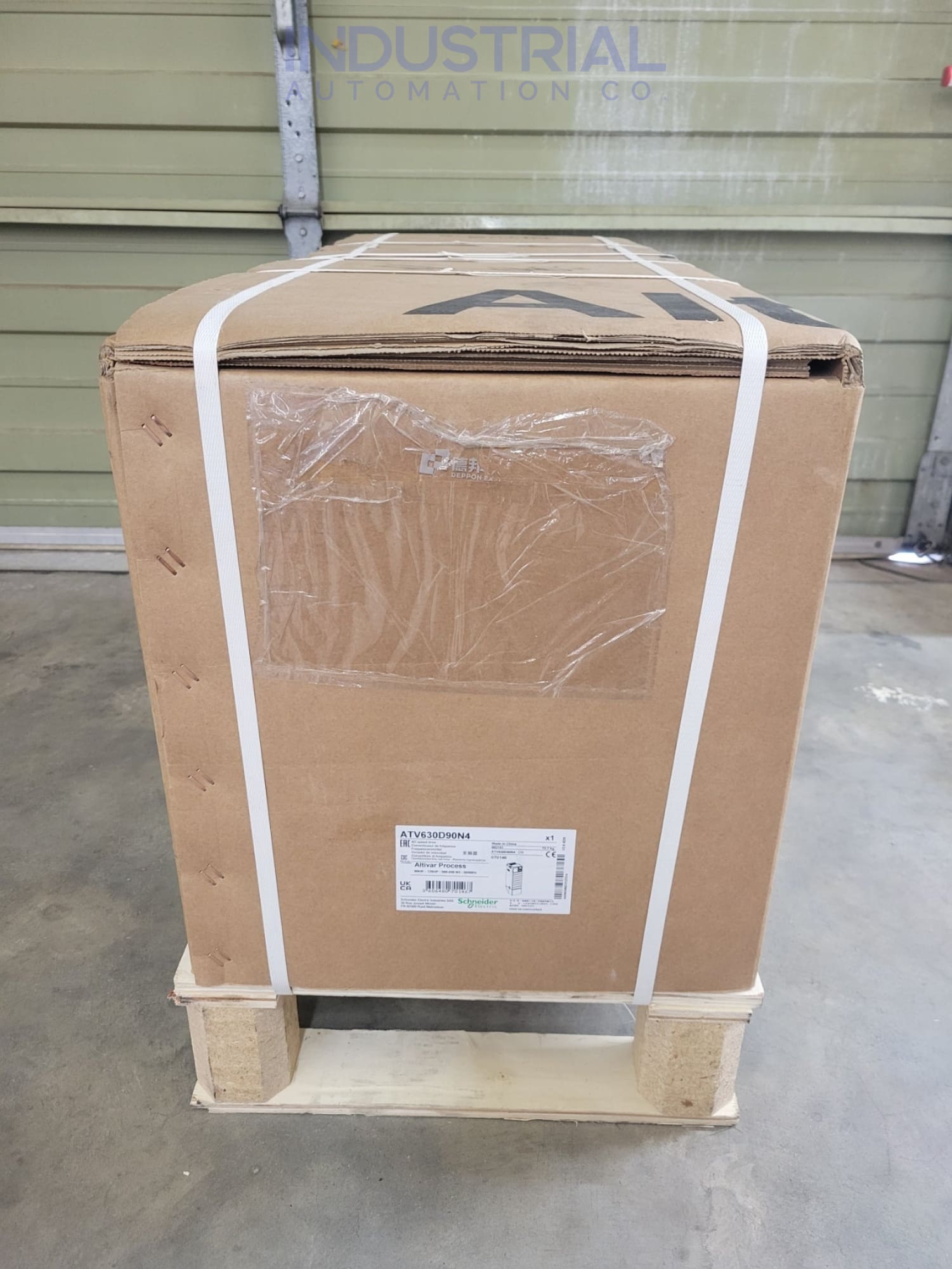

The ATV630D90N4's packaging and shipment proportions, which weigh 71.4 kg and measure 23.23 inches high, 16.93 inches wide, and 43.70 inches long, prioritize logistics efficiency. The configuration reduces transit and handling damage, assuring safe shipment.
Frequently Asked Questions:
What are the control profile alternatives for synchronous motors in the ATV630D90N4?
The ATV630D90N4 is compatible with synchronous motor control profiles that use permanent magnet motors or synchronous reluctance motors. Various motor types can be made more versatile with these alternatives.
What varieties of relay outputs are available on the ATV630D90N4?
A4Relays R1A, R1B, and R1C are available on the ATV630D90N4 for fault and sequence relays and have a 100000-cycle life. A maximum of 250 V AC and 30 V DC are within its supported voltage range.
What is the utmost temporary current boost that the ATV630D90N4 can receive?
Under normal operating conditions, the ATV630D90N4 may temporarily increase the current by 1.1 times the nominal current for 60 seconds. During 60 seconds, it allows 1.5 times the nominal current, making it suitable for heavy-duty environments.
Product Specifications Table:
| Attribute | Specification |
|---|---|
| Range of Product | Altivar Process ATV600 |
| Product Type | Variable speed drive |
| Manufacturer | Schneider Electric |
| Weight | 71.4 kg |
| IP Degree of Protection | IP21 |
| Supply Frequency | 50-60 Hz |
| Power Rating | 90 kW (normal duty), 75 kW (heavy duty) |
| Maximum Horse Power Rating | 125 hp (normal duty), 100 hp (heavy duty) |
| Line Current | 156.2 A to 135.8 A |
| Apparent Power | 112.9 kVA to 98.2 kVA |
