Description

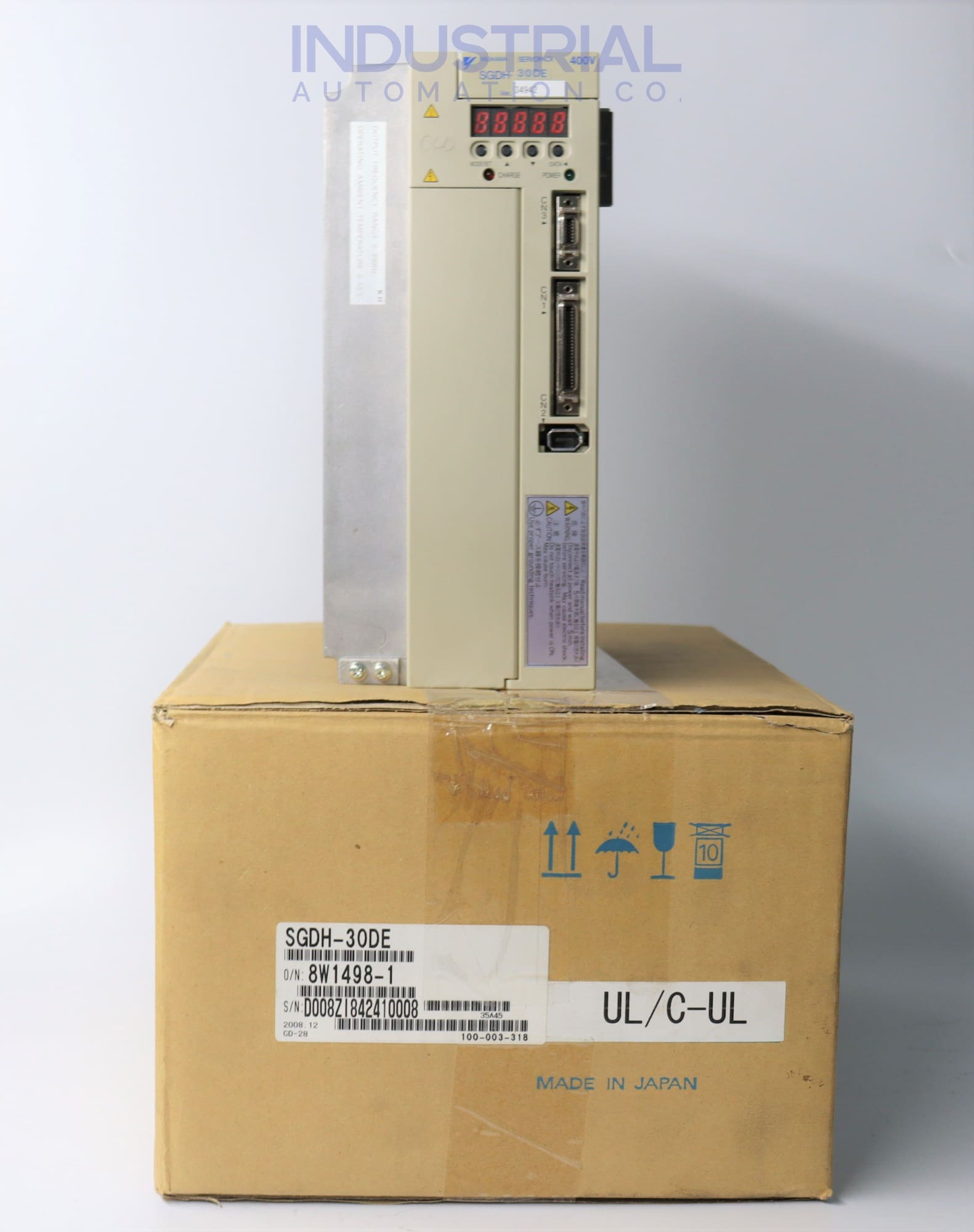

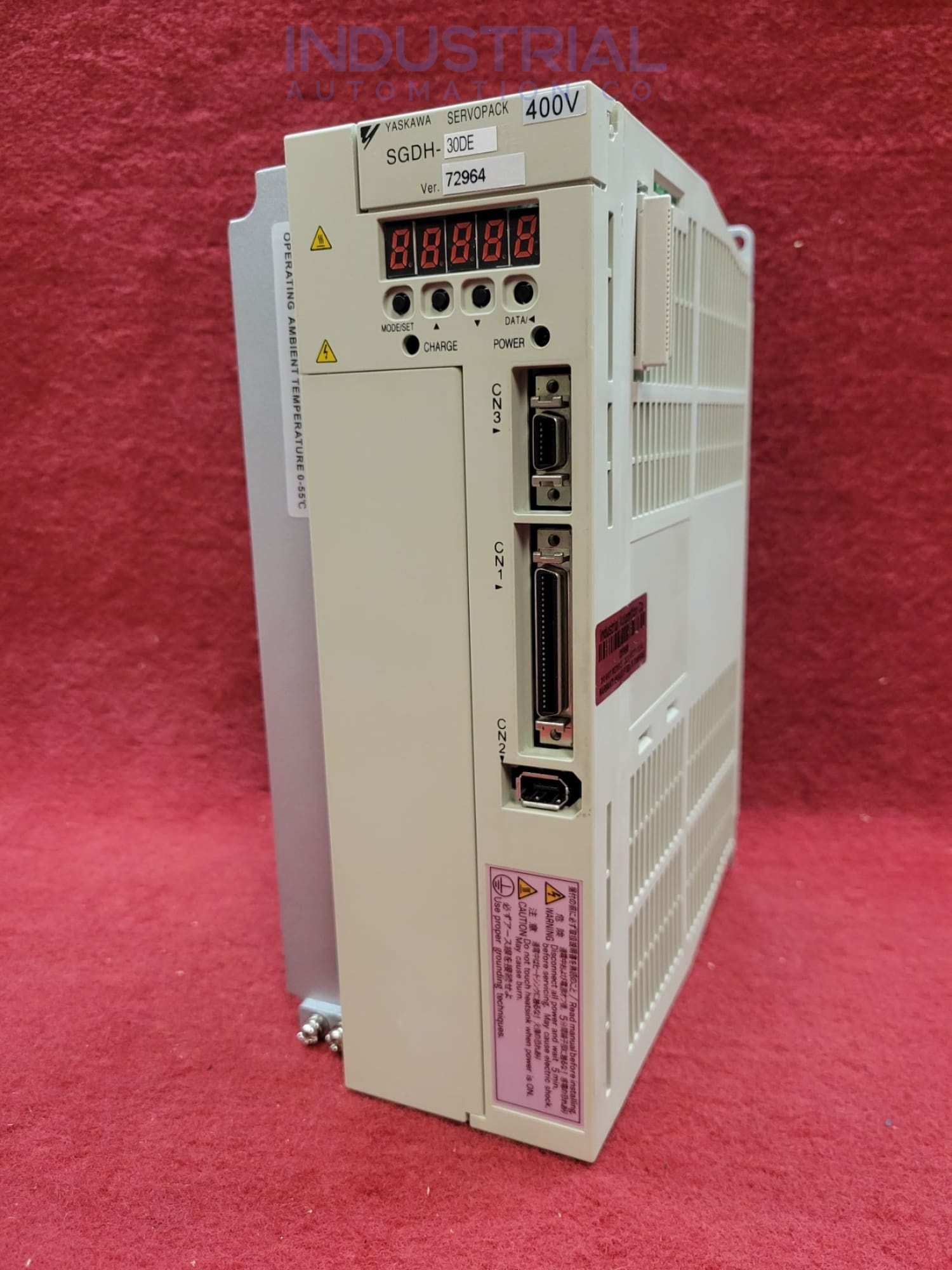

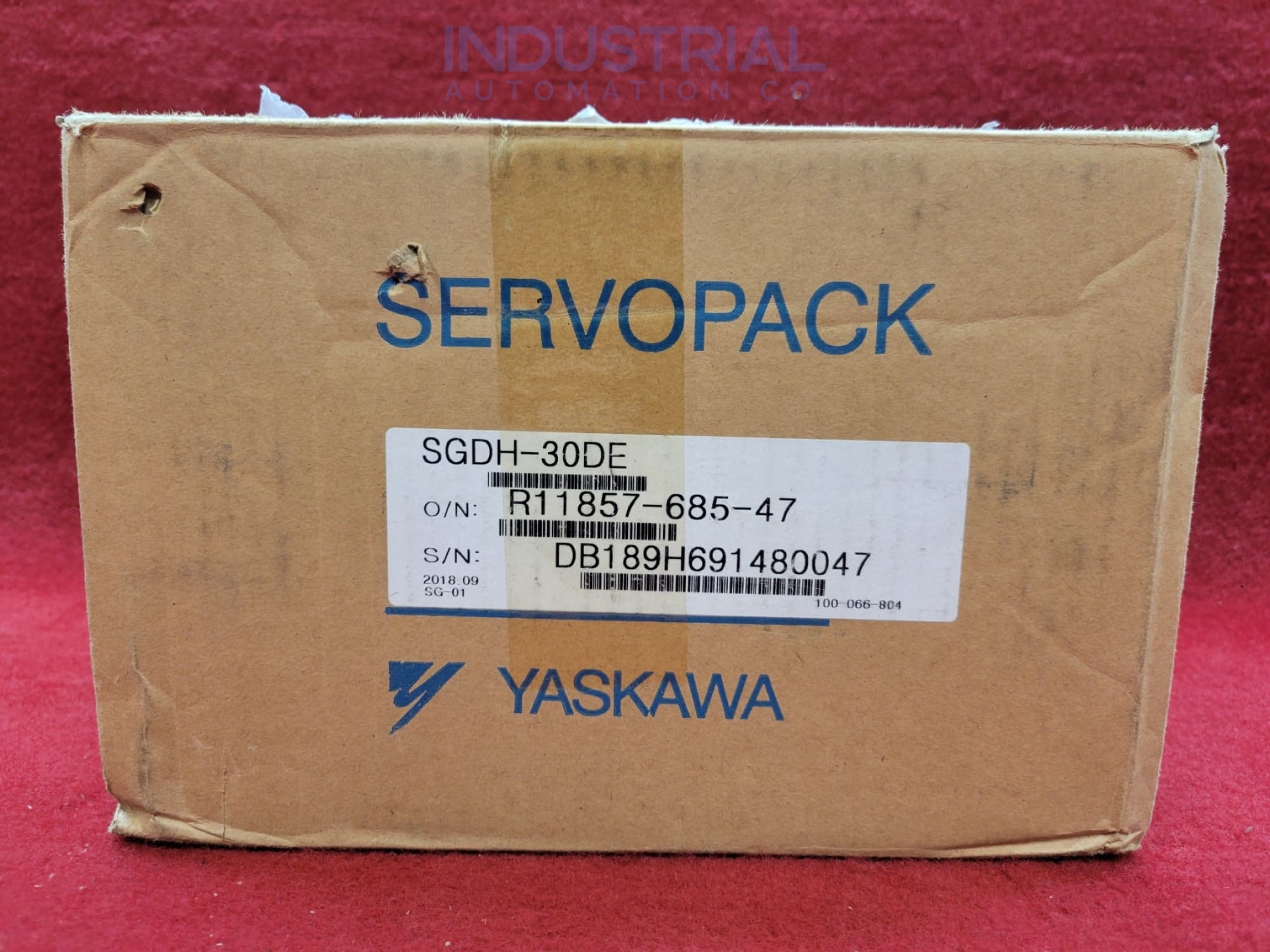

Yaskawa SGDH-30DE

The Yaskawa SGDH-30DE is a high-performance servo drive designed for precision motion control. This model belongs to the Sigma II series and is manufactured by Yaskawa. It offers exceptional performance and reliability for a wide range of industrial applications.

Technical Description:

The Yaskawa SGDH-30DE servo drives have features that ensure that the drive will withstand the harsh conditions common in industries today. A member of the Sigma II series of comptometers, this model is specifically designed for optimal speed, precision, and durability. It has a power rating of output of 3.0 kW, and it can be applied to robotics and automatic manufacturing processes.

Included among the essential specifications of the SGDH-30DE is their response frequency, which is 1.6 kHz, to provide fast and accurate localization of the target object. It was found that it supports several kinds of feedback, such as incremental encoder feedback and absolute encoder feedback, which has made it very useful in various environments. It also has additional tuning functions that include self-priming control and vehicle vibration canceling abilities, which require fewer settings.

To enhance the compatibility of the SGDH-30DE with other control systems, it comes with multiple communication ports such as RS- 232C, RS-422/ 485, and MECHATROLINK-II. It is especially suitable for installation in areas where space is limited due to its small size, and the materials used in its construction are of high quality, making it highly durable.

Attachments Specifications:

The features of the Yaskawa SGDH-30DE servo drive are the presence of many types of attachments to expand the operating possibilities and facilitate the connection. As for the accessory, it is equipped with mounting brackets and screws for easy installation and filters for EMI option. These attachments allow SGDH-30DE to be easily adapted to a wide variety of industrial automation environments and to perform to the best of its capacity and dependability.

Standard Safety Precautions:

Measures of safety are implemented in an effort to meet the standard measures of safety being exercised while operating the Yaskawa SGDH-30DE servo drive. It may comprise primary protective measures like overcurrent, overvoltage, and overheat protection in order to prevent any damage or aging of the component /device. Users are to follow particular grounding procedures, and each connection has to be protected from short circuits to minimize the chances of technologies delivering electrical shocks.

The drive should not be exposed to dust, moisture, or any other adverse weather conditions to prevent any form of damage. It is advisable to take small routine maintenance checks in order to reap the benefits of the route. Moreover, certification of the drive according to international safety standards such as CE and UL proves the device€¢s compliance with safety standards and is suitable for use in industrial conditions.

Frequently Asked Questions:

What types of feedback encoders are compatible with the SGDH-30DE?

The SGDH-30DE is compatible with both incremental and absolute encoders, offering flexibility and precision in various applications.

What communication interfaces does the SGDH-30DE support?

The SGDH-30DE supports RS-232C, RS-422/485, and MECHATROLINK-II interfaces, ensuring seamless integration with diverse control systems.

What safety features are included in the SGDH-30DE?

The SGDH-30DE includes built-in protections against overcurrent, overvoltage, and overheating, and it complies with international safety standards like CE and UL.

Product Specifications Table

Attribute	Specifications
Series	Sigma II series
Manufacturer	Yaskawa
Power Rating	3.0 kW
Response Frequency	1.6 kHz
Feedback Options	Incremental and absolute encoders
Communication Interfaces	RS-232C, RS-422/485, MECHATROLINK-II
Certifications	CE, UL compliant
Input Voltage	200-230V AC
Operating Temperature Range	0 °C to 55 °C
Mounting Type	Panel or DIN rail mountable
