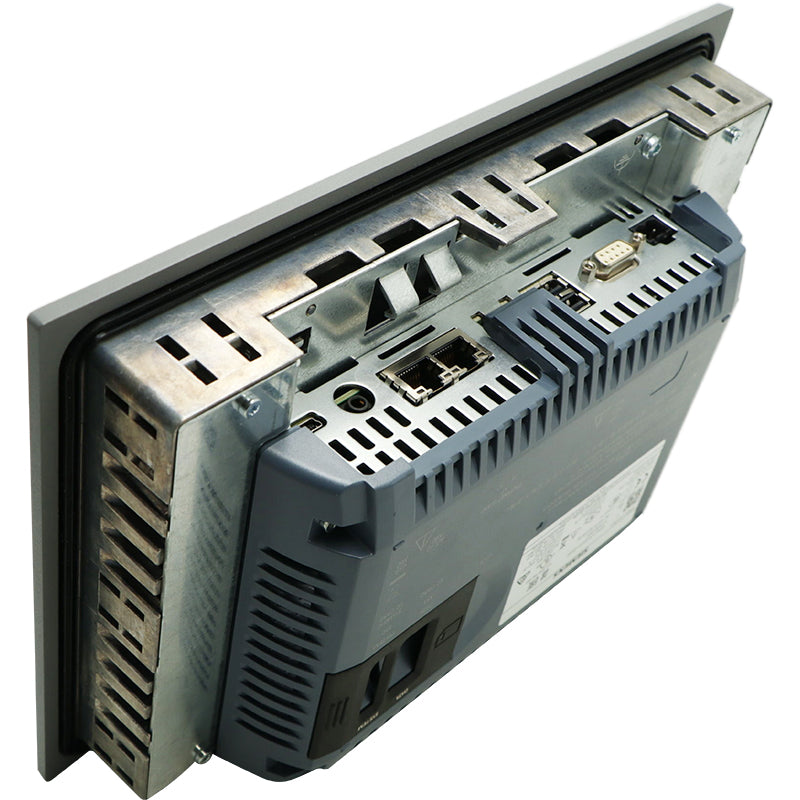

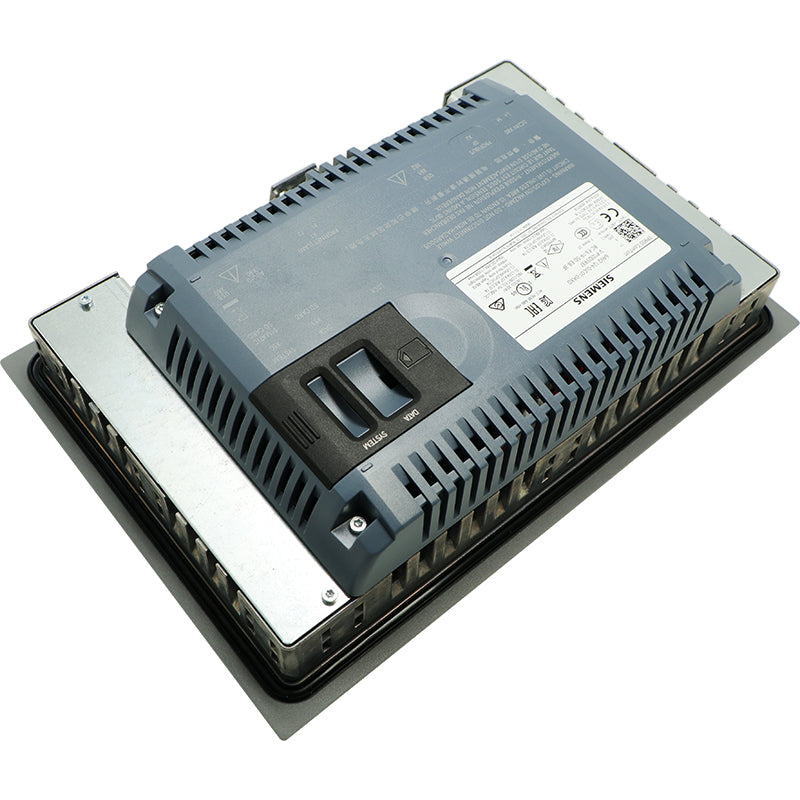

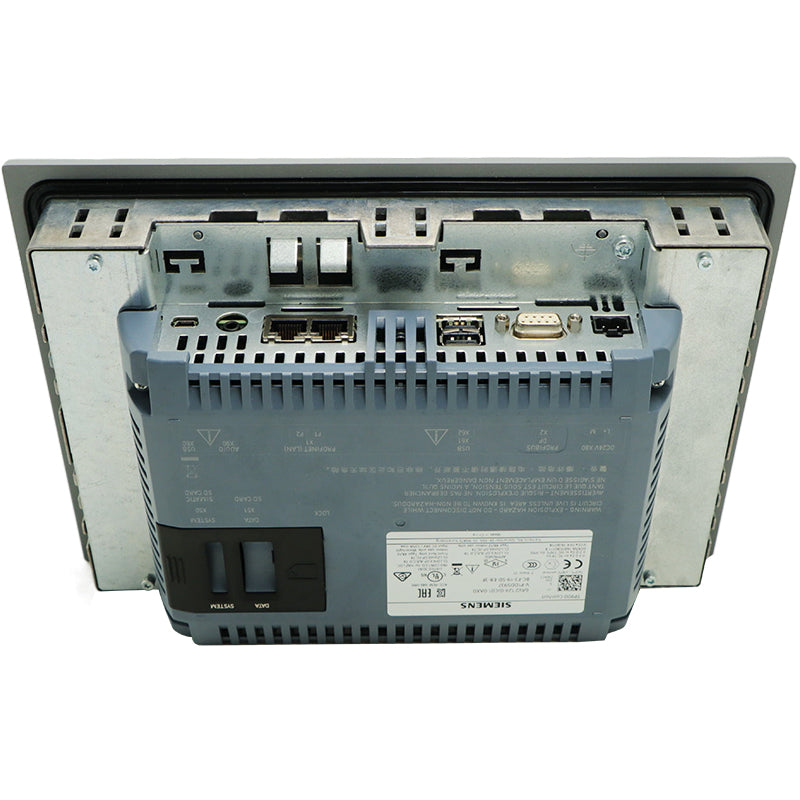

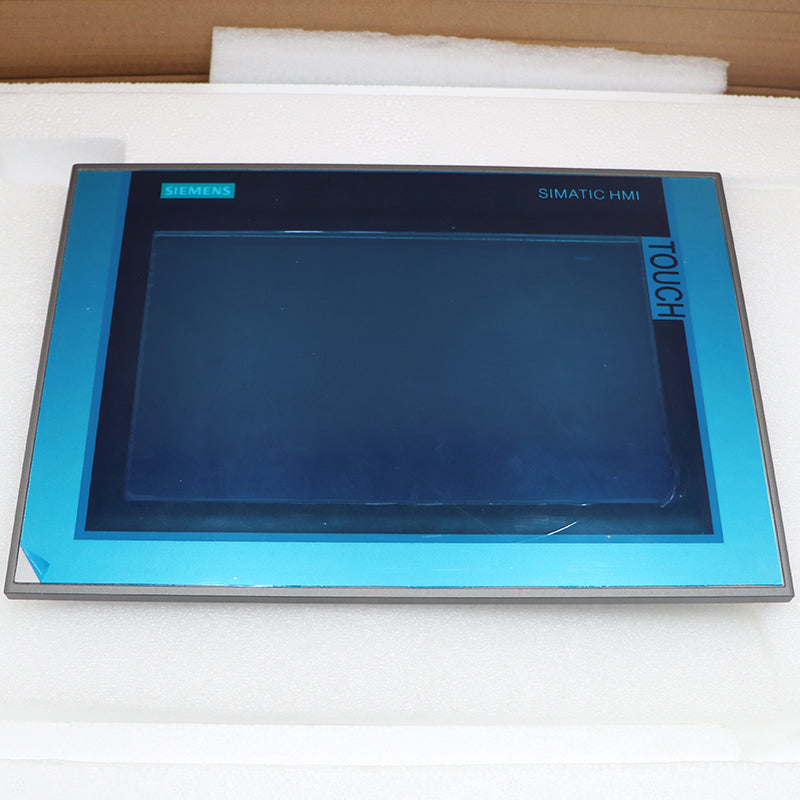

Siemens 6AV2124-0JC01-0AX0

The Siemens 6AV2124-0JC01-0AX0 is a top-tier Human Machine Interface (HMI) from the SIMATIC series, specifically designed to facilitate seamless interaction between humans and automated systems. The model employs superior visualization capabilities. The widescreen format optimizes the view of complex operator controls and key processes. With touch gestures, zoom, and pan functions, users can easily navigate through intricate details on the system.

The unit features a 7 TFT widescreen color display with a 16 million color palette and a resolution of 800 x 480 pixels (WVGA). The high-resolution capacitive touch interface allows intuitive operation and provides clear visualization, enhancing the ease of use and improving user experience.

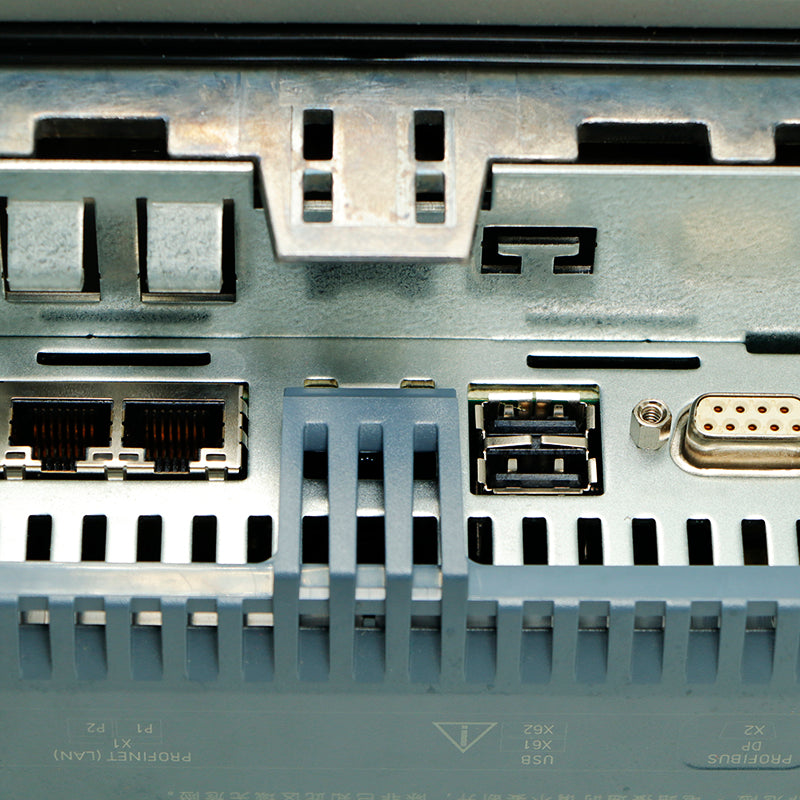

This model comes equipped with a range of connectivity options. It features a PROFINET interface with a 1-port switch and an MPI/PROFIBUS DP interface, which enables real-time communication with connected devices and systems. Additionally, it includes a USB interface for data transfer and peripheral connection.

The Siemens 6AV2124-0JC01-0AX0 boasts a user memory of 12 Mb, making it capable of managing extensive data. With a flash memory of 4 GB, the unit offers ample storage for applications and processes.

Designed for versatile industrial applications, the model is capable of operating at temperatures ranging from 0°C to +50°C (operating) and -20°C to +60°C (storage). The device complies with the degree of protection IP65 (front side) and IP20 (rear side) providing solid resistance to dust and water, making it suitable for a variety of harsh industrial environments.

This HMI model is engineered to operate at a supply voltage of 24 V DC. It is compatible with a power input of typically 18 W, providing a balance between power usage and optimal operational performance. The model includes an on-screen, pop-up keyboard functionality. This assists with data entry and other interactive tasks, making operations quicker and more efficient.

The model 6AV2124-0JC01-0AX0 facilitates comprehensive networking and seamless integration with other systems. It supports protocols such as DHCP, NTP, SNMP, and FTP/FTPS, allowing for broader connectivity.

The device exhibits a rugged design, enabling it to withstand vibrations and shocks, as per EN 60068-2-6/EN 60068-2-27/EN 60068-2-29/IEC 60068-2-6/IEC 60068-2-27/IEC 60068-2-29 standards. Its durability makes it ideal for demanding industrial applications.

The module 6AV2124-0JC01-0AX0 employs a Microsoft Windows CE 6.0 operating system. This provides a robust platform for application execution and ensures reliable system performance.

The model supports various languages for global use, ensuring a broad range of localization possibilities. It comes with the innovative WinCC (TIA Portal) engineering software pre-installed, which significantly simplifies the setup process and accelerates project execution.

It can be configured from WinCC Comfort V13 SP1 or higher, offering advanced customization options for diverse application needs. The device supports the integration of various image and sound files to enhance visualization and feedback, making operations easier for users.

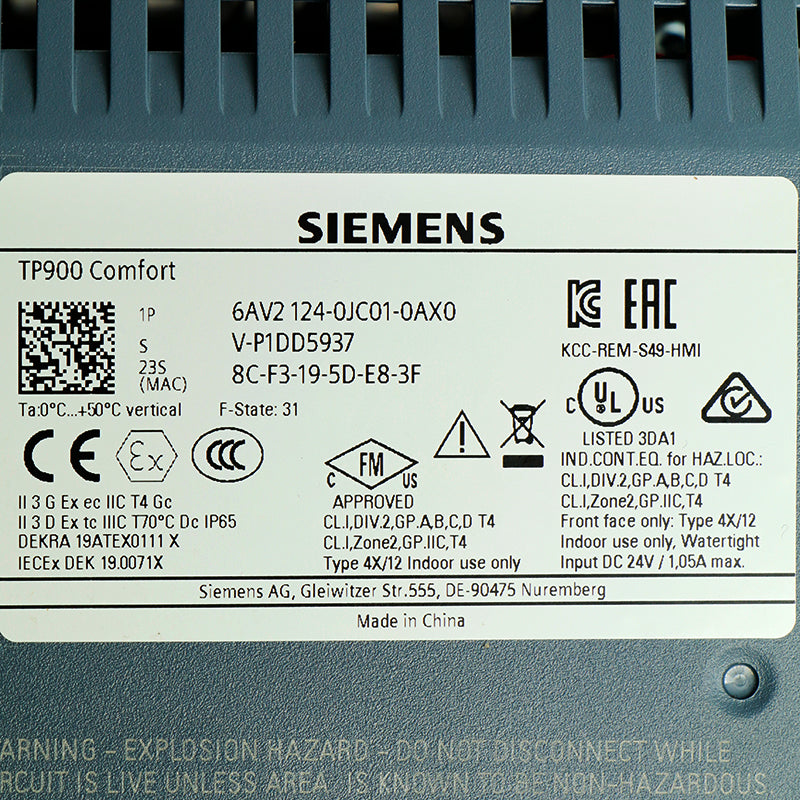

An integrated basic PLC functionality offers more flexibility for controlling simple tasks directly via the HMI device. The Siemens 6AV2124-0JC01-0AX0 SIMATIC HMI is certified with CE, cULus, KC, and EAC, reflecting the model's commitment to maintaining international quality and safety standards.

The device offers high-end security features including access protection with user administration, VPN support for secure, encrypted communication, and support for security certificates, ensuring safe operation and data integrity.

The 6AV2124-0JC01-0AX0 model allows firmware upgrades, ensuring your system always operates with the most current features and offers the best possible performance. The updates can be carried out conveniently via USB or a network connection.
