Siemens 6ES7158-3AD10-0XA0

Siemens 6Es7158-3Ad10-0Xa0

Siemens 6ES7158-3AD10-0XA0

Regular price
Sale price
$1,890.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

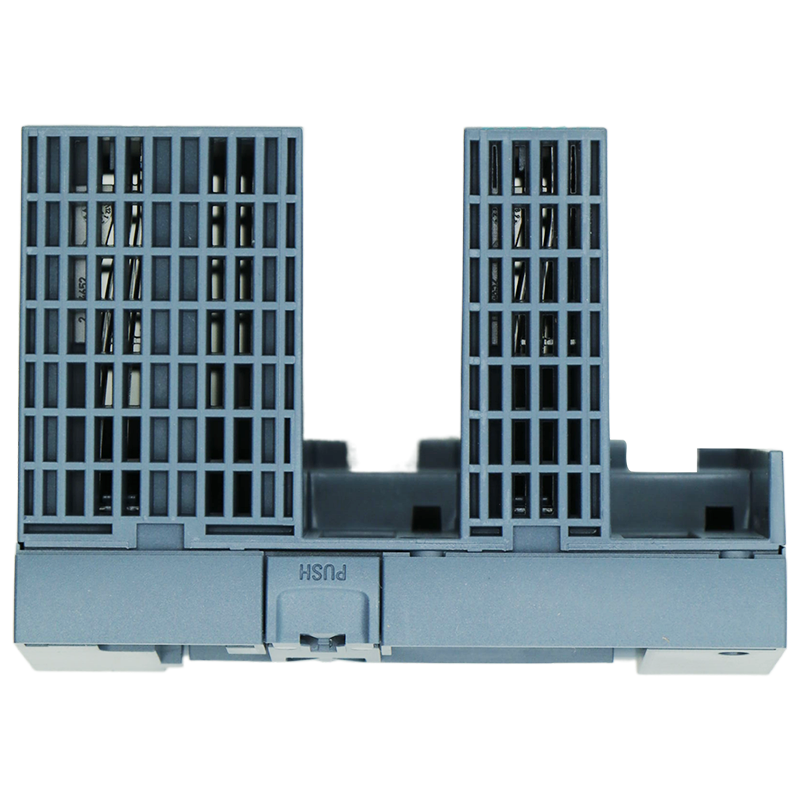

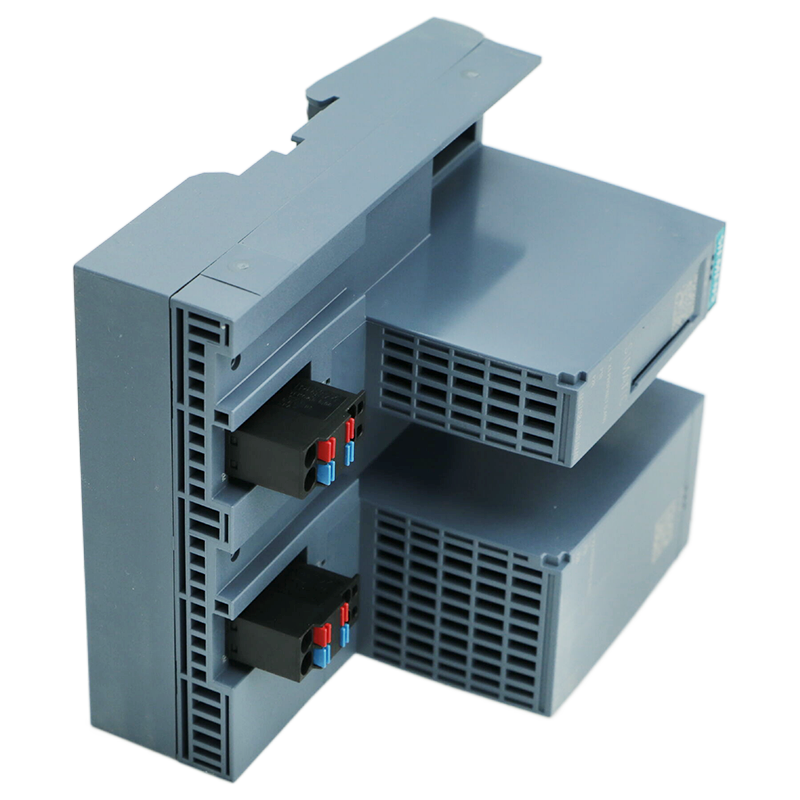

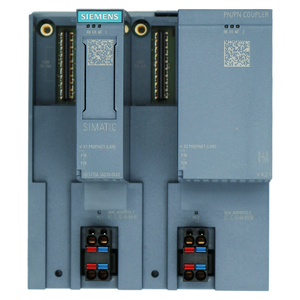

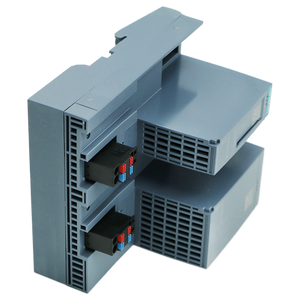

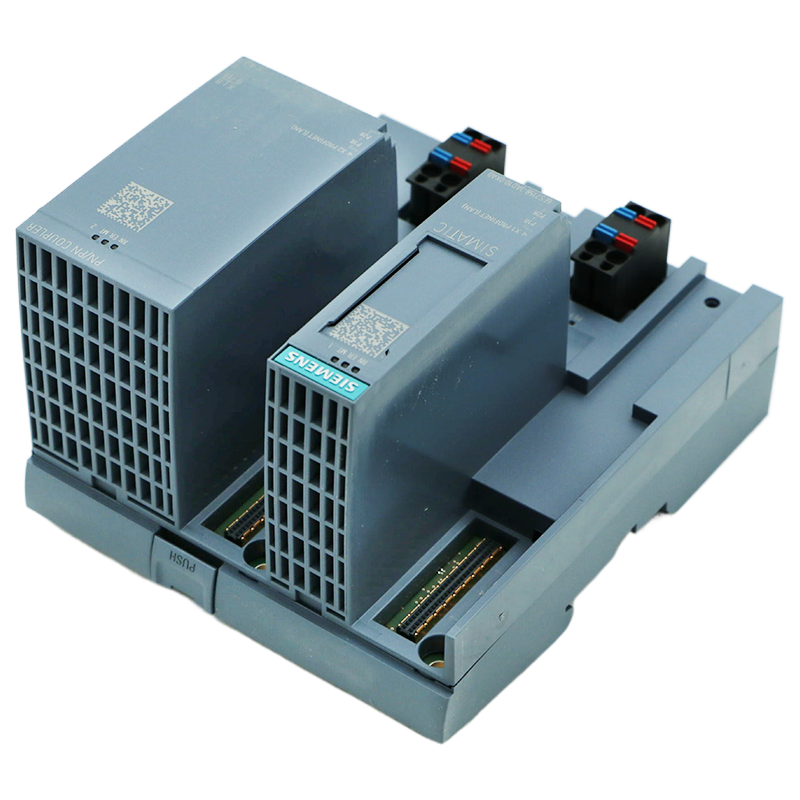

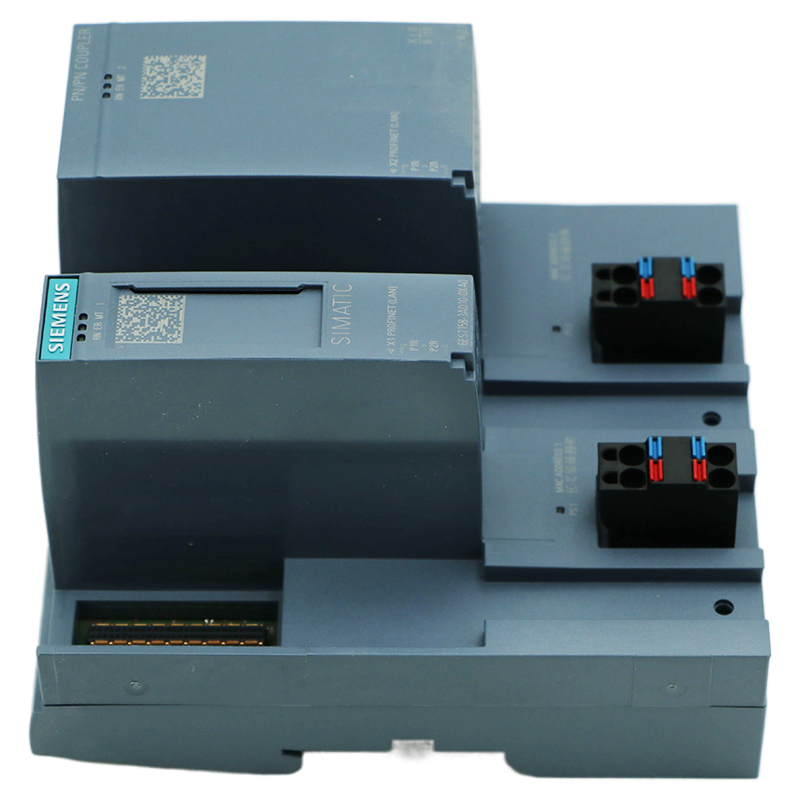

Siemens 6ES7158-3AD10-0XA0

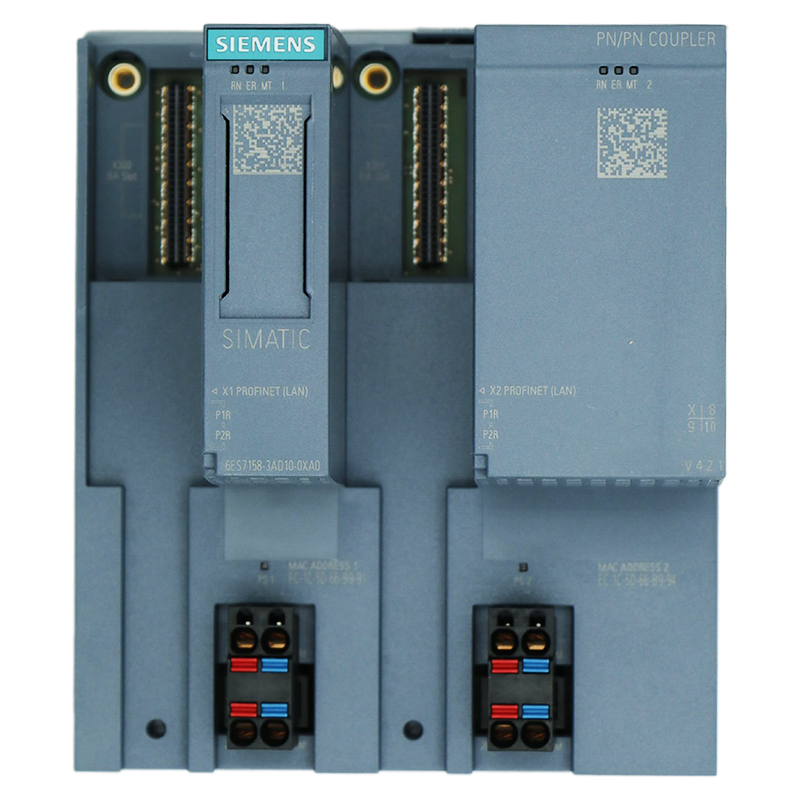

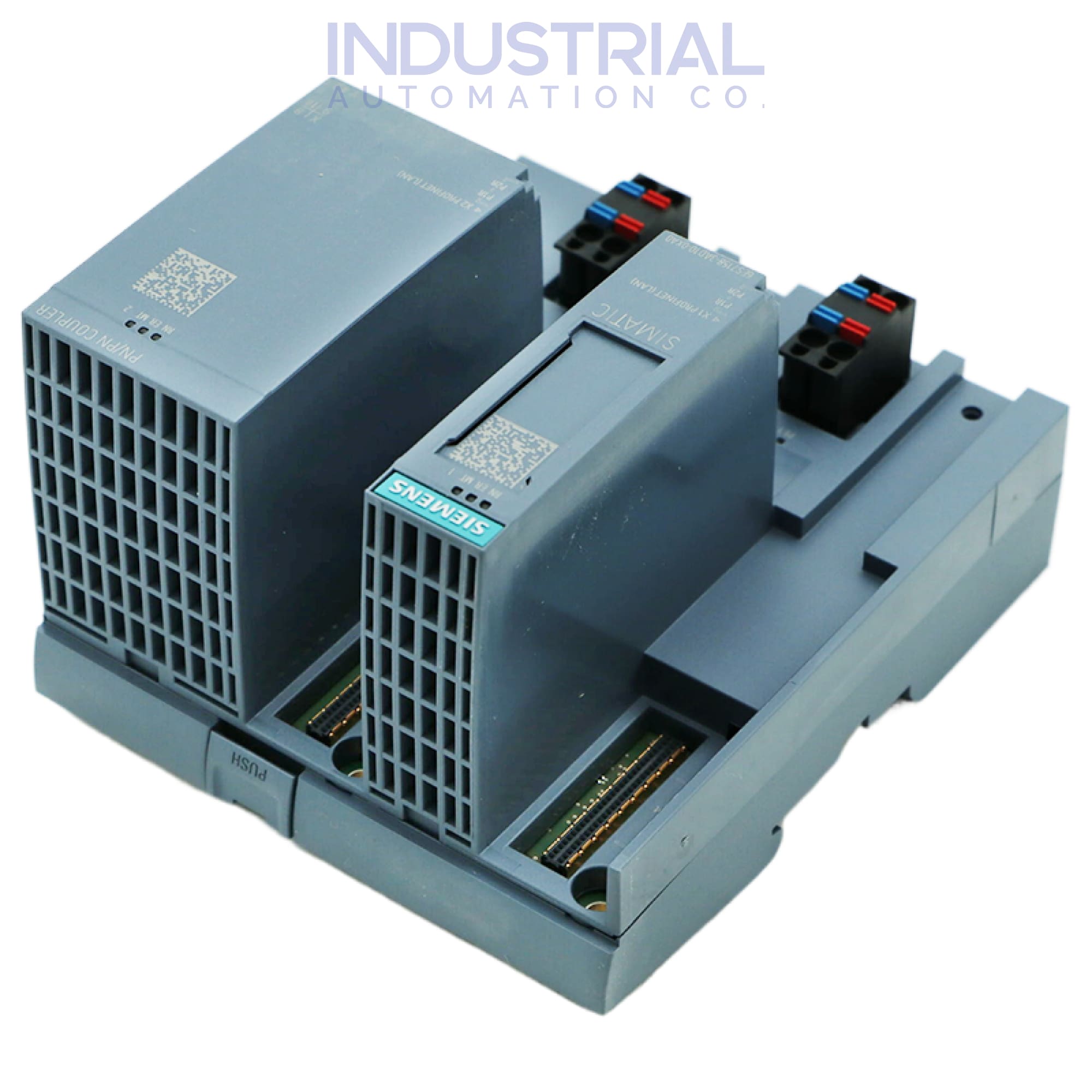

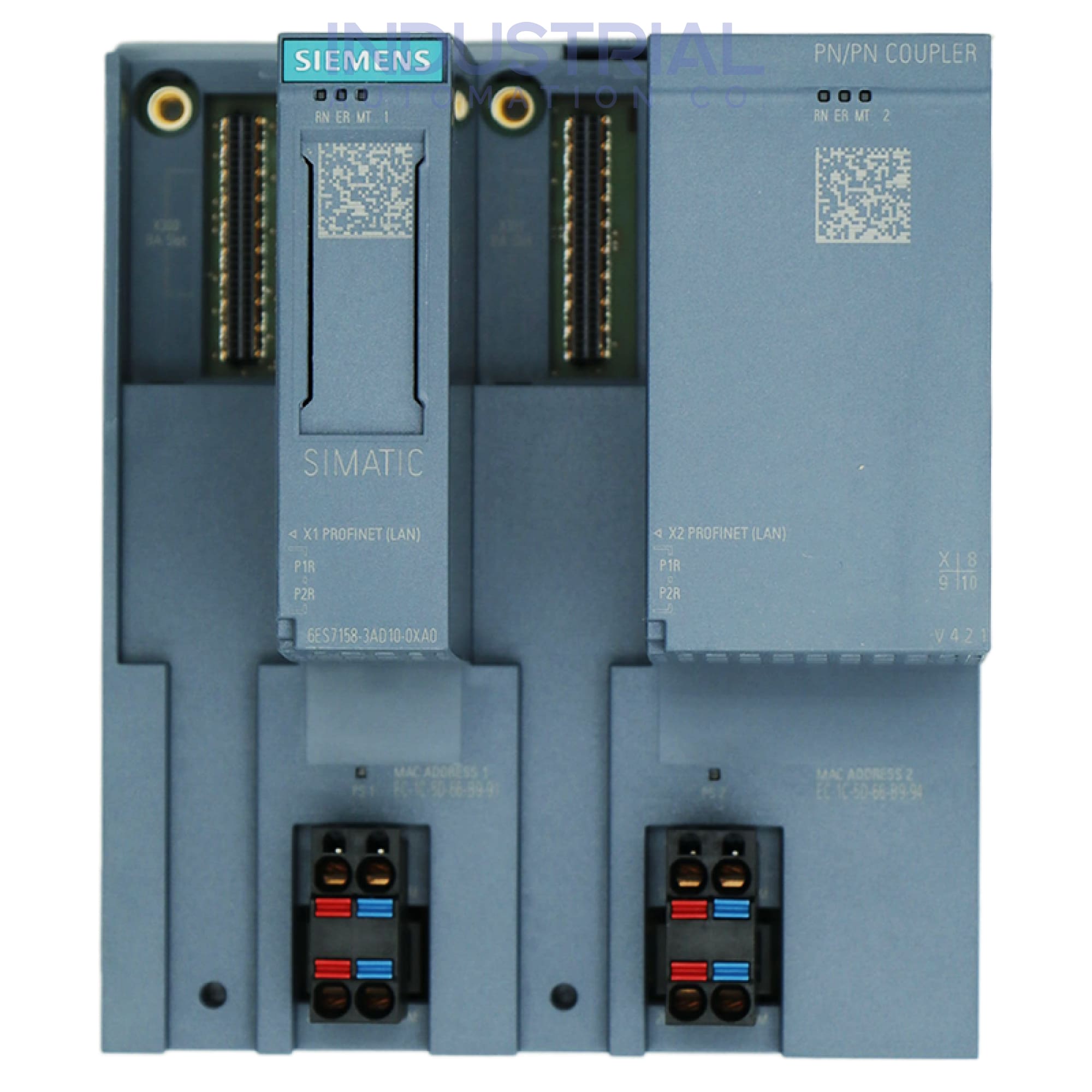

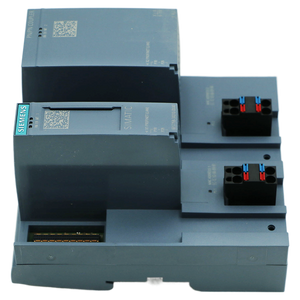

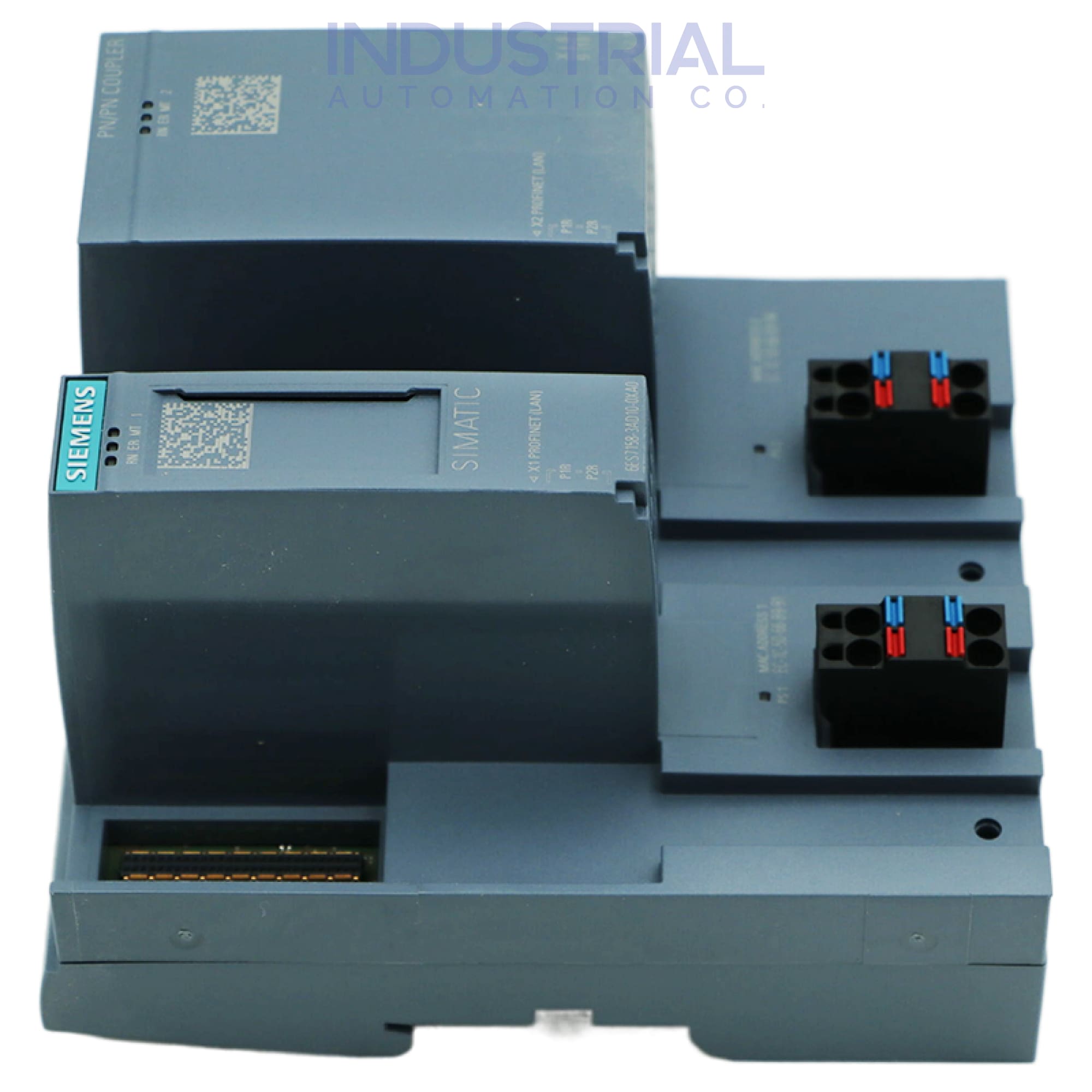

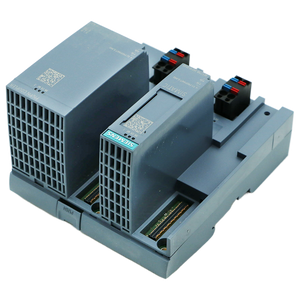

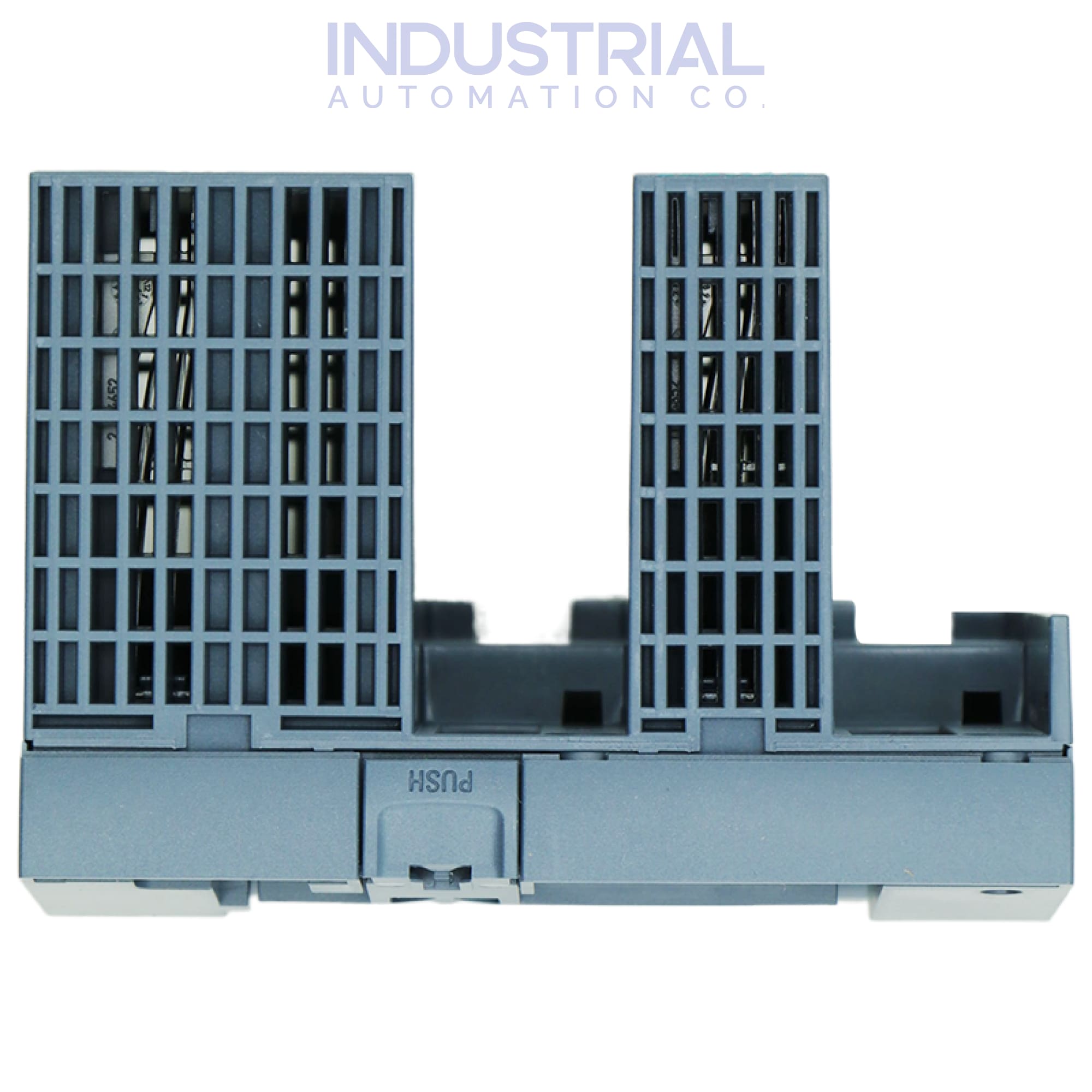

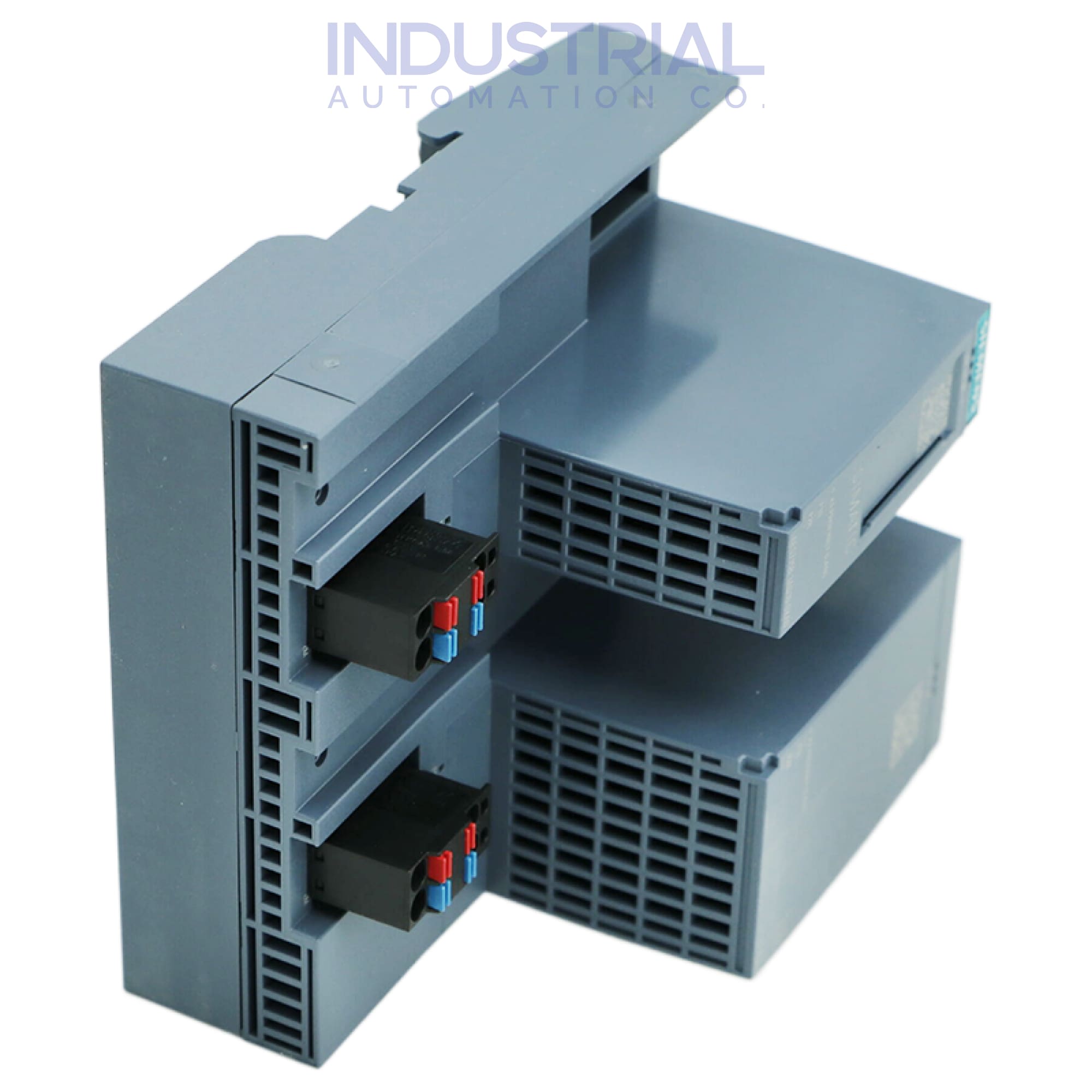

The Siemens 6ES7158-3AD10-0XA0 Communication Module is a crucial component of the Simatic S7 range. This module is designed for seamless communication in industrial environments. Its standout feature is the dual PROFINET interfaces, ensuring robust connectivity.

The module offers reverse polarity protection for enhanced safety. It supports up to 116 submodules per station, providing excellent scalability. With a compact design, it fits easily into tight spaces. This Siemens 6ES7158 module is engineered to meet the demands of modern industrial communication needs.

Technical Details:

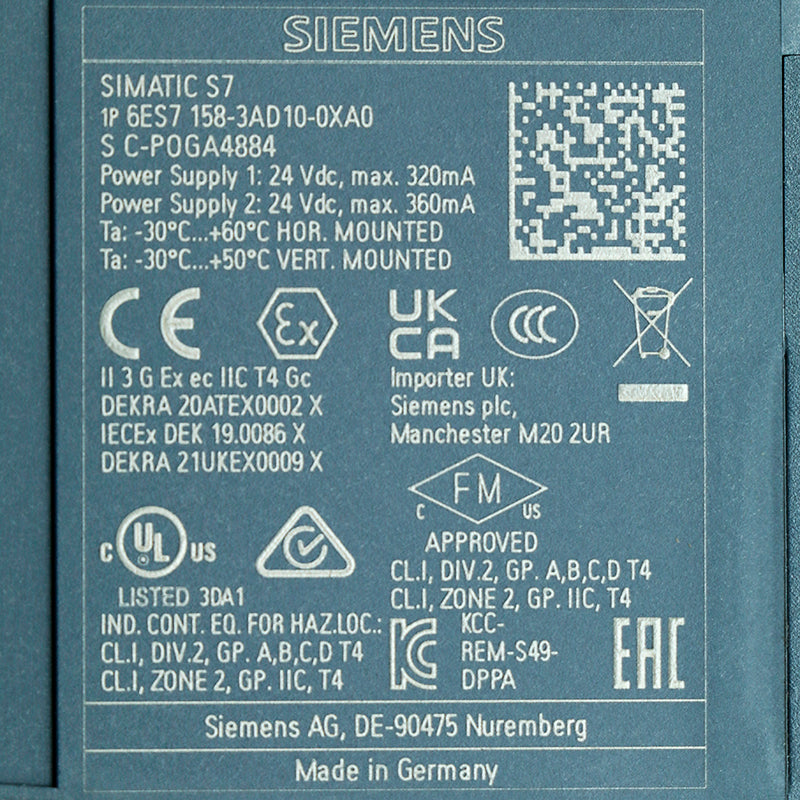

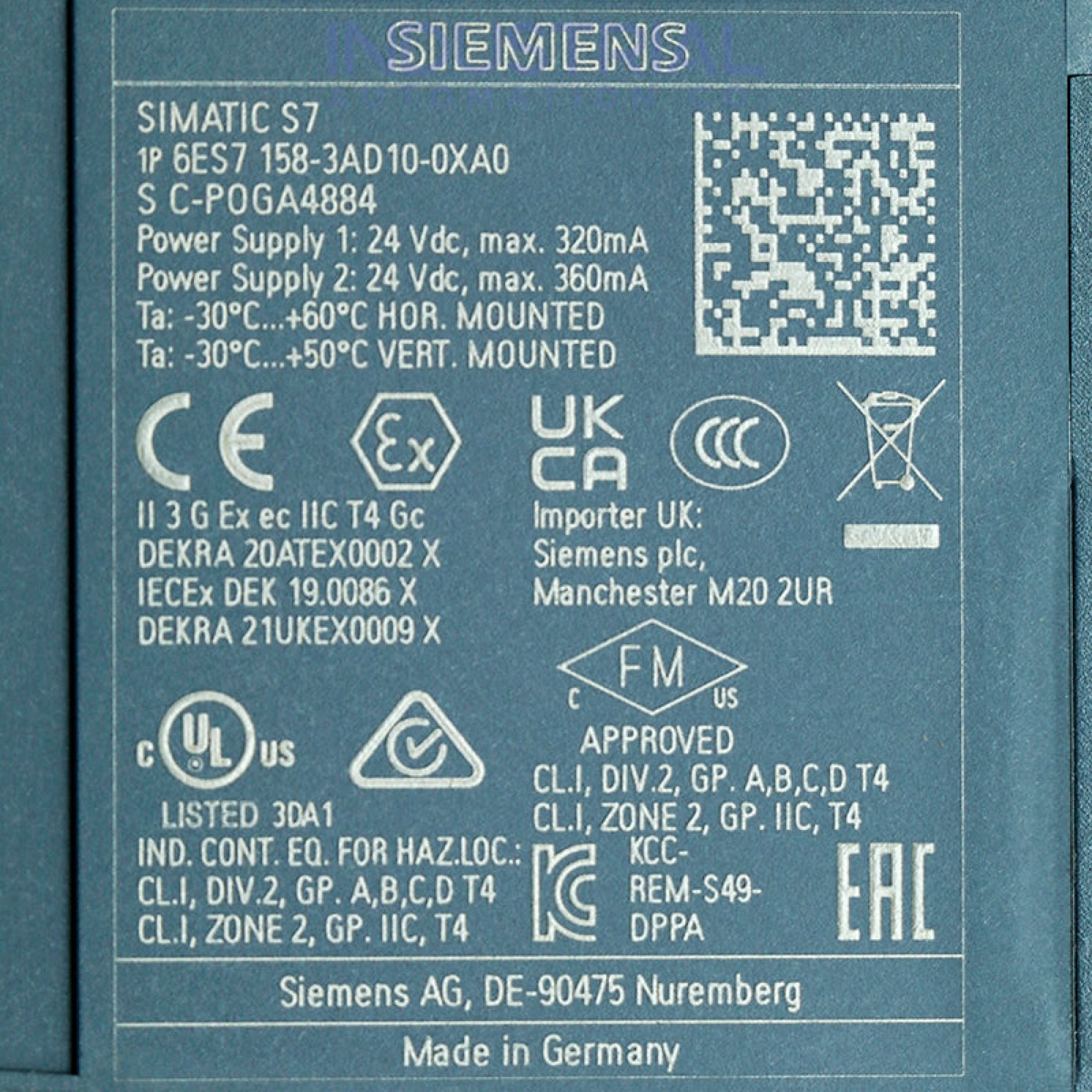

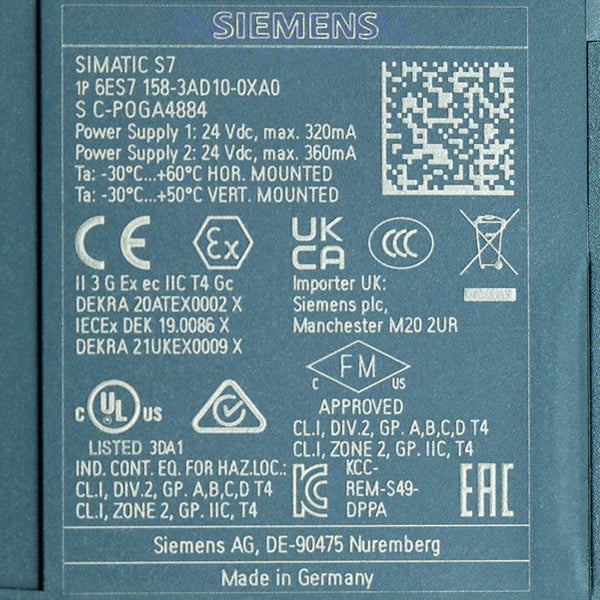

The Siemens 6ES7158-3AD10-0XA0 Communication Module operates at a rated value of DC 24 V. It features protection against reverse polarity for enhanced safety. The mounting type is designed for a 7.5 mm and 15 mm mounting rail. The module's design supports easy installation and maintenance.

The module has a current consumption of 360 mA. This value is for 19.2 V input voltage for the supply terminal at the right-hand side. The inrush current is rated at 1.6 A. The current consumption and inrush current values are well within operational limits. There are 2 PROFINET interfaces available on the module, with each line side having one PROFINET interface.

The module supports up to 116 submodules per station. It is designed with a width of 100 mm, ensuring minimized space usage and good handling. The height of the module is 117 mm, and the depth is 74 mm, including the mounting rail. The approximate weight of this communication module is 200 g, excluding the BusAdapter.

PROFINET Interface:

The Siemens 6ES7158-3AD10-0XA0 Communication Module has two PROFINET interfaces. These interfaces enable communication at a maximum transmission rate of 100 Mbit/s using a full duplex (100BASE-TX). The connection to these interfaces is facilitated through a BusAdapter, which supports multiple types, including BA 2x RJ45, BA 2x SCRJ, BA 2x FC, and others.

The integrated switch within each interface allows seamless network operations, ensuring efficient data transfer and minimal latency. Additionally, the module supports electrical and optical connections via the BusAdapter, offering flexibility for various industrial applications. For enhanced connection reliability, the module includes features like auto-negotiation and auto-crossing.

Supported Protocols:

The Siemens 6ES7158-3AD10-0XA0 Communication Module supports a comprehensive range of protocols to facilitate robust industrial communication. It is primarily designed as a PROFINET IO Device, essential for high-speed, real-time data exchange in industrial automation systems. In addition to PROFINET, the module supports Open IE (Industrial Ethernet) communication, which enhances compatibility with a broader range of devices and systems.

The module includes support for media redundancy protocols, specifically MRP (Media Redundancy Protocol) and MRPD (Media Redundancy for Planned Duplication). The module supports PROFINET system redundancy (S2) and H-Sync forwarding for enhanced operational reliability. The module also supports prioritized startup, ensuring that critical network devices can start and communicate faster after a power cycle.

Frequently Asked Questions:

What is the permissible voltage range for the Siemens 6ES7158-3AD10-0XA0 Communication Module?

The permissible voltage range for the Siemens 6ES7158-3AD10-0XA0 Communication Module is from 19.2 V to 28.8 V. It is important to ensure that the power supply remains within this range to avoid any potential damage or malfunction.

What are the ambient temperature limits for operating the Siemens 6ES7158-3AD10-0XA0 Communication Module?

The ambient temperature limits for operating this Communication Module are from -30 °C to 60 °C. Operating the module outside these temperature limits may result in reduced performance or permanent damage.

What is the maximum installation altitude above sea level for the Siemens 6ES7158-3AD10-0XA0 Communication Module?

The maximum installation altitude above sea level for this Communication Module is 5000 meters. Installing the module at higher altitudes may affect its cooling and performance due to thinner air.

Product Specifications Table

Attribute Specification
Rated value (DC) 24 V
Current consumption 360 mA
Inrush current, max. 1.6 A
Number of submodules per station 116
Number of PROFINET interfaces 2
Width 100 mm
Height 117 mm
Depth 74 mm
Weight, approx. 200 g
Transmission rate, max. 100 Mbit/s

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
New 6ES7158-3AD10-0XA0-FS 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
