Description

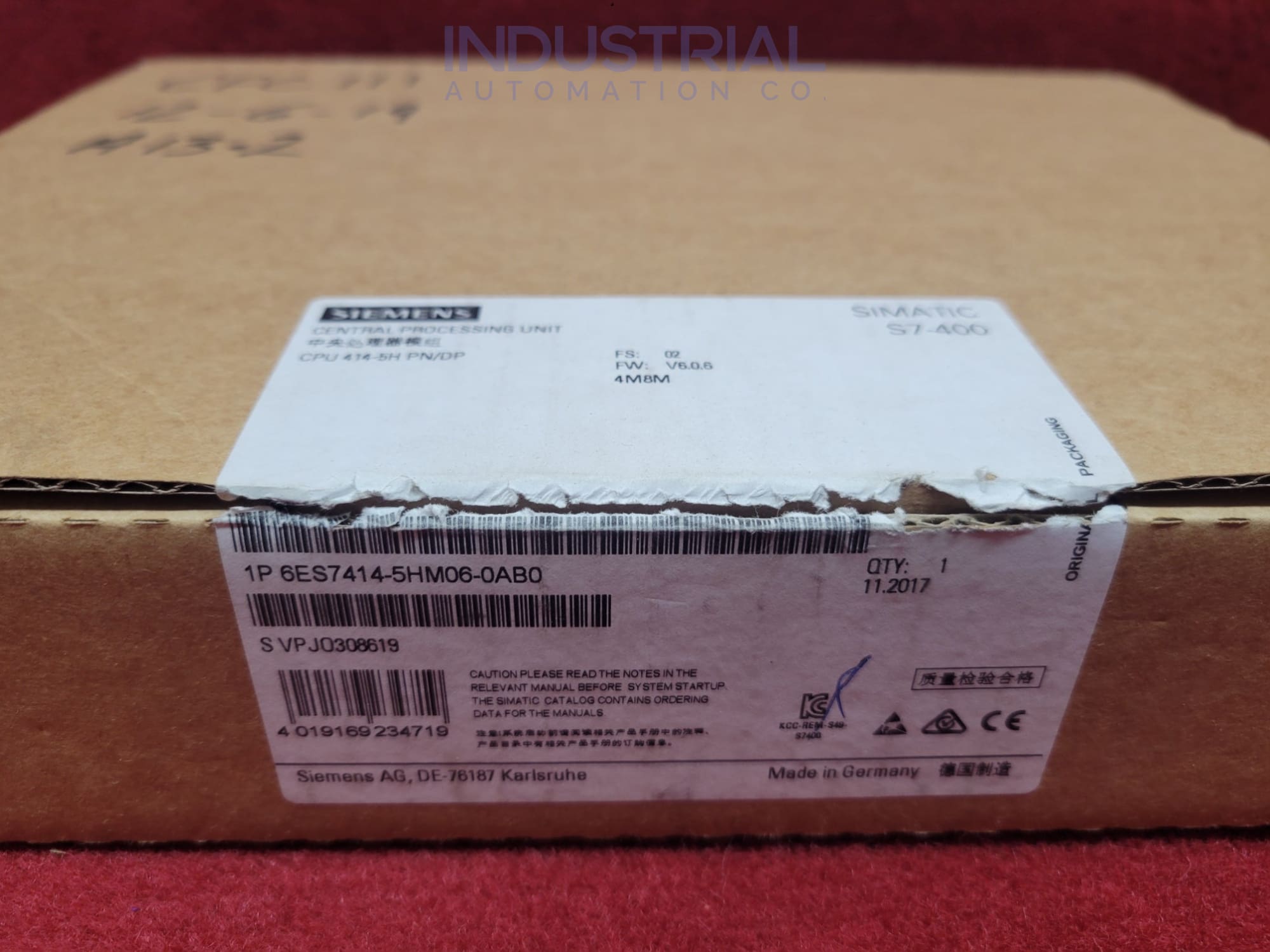

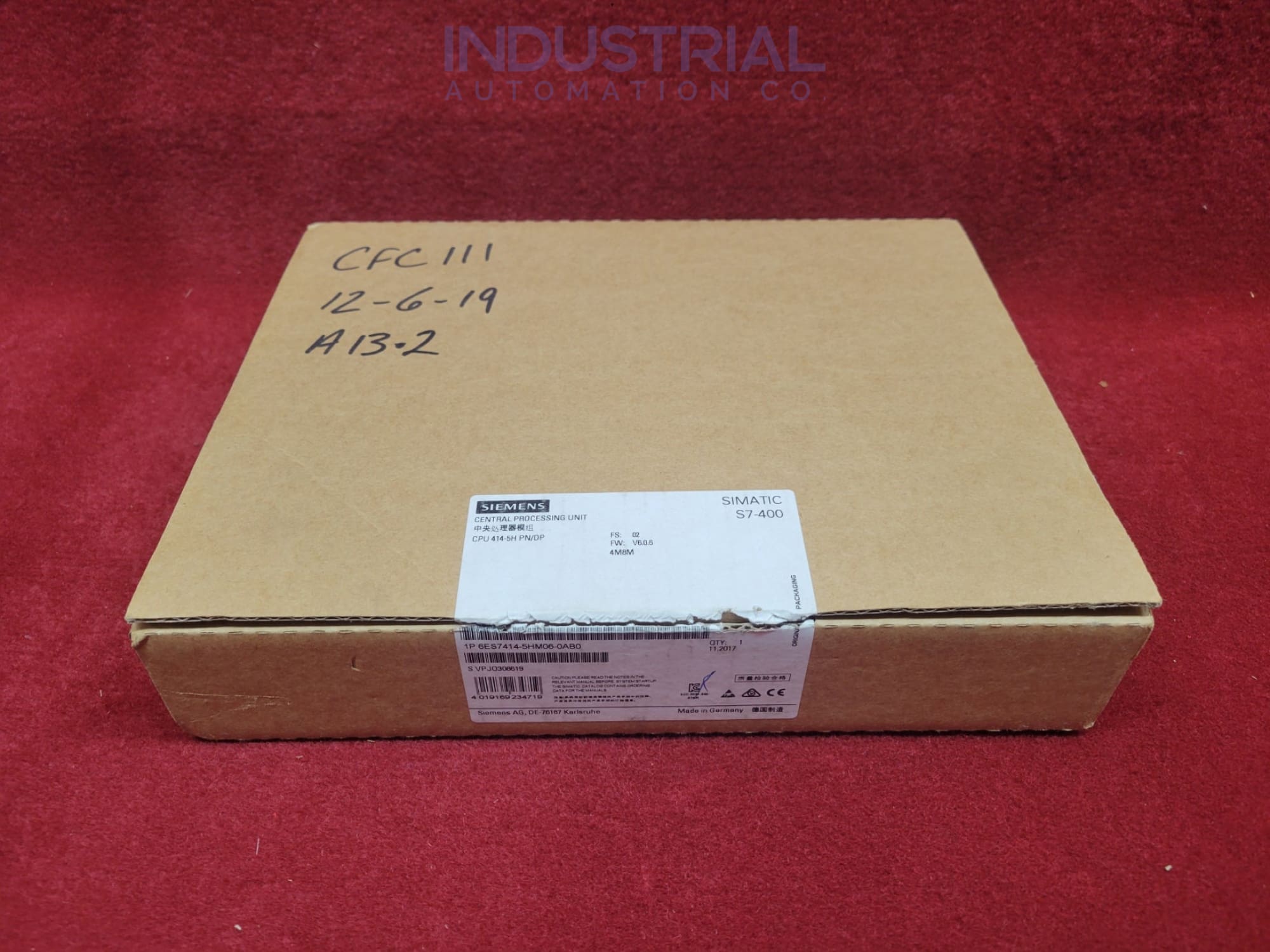

Siemens 6ES7414-5HM06-0AB0
The Siemens 6ES7414-5HM06-0AB0 is a CPU model known for its powerful performance. It is a specifically designed unit for S7-400H and S7-400F/FH. It has demanding applications in industries due to advanced communication capabilities.
Technical Parameters:
The Siemens 6ES7414-5HM06-0AB0 CPU 414-5H PN/DP is a high-performance central processing unit designed for the SIMATIC S7-400H and S7-400F/FH series. The unit operates on an external power supply of 5 V to 15 V DC. The backplane 5V DC bus provides 1.9A maximum current. A power loss of 7.5W is expected during operation.
The unit has 4MB of work memory, from which 2MB is for the program and 2MB for data storage. The load memory is expandable up to 64MB with the help of a memory card. The CPU has a fast-processing time, only 18.75 ns, to execute bit, word, and arithmetic operations. For the floating athematic, the processing time is 37.5 ns.
The Siemens 6ES7414-5HM06-0AB0 CPU supports a wide range of input and output configurations. The unit can easily handle 65,536 I/O digital channels and 4,096 I/O analogue channels. The unit has DB FC, FB, and OB CPU blocks with a maximum size of 64 Kbyte. The nesting depth for each priority class is 24.
The CPU has 2048 counters with adjustable retentivity Z 0 to Z 7 and a counting range of 0-999. The IEC Counter (SFB type) is also present with an unlimited number that is only bound by RAM capacity. S7 time has 2048 numbers, adjustable retentivity and a time range of 10 ms to 9990 s.
The unit has a backup battery with a backup current of 180 µA that can operate at 40 degrees Celsius. The maximum current it can provide is 1000 µA, and backup time depends on the parameters and factor set for specific applications. It can feed voltage from 5 to 15DC to the CPU unit.
Interfaces and Integration:
The Siemens 6ES7414-5HM06-0AB0 CPU unit supports five Communication interfaces for easy integrations in any industrial setup. One MPI/DP, one DP, one PROFINET, and two for synchronisation modules.
The unit has a unique and slim design with dimensions of Width of 50 mm, Height of 290 mm, and Depth of 219 mm, which consumes less area while mounting. The unit's total weight is 995 g, it can be installed into the system without specialized mountings. The enclosure has a protection rating of IP20.
Applications:
The Siemens 6ES7414-5HM06-0AB0 CPU 414-5H PN/DP is extensively used in industrial automation, process control, large-scale distributed systems, and transportation systems. For process control in pharmaceuticals and chemicals, it provides real-time monitoring and high precision. Industrial automation ensures precise control of robotic assembly lines.
Frequently Asked Questions:
What communication interface are supported by Siemens 6ES7414-5HM06-0AB0?
The Siemens 6ES7414-5HM06-0AB0 supports five interfaces. One MPI/DP, one DP, one PROFINET, and two for synchronisation modules.
What is the total weight of Siemens 6ES7414-5HM06-0AB0?
The Siemens 6ES7414-5HM06-0AB0 is designed to have a light weight of 995g, and the dimensions are Width 50 mm, Height 290 mm, and Depth 219 mm.
How much work memory Siemens 6ES7414-5HM06-0AB0 has?
The Siemens 6ES7414-5HM06-0AB0 CPU has 4MB of work memory, from which 2MB is used for the program and 2MB is used for data storage.
Product Specifications Table
Attribute | Specifications |
---|---|
Voltage input | 24V |
Current Consumption | 1.9A |
Integrated RAM | 512kbyte |
4MB | |
Power loss | 7.5W |
I/O Address area Inputs | 8 kbyte |
Digital Channel Inputs | 65536 |
Analogue Channel Inputs | 4096 |
S7 Counter Number | 2048 |
Interface | MPI/DP, PROFINET, Industrial Ethernet |
