Description
SINAMICS S120 Single Motor Module input: 600 V DC output: 400 V 3 AC, 18 A type of construction: booksize internal air cooling optimized pulse patterns and support of the extended Safety Integrated functions incl. DRIVE-CLiQ cable
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS

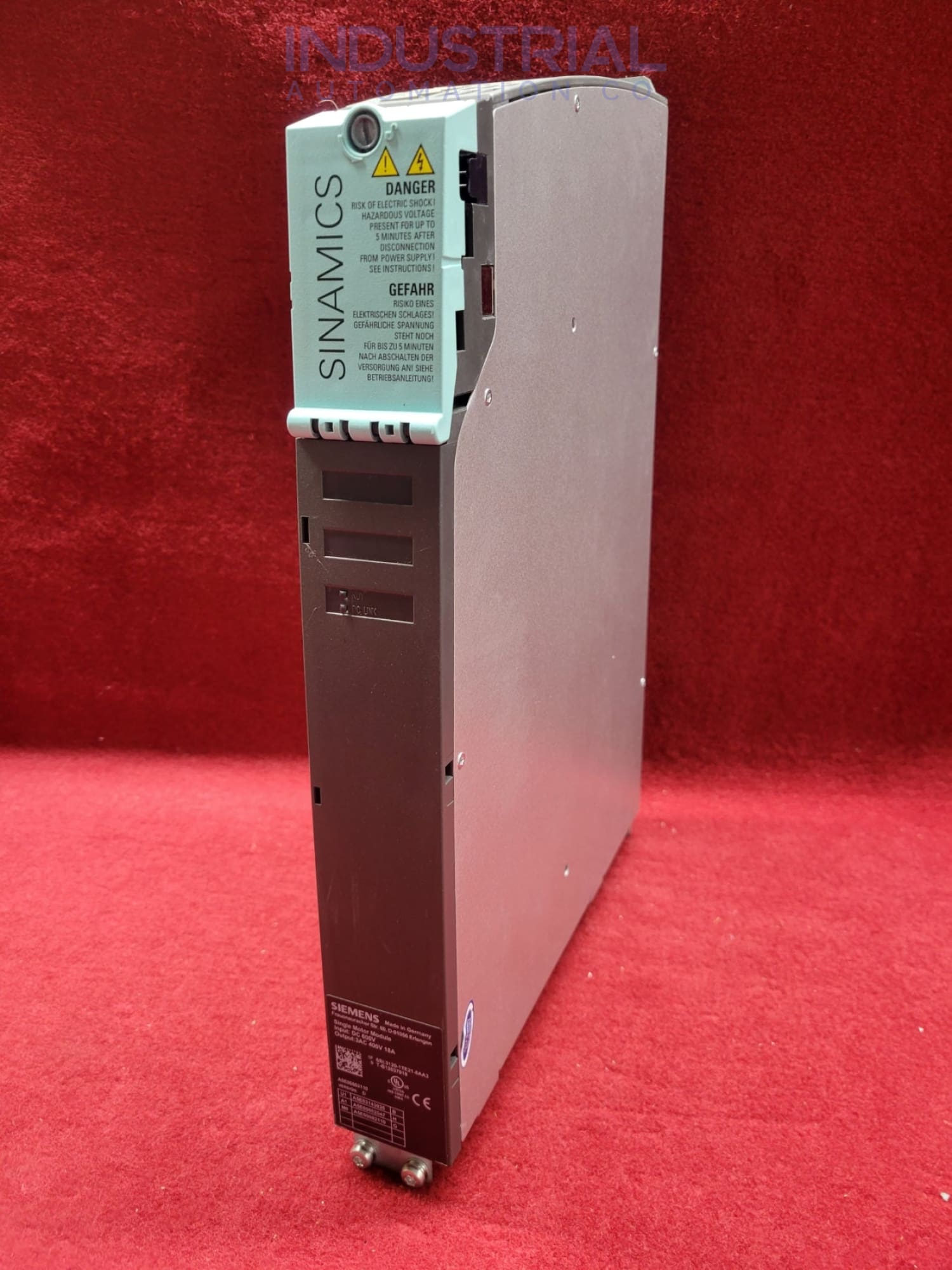

Siemens 6SL3120-1TE21-8AA3: SINAMICS S120 Single Motor Module
The Siemens 6SL3120-1TE21-8AA3 SINAMICS S120 Single Motor Module is a high-performance drive solution that offers a number of advanced features and benefits. With an input power of 600V DC and an output power of 400V AC 3-PH 18A, this module is capable of providing reliable, efficient performance in a wide range of applications.
The 6SL3120-1TE21-8AA3 is designed for use in booksize frames and features internal air cooling for optimal performance. It also features optimized pulse patterns and support for extended Safety Integrated functions, including a DRIVE-CLiQ cable for easy installation and connectivity.
This motor module has been replaced by the 6SL3120-1TE21-8AA4, which offers similar performance and capabilities.
Primary brand | Siemens |
Main function | Inverter unit |
Product series / family name | SINAMICS S120 series |
Network frequency | (output; servo control mode) 0-650 Hz (input) 47-63 Hz |
Functions | Single mot. module in booksize format |
Design | forced cooling AF (1 fan) |
Supply voltage (DC) | 510Vdc-720Vdc (575Vdc / 600Vdc nom.) |
Frequency | (output; V/f control mode) 0-600 (output; vector control mode) 0-300 |
Type of network | DC input |
Rated current | 18A (Irated) 15.3A (IH) |
Rated active power (kW) | 9.7kW (Irated) 8.2kW (IH) |
Rated power (HP) | 10HP (Irated) 10HP (IH) |
Rated voltage (AC) | 380Vac-480Vac |
Degree of protection | IP20 |
Dimensions | Frame size Booksize |
