TECHNICAL SPECIFICATIONS

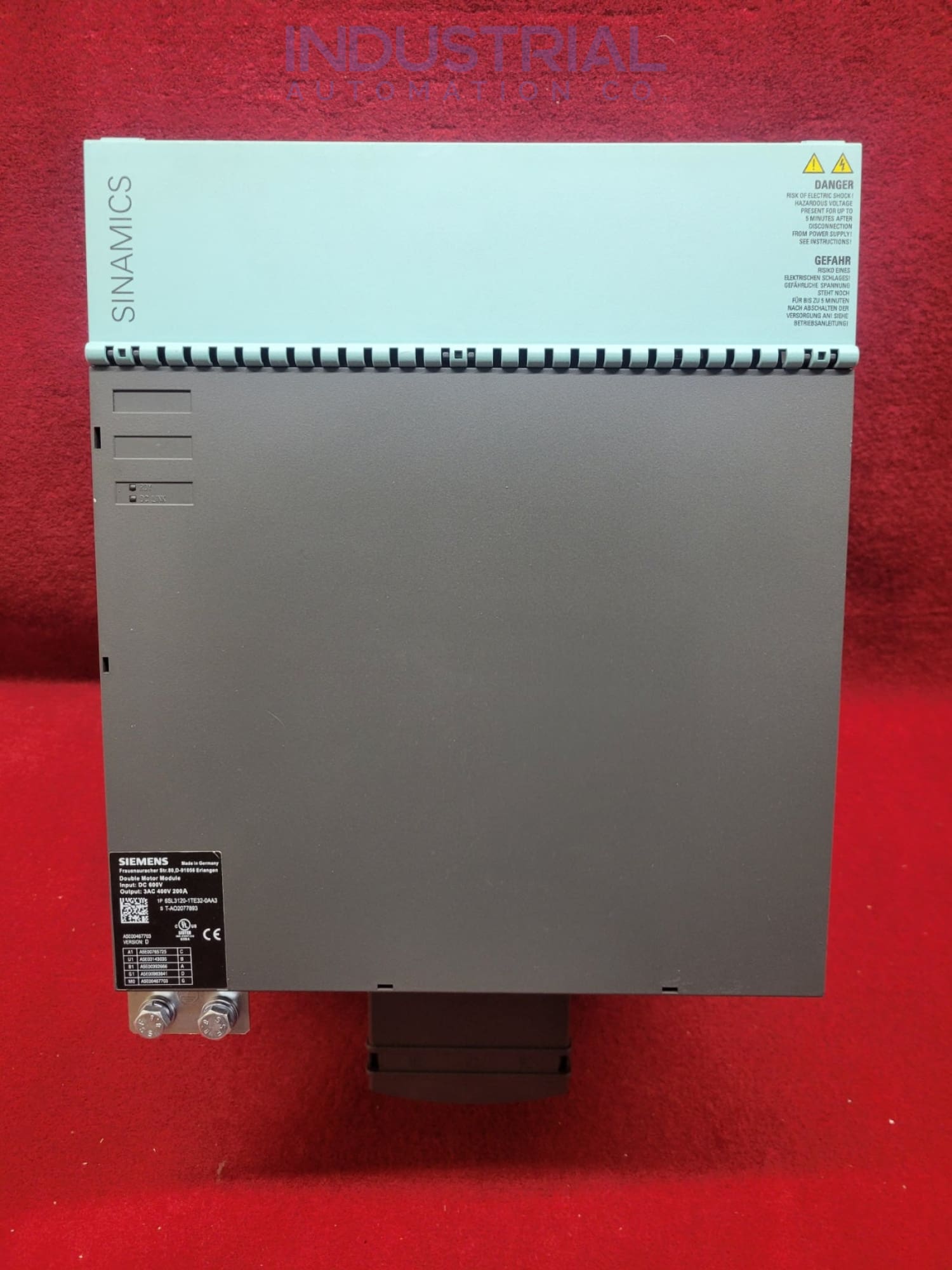

The Siemens 6SL3120-1TE32-0AA3 Sinamics S120 Single Motor Module

Introduction

The Siemens 6SL3120-1TE32-0AA3 is a single motor module from the Sinamics S120 series of variable frequency drives (VFDs). It is designed for use with a wide range of industrial applications and is suitable for controlling the speed of AC motors. The module is optimized for pulse patterns and supports the extended Safety Integrated functions, including the DRIVE-CLiQ cable.

Features

• • 6SL3120-1TE32-0AA3 is designed for use with a wide range of industrial applications
• • SINAMICS S120 is suitable for controlling the speed of AC motors
• • Input power: 600 VDC
• • Output power: 3AC 400V, 200A
• • Frame size: booksize
• • Internal air cooling
• • Optimized pulse sample and support of the extended safety integrated functions
• • Include drive-cliq cable

Shipping Information

• • Estimated Shipping Size
  • • Dimensions: 12.0" x 19.0" x 11.0" (30.5 cm x 48.3 cm x 27.9 cm)
  • • Weight: 50 lbs 0.0 oz (22.7kg)
• • Tariff Code: 8504409580
• • Country of Origin: Germany

Advanced Control Features

The 6SL3120-1TE32-0AA3 is equipped with advanced control features that allow for precise and accurate control of the motor's speed and torque. This includes various control modes such as V/f control, sensorless vector control, and field-oriented control. The latter two modes allow for precise motor control even at low speeds, making the 6SL3120-1TE32-0AA3 ideal for applications that require precise speed control, such as conveyors, pumps, and fans.

Ease of Use

The 6SL3120-1TE32-0AA3 is user-friendly and easy to install and operate. The module has a built-in keypad and display that allows easy parameter setting and monitoring. Additionally, the module can be easily integrated into a control system via its communication interfaces, such as PROFIBUS DP, PROFINET, and EtherCAT.

Safety and Reliability

The 6SL3120-1TE32-0AA3 is designed to meet international safety standards, making it suitable for use in safety-critical applications. Its safety functions include Safe Torque Off (STO) and Safe Stop 1 (SS1), which help to ensure the safe operation of the motor. The 6SL3120-1TE32-0AA3 is built with high-quality components and undergoes strict quality control, ensuring its reliability and long service life.

Energy Efficiency

The 6SL3120-1TE32-0AA3 incorporates energy-saving features to help reduce the energy consumption of the controlled motor. This includes advanced control algorithms that optimize the motor's performance and a built-in energy monitoring function that allows the user to track and reduce the energy consumption of the controlled motor.

Conclusion

In conclusion, The Siemens 6SL3120-1TE32-0AA3 Sinamics S120 Single Motor Module is a powerful, reliable, and efficient solution for controlling the speed of AC motors in a wide range of industrial applications. With advanced control features, ease of use, high safety and reliability standards, and energy-saving features, this single-motor module is an excellent choice for those looking to optimize their motor control systems. It is optimized for pulse patterns, supports the extended Safety Integrated functions, and includes a DRIVE-CLiQ cable. The frame size is compact and has internal air cooling, making it suitable for tight spaces. If you are looking for a high-quality VFD, the Siemens 6SL3120-1TE32-0AA3 is an excellent choice.
