Siemens 6SL3120-2TE21-8AD0

Siemens 6Sl3120-2Te21-8Ad0

Siemens 6SL3120-2TE21-8AD0

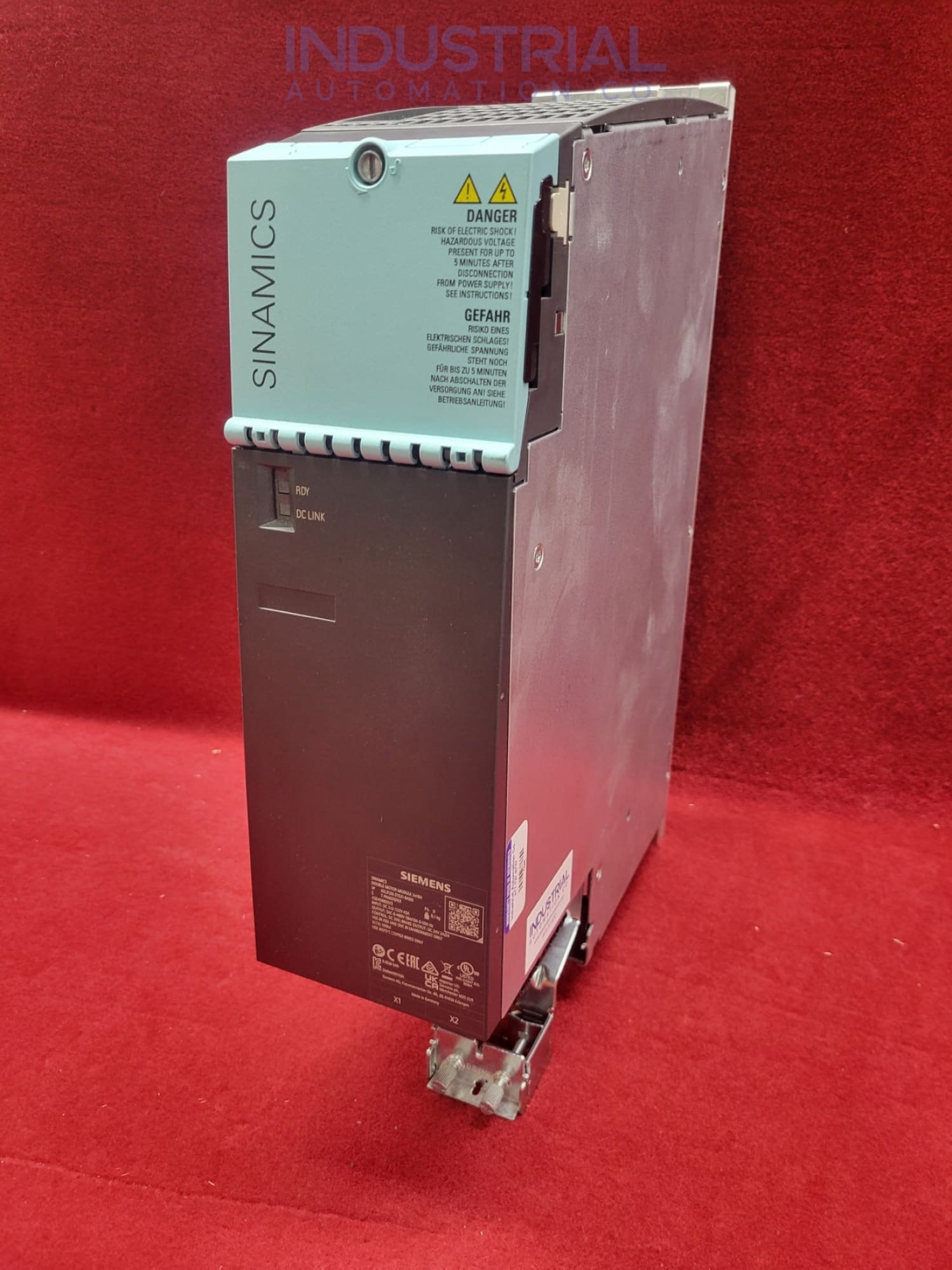

A powerful drive module, the Siemens 6SL3120-2TE21-8AD0 is designed for high-performance applications. This dependable and long-lasting module is one of many industrial automation solutions offered by Siemens. It is ideal for demanding applications because of its exceptional control and efficiency.

Technical Specifications:

The 6SL3120-2TE21-8AD0 from Siemens can lose up to 0.35 kW of power, with an average loss of 0.28 kW. For accurate operation, it boasts a rated pulse frequency of 4.00 kHz. The electronics power supply has a DC 24 V rating, can tolerate voltages between 15% and 20%, and can only handle currents up to 1.10 A.

The DC link voltage can be adjusted from 510 to 720 V, and the module can produce 2 x 24.0 A of output current. Two times 18.0 A is the base load current (IH), while two times 15.3 A is the rated value (IN). The current (IS6) is 43.0 A with a maximum current (Imax) of 200 A for S6 duty at 40%. Two times 54.0 A is the DC-link current (Id).

Two 8.2 kW IH type ratings and two 9.7 kW IN type ratings are available for the Siemens 6SL3120-2TE21-8AD0. At this moment, 20A can be carried. Motor cables, whether shielded or unshielded, cannot exceed 70 or 100 meters in length, respectively. Connectors X1 and X2 feature conductor cross-sections varying between 2 and 6 mm², and PE connections are secured with an M5 screw.

Class 3 and SIL 2 (IEC 61508) certifications are on this module. We prioritize safety. With certification from both CE and cULus, the Siemens 6SL3120-2TE21-8AD0 is up to par with global standards. Industrial settings are ideal for products with IP20 / UL open-type protection. In terms of measurements, it's 380.00 mm tall, 100.00 mm wide, and 270.00 mm deep. It is tiny and booksize, weighing 7.7 kg (16.98 lb).

The module's low-noise operation is ideal for a variety of industrial settings, thanks to its 60.0 dB sound pressure level at 1 meter.

Frequency and Control:

Depending on the needs of individual control systems, the Siemens 6SL3120-2TE21-8AD0 may accept a wide range of frequency outputs. It can handle servo control at up to 650 Hz, vector control at 300 Hz, and V/f control at 600 Hz. Consistent performance is ensured throughout the operation by the DC link capacitance, which is rated at 705 µF.

Ambient Conditions:

To ensure the best possible working circumstances, the module has air conditioning built in. It operates well in environments ranging from 32 to 104 degrees Fahrenheit (0 to 40 degrees Celsius). The derating-free installation height is 1000 meters (3,281 feet). The chilled air requirement is 0.016 m³/s to ensure effective heat dissipation.

Frequently Asked Questions:

How does the Siemens 6SL3120-2TE21-8AD0's power loss affect energy efficiency?

Siemens 6SL3120-2TE21-8AD0 power loss is between 0.28 and 0.35 kW. Reduced power loss improves energy efficiency and decreases operational expenses.

For the Siemens 6SL3120-2TE21-8AD0, what are the safety certifications?

The 6SL3120-2TE21-8AD0 from Siemens has received certification from both cULus and CE. Additionally, it possesses PL d and SIL 2 safety ratings as per EN ISO 13849-1 and IEC 61508.

What is the Siemens 6SL3120-2TE21-8AD0's pulse frequency and electronics power supply voltage?

Siemens 6SL3120-2TE21-8AD0 has a 4.00 kHz pulse frequency and a DC 24 V electronics power supply voltage with a -15% to +20% tolerance.

Product Specifications Table:

Attributes Specifications
Power Loss (Typ/Max) 0.28 kW / 0.35 kW
Rated Pulse Frequency 4.00 kHz
Electronics Power Supply Voltage DC 24 V -15% / +20%
Electronics Power Supply Current Demand (Max) 1.10 A
Output Current 2 x 24.0 A
DC Link Voltage DC 510 ... 720 V
Base Load Current IH 2 x 18.0 A
Rated Value IN 2 x 15.3 A
For S6 Duty (40%) IS6 43.0 A
Imax 200 A
