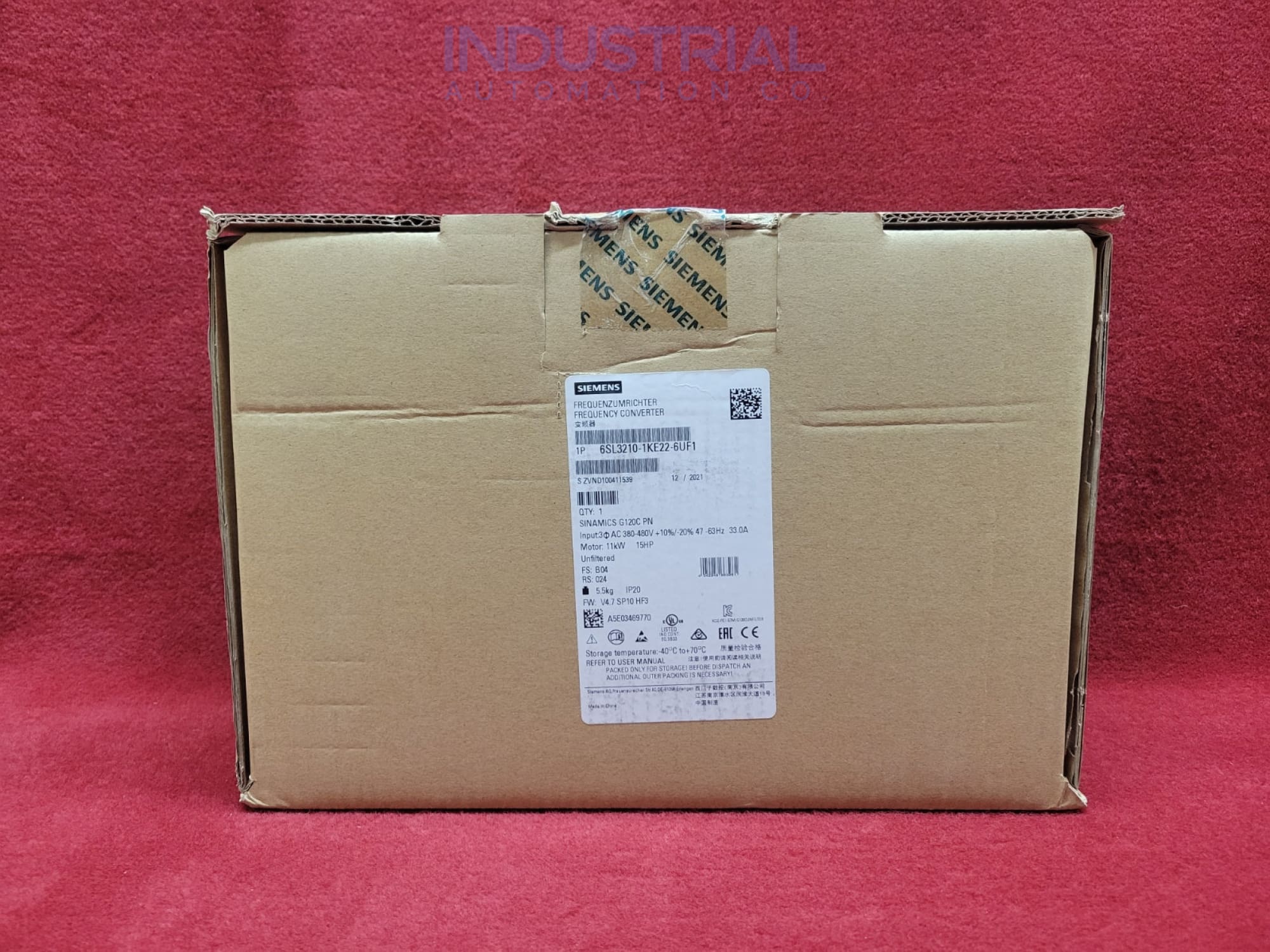

Siemens 6SL3210-1KE22-6UF1
Siemens 6SL3210-1KE22-6UF1
Siemens is one of the leading industrial equipment manufacturer. The company is known for its top-quality products like Siemens 6SL3210-1KE22-6UF1.
Technical Specifications:
Siemens' SINAMICS G120C 6SL3210-1KE22-6UF1 operates on 380–480 V three-phase AC input line voltage and 47–63 Hz frequency. It can handle 33.00 A in low overload mode and 24.10 A in high overload (HO) mode. Thus, it can adapt and perform well under various load conditions.
The converter produces three-phase AC at 400V (IEC) and 480V (NEC). It supplies continuous power to the associated motor at 11.00 kW mode and 7.50 kW in HO mode. LO mode has a 25.00 A rated current, while HO mode has 16.50 A. The gadget can output 33.00 A, enough for peak needs.
Vector and V/f control output frequencies vary from 0 to 240 Hz and up to 550 Hz, respectively, providing varied control options for various applications. Smooth motor operation is achieved with a 4 kHz pulse frequency. The converter can overload by handling 150% base load current for 3 seconds, 110% for 57 seconds in LO mode, and 200% for 3 seconds, 150% for 57 seconds in HO mode.
The gadget has 0.97 efficiency and 0.70–0.85 power factor. Energy efficiency is increased by the offset factor of 0.95. Its power loss is 292.0 W, and its sound pressure is 66 dB at 1 meter. Unfiltered, the built-in filter provides PROFINET and EtherNet/IP communication for simple incorporation into current industrial networks.
Environmental and Physical Characteristics:
Siemens SINAMICS G120C 6SL3210-1KE22-6UF1 was developed for reliable operation in varied environments. The air cooling system uses an integrated fan and requires 0.018 m³/s of airflow. It works well from -10 to 40 °C and may be installed at 1,000 meters without derating. It can be transported and stored at -40 to 70 °C.
The device can work at 95% relative humidity at 40 °C if there is no condensation or icing. The signal cable has a conductor cross-section of 0.15-1.50 mm², while the line side connections employ plug-in screw terminals with a range of 6-16 mm². Motor end connections use plug-in screw terminals with the same conductor cross-section range for strength and security.
Connectivity and Standards:
One fail-safe digital input adds safety. Digital outputs include one relay changeover contact and one transistor output rated for resistive loads up to DC 30 V, 0.5 A.
The device has one 10-bit differential input for analog/digital signals. The analog output is non-isolated for signal reliability. Also, it enables motor temperature sensor input with ±5 °C accuracy, compatible with PTC, KTY, and Thermo-Click sensors.
The device has an IP20 mechanical rating and FSC frame size. It is 140 mm wide, 295 mm tall, 208 mm deep, and weighs 4.40 kg. RCM standards and the EMC Directive 2004/108/EC and Low-Voltage Directive 2006/95/EC are met. Reliable and energy-efficient operations are guaranteed by the converter's IE2 efficiency class and IEC61800-9-2 losses.
Frequently Asked Questions:
How efficient is the Siemens 6SL3210-1KE22-6UF1?
The Siemens 6SL3210-1KE22-6UF1 is 0.97 efficient. This high-efficiency rating minimizes energy loss and optimizes industrial performance.
Which communication protocols is the 6SL3210-1KE22-6UF1 capable of supporting?
The 6SL3210-1KE22-6UF1 supports EtherNet/IP and PROFINET. Protocols enable seamless incorporation into current industrial networks.
What is the maximal operating temperature of the 6SL3210-1KE22-6UF1?
The Siemens 6SL3210-1KE22-6UF1 can operate at 40°C. The device works well at -10 to 40°C.
Product Specifications Table:
| Attributes | Specification |
|---|---|
| Manufacturer | Siemens |
| Rated Power (LO) | 11.00 kW / 15.00 hp |
| Rated Power (HO) | 7.50 kW / 10.00 hp |
| Max. Output Current | 33.00 A |
| Pulse Frequency | 4 kHz |
| Output Frequency (Vector Control) | 0 ... 240 Hz |
| Output Frequency (V/f Control) | 0 ... 550 Hz |
| Efficiency | 0.97 |
| Cooling Method | Air cooling using an integrated fan |
| Degree of Protection | IP20 |
| Weight | 4.40 kg |
| Dimensions (W x H x D) | 140 mm x 295 mm x 208 mm |
