Siemens 6SL3210-1PE23-3UL0
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description

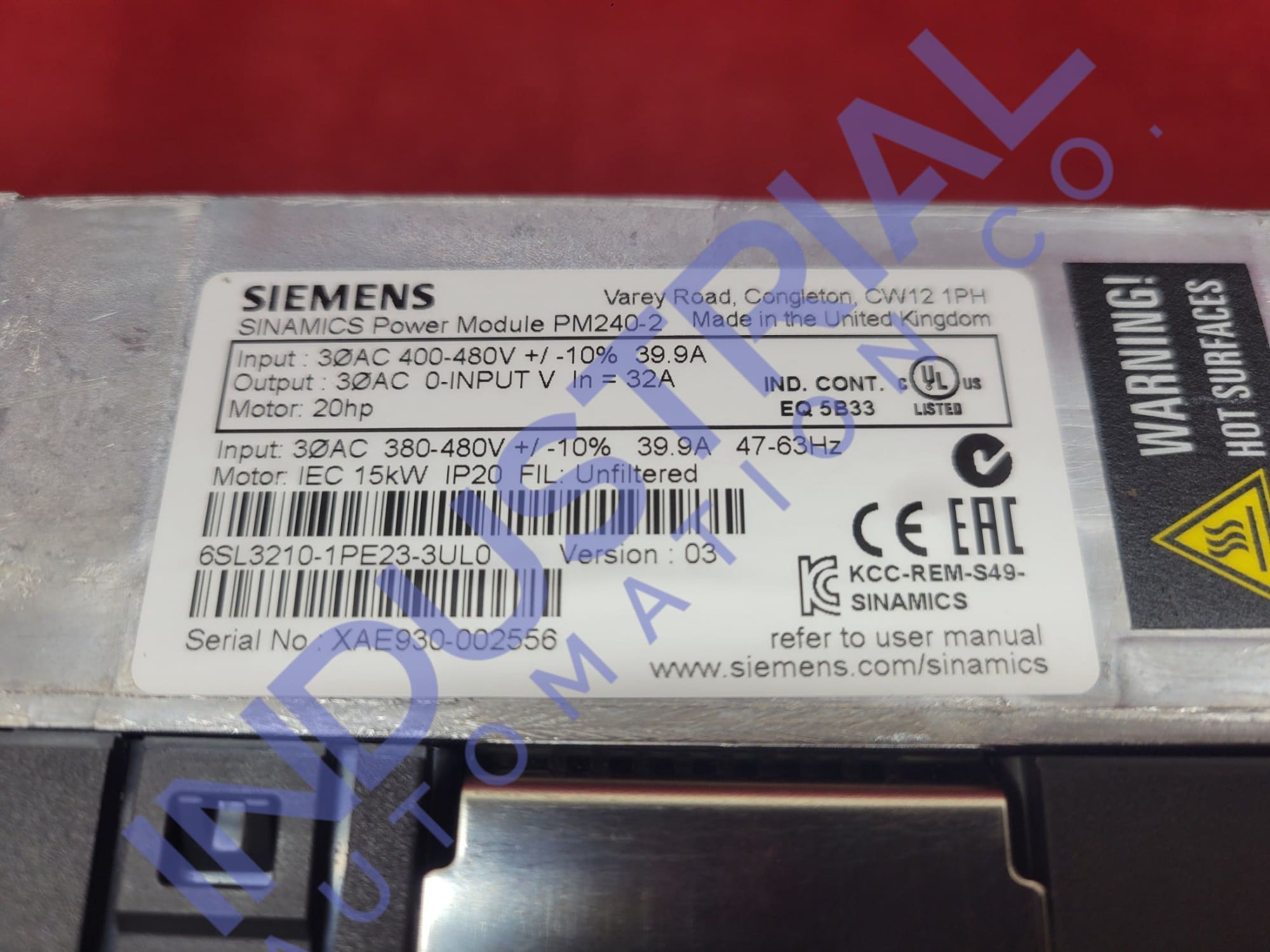

Siemens 6SL3210-1PE23-3UL0
The Power Module 6SL3210-1PE23-3UL0 is a product by Siemens. It is a versatile and robust solution for a variety of industrial applications. This power module is designed to operate under challenging conditions. Siemens is a trusted leader in providing advanced technology to meet the evolving needs of industries worldwide.
Ambient Conditions:
The operating temperature ranges from -5 to 40 °C in low overload mode. In high overload mode, the temperature range extends up to 50 °C. For transportation and storage, the temperature should be kept between -25 and 55°C. The relative humidity during operation is a maximum of 95% without condensation.
Siemens Power Module 6SL3210-1PE23-3UL0 offers reliable power conversion with high efficiency. Its design ensures optimal performance in challenging industrial environments. This versatile module delivers consistent power management while meeting industry standards for quality and safety. It achieves a power factor of 0.85. The efficiency of this model of power module is rated at 0.97. The sound pressure level measured at one meter distance is 72 dB. There is a 0.37 kW power loss in the module.
This power module complies with C-Tick (RCM), UL, cUL, CE, and SEMI F47 standards. It complies with the CE marking requirements under the Low Voltage Directive 2006/95/EC. The module's output is designed for three AC phases, with a rated voltage of 400V according to IEC standards or 480V according to NEC standards.
Output and Input:
The Siemens model 6SL3210-1PE23-3UL0 provides 15.00 kW or 20.00 hp in low overload mode. In high overload mode, it offers 11.00 kW or 15.00 hp. The rated current for low overload is 32 A, and for high overload, it is 26.00 A.
On the input side, the power module accepts 3 AC phases with a line voltage range of 380 to 480 V (Tolerance ±10%). The range of the line frequency is 47–63 Hz. The rated current is 39.90 A under low overload conditions and 36.00 A for high overload conditions.
Additional:
Plug-in screw terminals are available for both the motor and line ends of it. It supports conductor cross-sections from 6.00 to 16.00 mm². Shielded motor cables can be up to 50 meters, and unshielded motor cables can be up to 100 meters. A cooling air demand of 0.018 m³/s is required when using internal air cooling. This power module is suitable for installation at elevations up to 1,000 meters.
The Siemens Power Module 6SL3210-1PE23-3UL0 is a highly efficient and reliable component. It is designed to meet stringent industry standards and perform effectively in demanding environments. With its ideal performance and energy efficiency ensured by its technical specifications, it can be used for a variety of industrial applications.
Frequently Asked Questions:
What are the cooling requirements for the Siemens Power Module 6SL3210-1PE23-3UL0?
The Siemens Power Module 6SL3210-1PE23-3UL0 uses internal air cooling. The cooling air requirement is 0.018 m³/s (0.653 ft³/s).
What are the input voltage specifications for the Siemens 6SL3210-1PE23-3UL0?
The Siemens 6SL3210-1PE23-3UL0 module operates with a line voltage range of 380 to 480 volts AC, with a tolerance of ±10%. It is designed to accept three-phase input, suitable for industrial applications requiring robust power specifications.
What is the maximum motor cable length supported by the Siemens 6SL3210-1PE23-3UL0?
The maximum motor cable length for shielded cables is 50 meters, while for unshielded cables, it is 100 meters. This allows for flexible installation options depending on the specific application requirements.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Line Side Version | Plug-in screw terminals |
| Motor End Version | Plug-in screw terminals |
| Max. Motor Cable Length (Shielded) | 50 m (164.04 ft) |
| Max. Motor Cable Length (Unshielded) | 100 m (328.08 ft) |
| Cooling | Internal air cooling |
| Installation Altitude | 1,000 m (3,280.84 ft) |
| Operation Temperature (LO) | -5 ... 40 °C (23 ... 104 °F) |
| Operation Temperature (HO) | -5 ... 50 °C (23 ... 122 °F) |
| Rated Voltage | 400V IEC / 480V NEC |
| Rated Power (LO) | 15.00 kW / 20.00 hp |
