TECHNICAL SPECIFICATIONS

Siemens 6SN1145-1BA02-0CA0

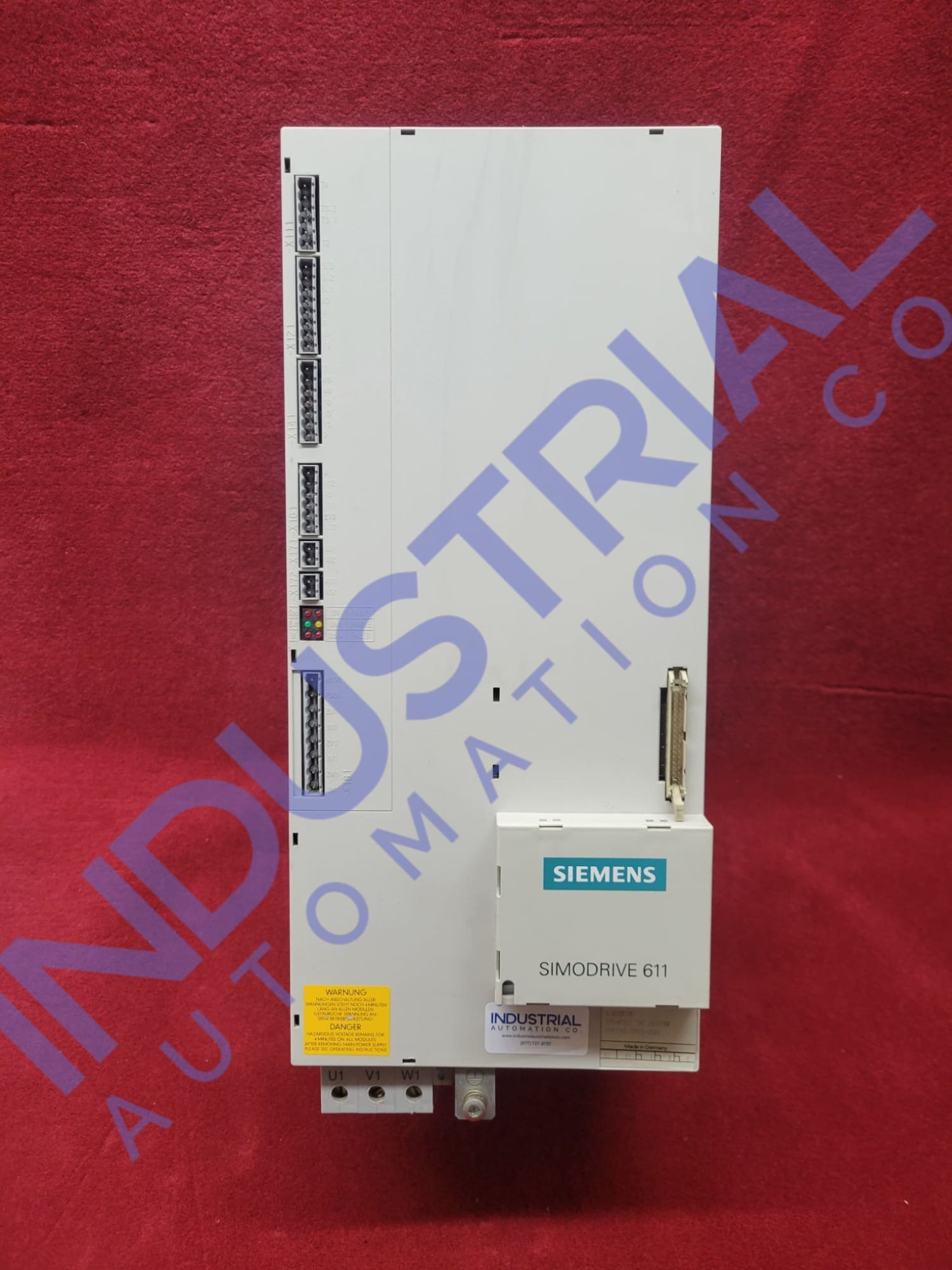

The Siemens 6SN1145-1BA02-0CA0 is an infeed/regenerative feedback module, part of the Simodrive series, developed to handle a wide variety of automation tasks in a dynamic, efficient, and cost-effective manner. It's a technologically advanced piece of equipment designed for diverse industrial applications that require precision, robustness, and long-term reliability.

Technical Specifications:

With a weight of approximately 15.5 kilograms, it offers a practical balance between portability and durability. It features a smooth and uncluttered surface, making it easy to install, maintain, and clean. The body of the module is designed to resist corrosion and withstand harsh industrial environments.

The Siemens 6SN1145-1BA02-0CA0 operates at an input voltage of 600 0r 625 480 V AC and a control supply voltage of 24 V DC, catering to a broad spectrum of power requirements.

As a regenerative feedback module, this device ensures smooth, precise, and energy-efficient operation of servo and main drive motors. Continuously monitoring the energy flow within the motor, it helps prevent inefficiencies and faults. The collected feedback is utilized to adjust power input and control motor movements for optimized performance.

The model 6SN1145-1BA02-0CA0 comes equipped with an infeed mechanism that allows for the controlled introduction of power into the system. It’s designed to ensure a smooth, stable supply of power to the connected devices, which not only improves performance but also enhances the lifespan of the equipment by avoiding power surges.

The model incorporates an intelligent internal cooling system that maintains an optimal operating temperature, even under heavy workloads. This feature helps to enhance the module's longevity and reliability by preventing overheating.

The module is designed to seamlessly integrate with other devices in the Siemens Simodrive series, providing a comprehensive solution for complex automation tasks. Its versatile nature ensures compatibility with a wide range of industrial machinery and applications.

Safety is a paramount consideration with the 6SN1145-1BA02-0CA0. It complies with the International Electrotechnical Commission's standards (IEC 61131-2), underlining its commitment to user safety and operational reliability.

The model operates with a 2-quadrant power module configuration, reflecting its capability to perform in both motoring and regenerative operation modes. This feature allows for an efficient exchange of energy within the system and reduces overall energy consumption.

This infeed/regenerative module operates at a line frequency of 50/60 Hz, a standard range in the industry that allows for compatibility with many different types of machinery and equipment across the globe.

Operational Altitude and Protection Class:

The operational altitude for the 6SN1145-1BA02-0CA0 is up to 1000 m above sea level. Beyond this, the performance may need to be derated, making this module ideal for use in most geographical locations.

The module comes with an IP00 protection level, which specifies that the equipment is not waterproof. Therefore, it should be installed in a location where it is protected from water and dust.

Added Features:

The 6SN1145-1BA02-0CA0 is designed to minimize noise emissions during operation. This commitment to reducing operational noise leads to an improved working environment and potentially extends the module's life span by reducing vibration-induced wear and tear.

The model offers a pulse frequency of 16 kHz. This specification reflects the module's ability to respond rapidly and accurately to system changes, leading to superior operational performance and increased precision.

The 6SN1145-1BA02-0CA0 features a dedicated interface for a control unit, facilitating easy integration with various control systems. It allows for seamless communication and coordinated operation between the module and other components within the system.
