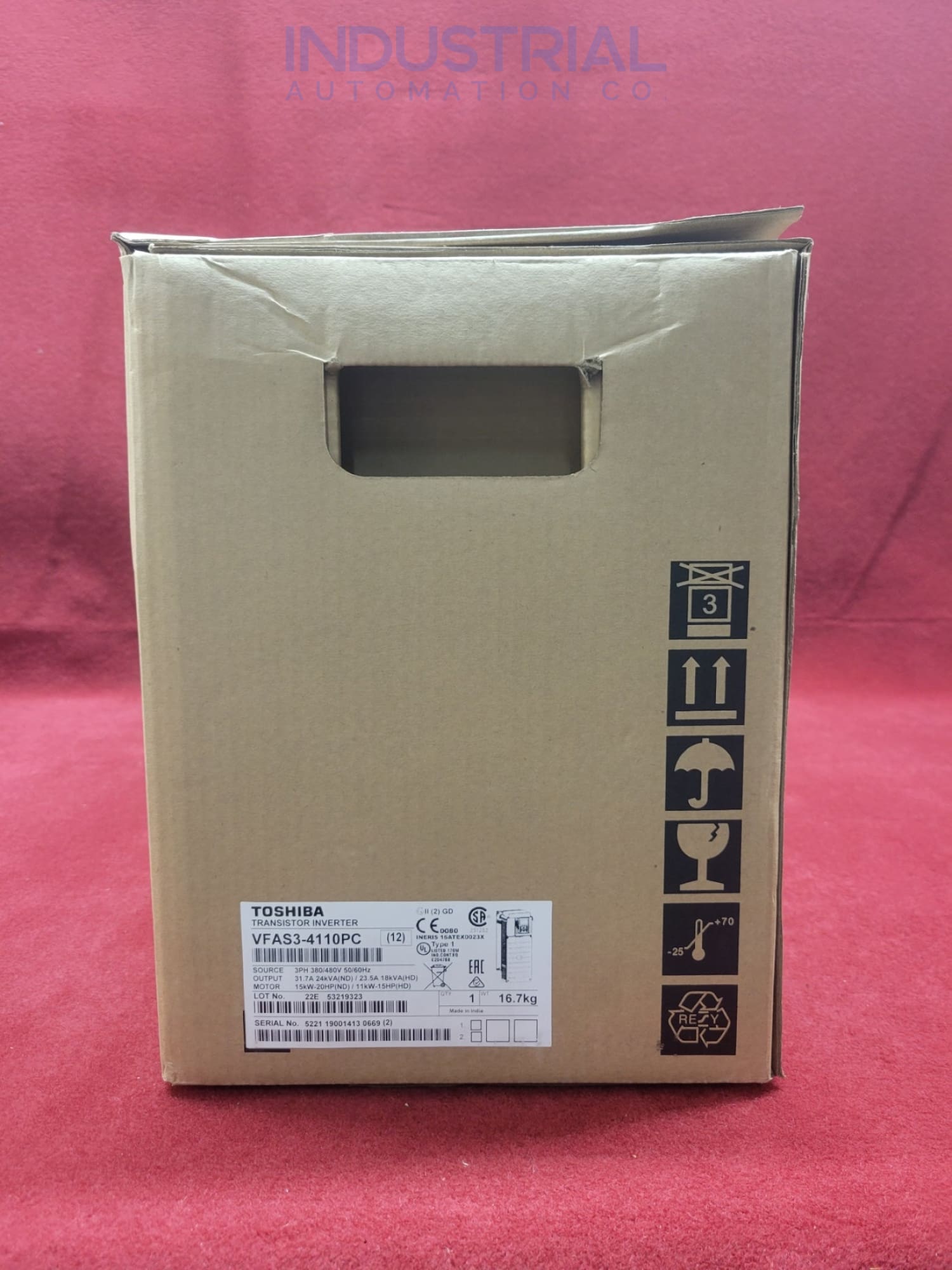

Toshiba VFAS3-4110PC
Toshiba VFAS3-4110PC:
In the AS3 series, Toshiba has the high-performance VFAS3-4110PC adjustable speed drive. For industrial uses that necessitate precise motor control and firm performance, it is tailor-made. A flexible solution for a wide range of demanding settings, this drive delivers advanced features and comprehensive functionality.
Technical Specifications:
The VFAS3-4110PC can handle 460 VAC and output 460 V with a three-phase input. It can handle hard and routine industrial work with its 15 HP heavy-duty and 20 HP normal-duty ratings. The drive's heavy-duty overload capacity of 150% for 60 seconds and normal-duty overload capacity of 120% for 60 seconds provides reliability under strain.
V/Hz, vector, and torque control modes enable this drive's diverse and precise motor operations. Encoder feedback improves motor function accuracy and control. Three programmable digital outputs and eight programmable digital inputs make the VFAS3-4110PC ideal for many industrial applications. It accepts one Form-C and two Form-A dry contact relays.
The drive has Ethernet/IP and RS-485 ports for communication and integration. Integration of a web server streamlines maintenance, troubleshooting, and remote monitoring. Optional EtherCAT, encoder, and I/O cards increase its versatility and system compatibility.
A Safe Torque Off (STO) safety terminal that meets IEC 61800-5-2 and IEC 61508 SIL3 levels is vital to the VFAS3-4110PC's safety commitment. This ensures mission-critical reliability and safety. Electrical fault protection is enhanced by the drive's 100kA Short Circuit Current Rating.
Communication and Interfaces:
Advanced connectivity features in the Toshiba VFAS3-4110PC guarantee seamless integration into modern industrial contexts. Its dual-port Ethernet/IP allows quick data transfer and easy network integration. RS-485 is ideal for longer-distance transmission with improved reliability.
The built-in web server simplifies system maintenance and troubleshooting by allowing remote monitoring and control. EtherCAT and encoder cards add flexibility and customization for specific applications.
Installation:
Install the Toshiba VFAS3-4110PC drive, considering environmental and spatial considerations for optimal performance and longevity. A3-sized drive, 195 mm width, 534.5 mm height, 232 mm deep. As an IP20 device, it should be mounted on a clean wall or cubicle to avoid dust and other contamination.
Drive temperature maxes out at 40°C. Proper airflow prevents overheating and cools. Leave 100 mm above and below the drive for airflow. Removing the top cover reduces this to 0 mm, but you must leave 50 mm on all sides.
Full-speed drive heat loss is 455W. Heat must be appropriately managed to avoid thermal issues. This heat dissipation can be better handled, and the drive can run within its temperature range with proper installation and ventilation.
Frequently Asked Questions:
What are the environmental and mounting requirements for the Toshiba VFAS3-4110PC?
Install the VFAS3-4110PC on a wall in a dust-free area or a separate cubicle because it has an IP20 rating. The ideal amount of airflow for cooling is 100 mm on top and bottom and 50 mm on each side.
How does the VFAS3-4110PC manage safety and overflow protection?
An integrated safety terminal that is SIL3 compliant and capable of handling 150% overload is included in the Toshiba VFAS3-4110PC. High dependability and safety requirements are guaranteed even in the most extreme environments.
What is the Toshiba VFAS3-4110PC's maximal heat loss and recommended operating temperature?
The VFAS3-4110PC can function in environments as hot as 40°C and as cool as -55°F, with a maximum heat loss of 455W. To keep these specs and guarantee dependable performance, proper ventilation is essential.
Product Specification Table:
| Attributes | Specification |
|---|---|
| Manufacturer | Toshiba |
| Input Voltage | 460 VAC |
| Input Phase | 3-phase |
| Rated Power (Heavy Duty) | 15 HP |
| Rated Power (Normal Duty) | 20 HP |
| Overload Capacity (Heavy Duty) | 150% for 60 seconds |
| Overload Capacity (Normal Duty) | 120% for 60 seconds |
| Communication Interfaces | Ethernet/IP, RS-485 |
| Protection Rating | IP20 |
| Heat Loss | 455W |
