Description

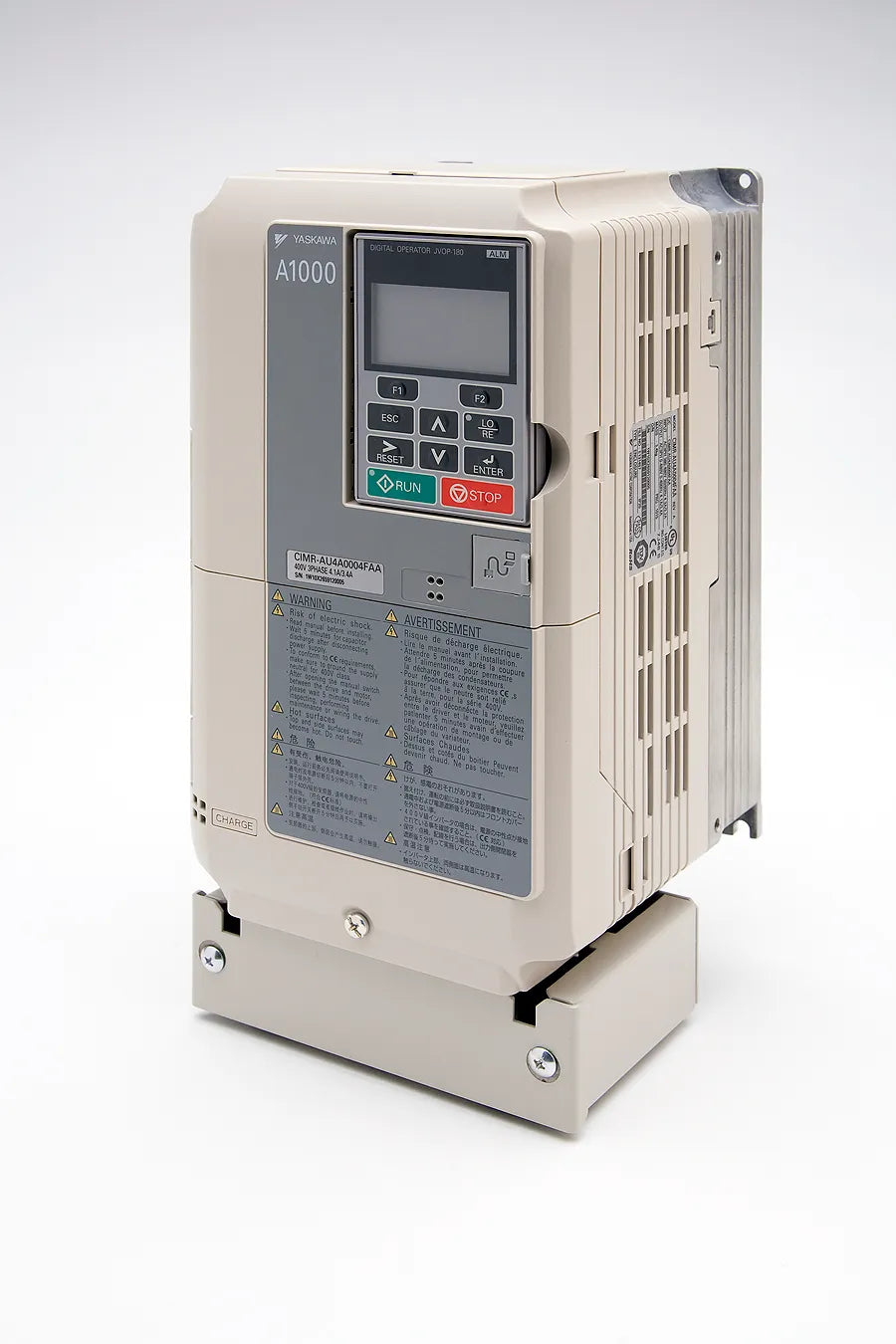

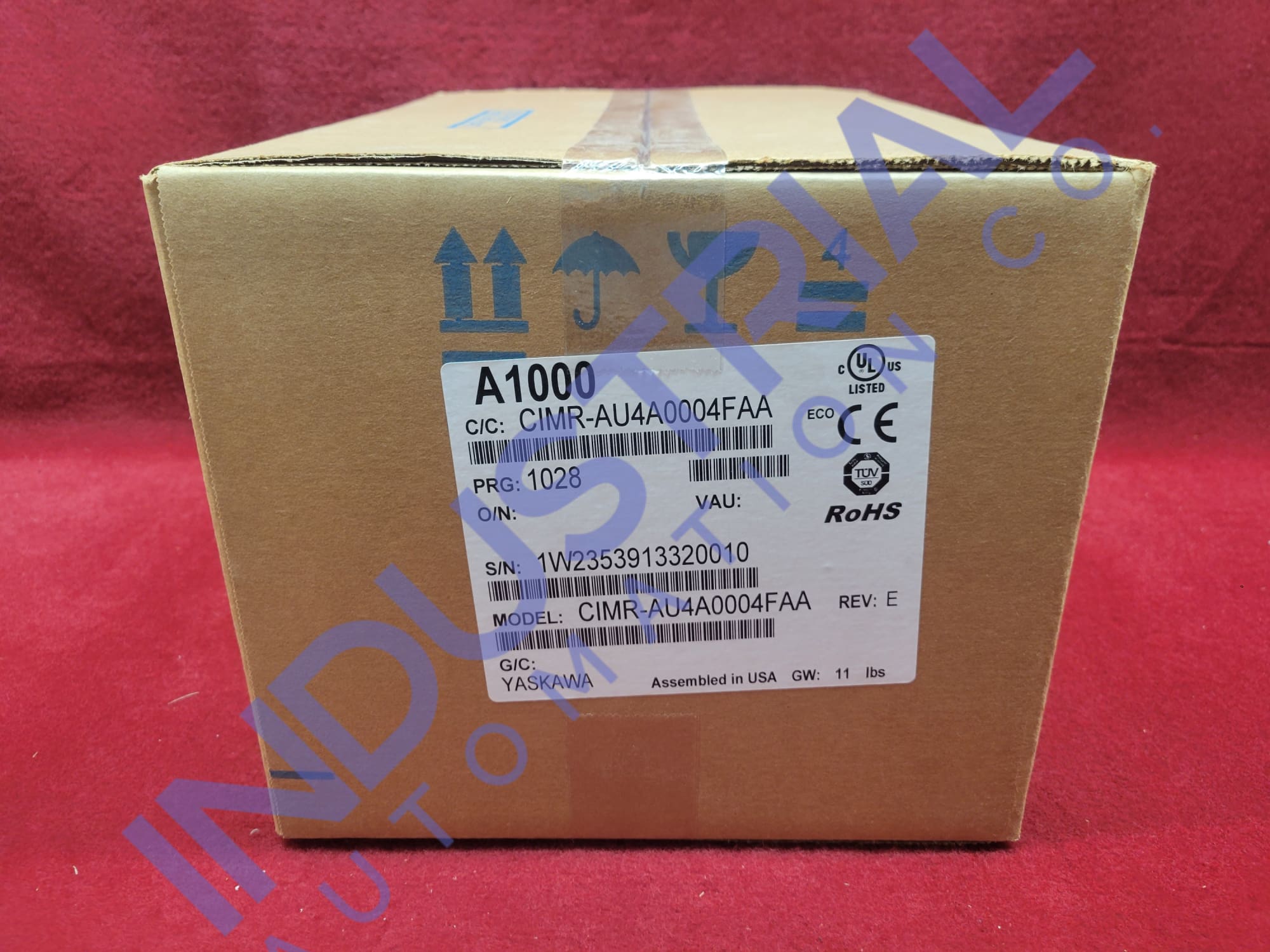

Manufacturer Part Number CIMR-AU4A0004FAA
Manufacturer Yaskawa
Product Series A1000
Family Series Yaskawa Drives, A1000 Series
Description Drive, AC, 1HP, 480V, 3PH, 3.4A, CT, 2HP, 4.1A, VT, 11.81in.Hx5.51in.Wx5.79in.D
Input Phase 3
HP (Constant Torque Rating) 1 hp
HP (Variable Torque Rating) 2 hp
Amps (Constant Torque Rating) 3.4 A
Amps (Variable Torque Rating) 4.1 A
Braking Type DC Injection, Dynamic Braking Transistor Included
Closed Loop Optional
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 1
Motor Control-Max Level Closed Loop Vector for Permanent Magnet
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 400 Hz
Protection Rating IP20
Dynamic Braking Trans Included
Height 11.81 "
Width 5.51 "
Depth 5.79 "
Net Weight 11 lbs
Gross Weight 11 lbs
