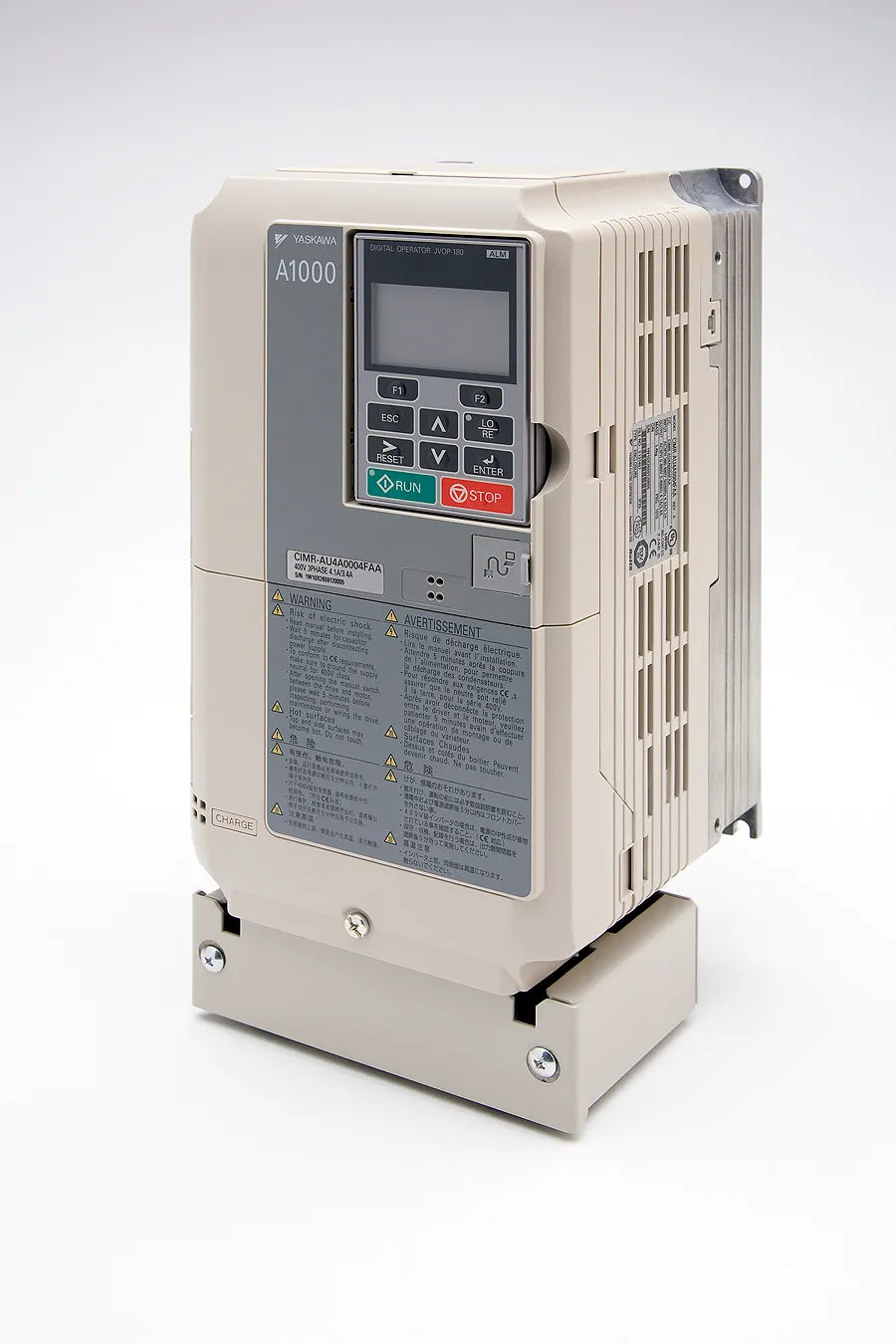

Yaskawa CIMR-AU4A0038FAA
Yaskawa CIMR-AU4A0038FAA
One high-performance AC drive from Yaskawa's A1000 series is the CIMR-AU4A0038FAA. This AC drive is well-suited to a wide range of industrial uses because of its high level of control and efficiency. Because of its exceptional positioning accuracy, speed, and torque, it is well-suited for use in various harsh conditions.
Technical Specifications:
The input voltage and frequency that the Yaskawa CIMR-AU4A0038FAA can handle are 400-480V and 50/60Hz, respectively. Significant industrial applications necessitating dependable power delivery are well-suited to its 18.5 kW power level. The drive can handle heavy loads thanks to its 38 A current rating.
Three control methods—V/f, open-loop vector, and closed-loop vector—are integrated into this model's control scheme. The drive's adaptability makes it suitable for various motor control applications. For a variety of uses, the CIMR-AU4A0038FAA's accurate motor speed control is available across a broad frequency range of 0.01 Hz to 400 Hz.
With an efficiency rating of over 98%, this drive is one of the essential characteristics. This solution is both cost-effective and eco-friendly because of its excellent efficiency, which lowers energy consumption and operational expenses. It also has an EMC filter built in, which helps to reduce electromagnetic interference and keeps the drive running smoothly in different industrial settings.
Yaskawa CIMR-AU4A0038FAA has Modbus RTU, Ethernet, and Profibus interfaces. These communication features enable robust connectivity and control and easy integration into current automation systems. Its 150% overload capability for one minute allows the drive to work well under short bursts of heavy load.
A digital operator with a multi-language display is one of the user-friendly features that simplifies setup and operation on this drive. The drive and motor are safeguarded by its advanced protective functions, which include overcurrent, overvoltage, and undervoltage protection.
Performance and Control:
The CIMR-AU4A0038FAA has sophisticated control capabilities like auto-tuning that optimizes performance by adjusting the driving parameters to match the characteristics of the connected motor. Shortening setup time and boosting system reliability, this function improves the drive's efficiency and performance. The drive is compatible with regenerative braking, which increases efficiency by capturing and reusing energy.
The Yaskawa CIMR-AU4A0038FAA is well-suited for uses that demand high beginning torque and reliable performance under varied loads because of its accurate torque control. Ideal for automated operations and complicated machinery, it responds dynamically to variations in speed and load.
Design and Build Quality:
The Yaskawa CIMR-AU4A0038FAA is designed to withstand the rigors of industrial settings thanks to its high-quality construction. The space-saving design makes it easy to install, and the IP20 protection grade ensures that it is resistant to dust and moisture.
Due to its modular design, the drive is easy to modify and maintain. The cooling fan and control board can be repaired without disassembling the drive, reducing downtime and maintenance costs. The cooling system keeps the drive at appropriate temperatures, extending its longevity.
Frequently Asked Questions:
When faced with unexpectedly high loads, how does the Yaskawa CIMR-AU4A0038FAA respond?
The Yaskawa CIMR-AU4A0038FAA can resist 150% overload for one minute. This allows it to withstand unexpected load spikes without reducing performance, ensuring reliable operation in the most demanding industrial settings.
Does the Yaskawa CIMR-AU4A0038FAA work in a specific frequency range?
Yaskawa CIMR-AU4A0038FAA can handle 0.01 to 400 Hz. In many cases requiring pinpoint accuracy, this capability provides for precise motor speed control.
Is the Yaskawa CIMR-AU4A0038FAA efficient?
The Yaskawa CIMR-AU4A0038FAA has above 98% efficiency. Its remarkable efficiency reduces energy consumption and operational costs, making it an eco-friendly and cost-effective industrial option.
Product Specifications Table:
| Attribute | Specification |
|---|---|
| Input Voltage | 400-480V |
| Power Rating | 18.5 kW (25 HP) |
| Current Rating | 38 A |
| Control Methods | V/f, Open-loop vector, Closed-loop vector |
| Frequency Range | 0.01 Hz to 400 Hz |
| Efficiency | Over 98% |
| Communication Options | Modbus RTU, Ethernet, Profibus |
| Overload Capacity | 150% for one minute |
| Protective Functions | Overcurrent, Overvoltage, Undervoltage protection |
| User Interface | Digital operator with multi-language display |
