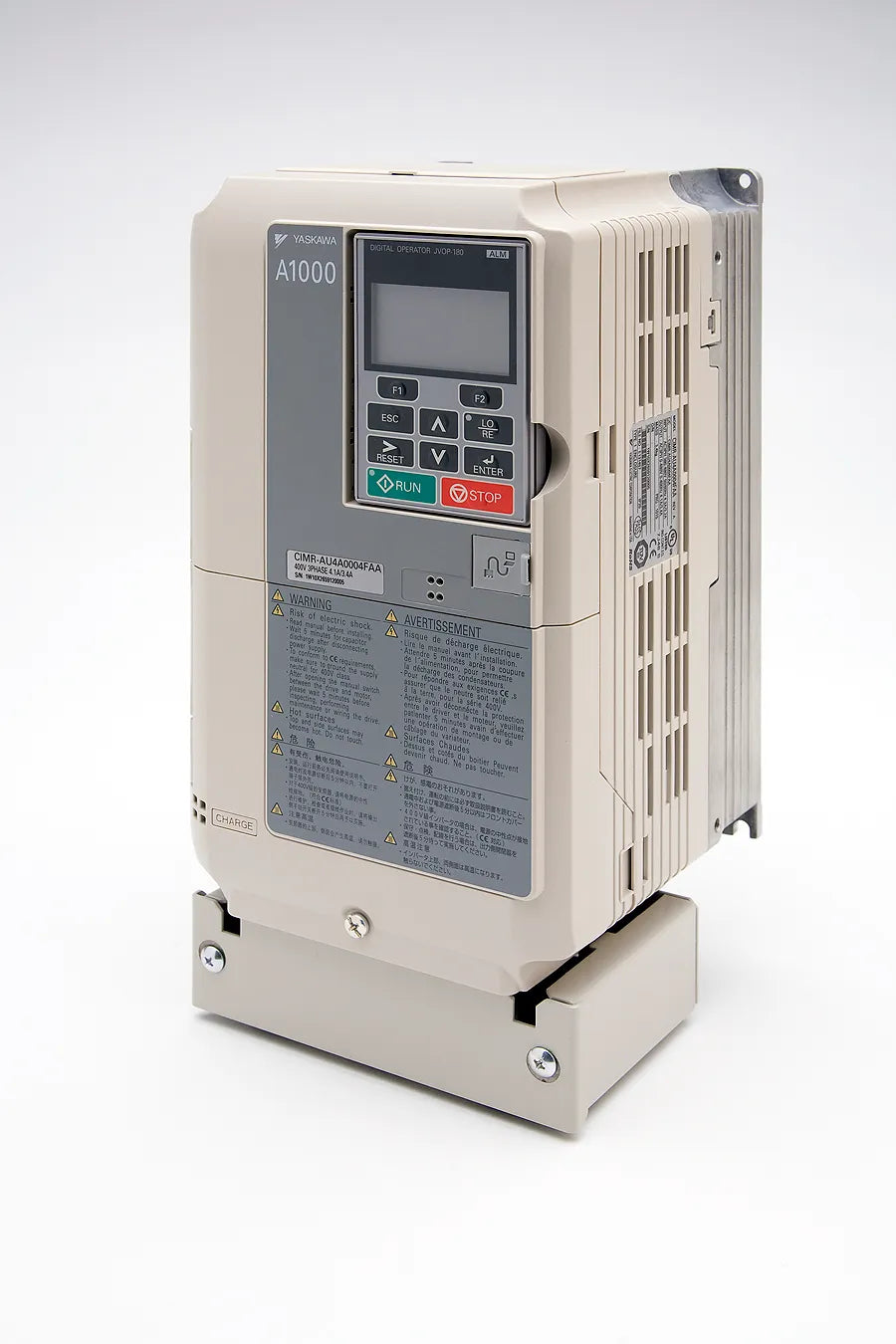

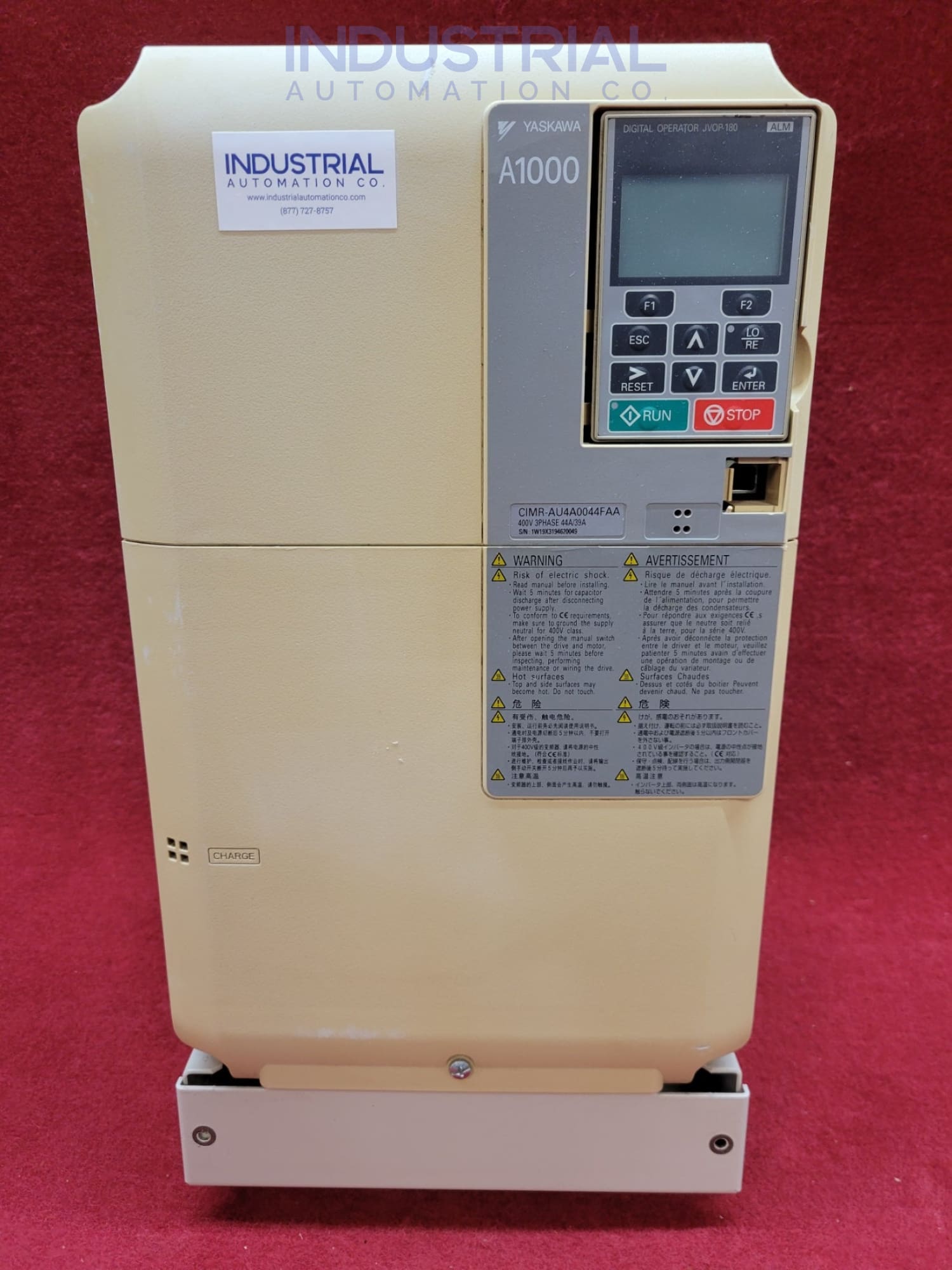

Manufacturer Part Number CIMR-AU4A0044FAA
Manufacturer Yaskawa
Product Series A1000
Family Series Yaskawa Drives, A1000 Series
Description Drive, AC, 25HP, 480V, 3PH, 39A, CT, 30HP, 44A, VT, 15.75in.Hx8.66in.Wx7.76in.D
Input Phase 3
HP (Constant Torque Rating) 25 hp
HP (Variable Torque Rating) 30 hp
Amps (Constant Torque Rating) 39 A
Amps (Variable Torque Rating) 44 A
Braking Type DC Injection, Dynamic Braking Transistor Included
Closed Loop Optional
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 1
Motor Control-Max Level Closed Loop Vector for Permanent Magnet
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 400 Hz
Protection Rating IP20
Dynamic Braking Trans Included
Height 15.75 "
Width 8.66 "
Depth 7.76 "
Net Weight 24.2 lbs
Gross Weight 24.2 lbs
